Terrier TSCC 3 Ton Universal Lifting Screw Clamp - 903000
Terrier TSCC 3 Ton Universal Lifting Screw Clamp - 903000!
Specifications

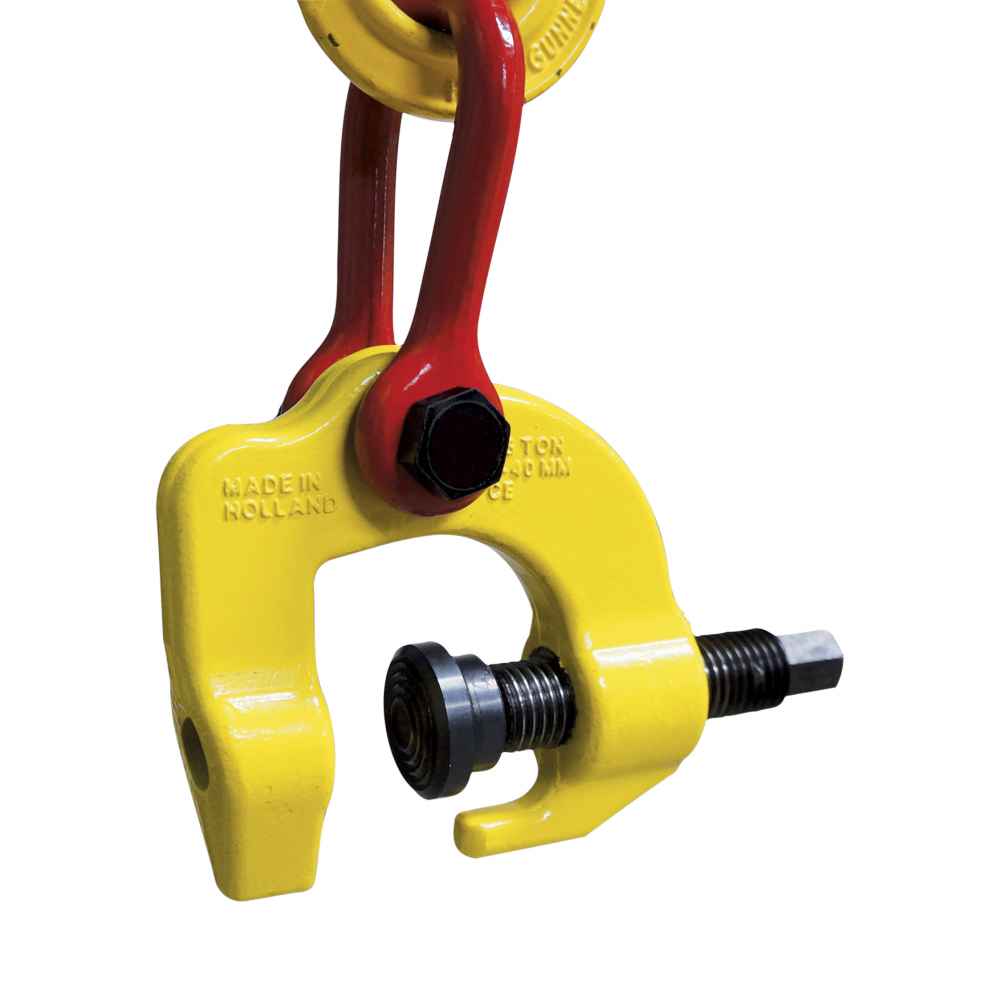

Terrier TSCC 3 Ton Universal Lifting Screw Clamp
The Terrier TSCC 3 Ton screw clamp is a high-strength, universal lifting solution built for safe handling of steel structures in vertical or horizontal positions. Designed with a screw-driven cam and articulated lifting eye, it delivers secure grip and excellent load stability across a wide range of job site and fabrication applications.
Heavy-Duty Clamping for Steel Lifting in Any Orientation
This clamp features a 0" to 2.36" jaw opening and is suitable for lifting materials with hardness up to 37 HRC (420 Brinell). No minimum load is required, and the clamp generates powerful force with just 40 Nm of torque. With a 1.97" lifting eye and 3-ton WLL, it’s ideal for steel plate, beam, or structural component lifting where safety and performance are non-negotiable. Every clamp is proof-tested to 2x capacity and backed by a 5:1 safety factor.
Key Features
- 3 Ton Capacity: Built for heavy-duty lifting of steel structures and components.
- Jaw Opening: Grips securely on materials up to 2.36" thick.
- Articulated Eye: 1.97" diameter lifting eye adjusts with lift direction for balanced handling.

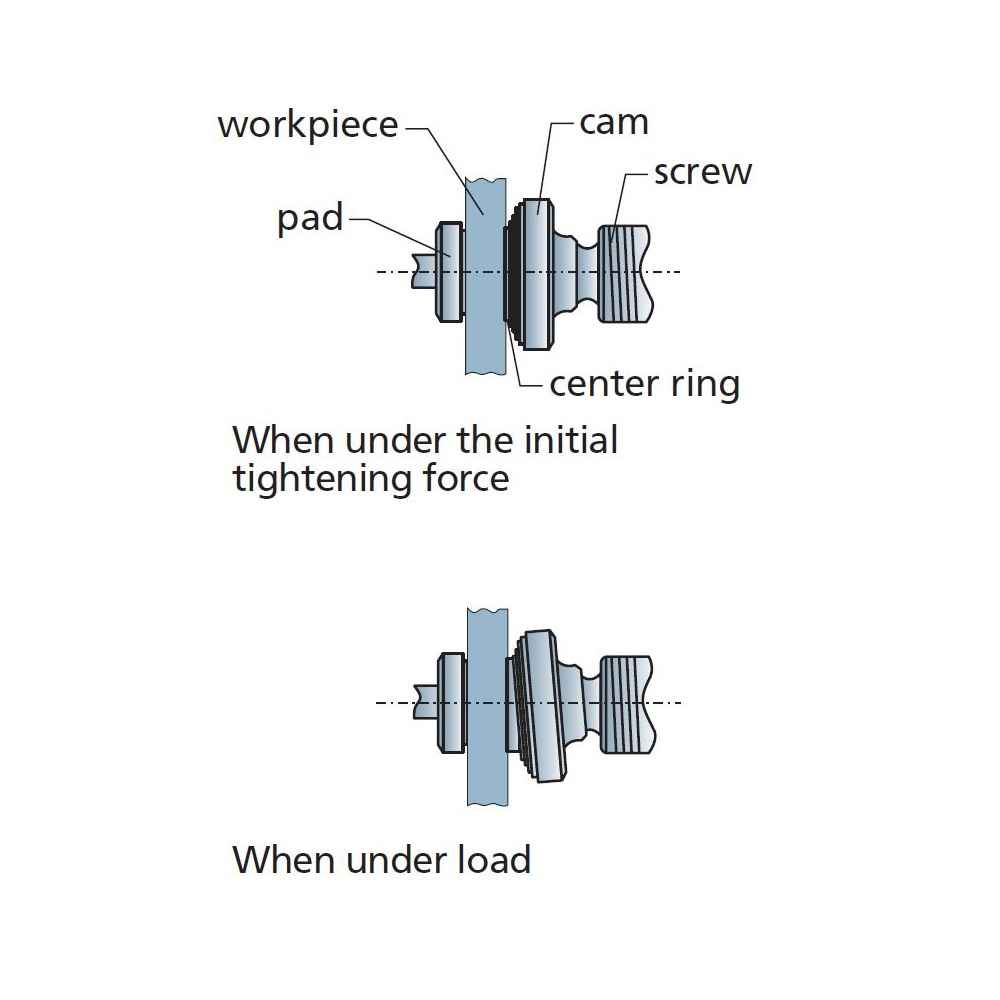

- Screw-Driven Clamp: Moveable cam on threaded spindle provides consistent grip with ≥40 Nm torque.
- No Minimum WLL: Safe and effective from zero load upward-ideal for a wide range of jobs.
- Material Rating: Handles materials up to 37 HRC / 420 Brinell without slippage or wear.
- Certified Strength: Proof-tested to 2x WLL and designed with a 5:1 safety factor for jobsite reliability.
