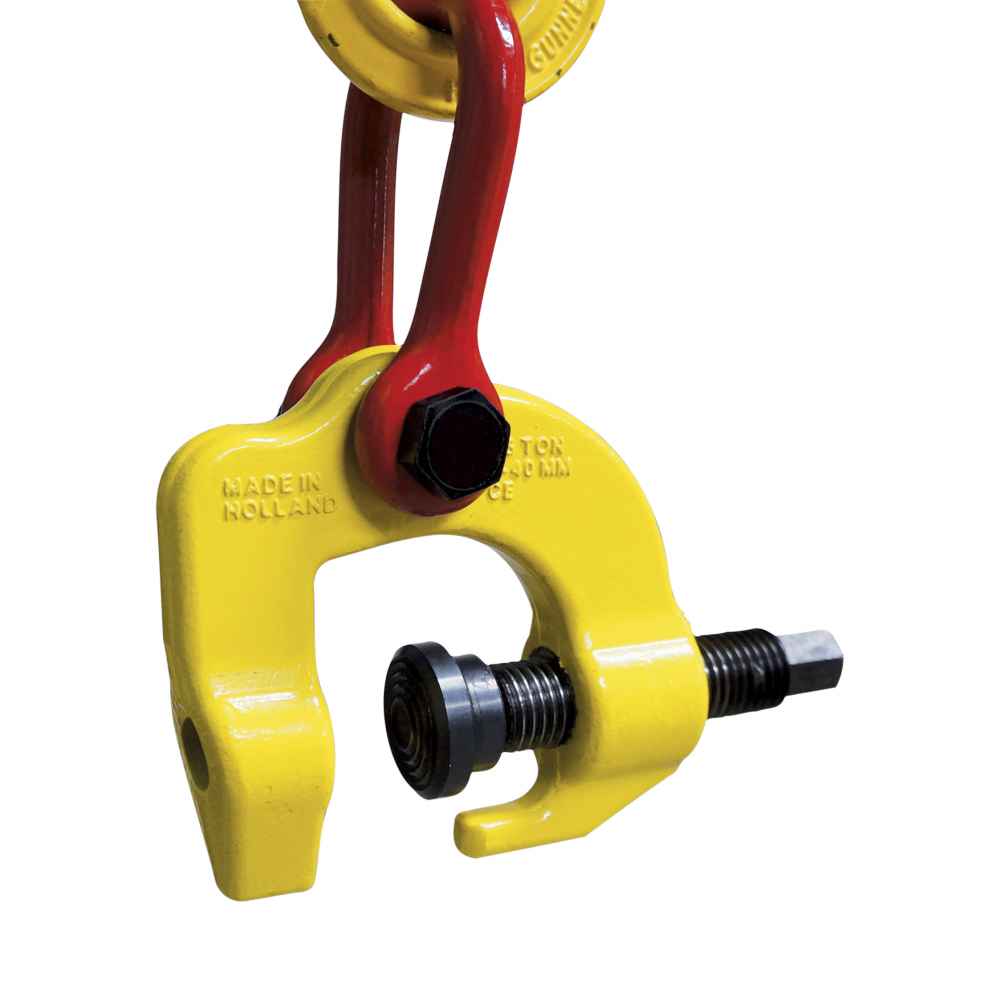

Terrier TSCC 1 Ton Universal Lifting Screw Clamp - 901000
Terrier TSCC 1 Ton Universal Lifting Screw Clamp - 901000!
Terrier TSCC 1 Ton Universal Lifting Screw Clamp - 901000
Specifications
Terrier TSCC 1 Ton Universal Lifting Screw Clamp

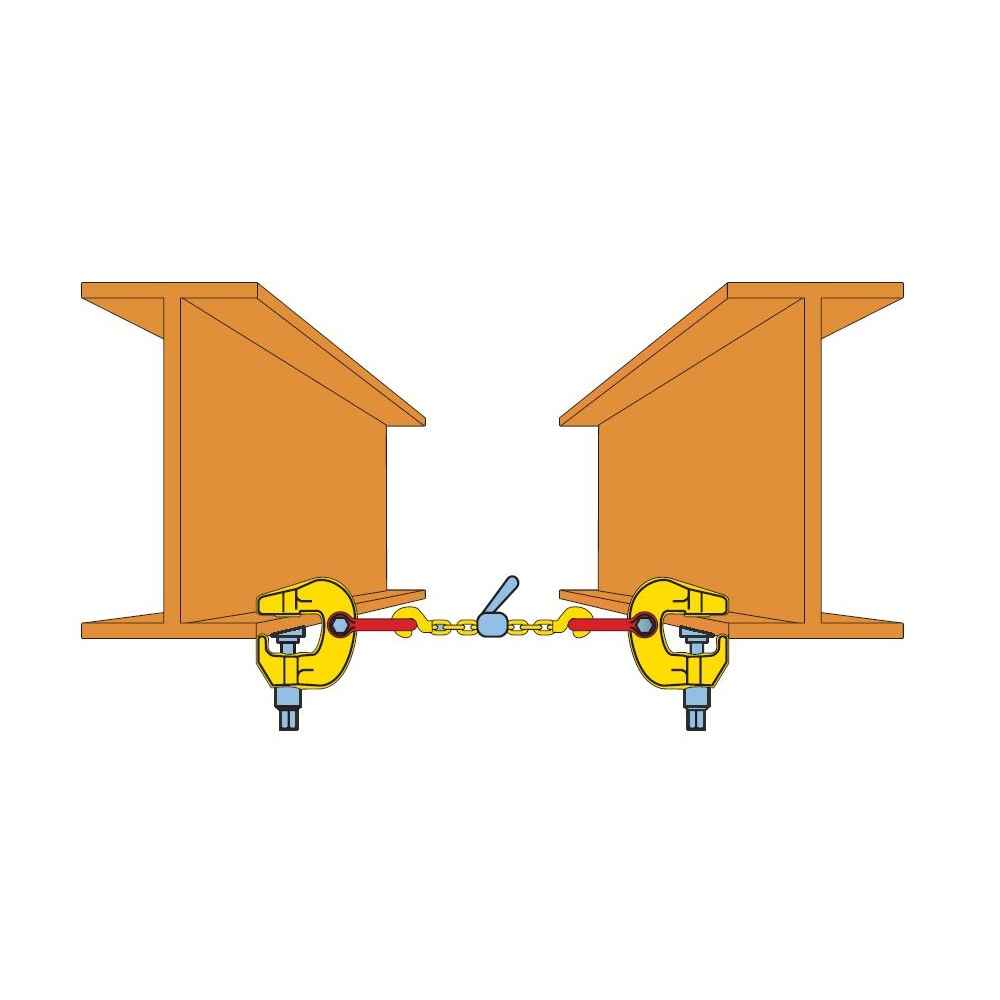

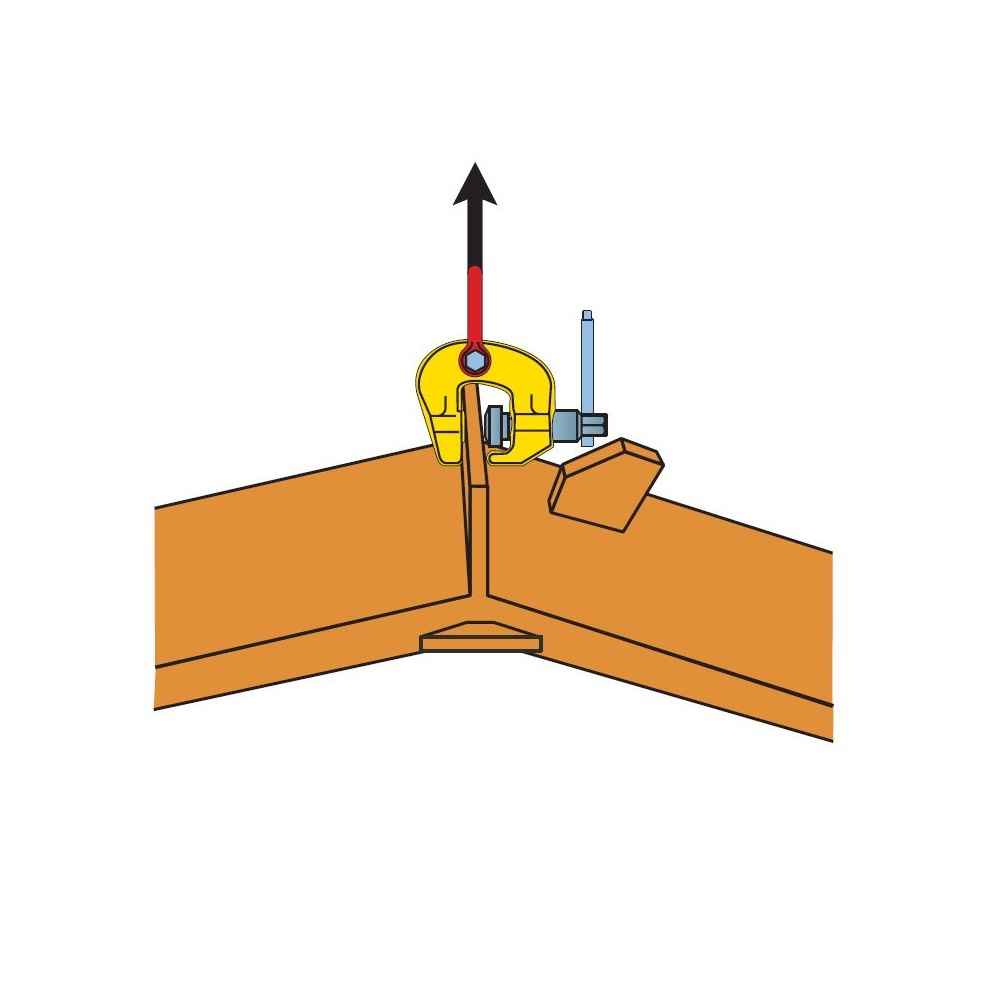

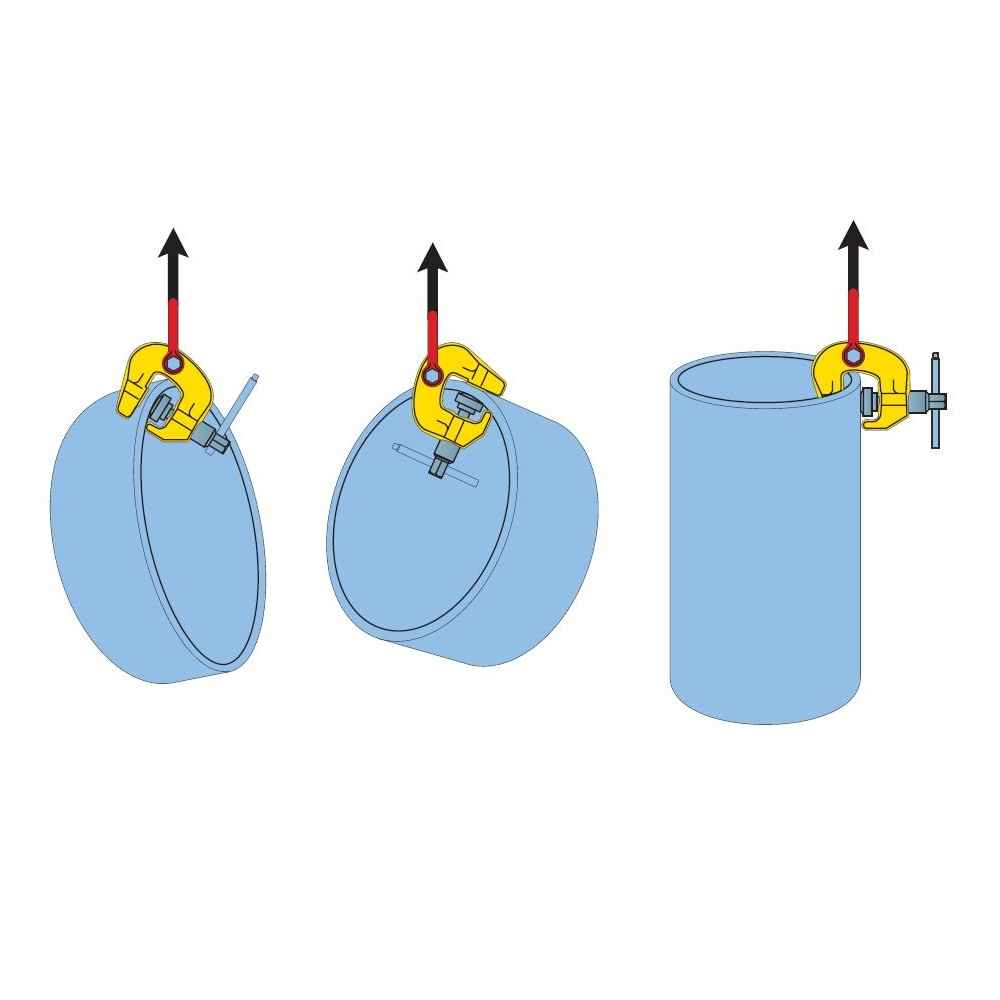

The Terrier TSCC 1 Ton screw clamp is a highly adaptable lifting solution for steel structures requiring secure vertical or horizontal handling. Built with a screw-driven cam system and articulated lifting eye, it delivers a strong, consistent grip across various lifting angles-ideal for steel fabricators, welders, and rigging professionals working with beams, plates, or odd-shaped components.
Versatile Lifting Clamp with Strong, Controlled Grip

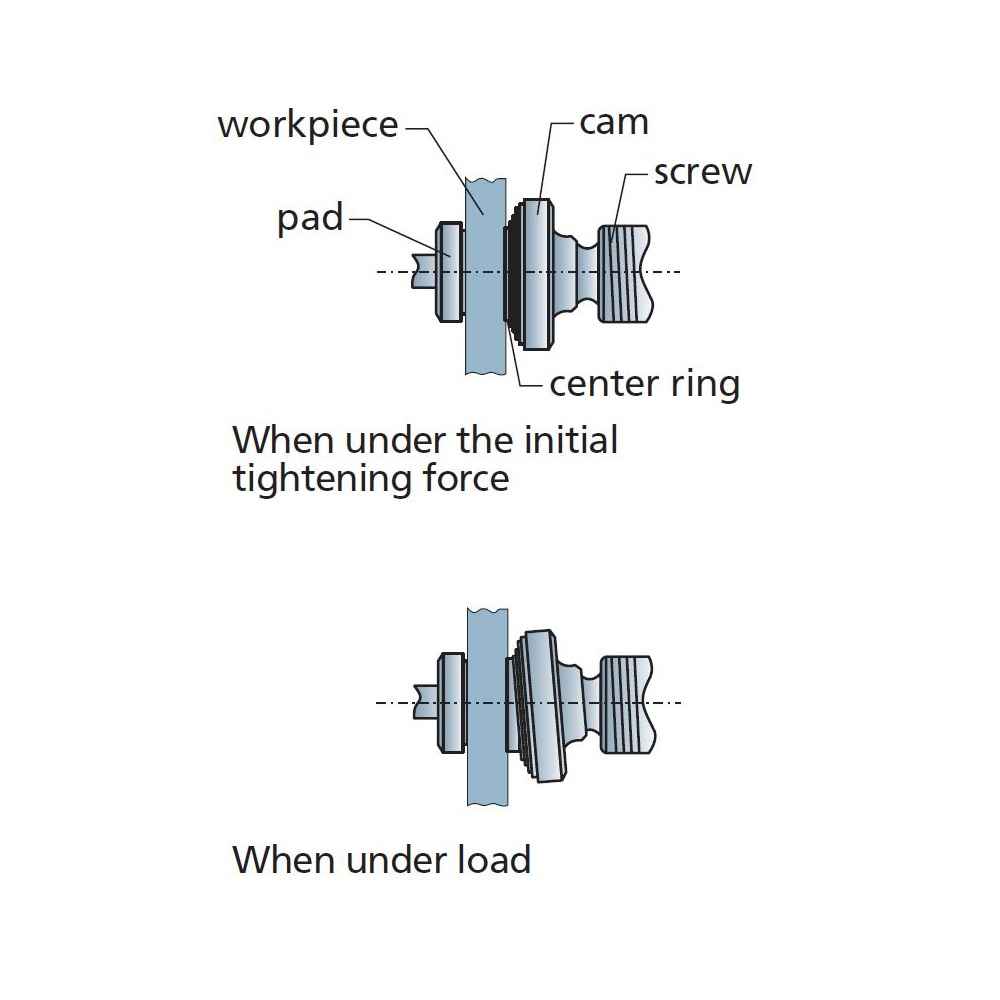

Engineered with a movable cam on a thread spindle, this clamp generates powerful holding force using only 40 Nm of torque. No minimum load is required, and the clamp handles materials up to 37 HRC (420 Brinell) with ease. It’s proof-tested to 2x its WLL and designed with a 5:1 safety factor, giving crews confidence on the floor or in the field.
Key Features
- 1 Ton Capacity: Built for mid-duty lifting of structural steel in multiple orientations.
- Jaw Opening: Accommodates steel components up to 1.57" thick.
- Articulated Eye: 1.81" diameter lifting eye adjusts to lifting angle for controlled, stable lifts.
- Screw Clamp System: Delivers secure grip with minimal torque-at least 40 Nm for full clamping force.
- No Minimum Load: Performs with light or heavy pieces without restriction.
- Material Compatibility: Rated for lifting hardened steel up to 37 HRC / 420 Brinell.
- Proof-Tested Strength: Certified to 2x WLL and designed with a 5:1 break strength ratio.
