Terrier TSCC 1/2 Ton Universal Lifting Screw Clamp - 900500
Terrier TSCC 1/2 Ton Universal Lifting Screw Clamp - 900500!
Specifications

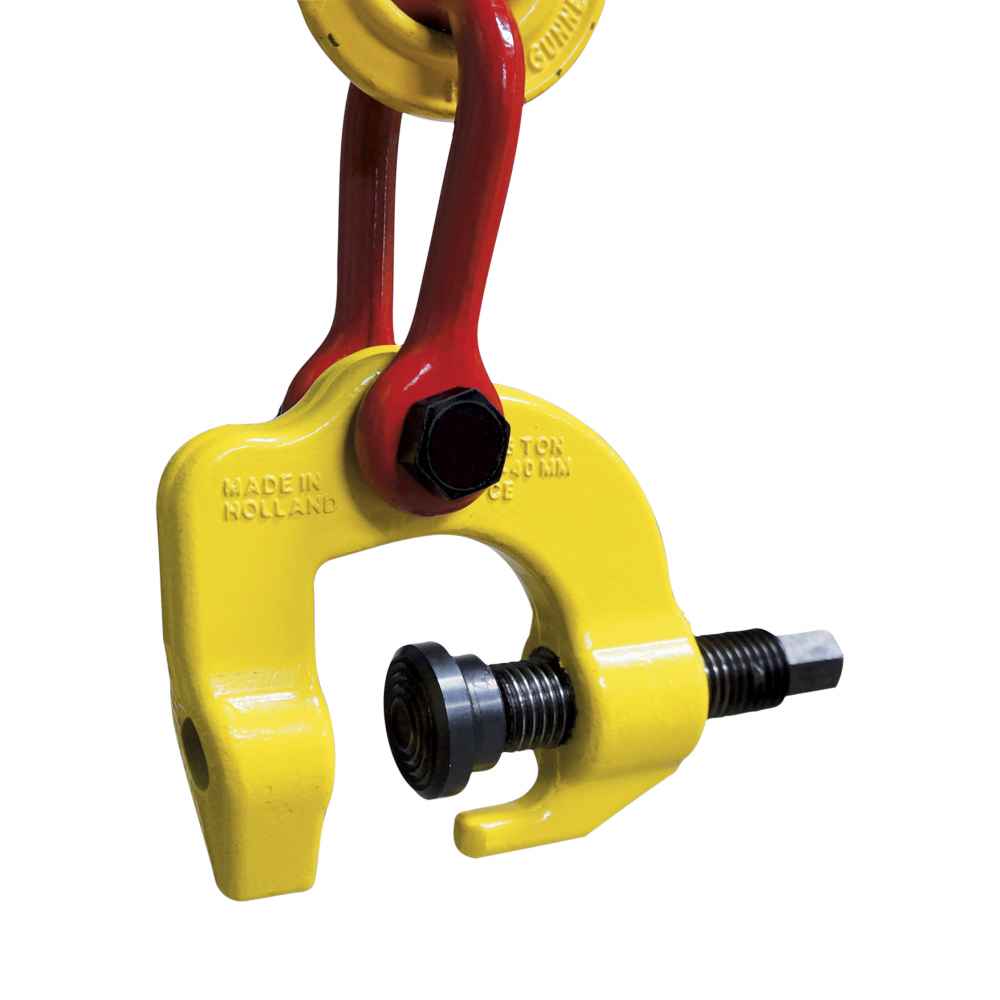

Terrier TSCC 1/2 Ton Universal Lifting Screw Clamp
The Terrier TSCC 1/2 Ton screw clamp offers reliable and versatile lifting for a variety of steel structures. Designed for both horizontal and vertical applications, it features a screw-actuated jaw with a movable cam that delivers powerful clamping force across a wide range of materials. This compact clamp is a go-to tool for precision lifting in fabrication shops, fieldwork, and maintenance operations.

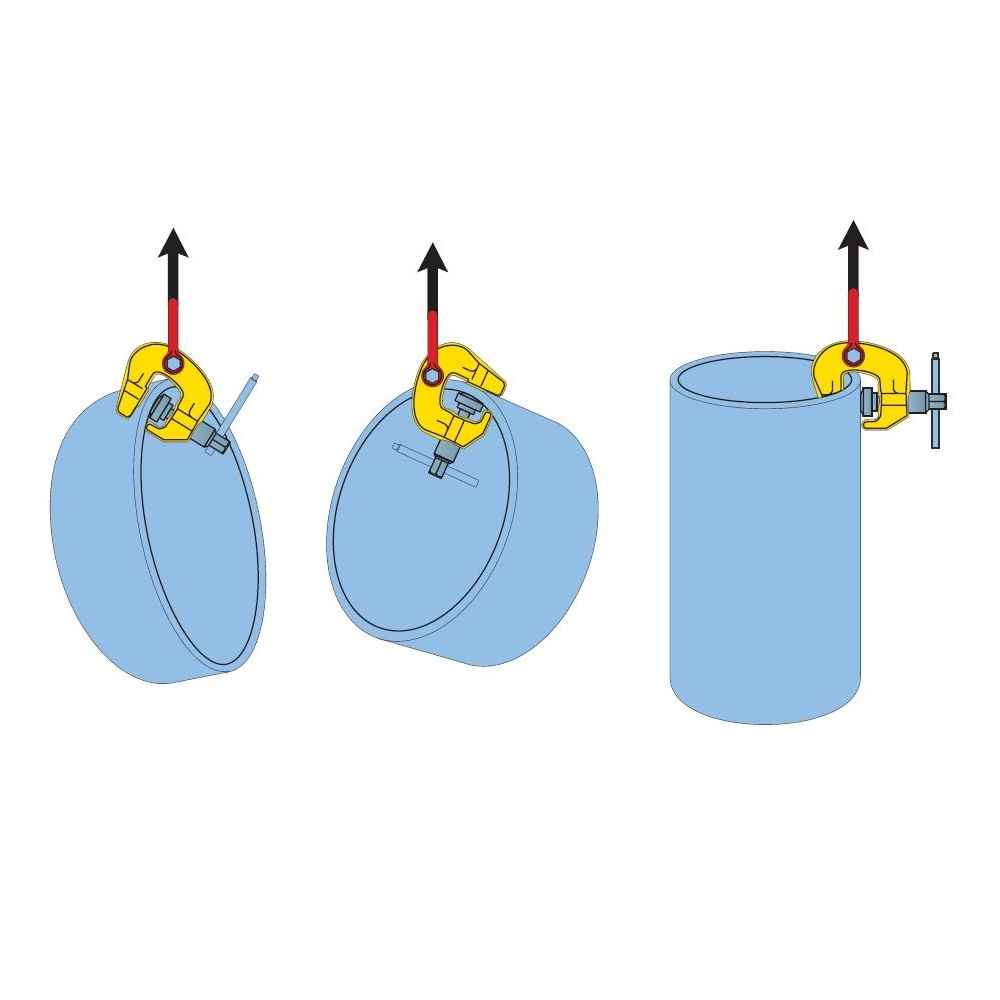

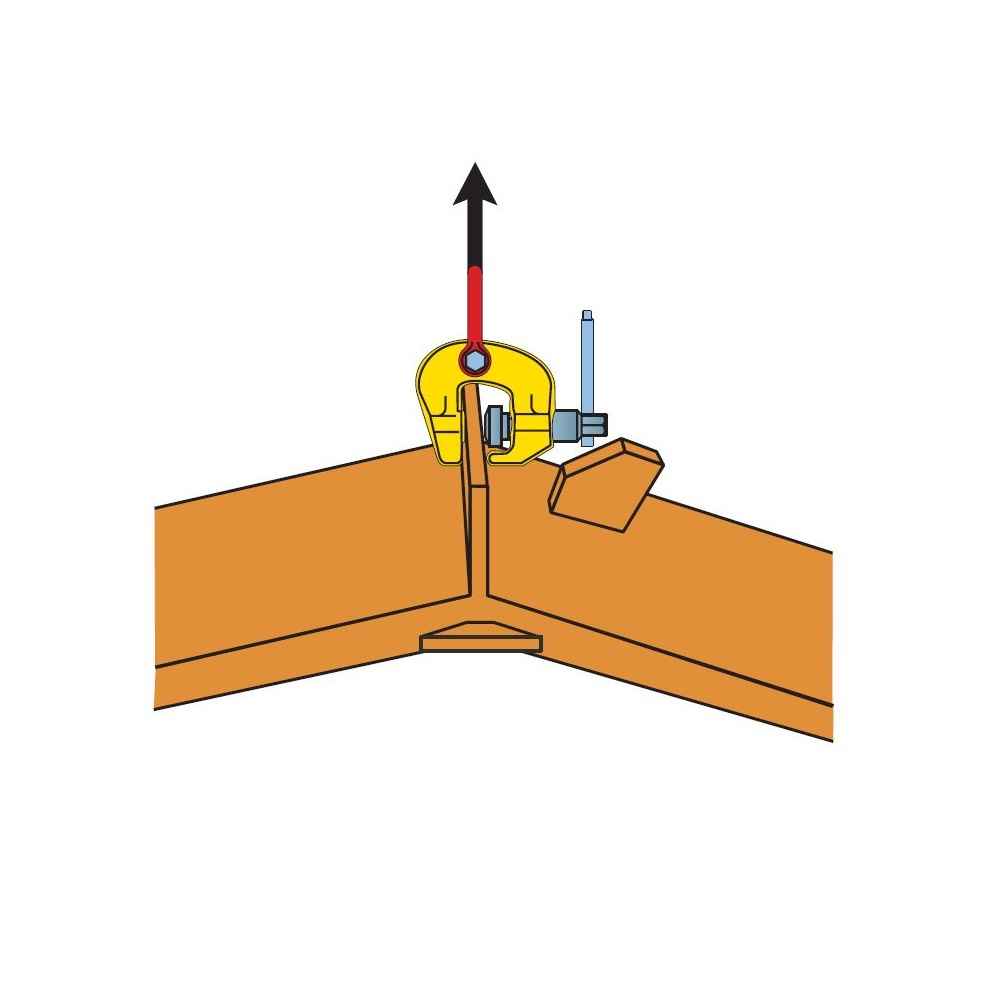

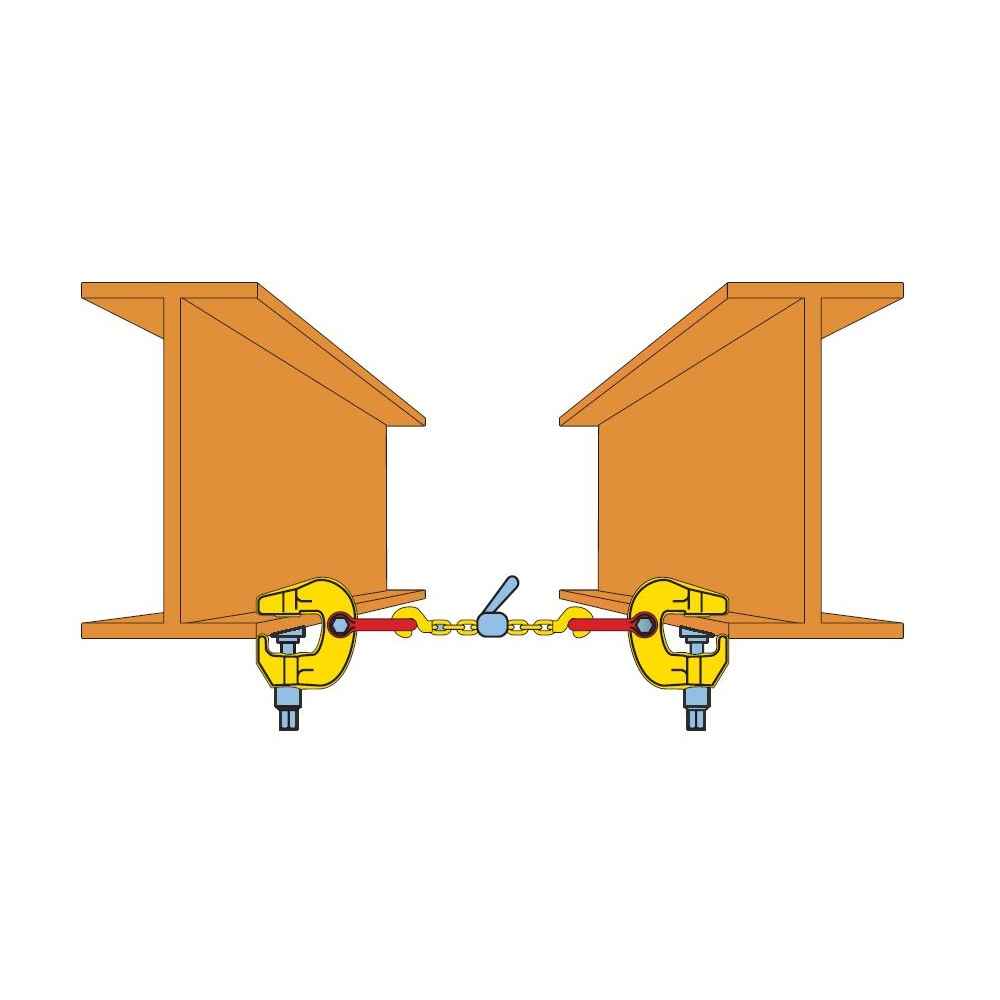

Multi-Position Lifting with Precision and Safety
Built for materials up to 37 HRC (420 Brinell), this universal lifting clamp is proof-tested to 2x its rated load and engineered with a 5:1 safety factor. The articulated eye ensures stable lifting across different angles, while the screw spindle mechanism allows precise tightening with minimal torque-no minimum load required. Ideal for lifting beams, plates, and irregular shapes securely.
Key Features
- 1/2 Ton Capacity: Ideal for small to mid-sized lifting applications in vertical or horizontal positions.
- Adjustable Jaw: Opens from 0" to 1.38" to accommodate a wide variety of steel structures.
- Articulated Lifting Eye: Maintains effective clamping force from any lifting angle.

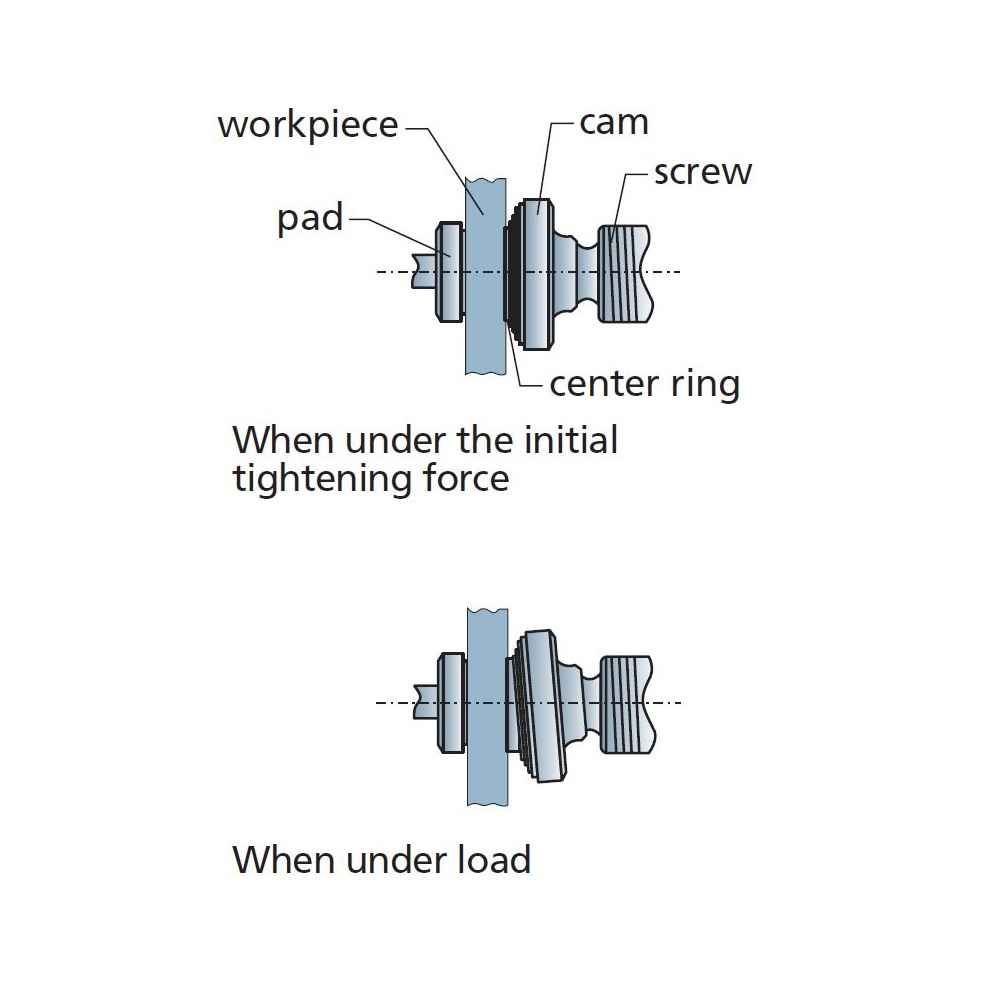

- Screw-Driven Grip: Cam-on-thread spindle delivers secure hold with minimal torque (≥10 Nm).
- No Minimum Load: Capable of safely lifting even lightweight components without restriction.
- Rated for Hard Steel: Handles materials up to 37 HRC (420 Brinell) without compromise.
- Tested & Certified: Proof-tested to 2x WLL and backed by a 5:1 safety factor for jobsite confidence.
