Shop more U/HU I-Joist & SCL Hangers
SKU: HU5.25/12TF

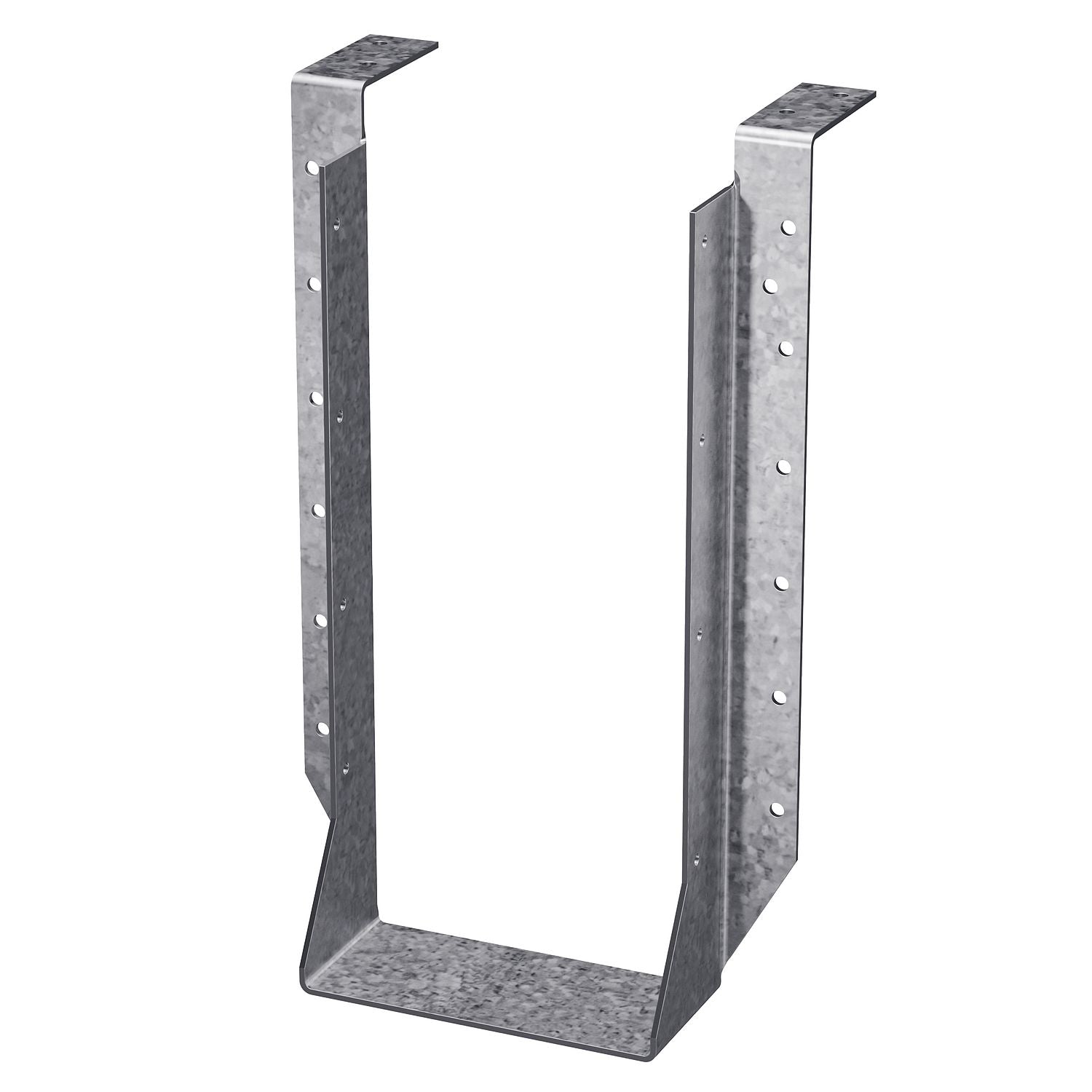

Simpson HU5.25/12TF 5-1/8x12 Heavy Top-Flange Hanger - G90 Galvanized

Simpson HU5.25/12TF 5-1/8x12 Heavy Top-Flange Hanger - G90 Galvanized

Regular price $63.52
Sale price $63.52 Regular price
0% off
Ships in 1-3 business days.

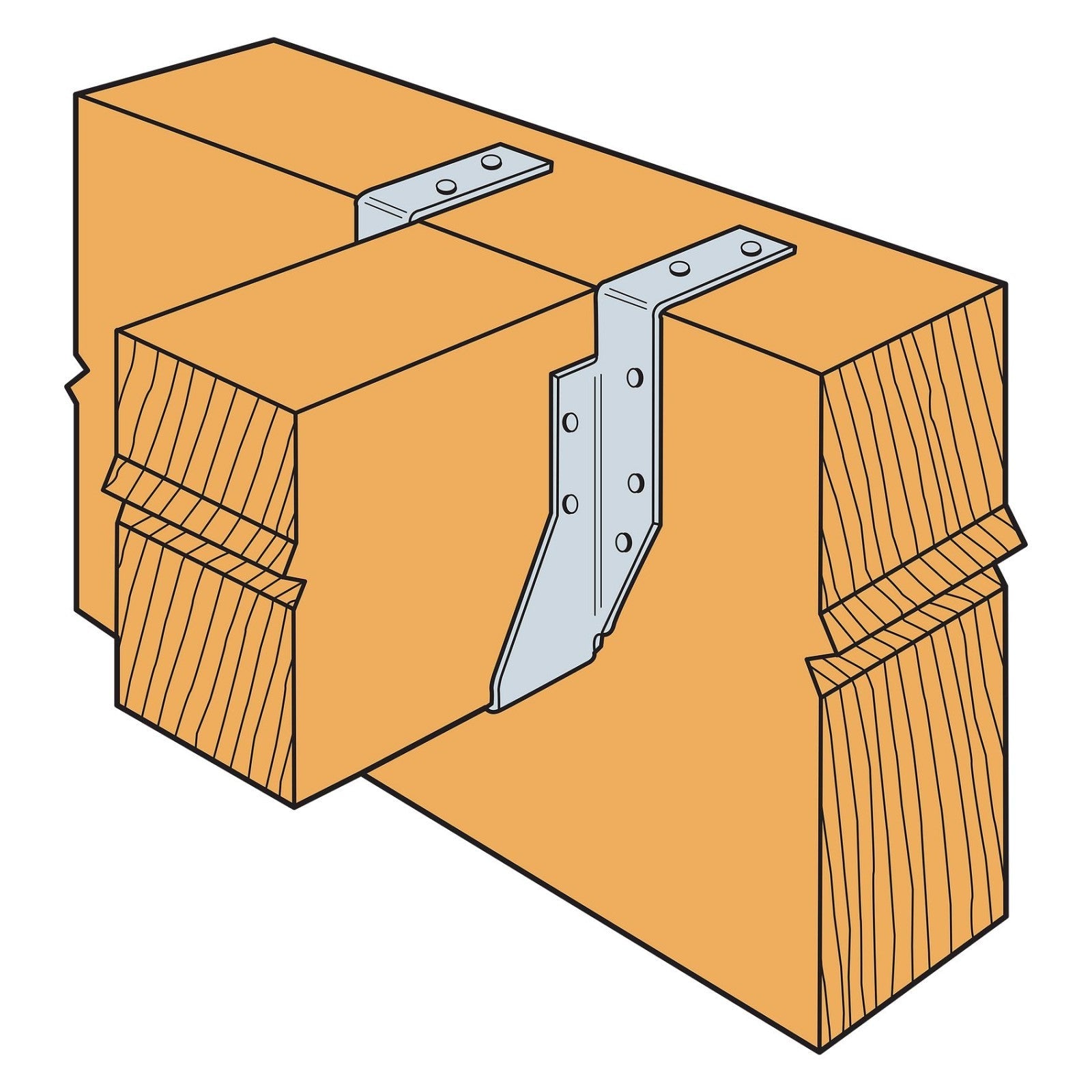

The Simpson HUTF Heavy Top-Flange Hanger is a hybrid hanger that incorporates the advantages of both face-mount and top-mount hangers. This heavy-duty, top-flange joist hanger features face-nailing that allows the hanger to be securely attached to the member. The HUTF is available with one "A" flange concealed.


Sloped and/or Skewed Seat

  • HUTF can be skewed to a maximum of 45° or sloped to a maximum of 45°. HUTF can be skewed and sloped down only, provided W ≥ 2 3/8". No skew with slope up options available.
  • For skews greater than 15°, uplift loads are 0.75 of the table loads. Hangers with a skew greater than 15° may have all the joist nailing on the outside angle.
  • For sloped and skewed combinations, the allowable loads are 0.70 of the table loads.
  • For sloped-down-only hangers, allowable load is 0.78 of the table load.

Concealed Flange

  • HUTF is available with one A flange concealed at 0.85 of the catalog table load.
  • HUTF is available with both flanges concealed provided the W dimension is 2 9/16" or greater, at 0.85 of the table load. See HUCTF for both flanges concealed. No skew options available.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

California Residents: WARNING


Material: Galvanized Steel

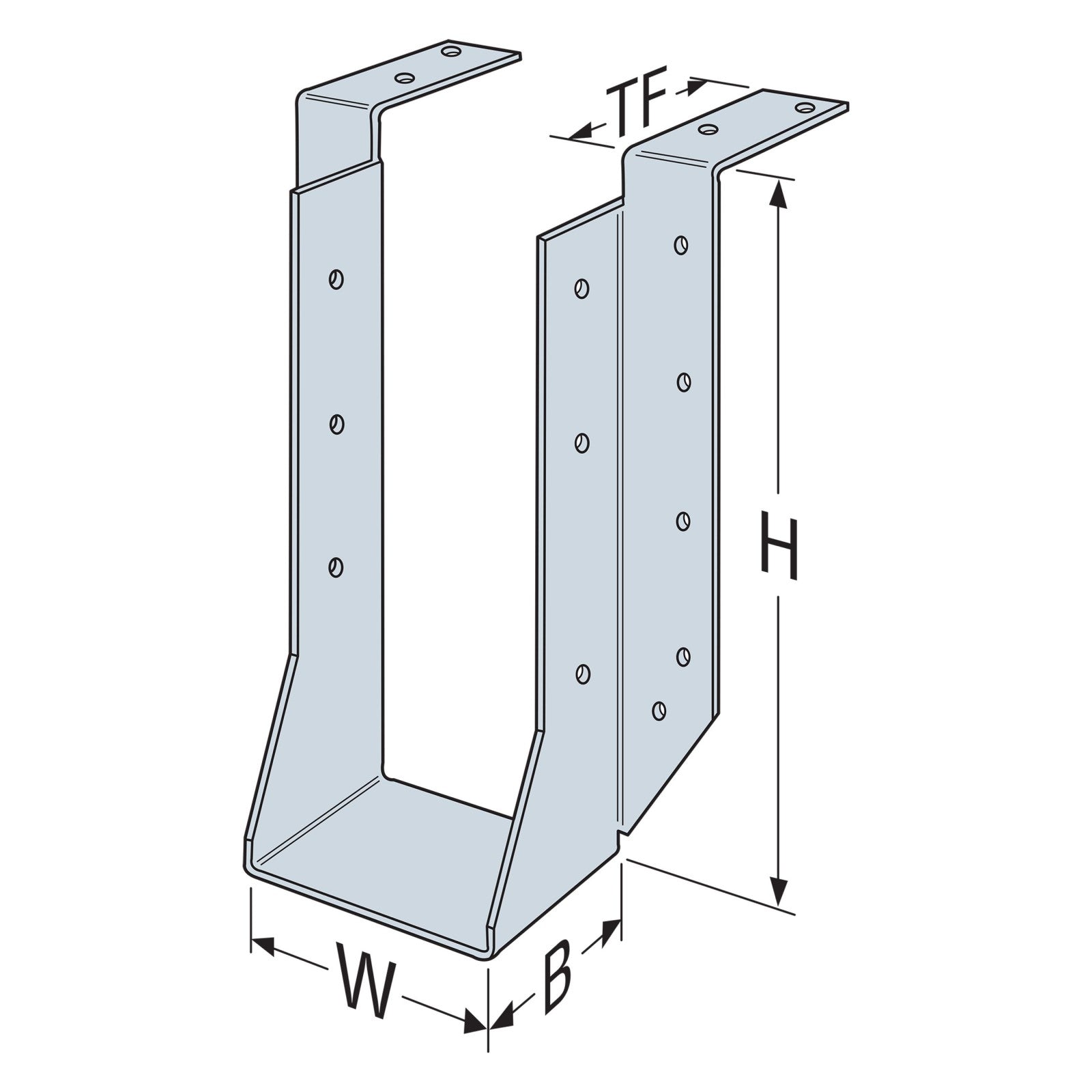

Height: 12"
Fasteners required: Header - (16) 0.162" x 3-1/2" Nails Joist - (6) 0.148" x 3-1/2" Nails
Thickness: 12 Gauge
Quantity: 1
Width: 5-1/4"
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet


Key Features
• Alternate heights and widths available by special order
• Can be skewed or sloped to a maximum of 45°
• HUTF-series hangers are tested, load rated and code listed


• Use all specified fasteners; see General Notes

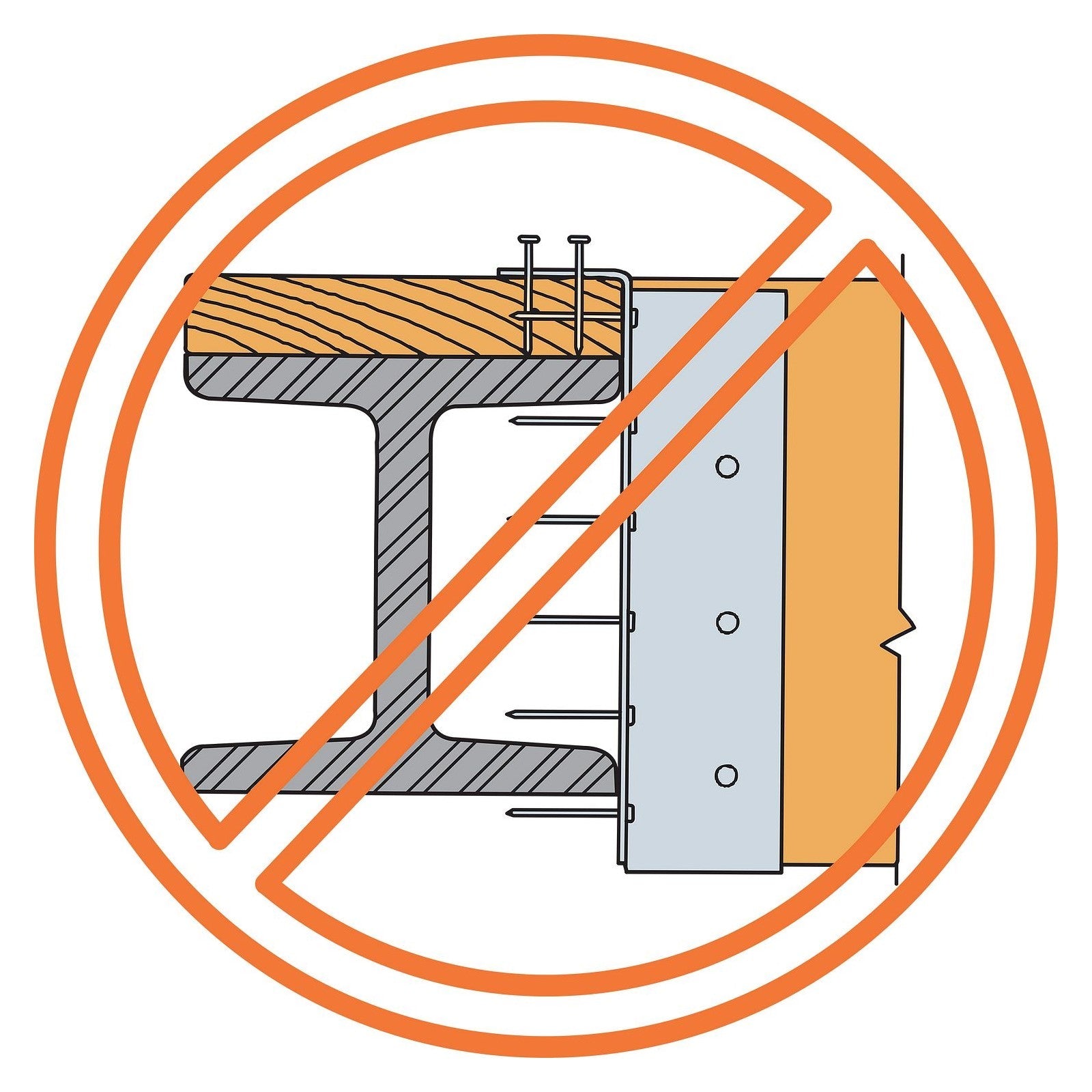

• Not acceptable for nailer or welded applications
• HUTF — the minimum header or ledger size that can be used with this hanger is 3 1/2"
