SKU: HU410TF

Simpson HU410TF 4x10 Top Flange Face Mount Hanger - G90 Galvanized

Simpson HU410TF 4x10 Top Flange Face Mount Hanger - G90 Galvanized!

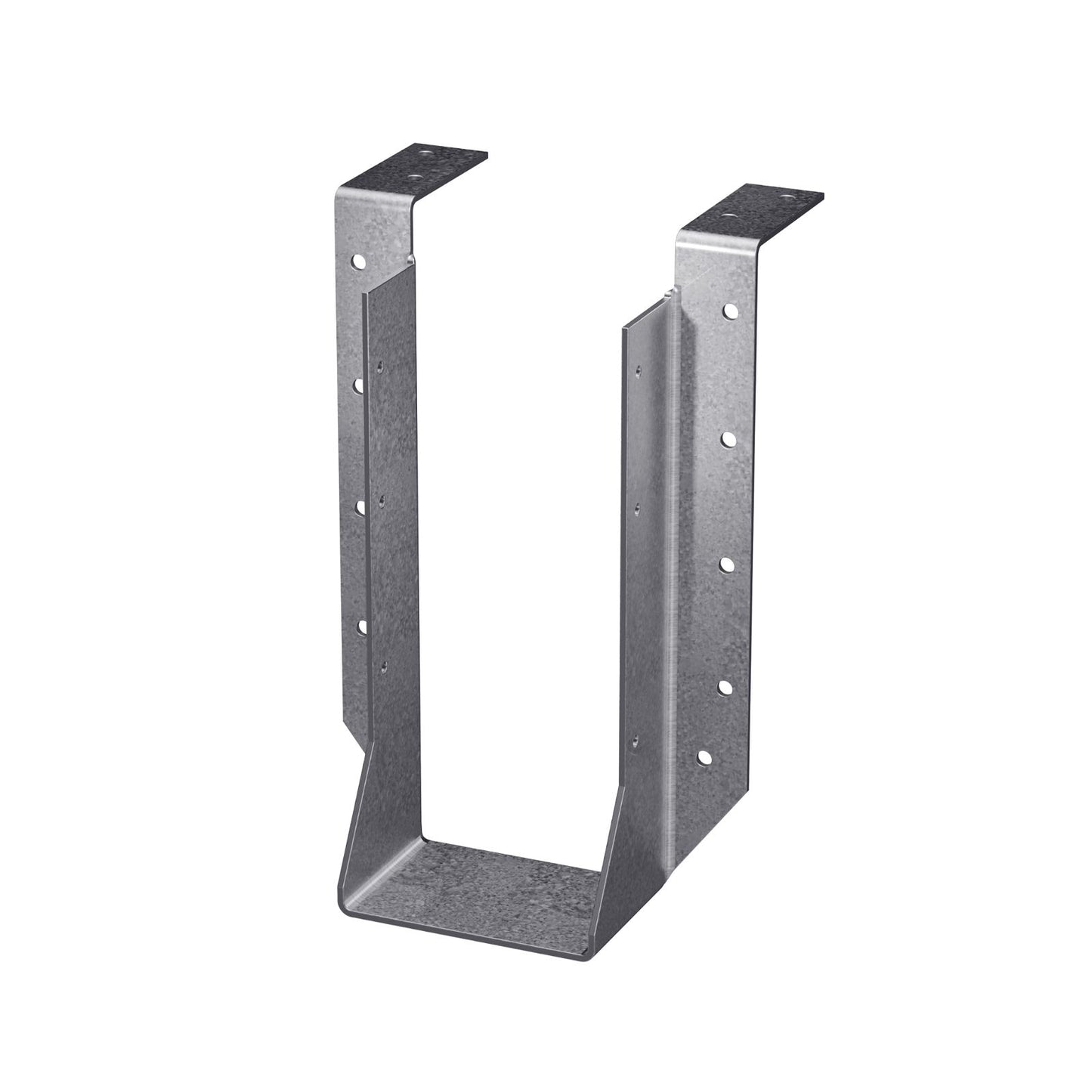

  • Simpson HU410TF 4x10 Top Flange Face Mount Hanger G90 Galvanized

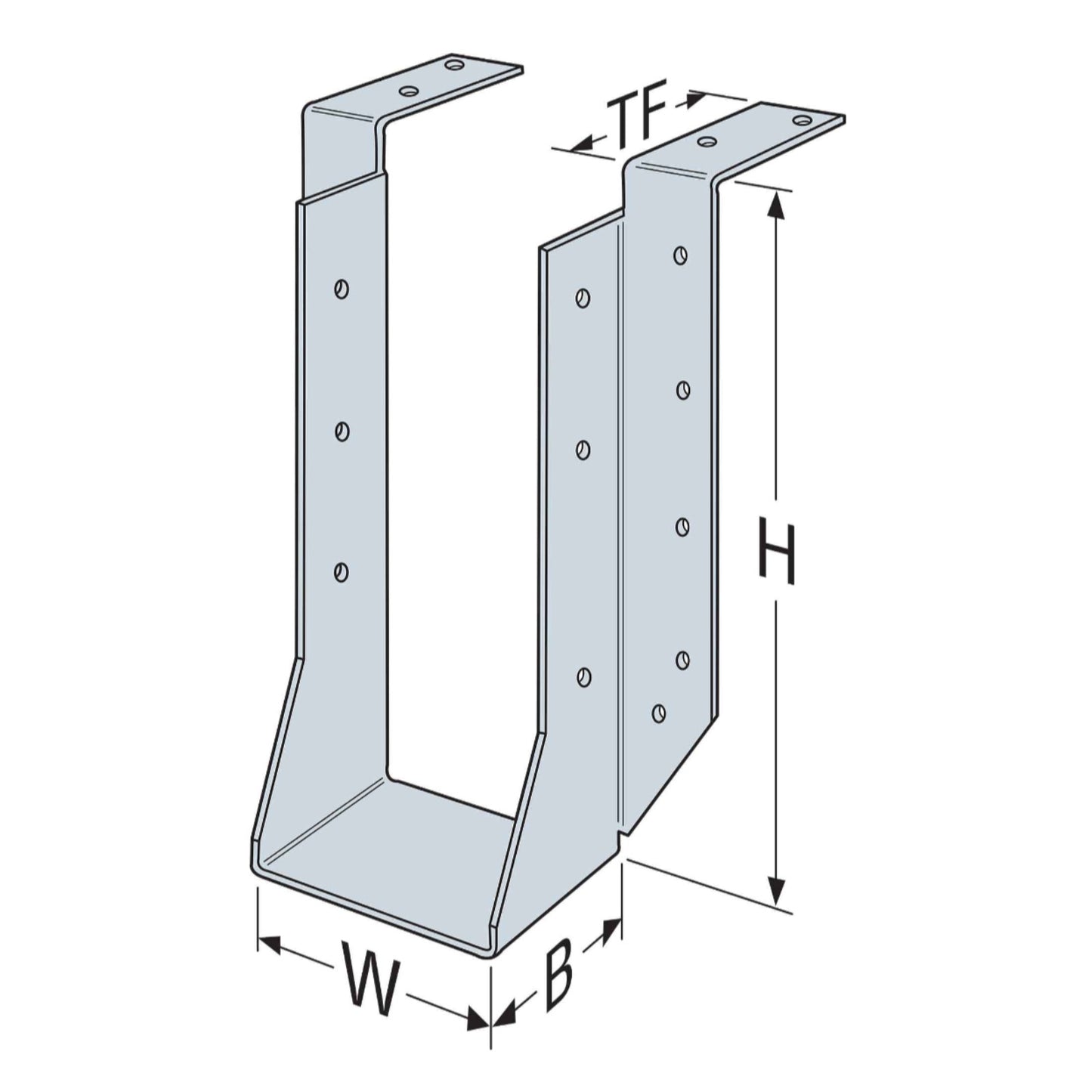

  • Simpson HU410TF 4x10 Top Flange Face Mount Hanger illustration

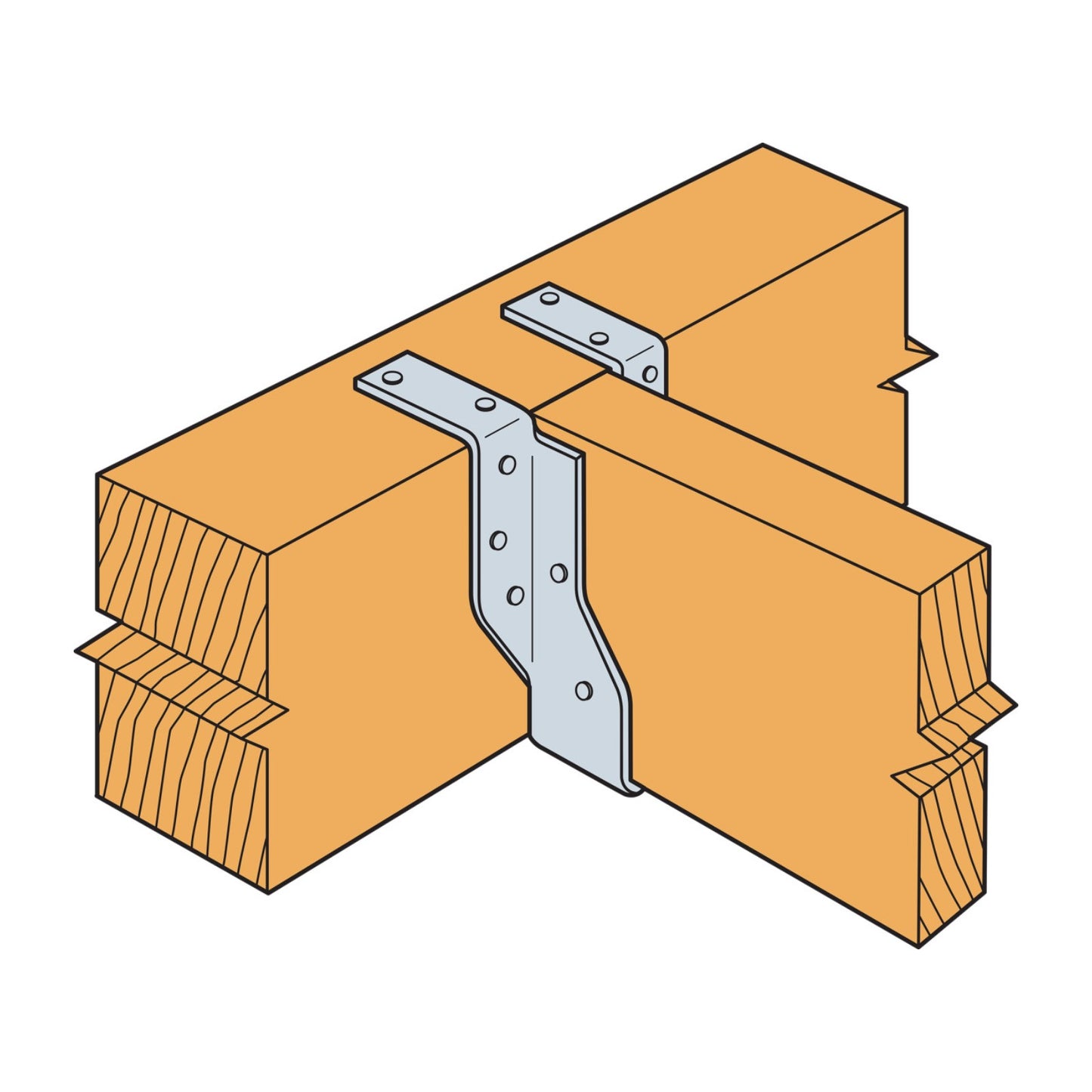

  • Simpson HU410TF 4x10 Top Flange Face Mount Hanger installation
1 3

Continue Browsing

HUTF/HUCTF Top Flange Joist Hangers
SKU: HU410TF

Simpson HU410TF 4x10 Top Flange Face Mount Hanger - G90 Galvanized

$39.39

Request Bulk Pricing
Request Bulk Pricing
Made to Order
Ships in 2-3 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: G90 Galvanized
Fasteners required: Face - (14) 0.162" x 3-1/2" Nails Joist - (6) 0.148" x 3" Nails
For Treated Lumber: No
Height: 9-1/8"
Joist size: 4X10
Manufacturer name: Simpson Strong-Tie
Width: 3-9/16"
Description
  • This item is made to order with varied lead times - Please call us at 888-794-1590 for exact lead times on this product.

Simpson Strong-Tie HUTF hangers are heavy duty 12 gauge top mount hangers. The HUTF series of hangers are not acceptable for nailer or welded applications. The Strong-Tie HU410TF top flange hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:

  • Use all specified fasteners.
  • Not acceptable for nailer or welded applications; see W and B hangers.
  • The minimum header or ledger size that can be used with this hanger is 3 1/2".

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
