SKU: HU212TF

Simpson HU212TF 2x12 Top Flange Face Mount Hanger - G90 Galvanized

Simpson HU212TF 2x12 Top Flange Face Mount Hanger - G90 Galvanized!

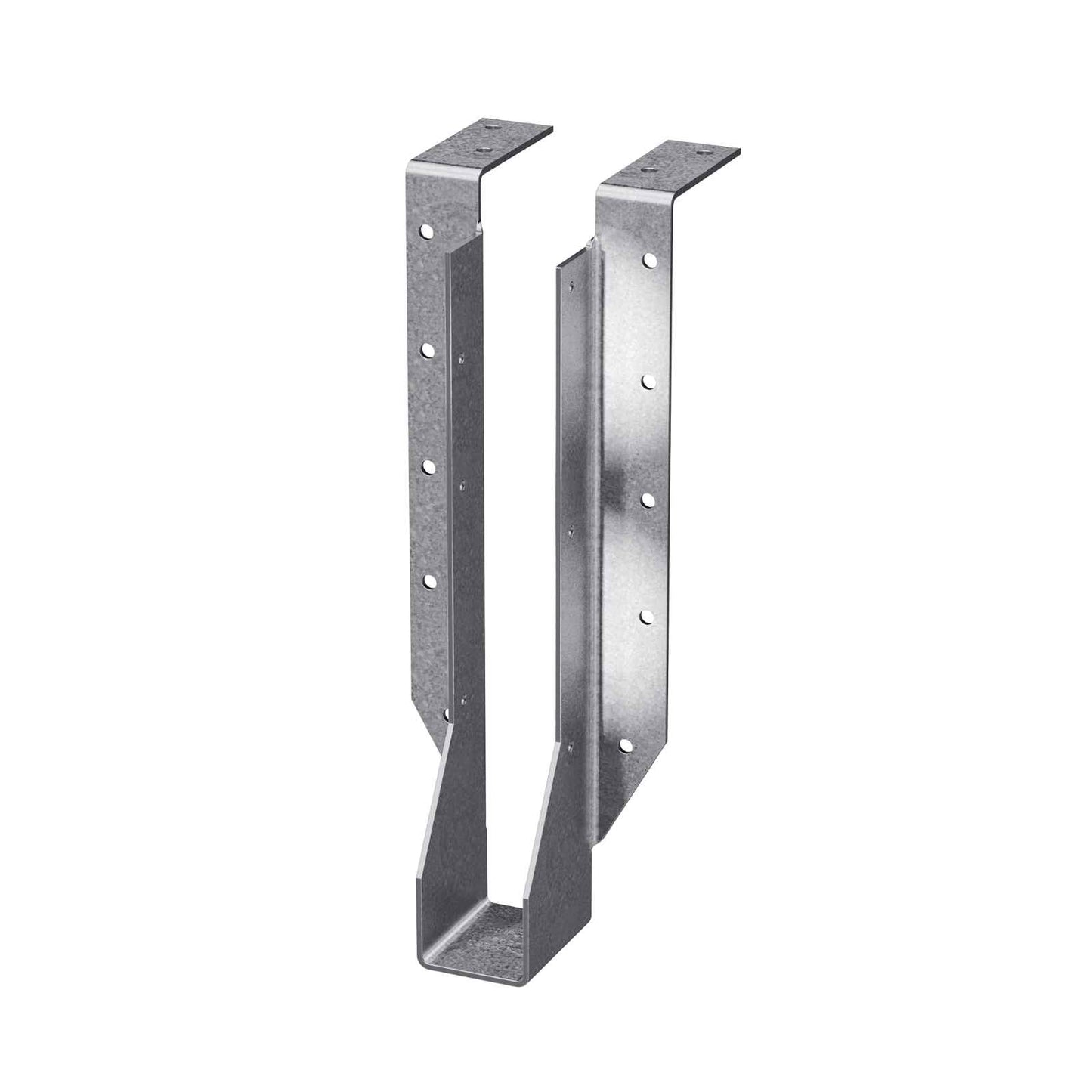

  • Simpson HU212TF 2x12 Top Flange Face Mount Hanger G90 Galvanized
  • Typical HUTF Installation

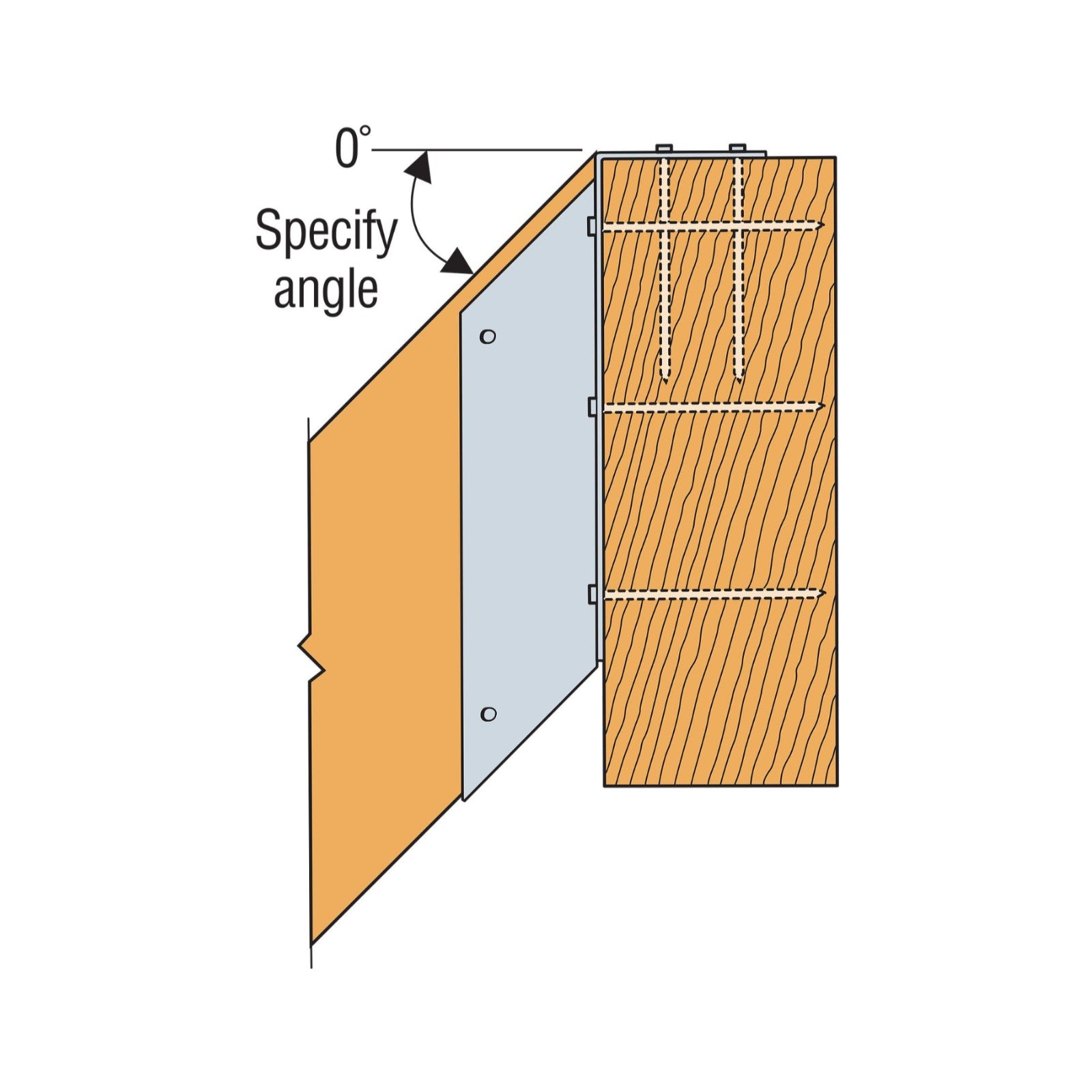

  • Simpson Strong-Tie galvanized HUTF Top Flange Face Mount Hanger sloped installation

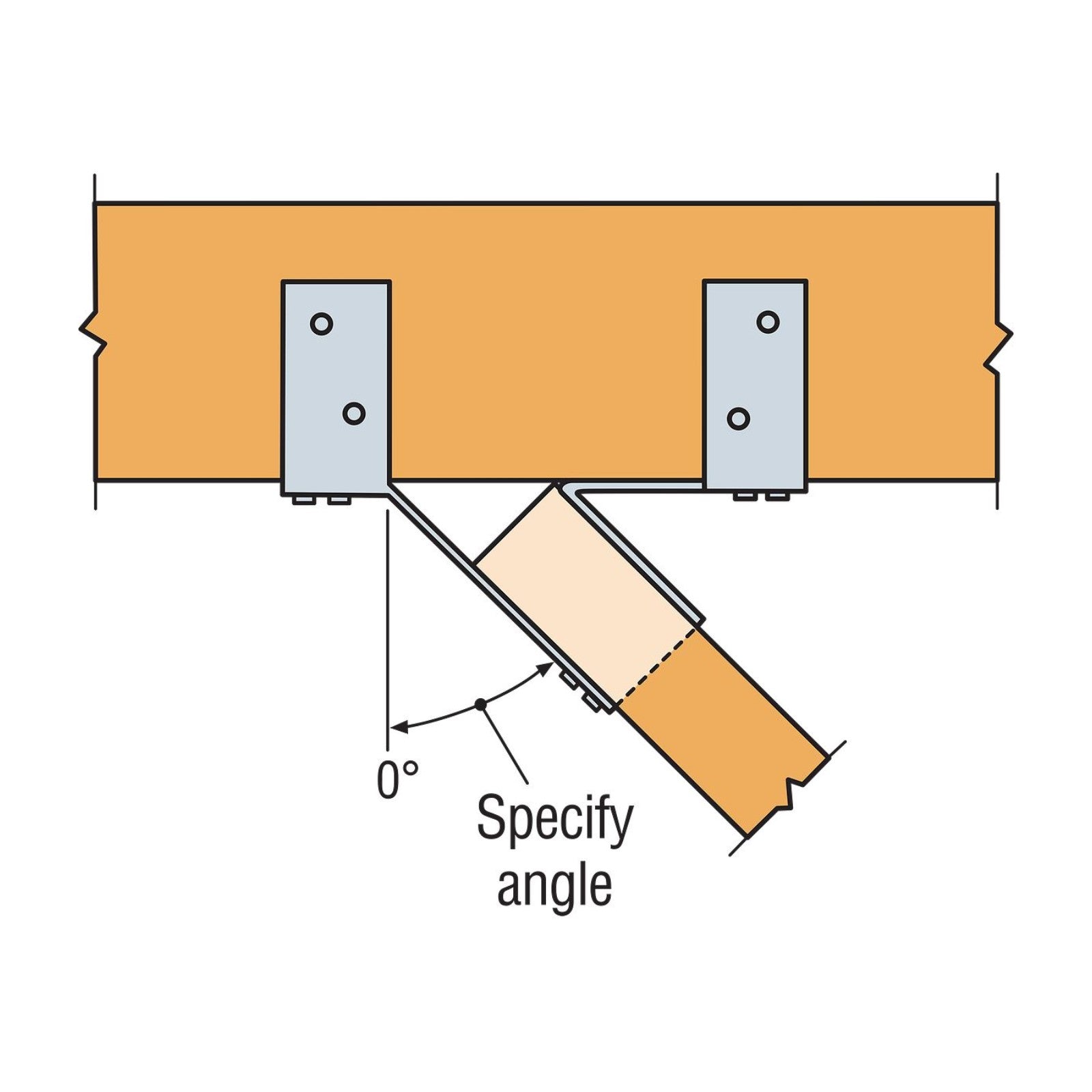

  • Simpson Strong-Tie galvanized HUTF Top Flange Face Mount Hanger angled installation
1 4

Continue Browsing

HUTF/HUCTF Top Flange Joist Hangers
SKU: HU212TF

Simpson HU212TF 2x12 Top Flange Face Mount Hanger - G90 Galvanized

$37.67

Request Bulk Pricing
Request Bulk Pricing
Ships FREE Dec 16 when you add 6 to your cart
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: G90 Galvanized
Fasteners required: Face - (14) 0.162" x 3-1/2" Nails Joist - (6) 0.148" x 1-1/2" Nails
For Treated Lumber: No
Height: 11"
Joist size: 2X12
Manufacturer name: Simpson Strong-Tie
Width: 1-9/16"
Description

Simpson Strong-Tie HUTF hangers are heavy duty 12 gauge top mount hangers. The HUTF series of hangers are not acceptable for nailer or welded applications. The Strong-Tie HU212TF top flange hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Not acceptable for nailer or welded applications; see W and B hangers.
  • The minimum header or ledger size that can be used with this hanger is 3 1/2".

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
