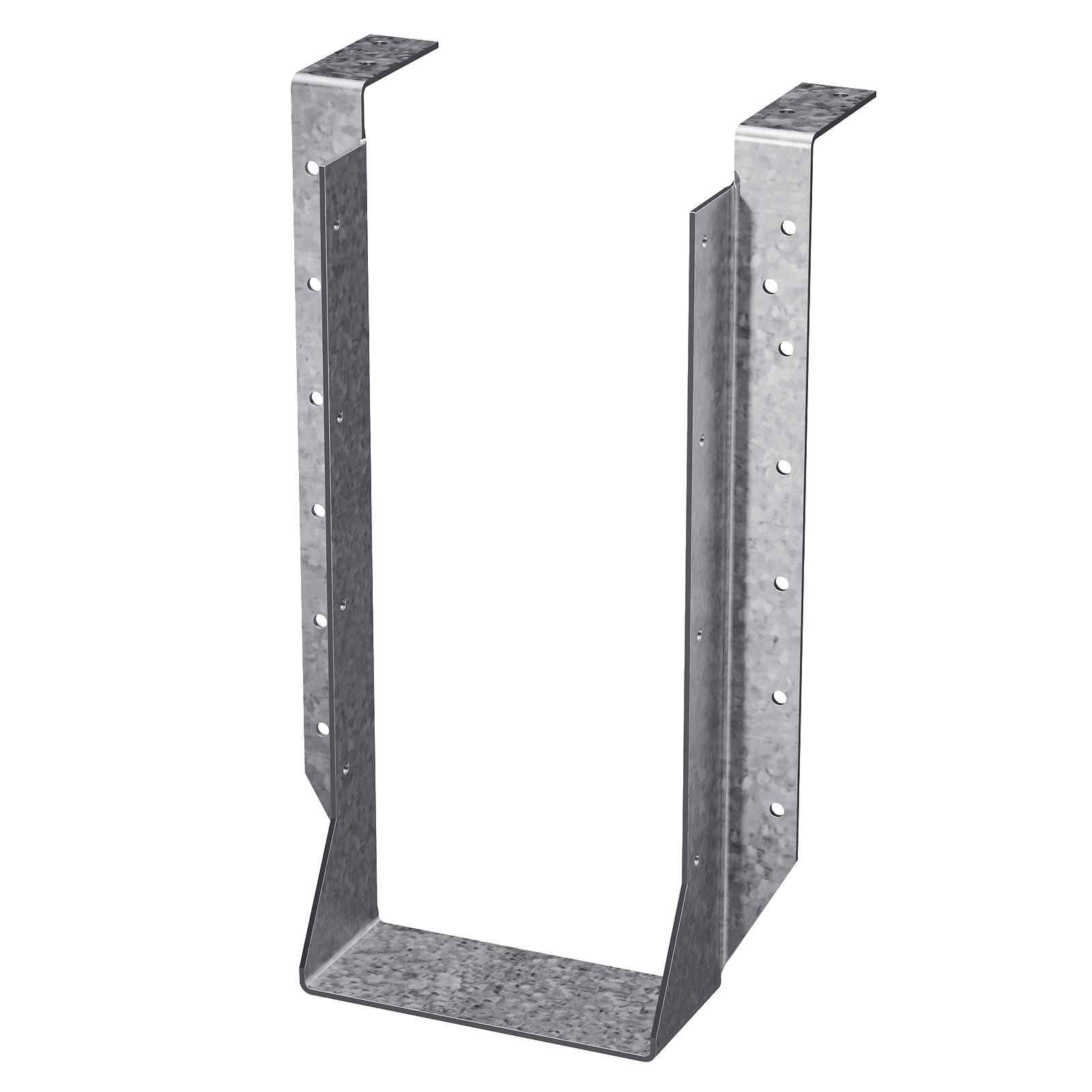

Simpson HU616TF 6 x 16 Top Flange Face Mount Hanger - G90 Galvanized
Simpson HU616TF 6 x 16 Top Flange Face Mount Hanger - G90 Galvanized
Ships in 1-3 business days.
Description:
Description:
Simpson Strong-Tie HUTF hangers are heavy duty 12 gauge top mount hangers. The HUTF series of hangers are not acceptable for nailer or welded applications. The Strong-Tie HU616TF top flange hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Height: 15"
Fasteners required: See Spec Sheet
Thickness: 12 Gauge
Quantity: 1
Width: 5-1/2"
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
Joist size: 6X16
Product Guide: View Spec Sheet
Features
Features
•Alternate heights and widths available by special order
•Can be skewed or sloped to a maximum of 45°
•HUTF-series hangers are tested, load rated and code listed
Installation
Installation
• HUTF-series hangers are tested, load rated and code compliant.
• Not acceptable for nailer or welded applications; see W and B hangers.
• The minimum header or ledger size that can be used with this hanger is 3 1/2".
