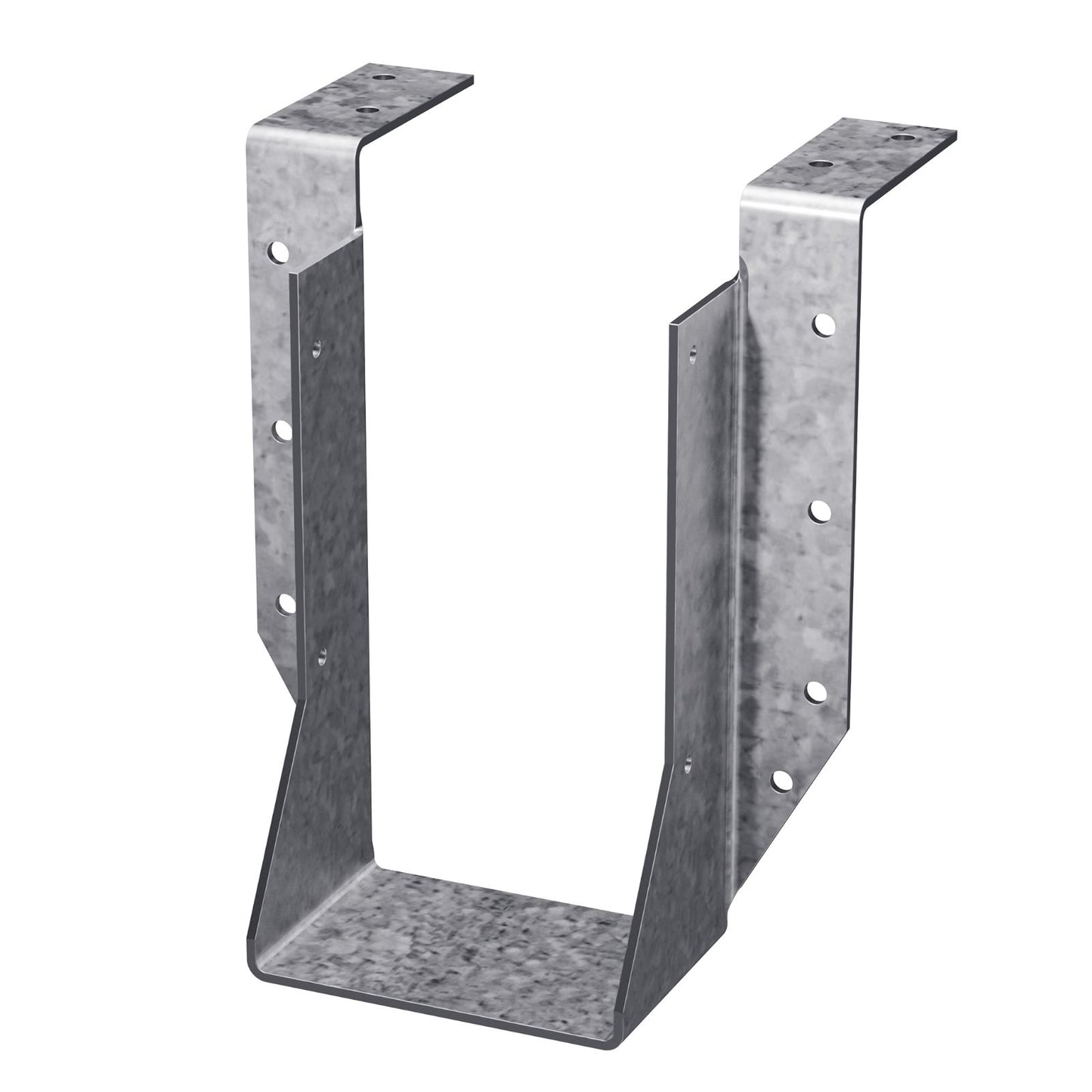

Simpson HU48TF 4x8 Top Flange Face Mount Hanger - G90 Galvanized

SKU: HU48TF
$22.25
Made to Order
Standard Lead Time 2-3 days.

Simpson Strong-Tie HUTF hangers are heavy duty 12 gauge top mount hangers. The HUTF series of hangers are not acceptable for nailer or welded applications. The Strong-Tie HU48TF top flange hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Not acceptable for nailer or welded applications; see W and B hangers.
  • The minimum header or ledger size that can be used with this hanger is 3 1/2".

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Simpson Strong-Tie HUTF hangers are heavy duty 12 gauge top mount hangers. The HUTF series of hangers are not acceptable for nailer or welded appli...

Read More

Simpson Strong-Tie HUTF hangers are heavy duty 12 gauge top mount hangers. The HUTF series of hangers are not acceptable for nailer or welded applications. The Strong-Tie HU48TF top flange hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Not acceptable for nailer or welded applications; see W and B hangers.
  • The minimum header or ledger size that can be used with this hanger is 3 1/2".

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

finish spec:
G90 Galvanized

manufacturer name:
Simpson Strong-Tie

fasteners required:
Face - (12) 0.162" x 3-1/2" Nails
Joist - (4) 0.148" x 3" Nails

for treated lumber:
no

height:
7-1/8"

joist size:
4X8

thickness:
12 Gauge

width spec:
3-9/16"

Product Spec Sheet:
