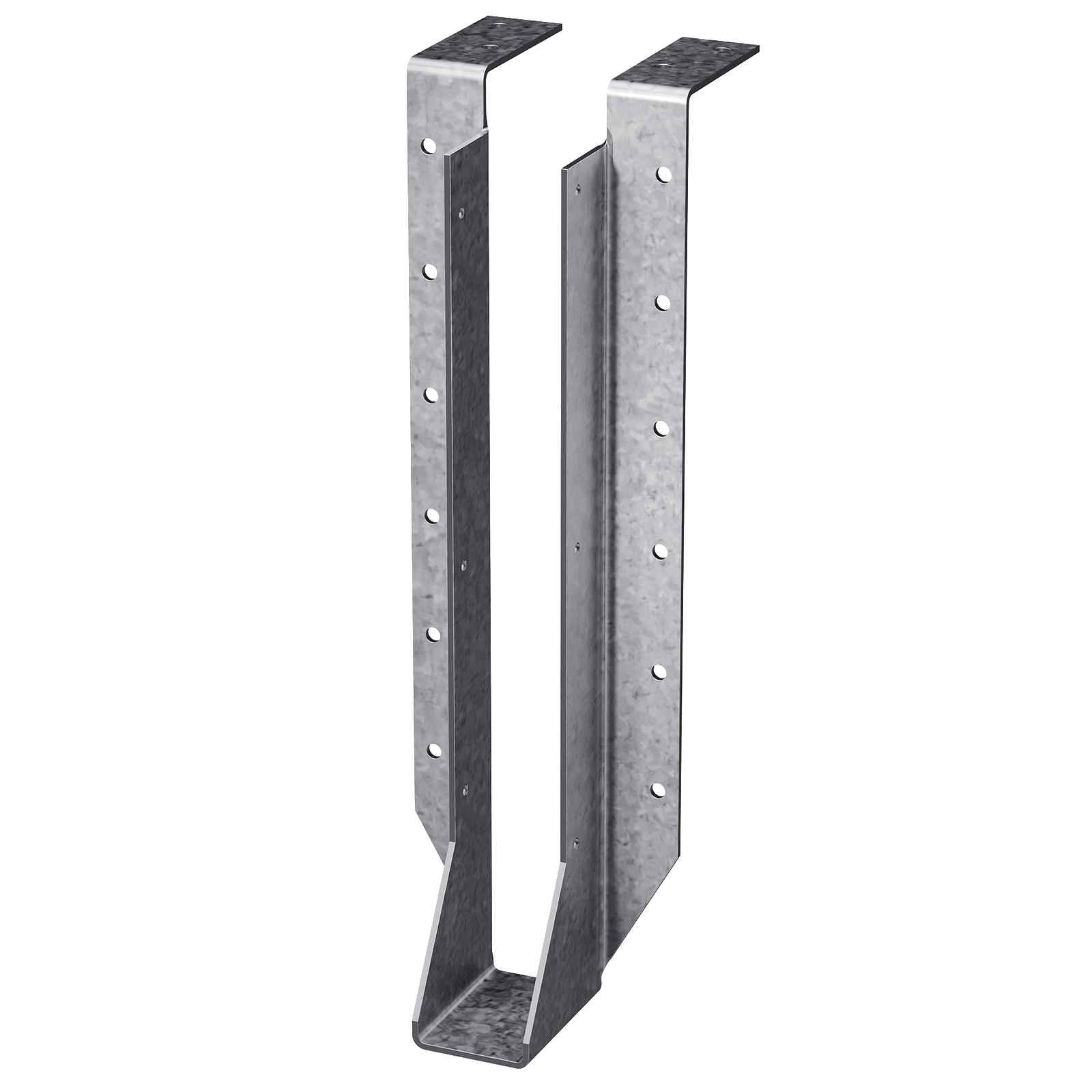

Simpson HU214-3TF Triple Top Flange Face Mount Hanger - G90 Galvanized

$77.02

0% off

Quantity

Accepted payments:

Made to Order
Ships in 1-3 business days.

Request Bulk Pricing

Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

This item is made to order and is non-returnable - Please call us at 888-794-1590 for exact lead times on this product

Simpson Strong-Tie HUTF hangers are heavy duty 12 gauge top mount hangers. The HUTF series of hangers are not acceptable for nailer or welded applications. The Strong-Tie HU214-3TF top flange hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

California Residents: WARNING

Specifications:

Material: Galvanized Steel
Height: 13"
Fasteners required: See Spec Sheet
Thickness: 12 Gauge
Quantity: 1
Width: 4-11/16"
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
Joist size: Triple 2X14
Product Guide: View Spec Sheet

Features

•Alternate heights and widths available by special order
•Can be skewed or sloped to a maximum of 45°
•HUTF-series hangers are tested, load rated and code listed

Installation

• HUTF-series hangers are tested, load rated and code compliant.
• Not acceptable for nailer or welded applications; see W and B hangers.
• The minimum header or ledger size that can be used with this hanger is 3 1/2".
