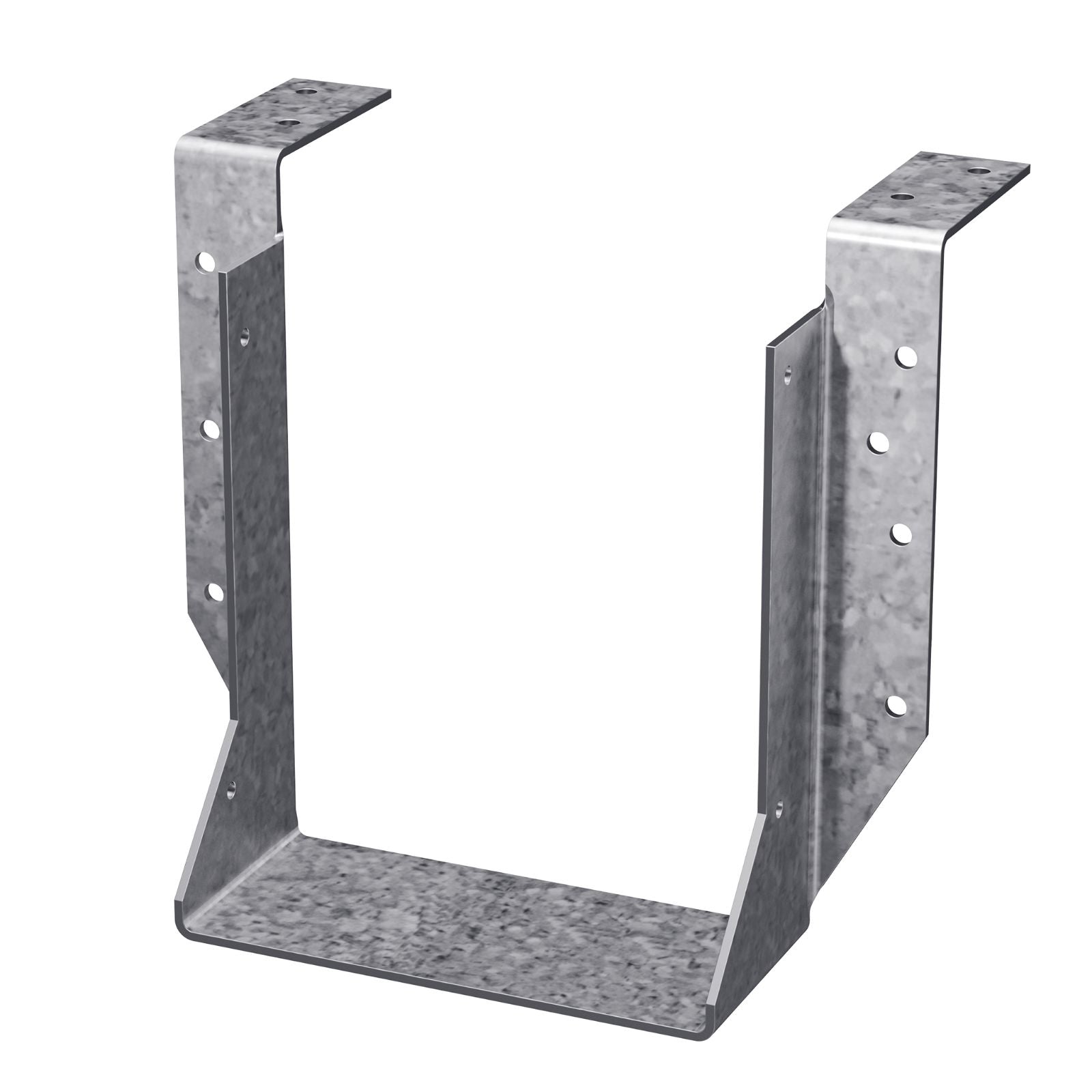

Simpson HU68TF 6x8 Top Flange Face Mount Hanger - G90 Galvanized

SKU: HU68TF

$37.36
Made to Order
Standard Lead Time 2-3 days.

Simpson Strong-Tie HUTF hangers are heavy duty 12 gauge top mount hangers. The HUTF series of hangers are not acceptable for nailer or welded applications. The Strong-Tie HU68TF top flange hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Not acceptable for nailer or welded applications; see W and B hangers.
  • The minimum header or ledger size that can be used with this hanger is 3 1/2".

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Simpson Strong-Tie HUTF hangers are heavy duty 12 gauge top mount hangers. The HUTF series of hangers are not acceptable for nailer or welded appli...

Read More

Simpson Strong-Tie HUTF hangers are heavy duty 12 gauge top mount hangers. The HUTF series of hangers are not acceptable for nailer or welded applications. The Strong-Tie HU68TF top flange hanger features a G90 galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • Not acceptable for nailer or welded applications; see W and B hangers.
  • The minimum header or ledger size that can be used with this hanger is 3 1/2".

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Fasteners Required:
Face - (12) 0.162" x 3-1/2" Nails Joist - (4) 0.162" x 3-1/2" Nails

Finish Spec:
G90 Galvanized

Manufacturer Name:
Simpson Strong-Tie

For Treated Lumber:
no

Height:
7-1/8"

Joist Size:
6X8

Thickness:
12 Gauge

Width Spec:
5-1/2"
