Wire Rope Slings

Wire Rope Slings for Heavy-Duty Lifting

Wire rope slings are built for demanding lifting and material handling applications where strength, abrasion resistance, and durability matter. Fasteners Plus offers single-leg, bridle, braided, endless, cable laid, sliding choker, and socket-style wire rope slings for a wide range of lifting setups.

Choosing the right sling starts with the load weight, lifting points, hitch type, sling angle, required capacity, and operating environment.

Wire Rope Construction

Many wire rope slings use 6x19 or 6x36 EIPS IWRC wire rope. EIPS steel provides high tensile strength, while the Independent Wire Rope Core adds strength and crush resistance.

• 6x19: Generally offers greater abrasion resistance with less flexibility.
• 6x36: Generally provides greater flexibility and fatigue resistance.

Wire Rope Sling Options

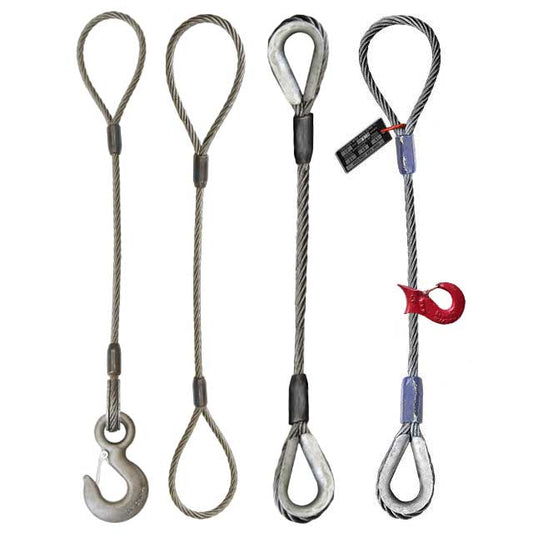

• Single-Leg Slings: A versatile option for vertical, basket, and approved choker hitches.

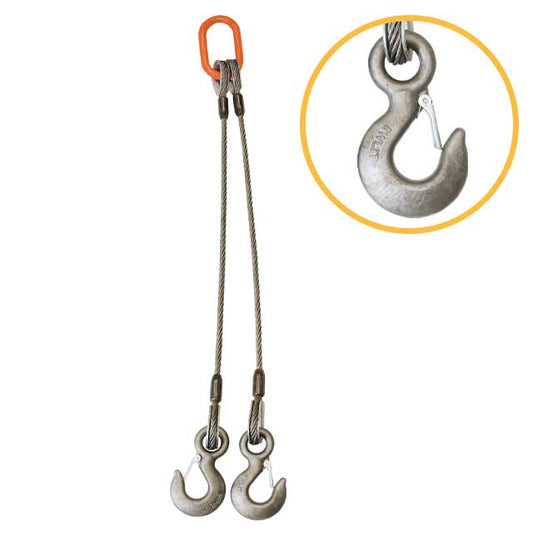

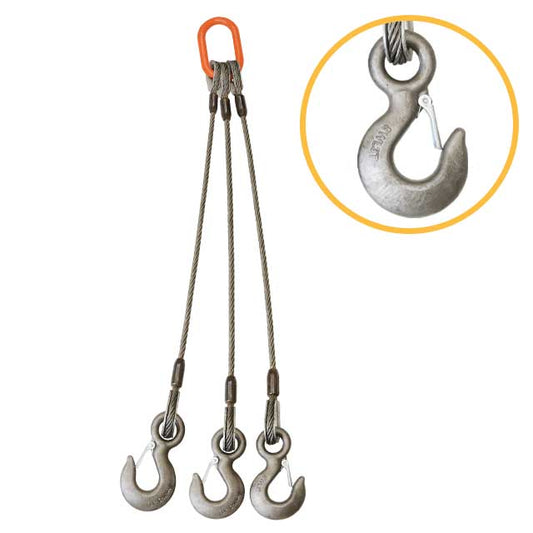

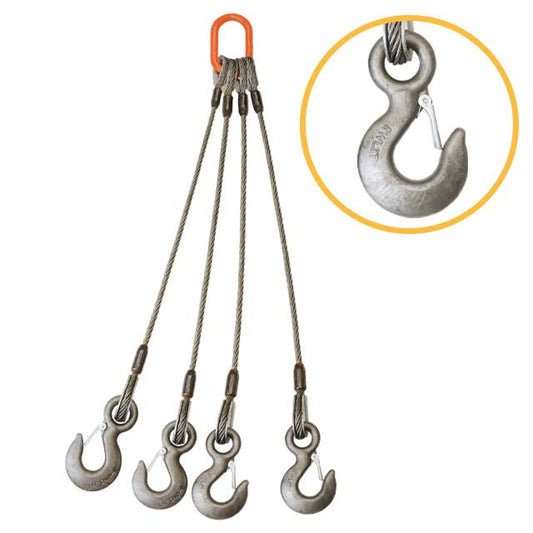

• Bridle Slings: Available in two-, three-, and four-leg configurations for loads with multiple lifting points.

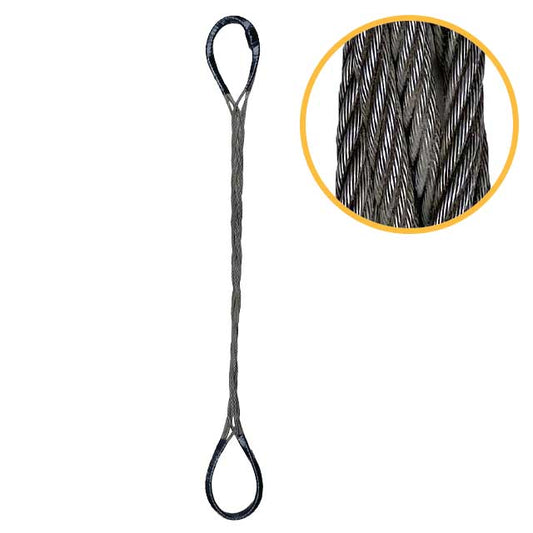

• Braided Slings: High-capacity, flexible slings that conform well around loads and resist kinking.
• Endless Grommets: Continuous-loop slings well suited for heavy lifts and limited-headroom applications.
• Socket Slings: Use swage or spelter sockets for specialized lifting connections.

How to Choose a Wire Rope Sling

• Know the load weight: Select the sling using the actual weight of the load.
• Choose the correct hitch: Vertical, basket, and choker hitches can have different rated capacities.
• Account for sling angle: Lower sling angles increase tension on each leg.
• Check the lifting points: Hooks, shackles, master links, and other hardware must be properly sized and rated.
• Consider the environment: Heat, corrosion, abrasion, sharp edges, and chemicals can affect sling performance.

Import & Domestic Wire Rope Slings

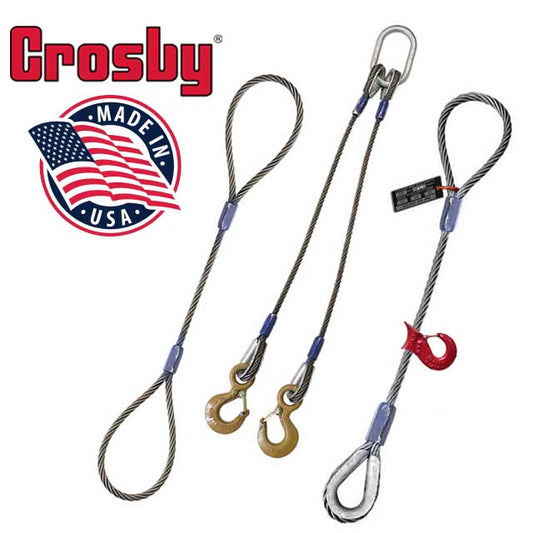

Fasteners Plus offers both imported and domestic wire rope slings. Available slings meet applicable ASME B30.9 requirements, and domestic options are manufactured in the USA with quality lifting components.

Need Help Choosing a Wire Rope Sling?

The Fasteners Plus team can help you select the correct sling based on load weight, hitch, sling angle, lifting points, environment, and required capacity. We can also assist with compatible shackles, rigging hooks, sling protection, and other rigging hardware.
