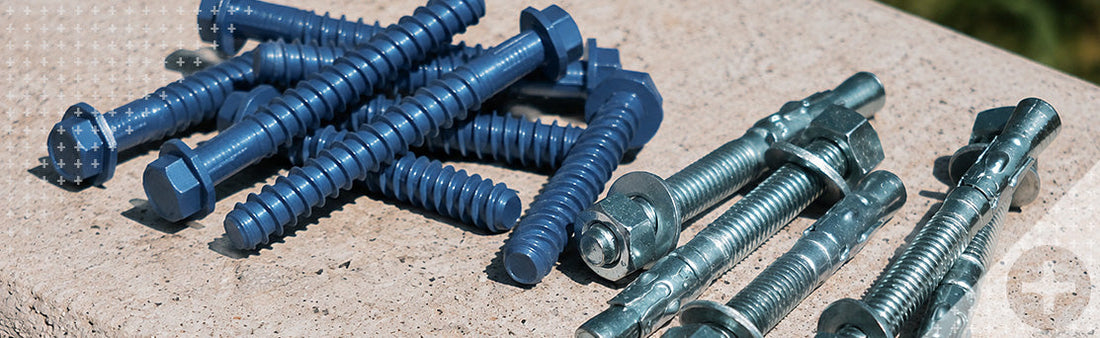

Tapcon+ Large Diameter Blue Concrete Anchor VS. A Standard Wedge Anchor
If you've ever stood in front of a concrete wall trying to decide between a screw-in anchor and a wedge anchor, you're not alone. Both get the job done, but they don't work the same way, and picking the wrong one can mean cracked concrete, a callback, or an anchor you can't get back out. This guide breaks down what a Tapcon+ Large Diameter Blue Concrete Anchor is, how it stacks up against a standard wedge anchor, what sizes are available, and how to install one correctly the first time.
What Is a Tapcon+ Large Diameter Blue Concrete Anchor?
The Tapcon+ Large Diameter Blue Concrete Anchor is a heavy duty Tapcon screw built by ITW, the same manufacturer behind the original Tapcon concrete screw. It is ICC-ES certified under ESR-2202 and ESR-3699, and it's manufactured in the USA. What sets these Tapcon anchors apart is their Threadform Technology: the threads cut directly into concrete, block, or brick to create a strong mechanical grip, rather than relying on outward pressure against the sides of the hole. That difference is the reason a Tapcon+ behaves so differently from a standard wedge anchor, and it's the reason contractors reach for a large diameter Tapcon anchor on jobs where edge distance and spacing are tight.
Every Tapcon+ concrete screw is made from heat-treated carbon steel for added hardness and finished with a signature Climaseal blue coating for corrosion resistance. That's why you'll often hear these called blue concrete screws, blue Tapcon screws, or simply "the blue anchors" on a jobsite. These large diameter Tapcon concrete anchors are rated for use in cracked concrete and seismic design categories, though you should always confirm the specific ESR requirements against your project specs, local building code, or a qualified engineer before you finalize your anchor selection.
Tapcon+ vs. Standard Wedge Anchor: What's the Difference?
A standard wedge anchor is a mechanical expansion anchor. You drive it into a predrilled hole, then tighten the nut so an internal wedge or clip expands outward and locks against the sides of the hole. That expansion force is what generates holding power, and it's also what limits how close to an edge or to another anchor you can install one. A Tapcon+, on the other hand, is a threaded concrete screw. Its threads cut directly into the substrate as you drive it in, so there's no expansion force working against the concrete at all.
| Feature | Tapcon+ Large Diameter Anchor | Standard Wedge Anchor (e.g. Red Head Anchor Bolts) |
|---|---|---|
| How it holds | Threads cut directly into the substrate | Internal wedge expands against the hole |
| Expansion force on concrete | None when properly installed | Yes, by design |
| Edge distance and spacing | Can be installed closer to edges and to other anchors | Requires greater edge distance and spacing |
| Removable | Yes, reverses out with a hammer drill | Very difficult once expanded |
| Suitable substrates | Concrete, block, and brick | Primarily solid concrete |
| Installation steps | Drill, clean, drive | Drill, drive, set, torque |
Why Contractors Reach for a Tapcon+ Over a Standard Wedge Anchor
Threadform Technology and Holding Power
Threadform Technology lets the threads on a Tapcon+ cut directly into the substrate instead of pushing outward against it. When installed correctly, that means no expansion force working against the concrete, block, or brick, which reduces the risk of cracks and fractures compared to anchors that rely on expansion. ITW rates these large diameter tapcon anchors at up to 20% more holding power than a comparable wedge or sleeve anchor.
Faster Installation
Installing a wedge anchor typically means drilling, driving the anchor with a hammer, and then torquing the nut to set the wedge. A Tapcon+ skips the hammering step entirely. Installation comes down to three steps: drill the hole, clean the hole, and drive the anchor with a hammer drill until it's fully seated. That alone can cut install time by more than half on anchor-heavy jobs.
Versatile Substrate Applications
A standard wedge anchor is built primarily for solid concrete. Because a Tapcon+ doesn't rely on expansion force, it's also suitable for block and brick applications, which makes it a more flexible choice for masonry work where the substrate isn't always poured concrete.
Easy Removal
These anchors come out about as easily as they go in. A wedge anchor holds through expansion, which is exactly what makes it so hard to remove later. With a Tapcon+, backing one out is as simple as reversing the hammer drill and driving it out. One note worth flagging: Tapcon+ anchors are designed for one-time use. If you remove one, plan to replace it with a new anchor rather than reinstalling the same one.
Reduced Edge Distance and Anchor Spacing
Because a wedge anchor pushes outward against the hole, installing one too close to the edge of a concrete slab or block raises the risk of cracking the substrate and losing the connection. Wedge anchors also need to be spaced apart so the expansion force from one anchor doesn't affect a neighboring anchor. Since a Tapcon+ doesn't create that outward pressure, it can be installed closer to edges and spaced closer together, which matters on tight layouts like sill plates, ledger boards, and post base connections.
As our product expert Matt B. notes:
The biggest reason to use Tapcon+ screws is their ease of use - there is no math required. With a wedge anchor, we have to take the length of the anchor and subtract the thickness of the material, nut, and washer. We then drill the hole to that depth. For example, if we have a 5" anchor, our material is 1/4" thick, the washer is 1/4", and the nut is 1/2", the total is 1". We would therefore drill a 4" hole into the concrete. The hole then has to be cleaned out thoroughly before inserting the anchor and tightening it with a torque wrench. With a concrete screw, we can drill the hole 1/4"–1/2" deeper than the required embedment depth, clean the hole, and then install the screw using an impact driver.
How Do I Install a Tapcon+ Concrete Anchor?
Installing a Tapcon+ Large Diameter Blue Concrete Screw is a straightforward three-step process, but each step matters for getting full holding power out of the anchor.
- Drill the hole. Use the drill bit diameter specified for your anchor size, and drill at least 1/2" deeper than the minimum embedment depth listed for that anchor. A shallow hole is one of the most common reasons an anchor underperforms.
- Clean the hole. Thoroughly clean the hole with a brush and a blow-out bulb or compressed air. Removing all the dust and debris lets the threads engage the full surface of the substrate instead of cutting into loose material.
- Drive the anchor. Use a hammer drill with the correct hex nut driver bit to drive the anchor into the hole until it's fully seated against the material being fastened.
Pre-drilling with the correct bit size and taking the extra minute to blow out the hole are the two steps most likely to get skipped on a busy jobsite, and they're also the two steps that most affect how well the anchor performs.
Where Are Tapcon+ Anchors Used?
The most common applications for a Tapcon+ Blue Concrete Anchor are securing sill plates, post base connectors, and ledger boards. Beyond typical framing connections, these Tapcon anchors are also rated for heavier-duty uses such as mounting heavy equipment, industrial racking, machinery, and modular walls. As with any structural or load-bearing connection, confirm that the Tapcon+ diameter, length, and embedment depth are appropriate for your specific application, substrate condition, and local code requirements before installation, and consult your project specifications or a qualified engineer when the connection is structural or safety-critical.
Tapcon+ vs. Red Head Anchors: Are They the Same Thing?
Not quite, and this trips up a lot of buyers searching for concrete anchors online. Red Head is a separate ITW anchor brand best known for Red Head Trubolt wedge anchors and other mechanical anchor bolts, and it's commonly sold right alongside Tapcon in the same anchor aisle. If you're comparing a 3/8" or 1/2" Red Head wedge anchor to a Tapcon+ of the same diameter, the differences covered above still apply: a Red Head wedge anchor holds through expansion force and needs greater edge distance and spacing, while a Tapcon+ threads directly into the substrate. Neither anchor is universally "better." The right choice comes down to your substrate, your edge distance and spacing constraints, and whether the connection needs to be removable down the road.
Frequently Asked Questions
Can a Tapcon+ anchor be removed and reused?
It can be removed easily by reversing a hammer drill, but Tapcon+ anchors are designed for one-time use. If you back one out, replace it with a new anchor rather than reinstalling the original.
Do I need a hammer drill to install a Tapcon+?
Yes. You'll need a hammer drill (or rotary hammer in hammer mode) to pre-drill the hole and to drive the anchor with the correct hex nut driver bit.
Is a Tapcon+ stronger than a standard wedge anchor?
ITW rates the Tapcon+ at up to 20% more holding power than a comparable wedge or sleeve anchor when properly installed. Actual performance depends on substrate condition, embedment depth, and installation quality, so always check the current ESR documentation for load values specific to your application.
Can Tapcon+ anchors be installed in brick or block, not just concrete?
Yes. Because Tapcon+ anchors don't rely on expansion force, they're suitable for concrete, block, and brick substrates, unlike a standard wedge anchor, which is built primarily for solid concrete.
