Terrier Specialty Lifting Clamps
When a standard lifting clamp can't handle the job, Terrier's specialty lineup steps in to meet more unusual challenges head-on.

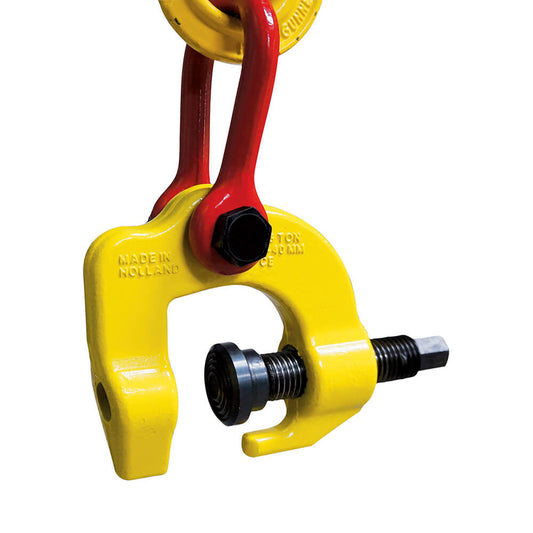

TSCC/TSCC-W: Multi-Purpose Lifting
These clamps handle vertical and horizontal lifting and transport, and can even attach upside down as a temporary lifting point. A moveable cam delivers powerful clamping force, while a safety screw spindle mechanism keeps the clamp from slipping once force is applied. Max jaw opening is 3.94", with working load limits from 1/2 ton to 6 tons.
TBS: Temporary Lifting for HP Bubble Profiles
Built for spaces with HP bubble profiles, like sectional ship parts and ship engine rooms, the TBS fixes itself automatically the moment a load is applied. Max jaw opening is 2.95", with working load limits from 1-1/2 ton to 3 tons.
TRC: Rail Lifting and Turning
Lightweight but heavy-duty, the TRC is built for horizontal rail lifting and turning of rail profiles. Special rail profile cams and a safety mechanism keep the clamp from slipping under force. Jaw opening runs 1.57" to 2.95", with a working load limit of 1.5 tons.

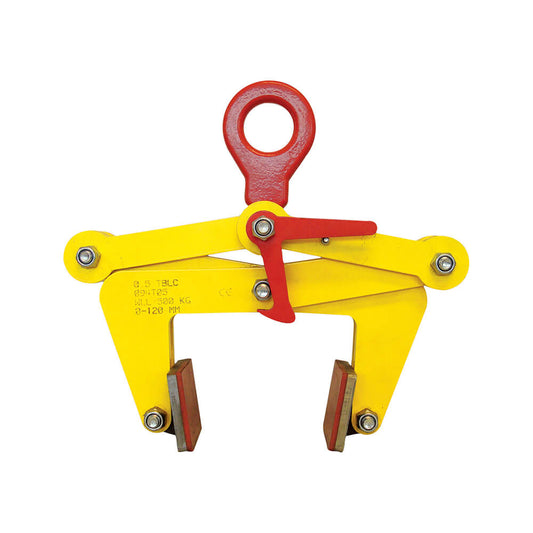

TBLC: Non-Marking, No Minimum WLL
The TBLC handles vertical lifting and transport of plates, blocks, and structures with parallel sides, with no minimum working load limit to work around. Non-marking, anti-friction pads make it well suited to stainless steel, aluminum, natural stone, painted materials, wood, glass, and plastic. Jaw opening runs 1.2" to 4.33", with working load limits from 1/2 ton to 3 tons.

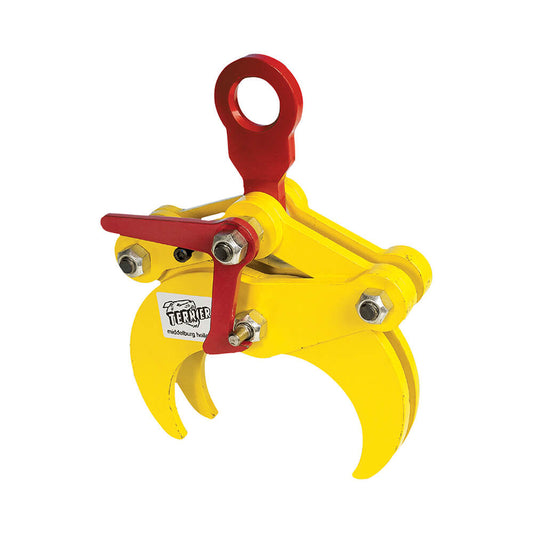

TTL: Tubes, Pipes, and Round Materials
This lightweight clamp handles horizontal lifting and transport of tubes, pipes, tube bundles, rolls, and other solid round materials. Jaw opening runs 1.9" to 4.5", with working load limits from 1/2 ton up to 3 tons.
Not sure which specialty clamp fits your application? Reach out to our sales team for guidance.
