Terrier Pipe Lifting Clamps
Two clamp families cover pipe and well handling in vertical and horizontal orientations, each split into standard and higher-capacity variants.

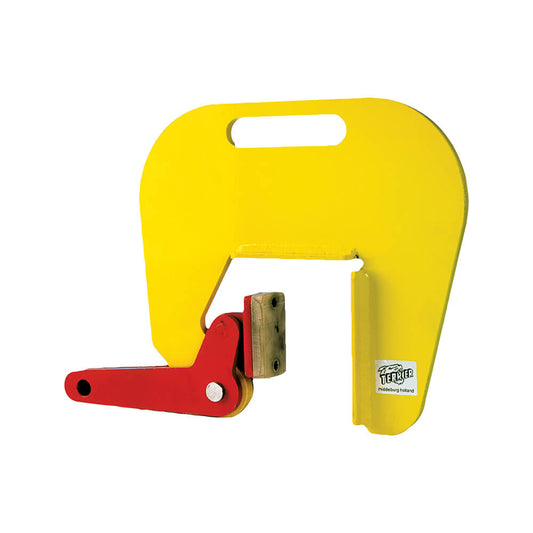

TBC/TBCA: Vertical Lifting for Concrete Pipes and Wells
These lightweight clamps use a pressure-resistant plastic cam that's easy to swap out when needed. Both the TBC and TBCA carry a 1 ton working load limit. Jaw openings differ by model: 2.36" to 4.72" on the TBC, and a wider 1.97" to 8.66" on the TBCA for handling a broader range of diameters.

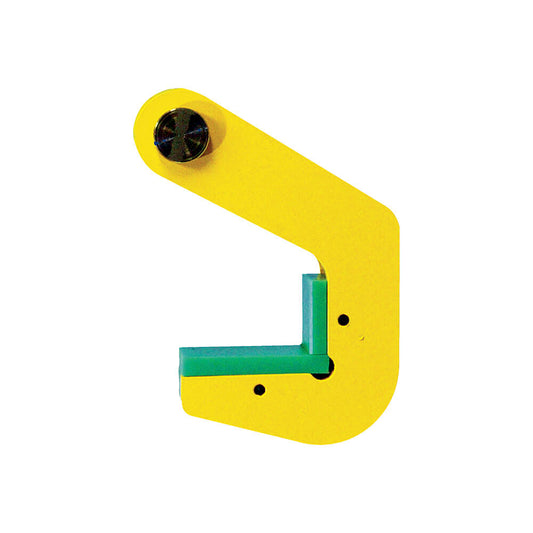

TPH/TPH-HD: Horizontal Lifting for Steel and Concrete Pipes
The TPH handles horizontal lifting and transport of steel and concrete pipes, using a special high-quality pressure-resistant plastic jaw with a max opening of 1.57" and working load limits from 1-1/2 ton to 20 tons. For extreme heavy-duty applications, the TPH-HD steps up with an even tougher extreme high-pressure resistant plastic covering, a max jaw opening of 2.36", and working load limits from 5 ton up to 60 tons.
Not sure which model fits your pipe diameter and load? Reach out to our sales team for guidance.
