1-1/2" Van Beest Green Pin® Bolt Type Anchor Shackle | G-4163 - 17 Ton
1-1/2" Van Beest Green Pin® Bolt Type Anchor Shackle | G-4163 - 17 Ton!
1-1/2" Van Beest Green Pin® Bolt Type Anchor Shackle | G-4163 - 17 Ton
Specifications

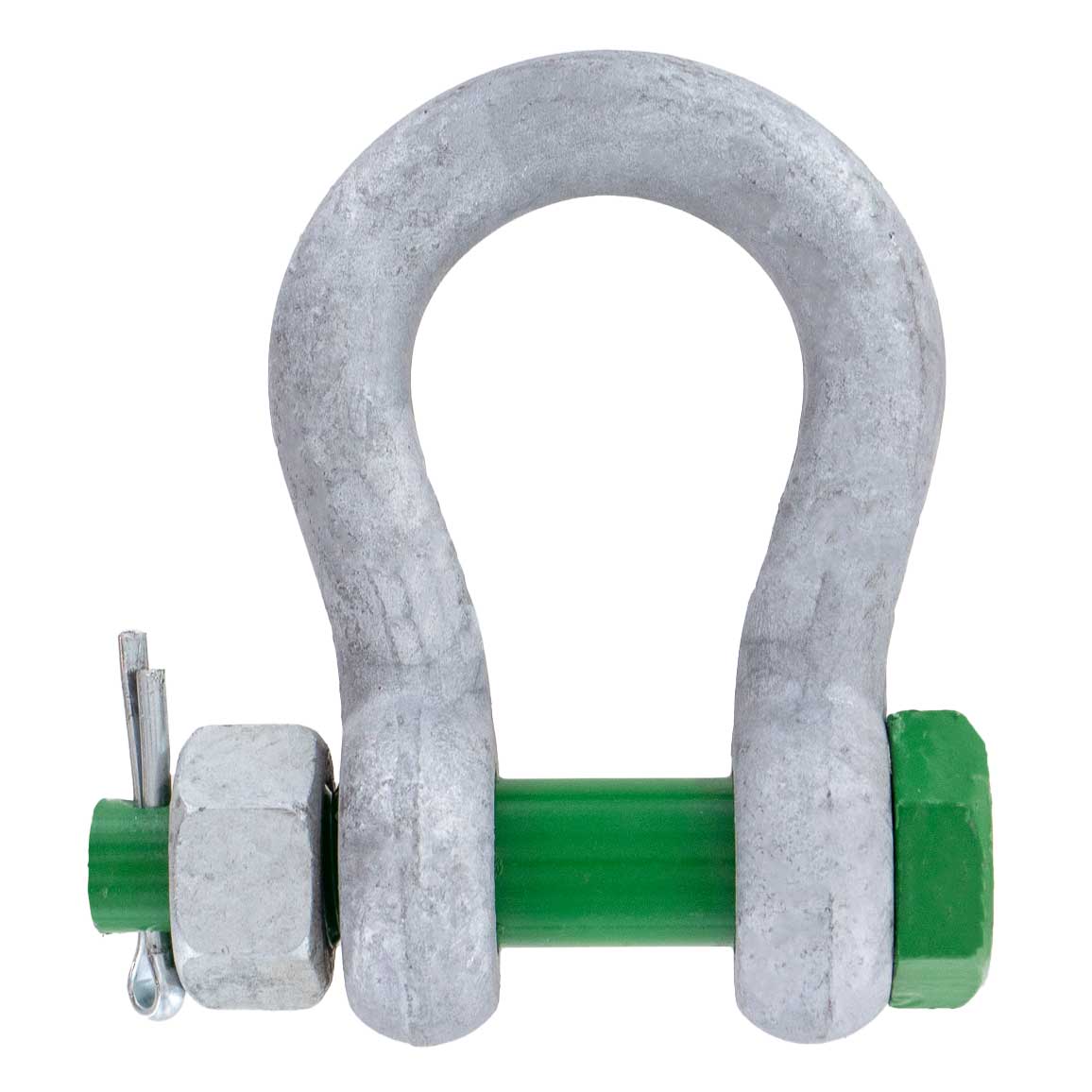

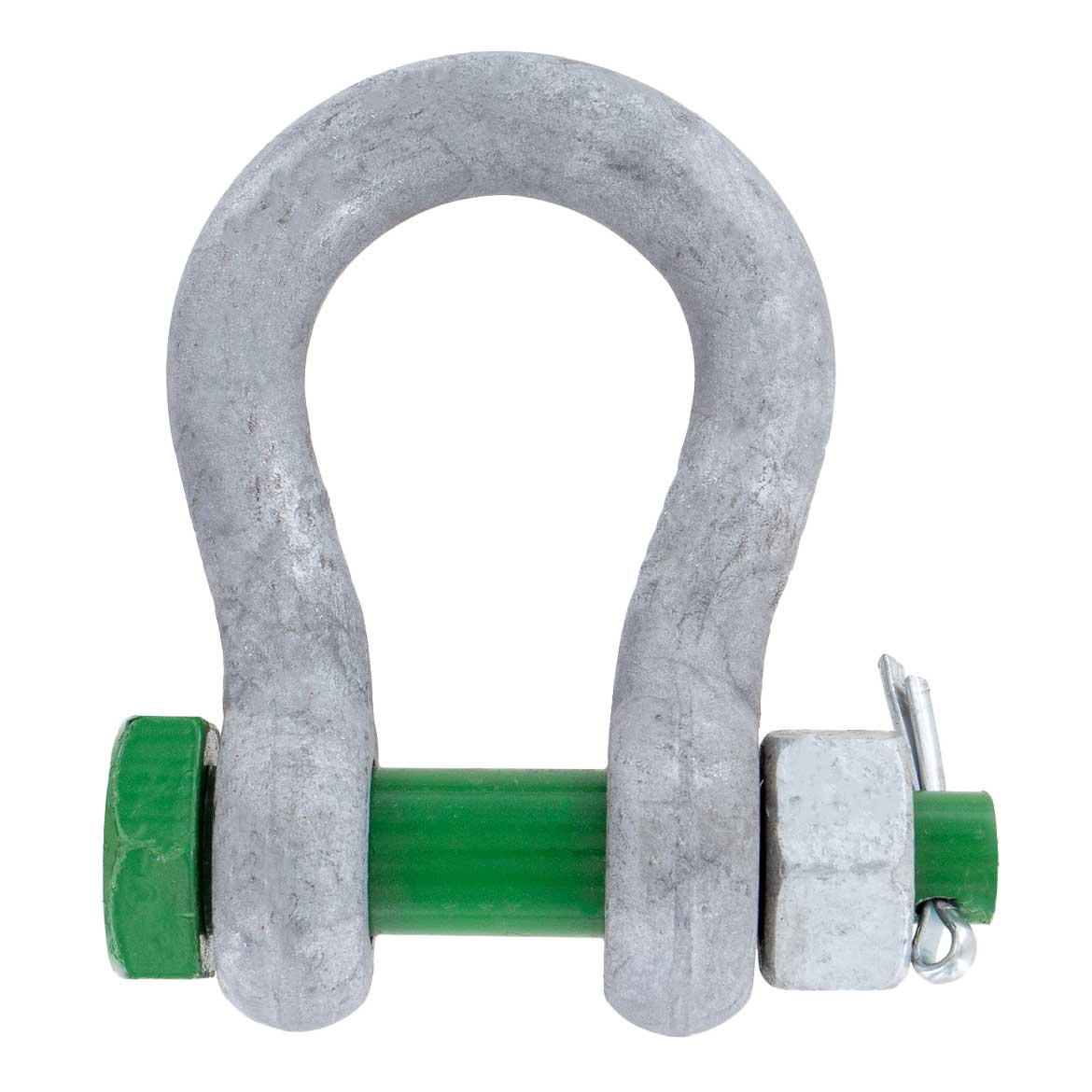

Van Beest Green Pin® Bolt Type Anchor Shackles - European-Made Strength with Dual Safety
Van Beest Green Pin® Anchor Shackles are known worldwide for their high quality, precision engineering, and trademark green pin for quick identification in the field. Manufactured in Europe from quenched and tempered high tensile Grade 6 steel, each shackle is finished with hot-dip galvanization to enhance corrosion resistance and ensure long-term performance in demanding environments.

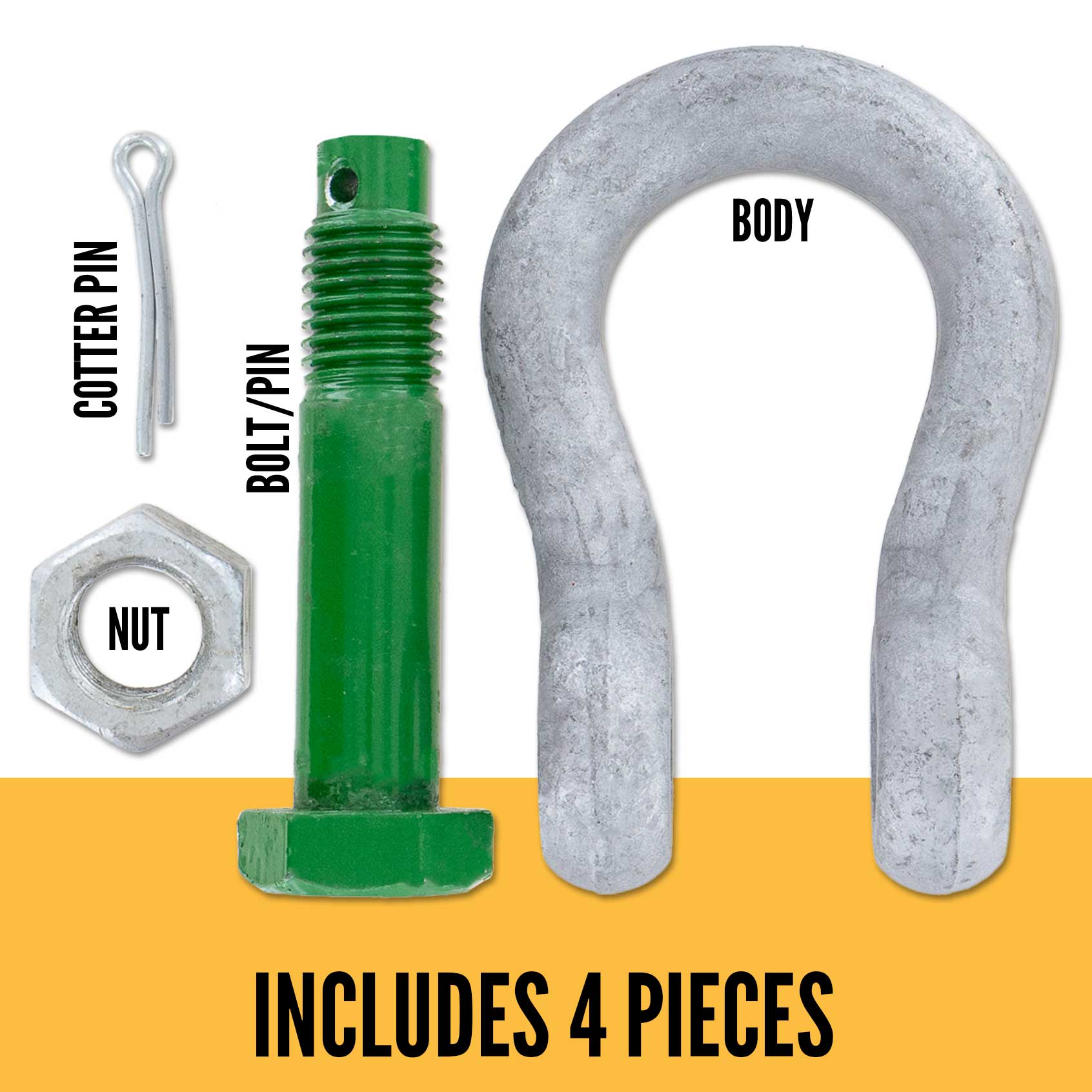

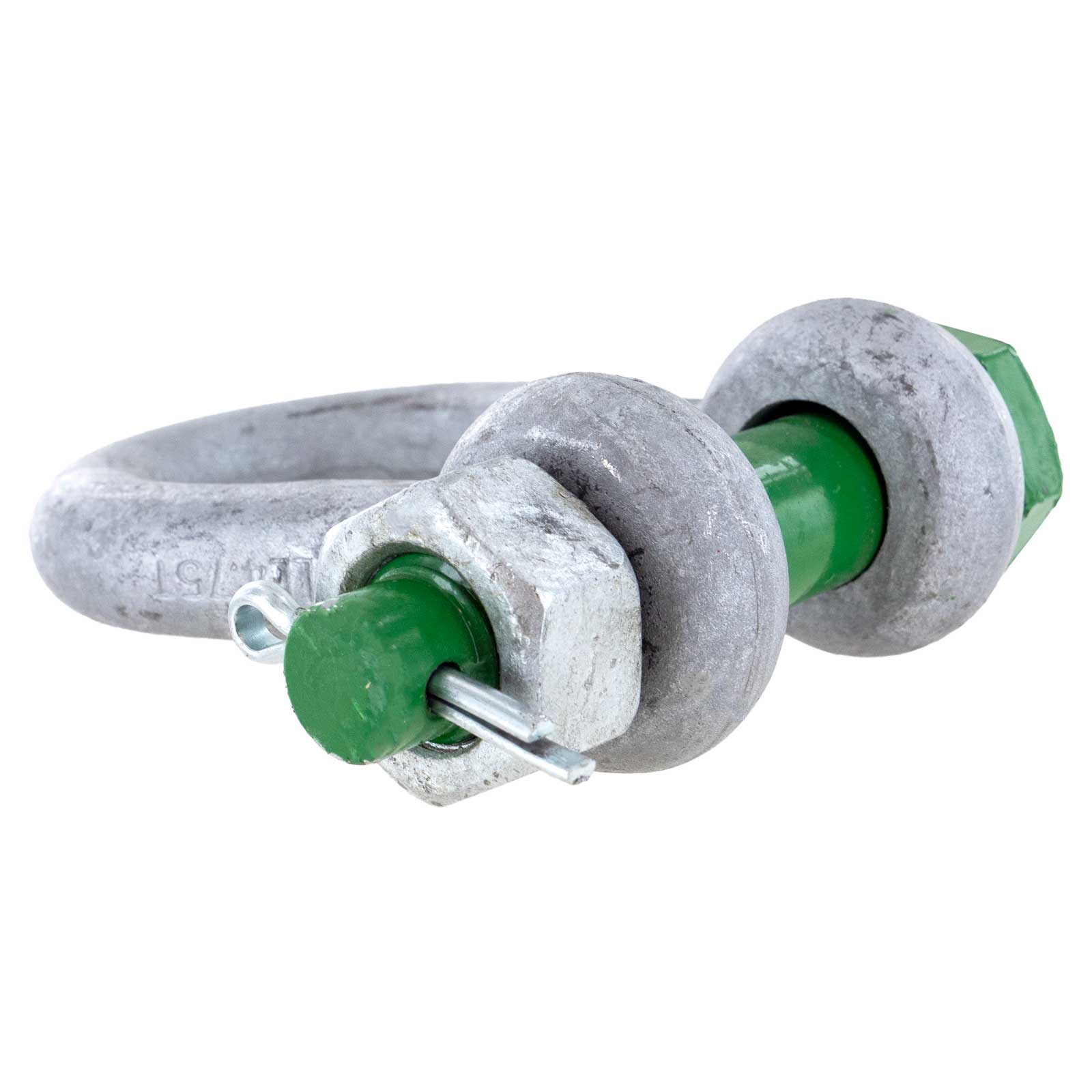

The bolt type design features a double safety mechanism, including a secure safety bolt and a split pin. This prevents the pin from backing out due to vibration or shifting loads-making these shackles ideal for long-term or permanent installations, particularly where movement on the pin is expected.
The wide anchor bow allows for greater load versatility, accommodating both single-leg and multi-leg sling configurations. These shackles are a trusted choice for lifting, rigging, and structural applications where durability and load security are critical.
Key Features:

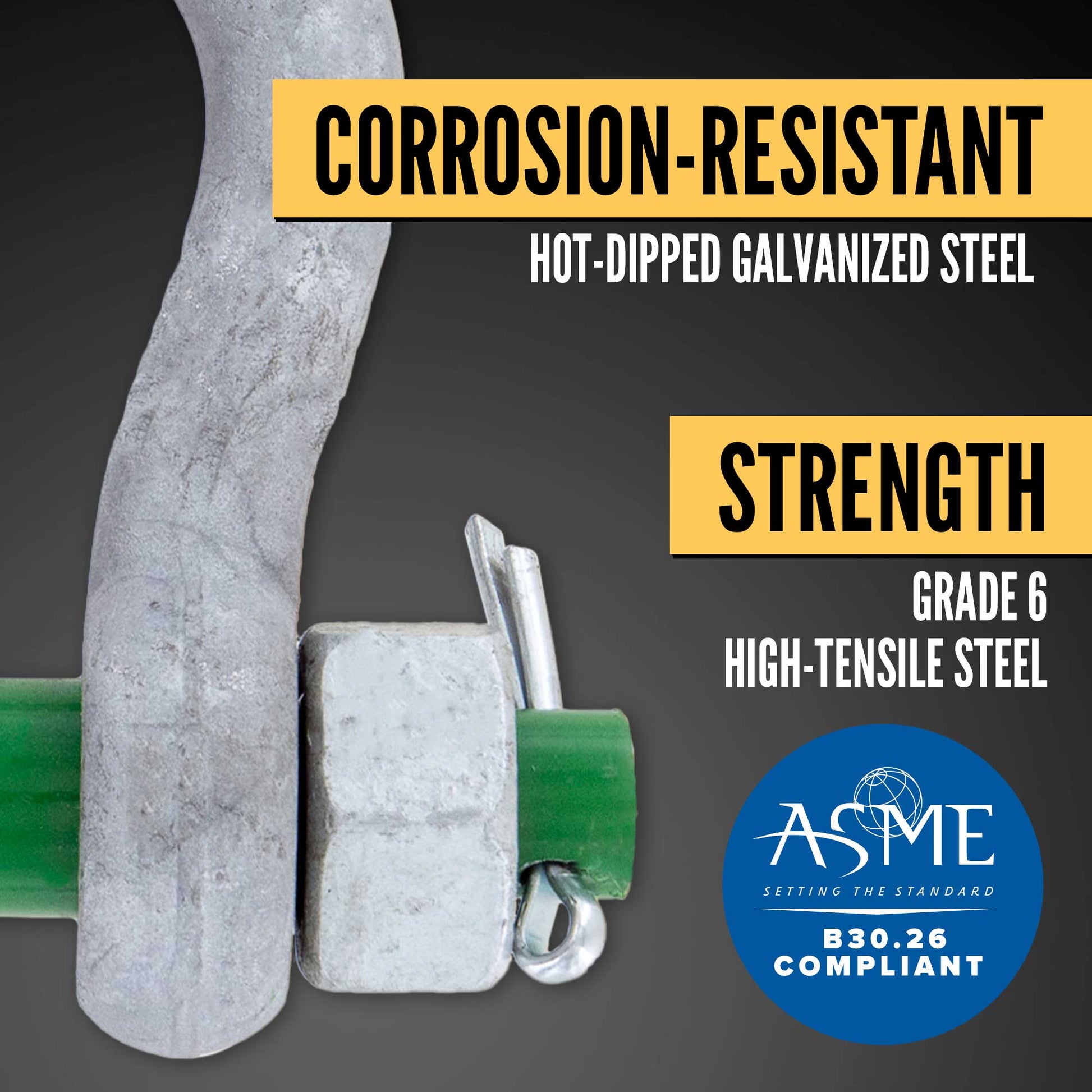

- Grade 6 Steel: Quenched and tempered for high tensile strength and long-term use.

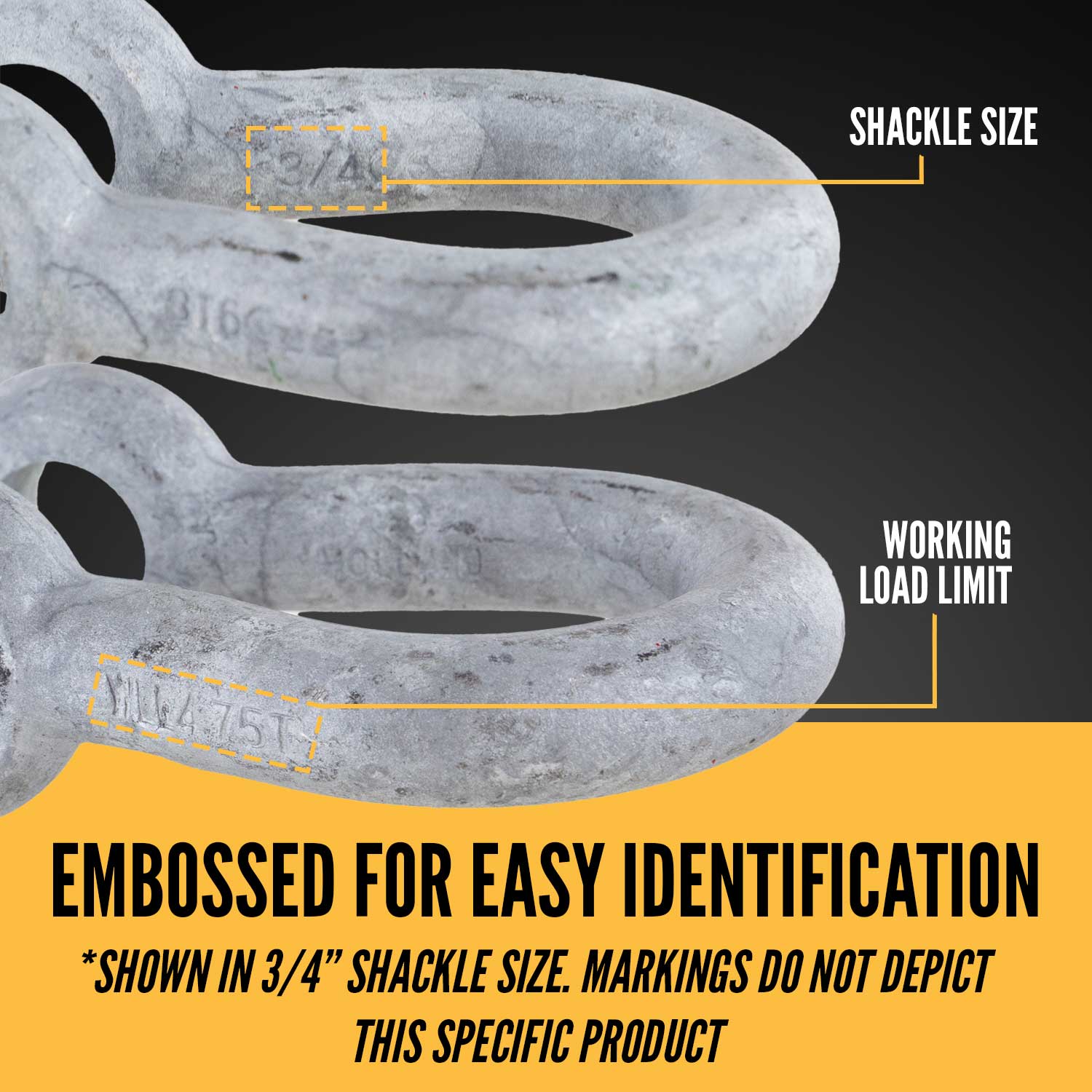

- Green Pin® Identification: Easy to spot on job sites and in field operations.

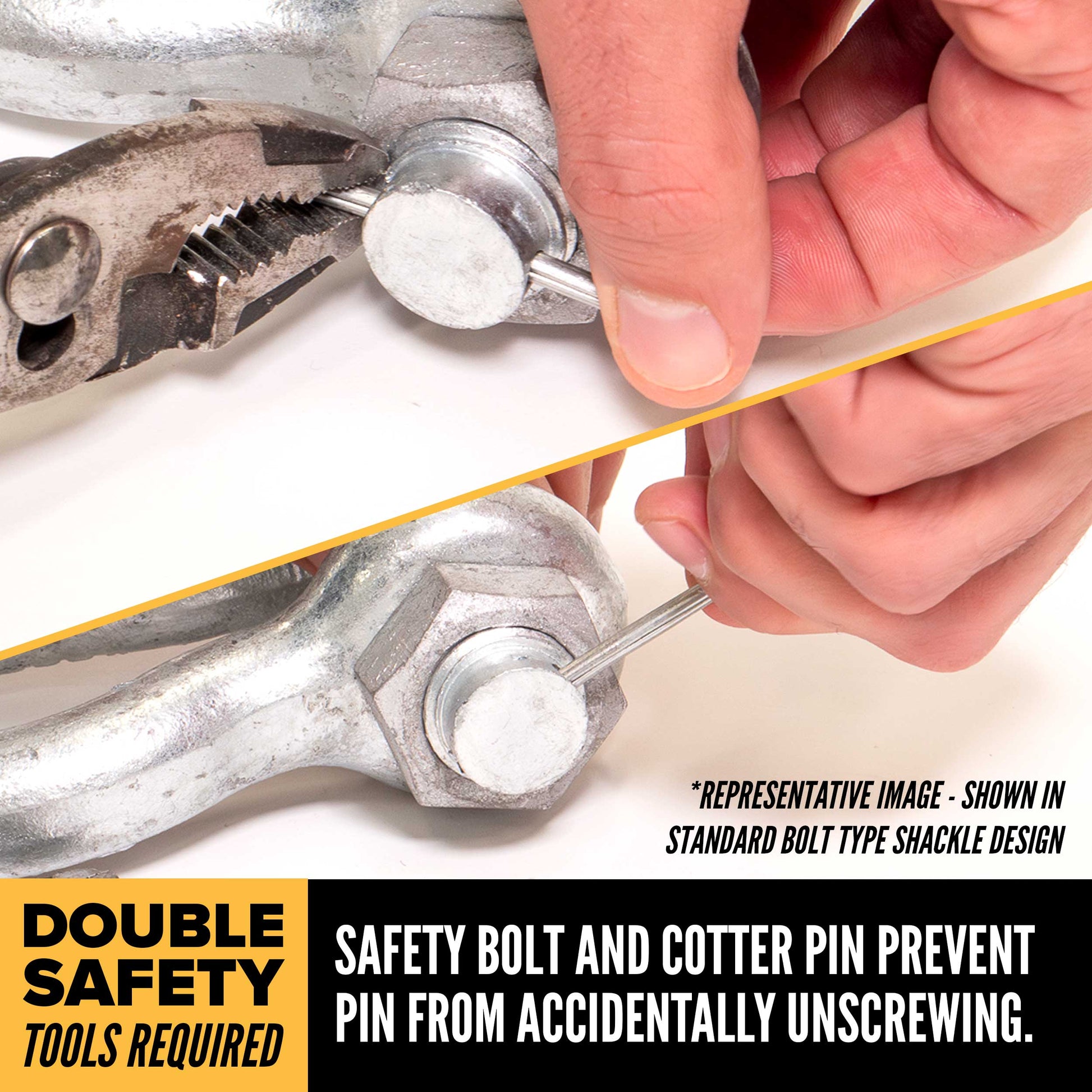

- Dual Safety System: Includes both a split pin and a safety bolt to prevent accidental loosening.
- Hot-Dip Galvanized Finish: Resists corrosion and extends service life in outdoor or industrial environments.
- Anchor Bow Profile: Accommodates multi-leg sling setups and offers better angular load handling than D shackles.

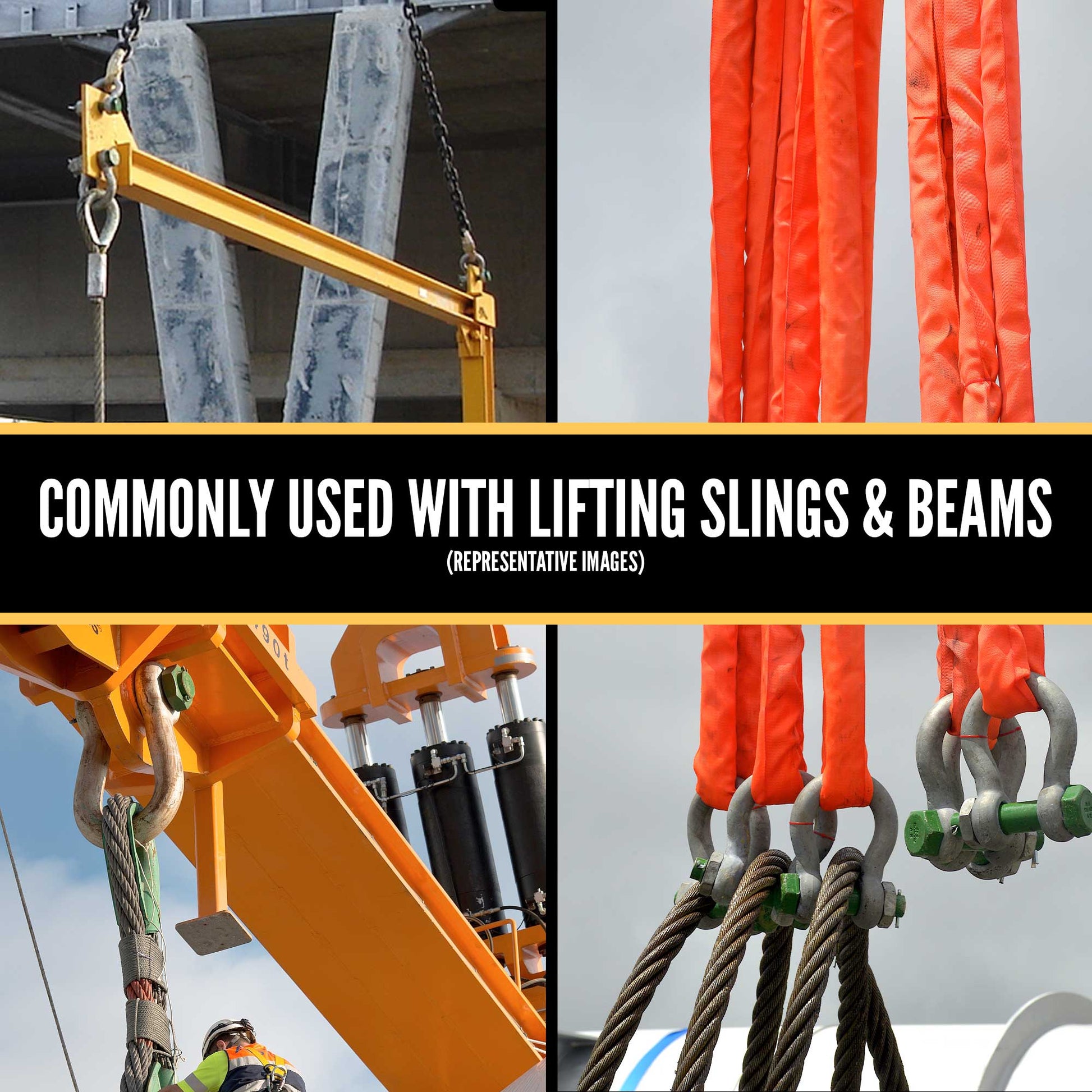

Ideal For: Permanent or long-term rigging setups, structural lifting applications, marine and industrial environments, or any job where pin rotation must be prevented.
