1-1/4" x 30" High-Strength Pre-Assembled Anchor Bolt - Plain
1-1/4" x 30" High-Strength Pre-Assembled Anchor Bolt - Plain!
1-1/4" x 30" High-Strength Pre-Assembled Anchor Bolt - Plain
Specifications
The Simpson Strong-Tie PABH High-Strength Pre-Assembled Anchor Bolt is engineered for demanding cast-in-place anchoring applications requiring high tensile strength. Ideal for securing shearwalls, rod systems, and other structural elements, this anchor bolt ensures reliable performance in critical construction scenarios.
Key Features:
- High-Strength Construction: Fabricated from ASTM A449 steel for diameters up to 1", and ASTM A193 B7 or F1554 Grade 105 for 1-1/8" and 1-1/4" diameters, providing tensile strengths up to 125 ksi.

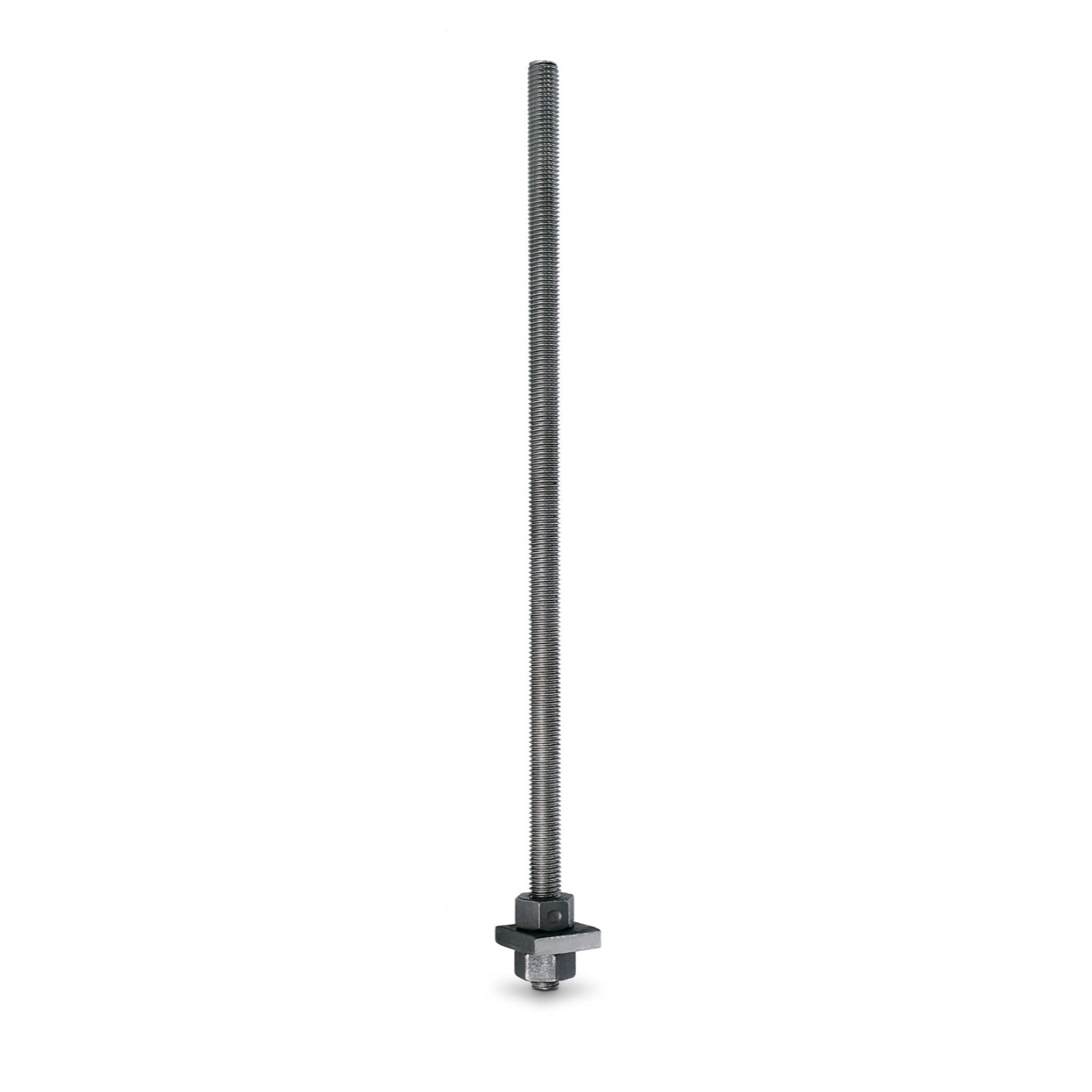

- Pre-Assembled Convenience: Comes with a plate washer secured between two fixed hex nuts at the embedded end, streamlining installation and reducing on-site assembly time.

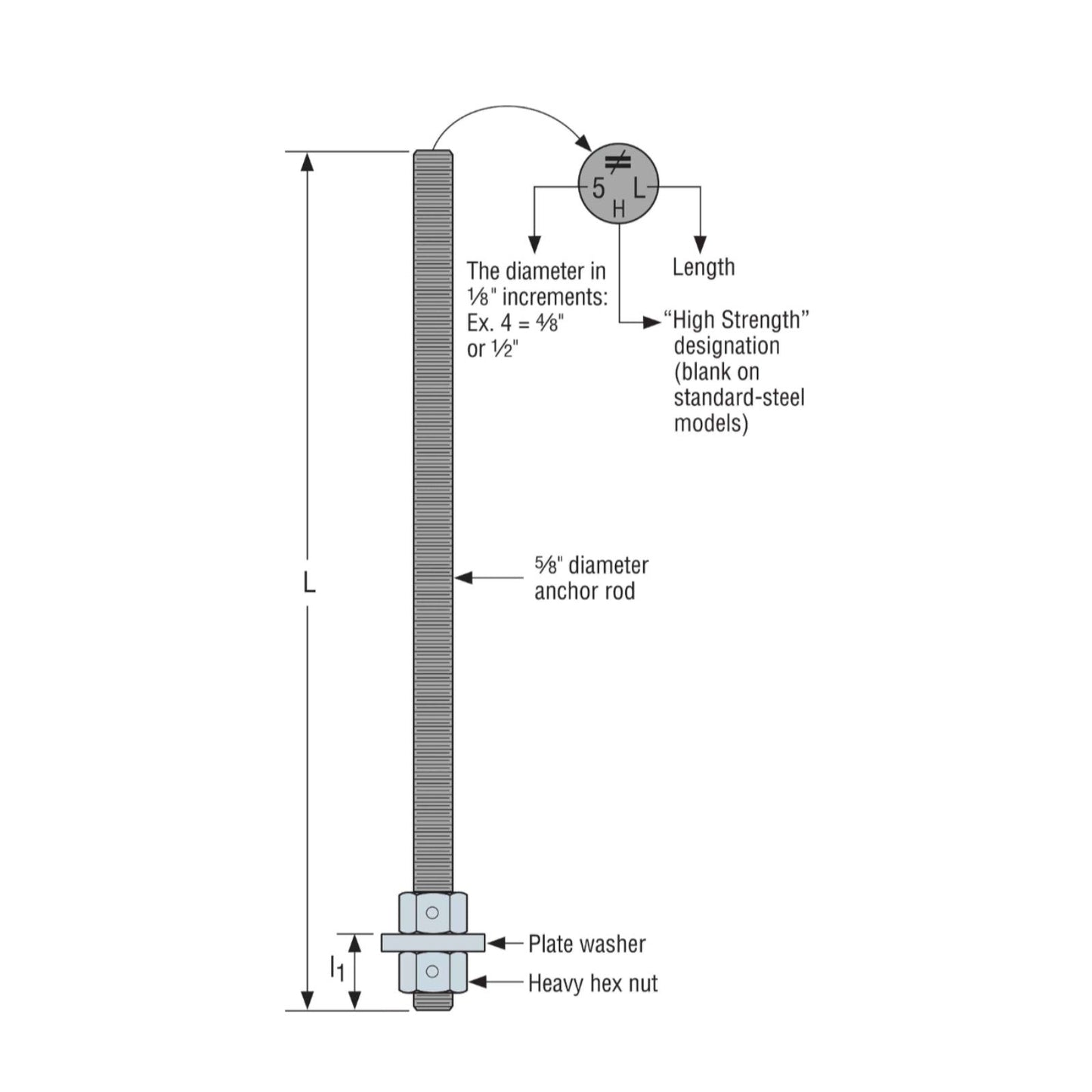

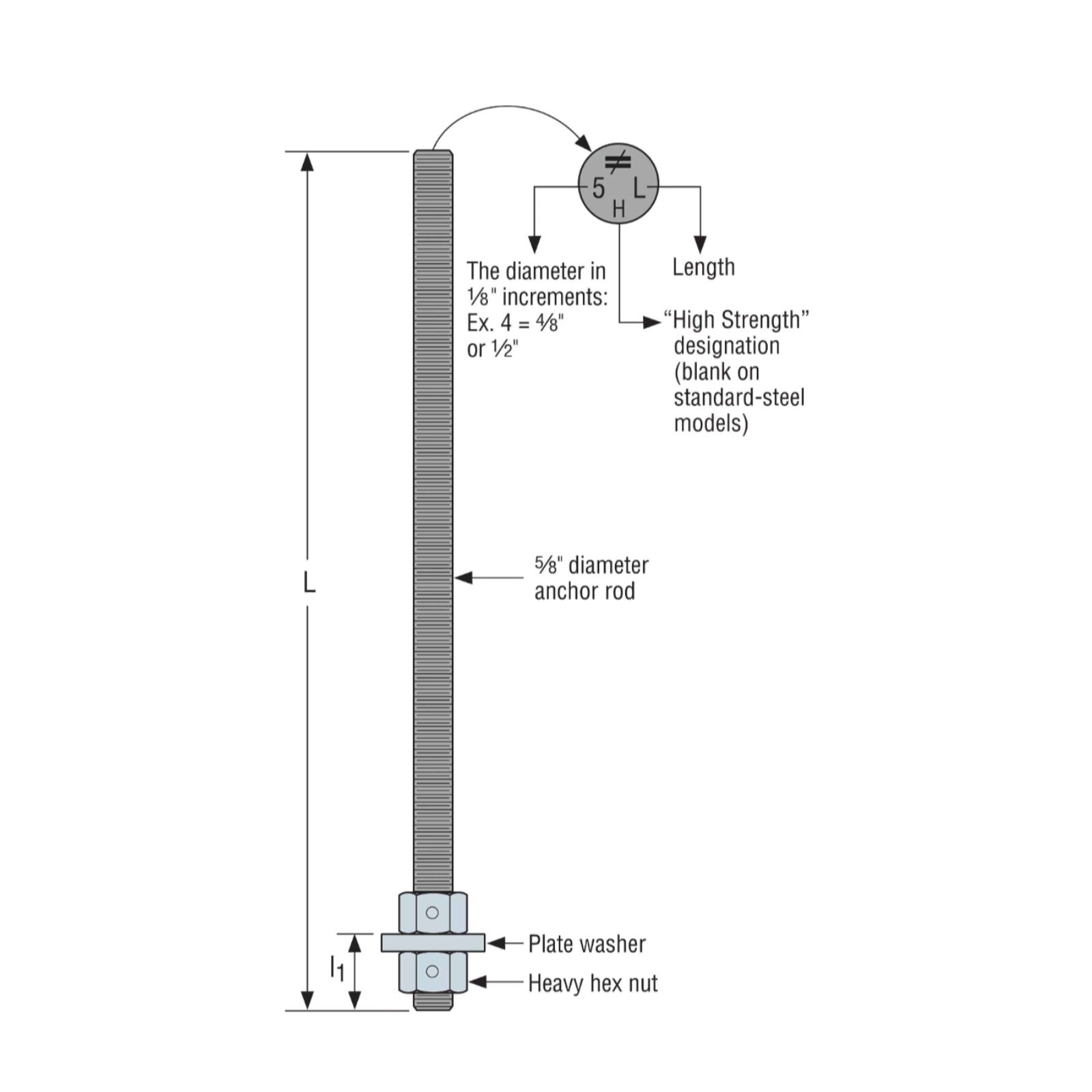

- Easy Identification: Features a head stamp with the Simpson Strong-Tie "No Equal" sign, diameter designation, and an "H" to denote high-strength rods.
- Versatile Sizing: Available in diameters ranging from 1/2" to 1-1/4" and lengths from 12" to 36" (in 6" increments) to suit various project requirements.
Applications:
- Shearwalls: Provides secure anchoring for shearwall systems, enhancing structural integrity.
- Rod Systems: Ideal for use in rod systems requiring dependable tension load capacity.
- General Construction: Suitable for various cast-in-place anchoring needs in residential, commercial, and industrial projects.
Installation:

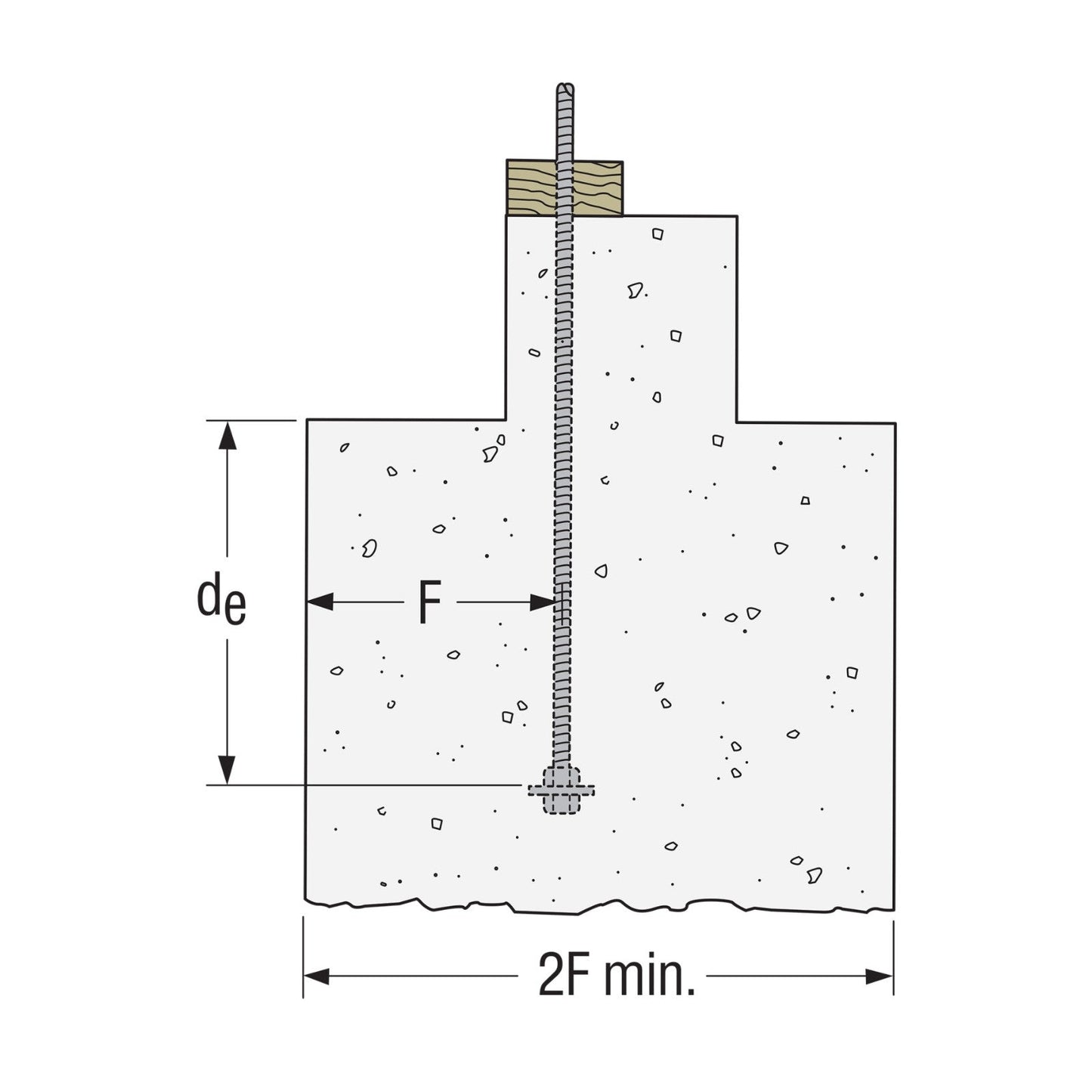

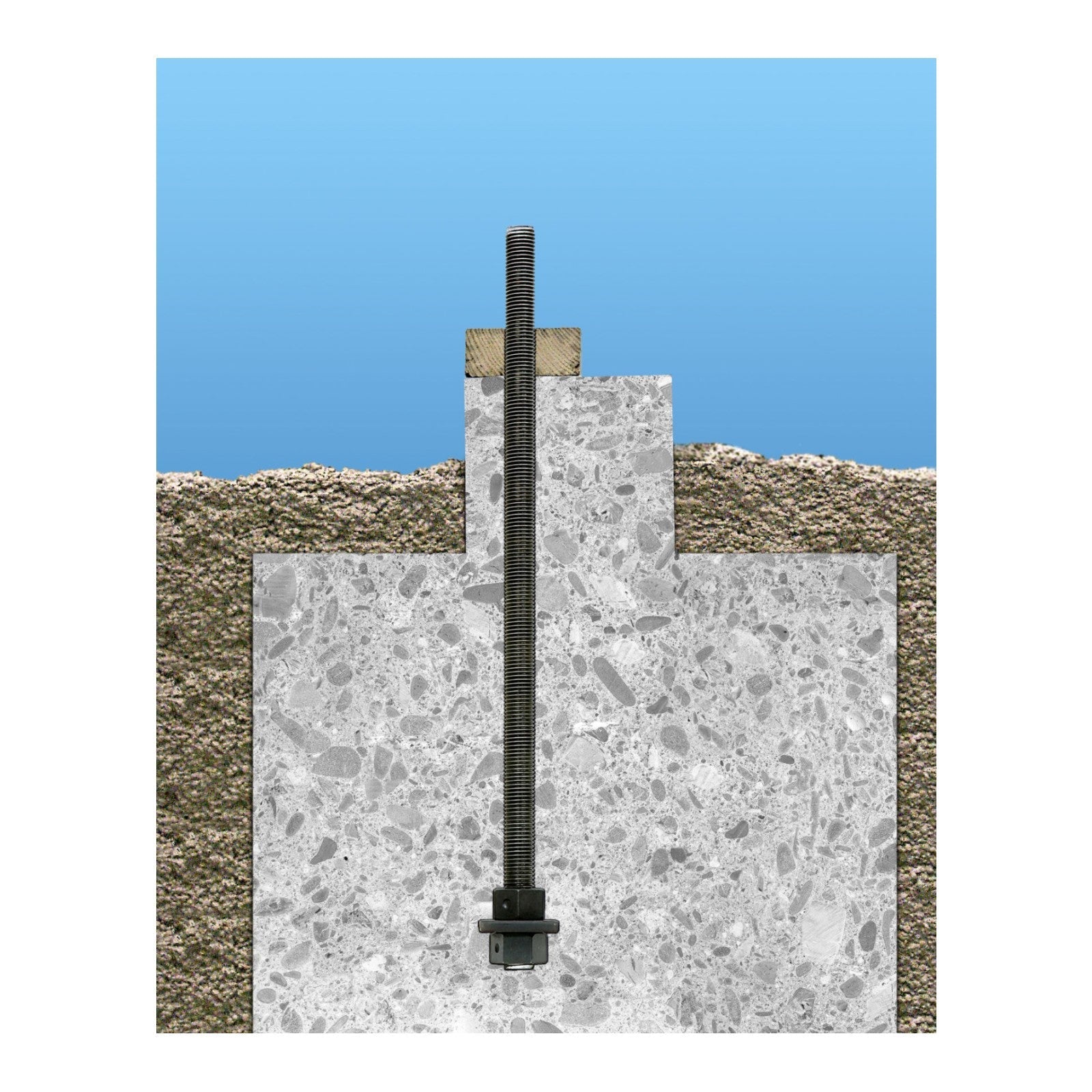

- Placement: Position the anchor bolt in the formwork before pouring concrete, ensuring correct alignment and embedment depth as specified in project plans.
- Securing: The pre-attached plate washer and hex nuts facilitate stable placement during the concrete pour.
- Post-Pour: After the concrete has cured, the head stamp allows for easy verification of anchor specifications.
