SKU: FS-5637-30-E/G

30" Double-Channel Bracket - Electro-Galvanized

30" Double-Channel Bracket - Electro-Galvanized!

  • 12" Double-Channel Bracket

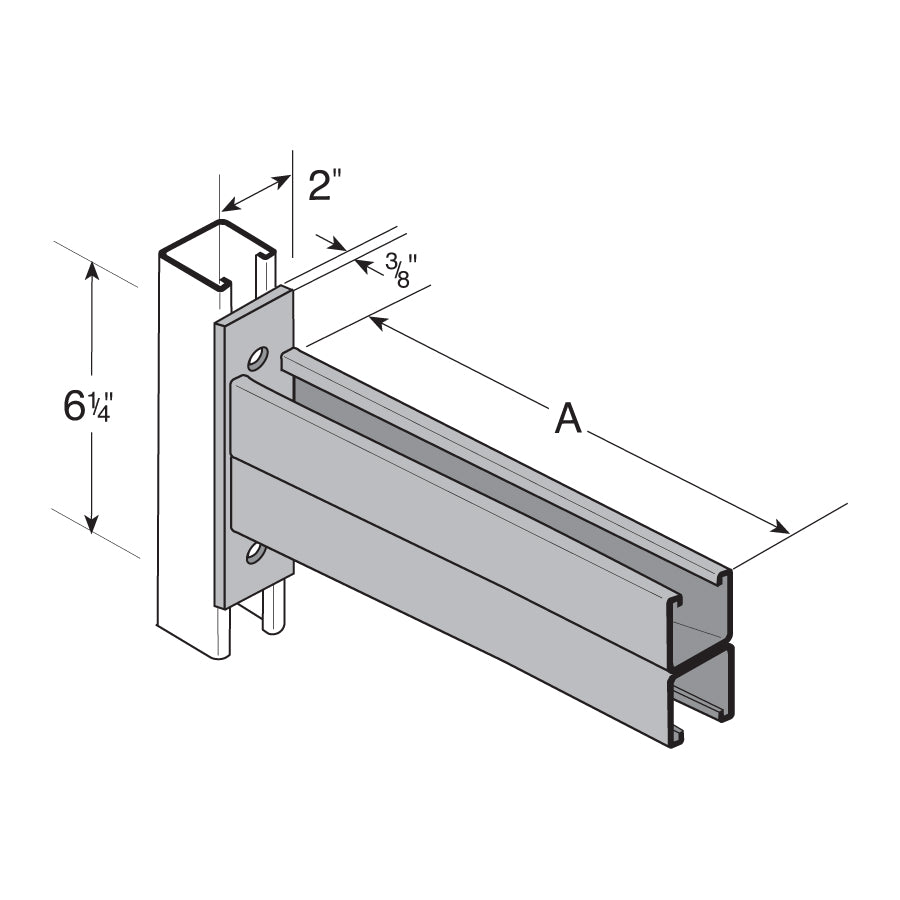

  • Flexstrut FS-5637 Double Channel Bracket Drawing With Dimensions
  • Strut Channel applications for storage shelving and solar panel roof racks
  • Strut Channel applications barn door track and conduit fixtures
1 5

Continue Browsing

Channel Brackets
SKU: FS-5637-30-E/G

30" Double-Channel Bracket - Electro-Galvanized

$62.47

Request Bulk Pricing
min. order qty: 2
Request Bulk Pricing
Please call (888) 794-1590 for custom quantities
Ships in 7-14 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Type:

Electro-Galvanized Carbon Steel Hot-Dip Galvanized Carbon Steel 304 Stainless Steel 316 Stainless Steel

Lengths:

12" 18" 24" 30" 36"

Specifications

Finish: Electro-Galvanized
Length: 30"
Material: Carbon Steel
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
Hole diameter: 9/16"
Load: Uniform Design Load=800#
Manufacturer name: Flex-Strut
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Thickness: 1/4"
Type: Electro-Galvanized Carbon Steel
Width: 1-5/8"
Description

30" Double-Channel Bracket - Electro-Galvanized connects directly to a vertical channel and provides structural support while also distributing loads. The double channel bracket allows for connections to be made on both the top and bottom of the bracket. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.

More
View full details
