8 Ton Snatch Block w/ Hook (3/4" wire x 12" sheave)
8 Ton Snatch Block w/ Hook (3/4" wire x 12" sheave)!
8 Ton Snatch Block w/ Hook (3/4" wire x 12" sheave)
Specifications

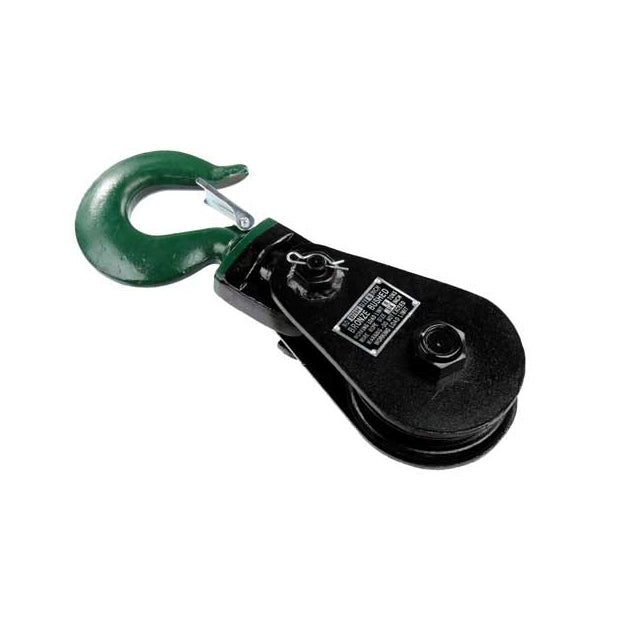

8 Ton Snatch Block with Hook - 12" Sheave for 3/4" Wire Rope
This heavy-duty snatch block is designed for serious lifting and rigging tasks. Featuring a 12" sheave and compatible with 3/4" wire rope, it handles demanding loads with an 8-ton working load limit and an 80,000 lb break strength. The latched swivel hook provides secure attachment, while the drop-side plate design allows for fast rope insertion or change-outs in the field.
A durable bronze bushing ensures low-friction sheave rotation and resists deformation under heavy loads. With a 5:1 safety factor and full compliance with ASME B30.26 standards, this snatch block is built to perform safely under pressure.
Heavy-Duty Snatch Block for High-Load Lifting & Winching
Weighing 65 lbs, this block features a painted black body and a green hook for easy visual ID in rigging setups. The hook’s 1.77" mouth width accommodates a wide range of attachment points. Ideal for industrial rigging, crane operations, recovery, and construction work.
Key Features
- Wire Rope Size: Compatible with 3/4" wire rope
- Sheave Diameter: 12" for smooth rope operation and reduced wear
- Load Ratings: 8-ton (16,000 lb) working load; 80,000 lb break strength
- Latched Swivel Hook: 1.77" mouth width for secure and flexible attachment
- Drop-Side Design: Allows quick rigging without full disassembly
- Bronze Bushing: Withstands heavy loads and minimizes wear
- Product Weight: 65 lbs - heavy-duty for critical load handling
- Finish: Black-painted body with green hook for visibility
- Compliance: Meets or exceeds ASME B30.26 standards
- Applications: Ideal for high-load rigging, lifting, winching, and directional tensioning
