4190 Snatch Block w/ Shackle (3/4" wire x 6" sheave)
4190 Snatch Block w/ Shackle (3/4" wire x 6" sheave)!
4190 Snatch Block w/ Shackle (3/4" wire x 6" sheave)
Specifications

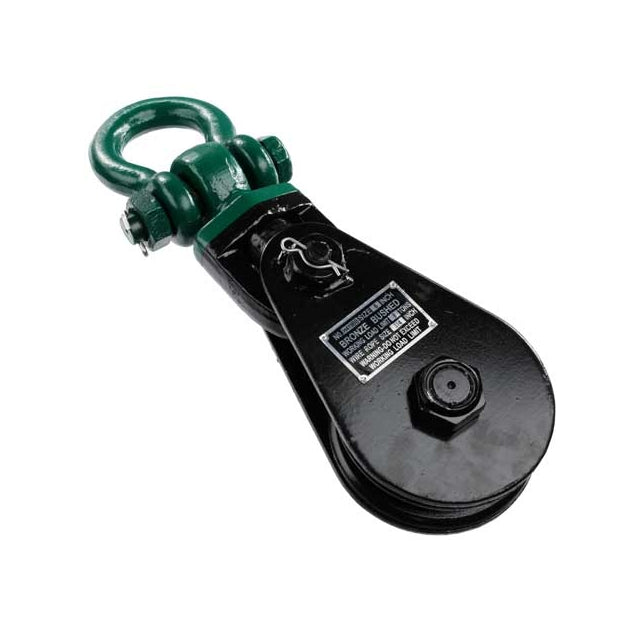

4190 Snatch Block with Shackle - 6" Sheave for 3/4" Wire Rope
The 4190 Snatch Block is engineered for secure, heavy-duty rigging. Featuring a 6" sheave and a shackle end fitting, this block accommodates 3/4" wire rope and supports a 16,000 lb working load limit. Its bronze bushing allows smooth, consistent sheave rotation under load, supporting long-term use in high-stress applications.
With a 1.57" shackle mouth width and drop-side panel design, this block makes rope setup quick and secure. Built to meet or exceed ASME B30.26 standards, it’s a solid choice for professionals in construction, utilities, and industrial rigging.
Heavy-Duty Snatch Block for Rigging, Lifting & Directional Control
At 29 lbs, this snatch block is heavy enough for high-capacity performance while remaining manageable in the field. It provides secure rigging alignment and smooth line movement-ideal for lifting, pulling, or redirection under pressure.
Key Features
- Wire Rope Size: Designed for 3/4" wire rope
- Sheave Diameter: 6" for efficient load redirection and line movement
- Load Rating: 16,000 lb working load limit
- Shackle Mouth Width: 1.57" for stable rigging connection
- Drop-Side Plate: Allows fast rope setup without full disassembly
- Bronze Bushing: Enhances durability and reduces wear under load
- Product Weight: 29 lbs - field-ready for demanding jobs
- Compliance: Meets or exceeds ASME B30.26 safety and performance standards
- Applications: Ideal for high-load rigging, lifting, and directional tensioning
