SKU: HBG8ZY-516X214

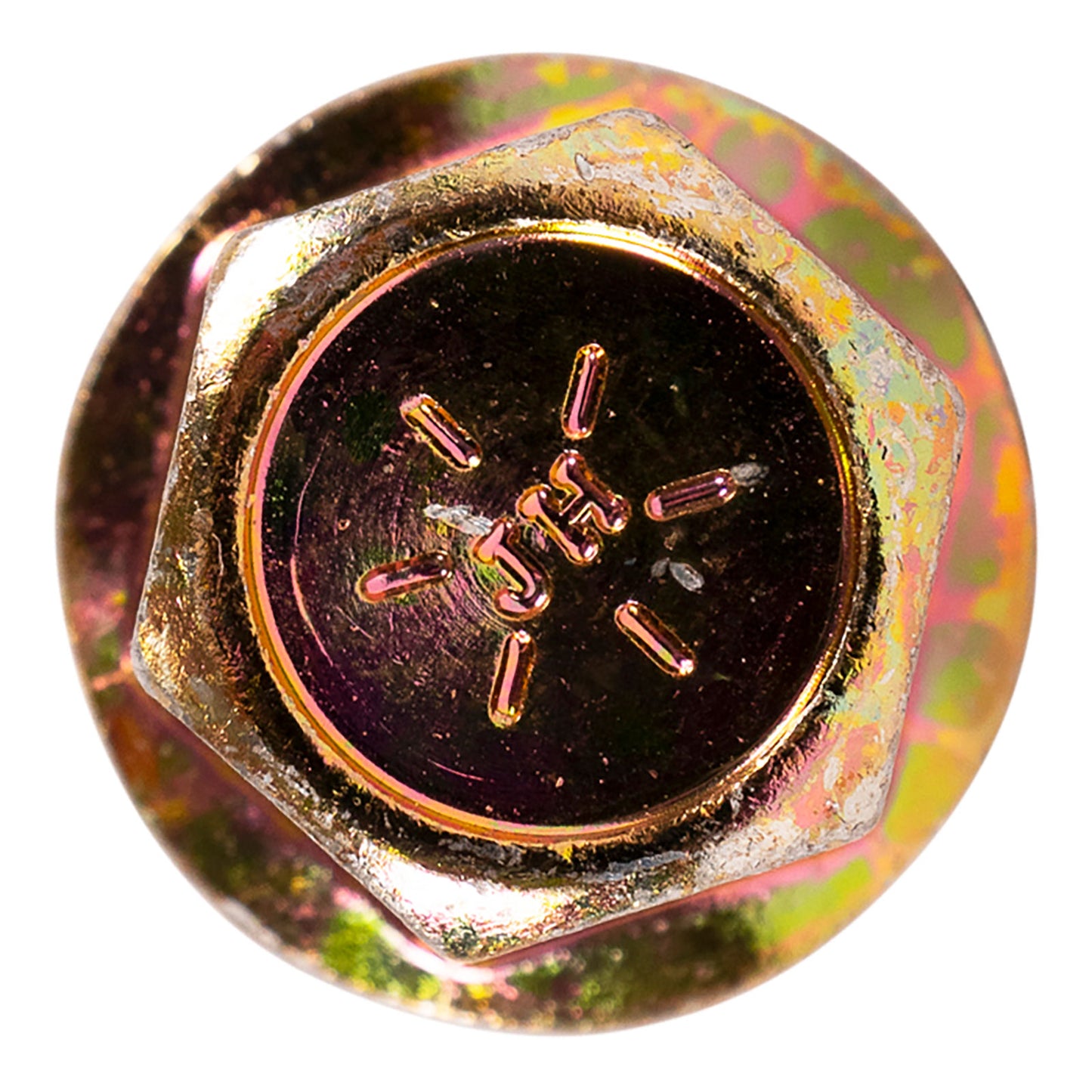

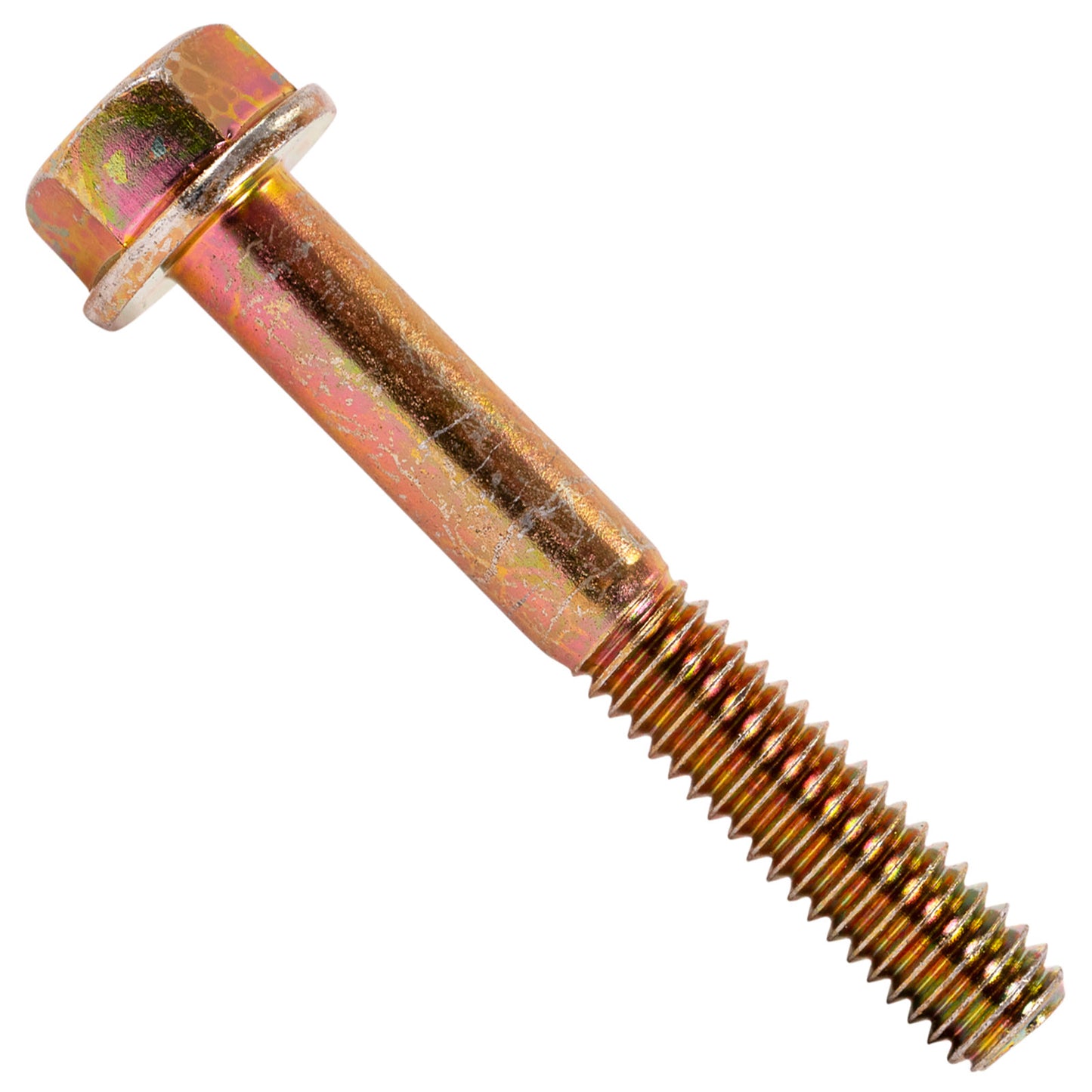

5/16"-18 x 2-1/4" Conquest Grade 8 Non-Serrated Flange Bolt - Zinc Yellow

5/16"-18 x 2-1/4" Conquest Grade 8 Non-Serrated Flange Bolt - Zinc Yellow!

Skip to product information
1 of 2

Continue Browsing

Grade 8 Flange Bolts

$0.63

Request Bulk Pricing
Request Bulk Pricing
Ships Dec 16
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Diameter: 5/16"
Finish: Zinc Yellow
Length: 2-1/4"
Material: Alloy Steel
Additional Info: • SAE J429
• X9- ASTM Equivalent: A354 Grade BD
Head type: Hex Head
Manufacturer name: Conquest Fasteners
Quantity: 1
Thread length: 1.292"
Thread type: Coarse
Threads per inch: 18
Type: Grade 8
Description

Conquest Grade 8 flange bolts are made from strong alloy steel and are designed with a flange under the head that distributes the load, similar to a washer. This design eliminates the need for extra lock nuts or washers. These SAE J429 certified flange fasteners, also known as frame bolts, are built to handle heavy loads in industrial settings where metal-to-metal connections are needed. Grade 8 bolts with coarse threading are offered in a black phosphate & oil finish, and a zinc yellow finish. Fine threaded hex flange bolts are also available.
