9/16" 8x19 Rotation-Resistant Wire Rope - EIPS IWRC | 1,000' Coil
Specifications
Right Hand Regular Lay
9/16" 8x19 Spin-Resistant Wire Rope Cable
This 9/16" 8x19 spin-resistant wire rope is engineered to reduce rope rotation while under load, making it an excellent choice for hoisting unguided loads in lifting and crane applications. Manufactured from Extra Improved Plow Steel (EIPS) and built with an Independent Wire Rope Core (IWRC), this rope provides dependable strength, durability, and resistance to crushing while maintaining excellent handling characteristics.
Rotation-Resistant Wire Rope for Hoisting & Lifting Applications
The 8x19 construction utilizes opposing strand lays, with the inner strands wound in the opposite direction of the outer strands. This design helps counteract rotational forces that naturally occur during lifting operations, reducing load spin and improving control during hoisting.
As a Category 3 Rotation-Resistant Rope, the 8x19 construction provides limited rotation resistance while offering greater durability than Category 2 rotation-resistant ropes such as 19x7 and compacted 19x19 constructions. It is commonly recommended for hoisting unguided loads using either single-part or multi-part line systems.
8x19 Wire Rope Configuration
Our wire rope is manufactured using EIPS-grade steel. EIPS (Extra Improved Plow Steel) provides approximately 10% greater tensile strength than standard IPS-grade wire rope, resulting in improved breaking strength and dependable load-carrying performance.

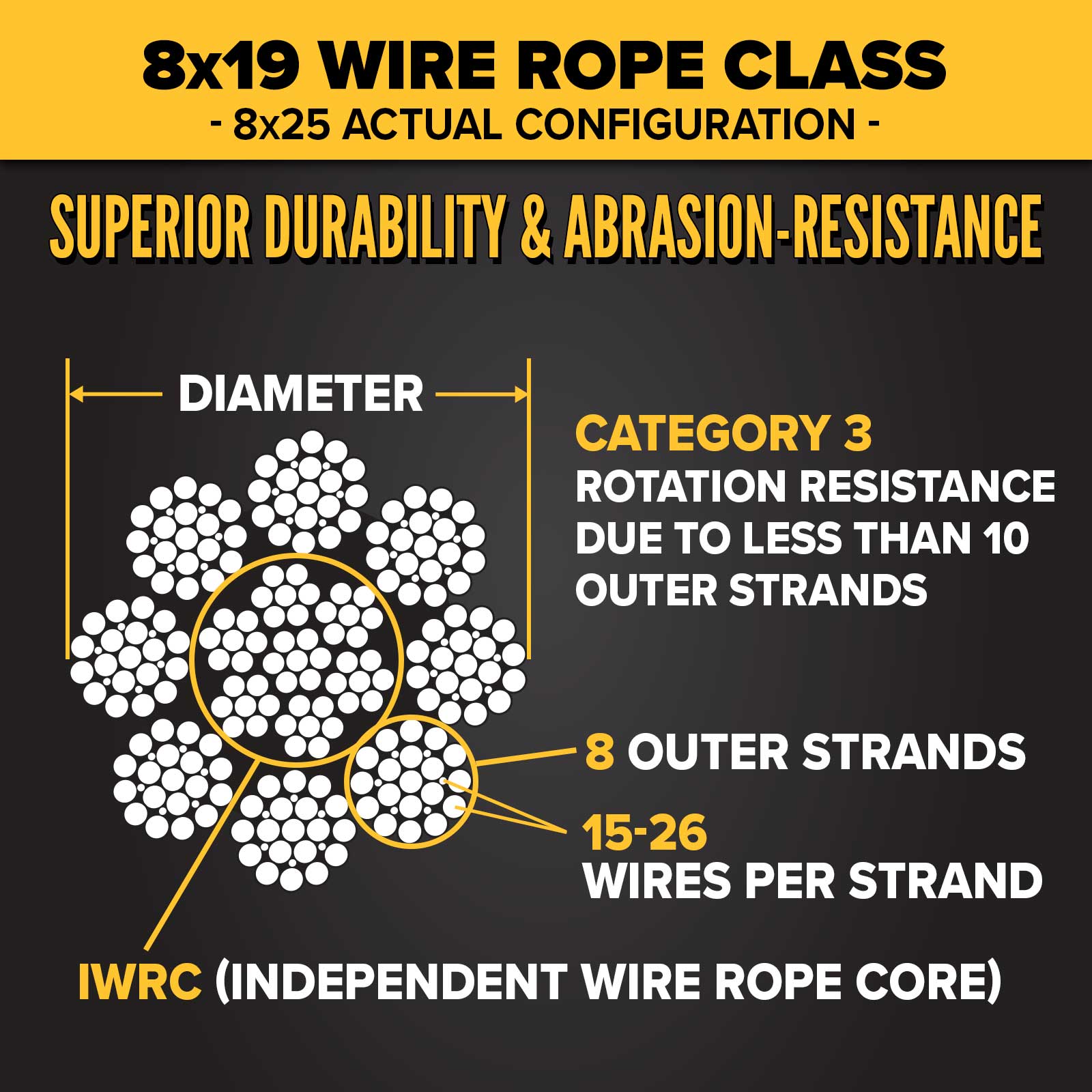

The class of this wire rope is 8x19. These numbers nominally refer to the rope construction, consisting of eight outer strands surrounding the core, with approximately 15-26 wires making up each strand. The actual rope construction supplied is 8x25.
Bright Finish & IWRC Construction

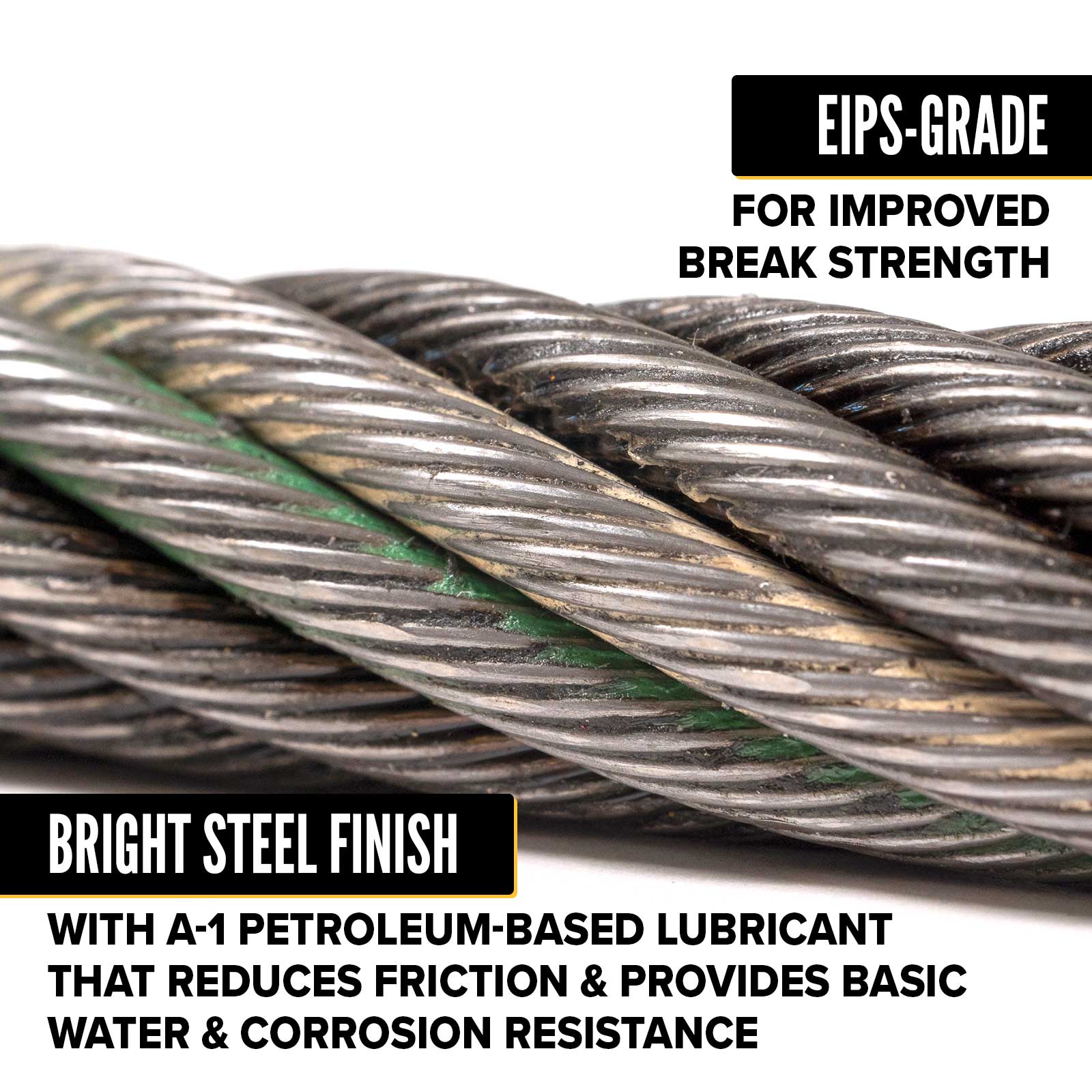

This wire rope features a bright steel finish protected by an A-1 petroleum-based lubricant applied to both internal and external wires. The lubricant helps reduce friction, minimize internal wear, and provide basic resistance against moisture and corrosion.

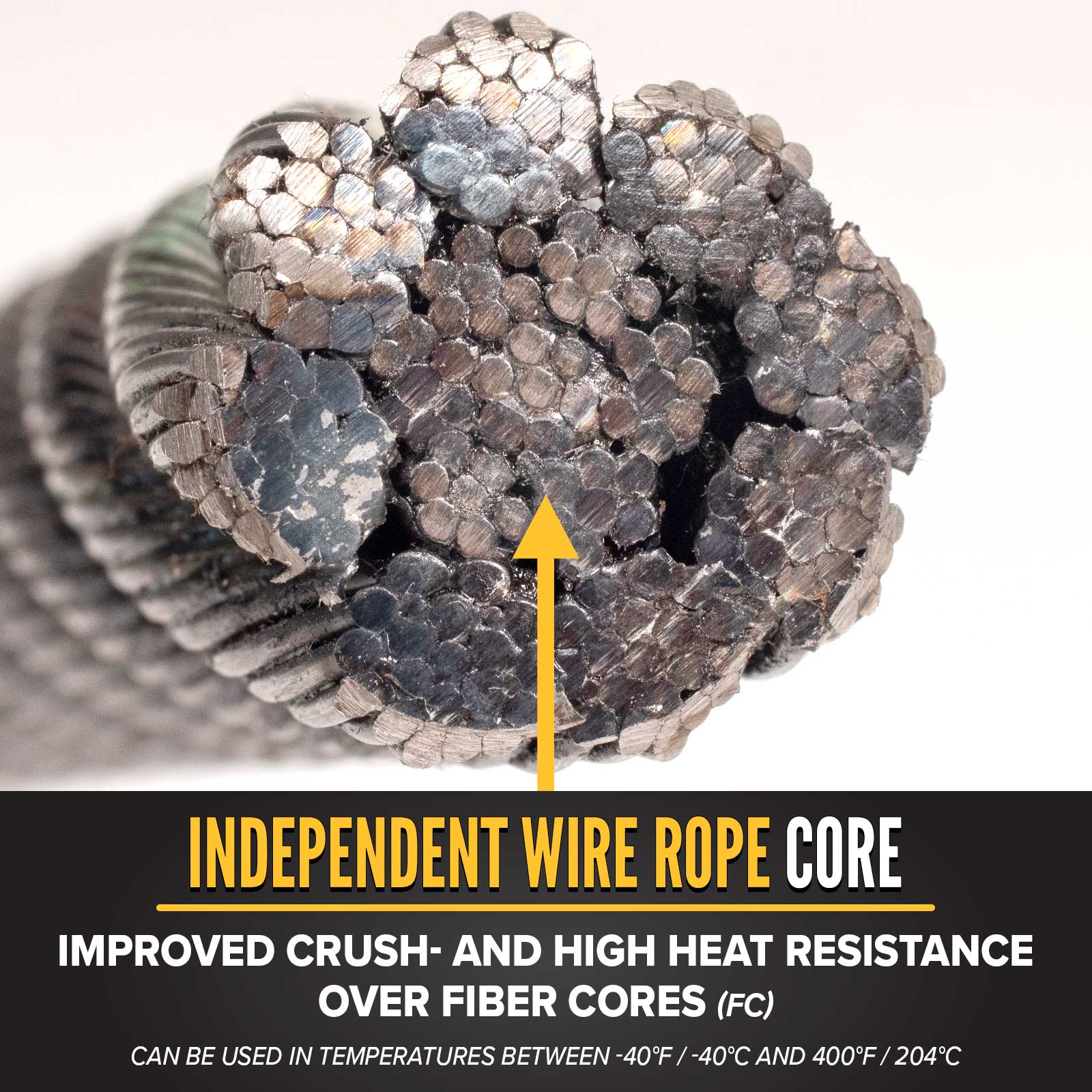

The Independent Wire Rope Core (IWRC) provides enhanced support compared to fiber core alternatives. IWRC construction improves crushing resistance, increases load stability, and performs reliably in temperatures ranging from -40°F to 400°F.
Key Features
- EIPS-grade steel delivers approximately 10% greater tensile strength than IPS grades
- 8x19 class construction helps reduce rope rotation under load
- Actual rope construction supplied is 8x25
- Category 3 rotation-resistant wire rope design
- Ideal for hoisting unguided loads with single-part or multi-part line systems
- More durable than comparable Category 2 rotation-resistant rope constructions
- Bright finish with A-1 petroleum-based lubricant reduces friction and internal wear
- IWRC core improves crushing resistance and load support
- Temperature range from -40°F to 400°F
- Meets RR-W-410 and ASTM A1023 dimensional and strength requirements
- Should not be used with a swivel
- Imported from a vetted supplier
- Certificate of Conformity available upon request
Accessories & More
Complete your wire rope assembly with our selection of wire rope fittings and rigging hardware. We carry essential components for securing, connecting, and tensioning wire rope, including wire rope clips, turnbuckles, and eye bolts.
