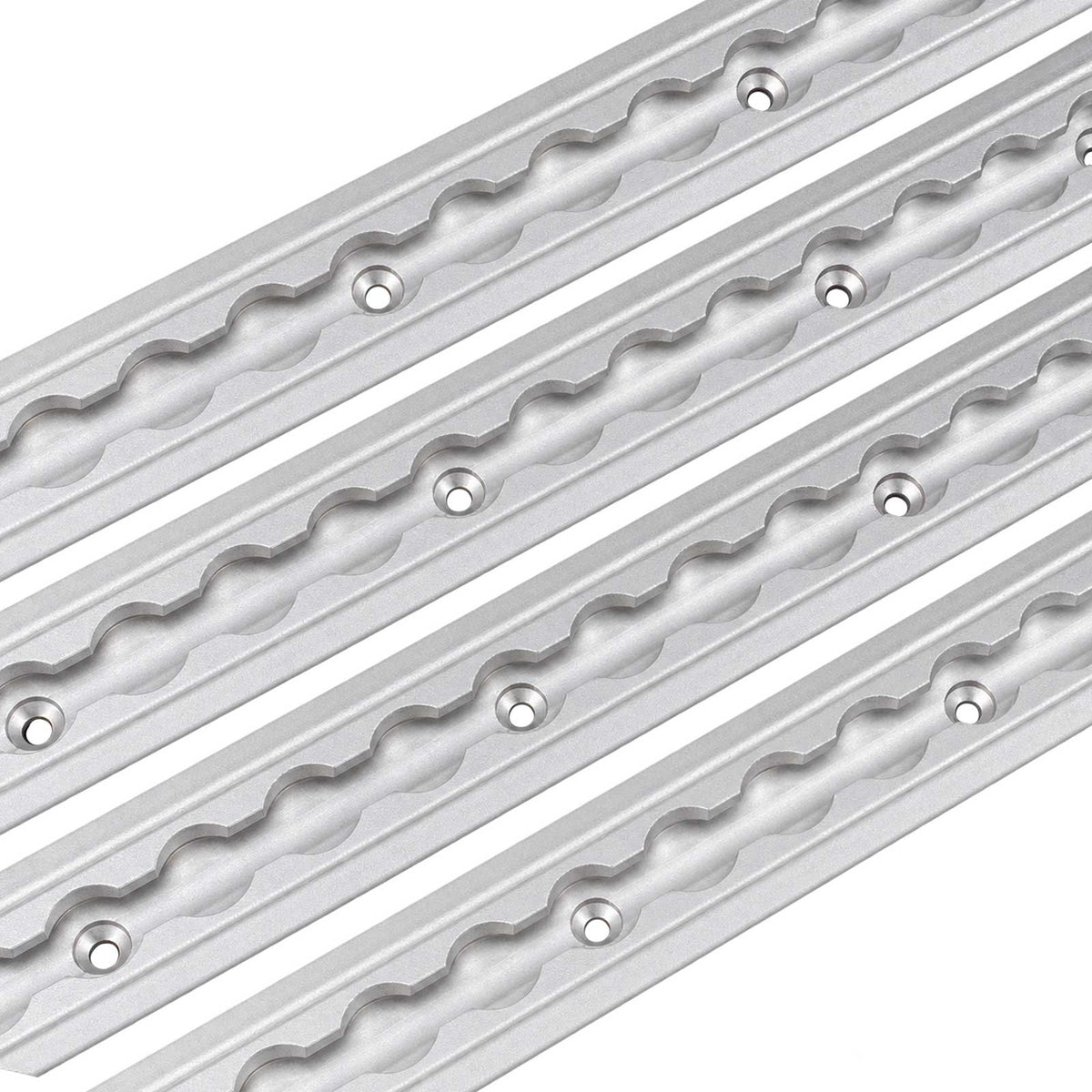

96" Flanged Anodized Aluminum L-Track - 4-Pack

Flanged L-track is built to sit down in the floor rather than on top of it. The flanged edges give you a landing surface for a recessed install, so once this 96" rail is set the anchor slots sit flush with the deck and there is no lip for a wheel or a boot to catch.

That flush result is why it gets used for motorcycles, ATVs, garden tractors, and utility carts in pickup beds, toy haulers, and enclosed trailers - you get full-length anchor points without giving up a clean floor.

What the Anodizing Buys You

The extrusion is 6061-T6 aluminum, which is light and corrosion resistant on its own. Anodizing goes further: the finish is grown into the surface of the metal rather than sprayed onto it, so there is no coating to chip or peel back from an edge. What you get is a harder face that shrugs off scuffs from loading and unloading, plus better tolerance for sun, road spray, and repeated washdowns than bare aluminum.

Mounting

Mounting holes are pre-drilled on 4" centers down the full run, sized for 1/4", 6mm, or #12 hardware. A through-bolt with a nut and washer - plus a dab of thread locker - is the most dependable joint. Lag screws or self-drillers into wood or sheet metal will hold, but do not expect bolted-joint strength from them.

Hardware is sold separately - the 1-1/2" bolt, nut, and washer pack is the usual pairing.

If the length or hole spacing does not suit your layout, the rail cuts cleanly with a carbide-tipped blade in a hacksaw or chop saw, and you can add holes with a carbide countersink bit. Read the welding note below before you take any heat to it.

End caps are available for this profile if you want to close off the cut ends and tidy up the installation.

Do Not Weld It As-Is

Leave the anodizing on and this rail will not weld properly. The finish behaves as an insulator and contaminates the puddle, which leaves a weak and unpredictable joint. If your install genuinely calls for a weld, grind the anodizing off the weld zone and a margin around it first and weld to bare aluminum.

How Much Will It Hold?

We do not publish a single working load limit for the rail, because an installed track is only as strong as the fasteners you picked and the structure you anchored into. The extrusion is made to be at least as strong as the fittings and straps we sell to go with it, which puts the responsibility on the install. If you are unsure what your floor or wall will take, ask your trailer or vehicle manufacturer, and read WSTDA T-5, section 3.4.

Specs

• Length: 96"
• Profile: Flanged edge, recessed mount
• Material: 6061-T6 aluminum, anodized finish
• Mounting holes: 4" centers
• Compatible hardware: 1/4", 6mm, or #12 fasteners
• Quantity: 4 rails

Finish the System

Track on its own does not secure anything. Pair it with single- or double-stud L-track fittings, L-track straps that clip straight into the slots, or a cargo net for loose gear. Pre-built L-track kits and our full L-track system selection are the fastest way to spec a complete setup. Fittings also accept any standard S-hook strap you already own. Not sure how to lay it out? Give us a call.

Please note: this track is intended for cargo securement and recreational use. It is not certified for wheelchair occupant restraint in buses, vans, or other passenger transport vehicles.
