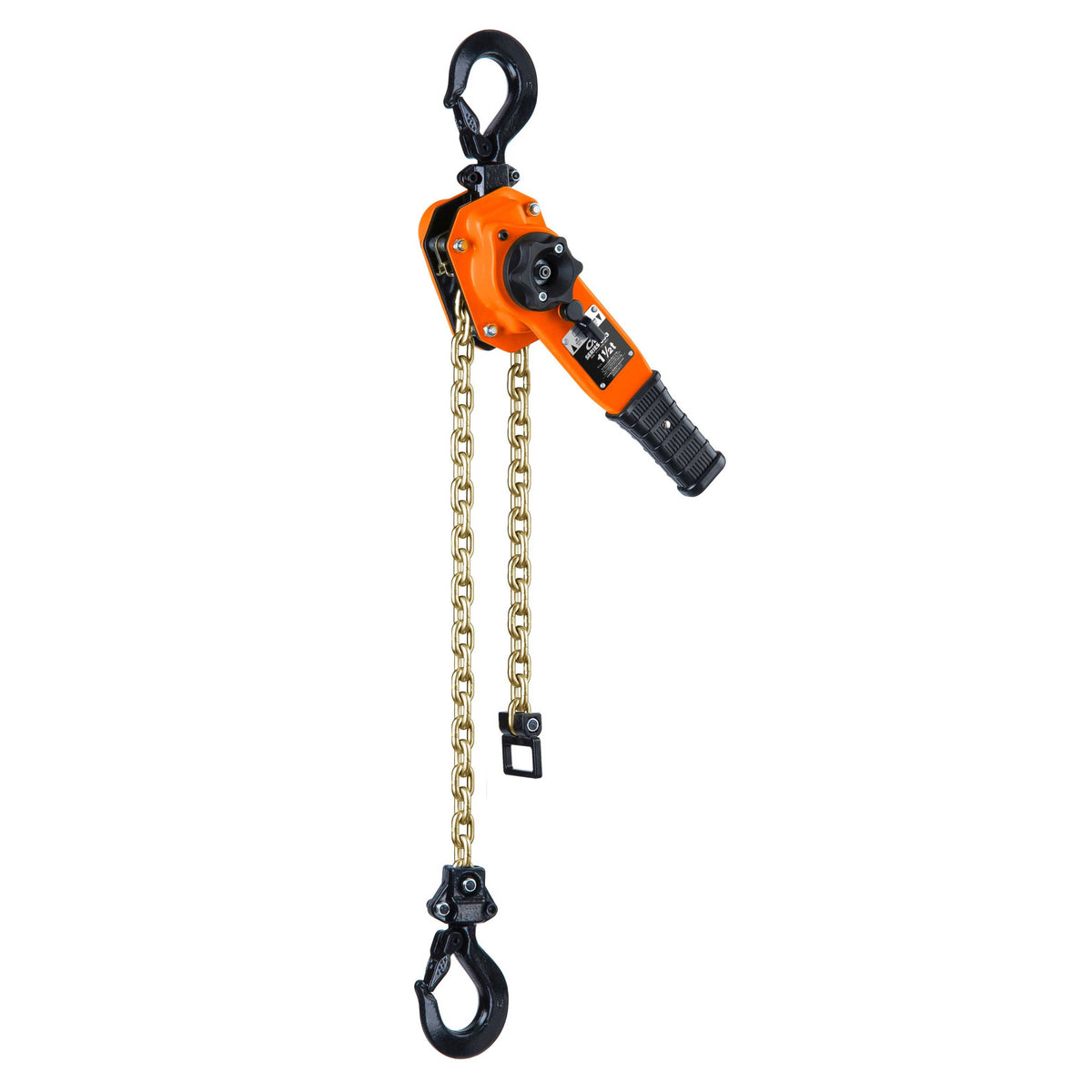

The CM Series 653A lever chain hoist is a rugged, all-steel tool built for close-quarter pulling, stretching, and hoisting, with a short handle and minimal lever-pull effort that suit a broad range of jobs, across a capacity range from 3/4 ton up to 6 tons.

Key Features

• Rubber handle grip adds operator comfort, and simple one-handed free-chaining speeds up load attachment.
• Impact-resistant stamped steel frame, gear case, and cover balance durability with a lighter feel.
• Weston-type braking system provides positive load control and positioning.
• Hardened steel load chain and forged upper and lower hooks with heavy cast steel latches add strength and long wear life.
• Hardened steel load-sharing gears with a double pawl arrangement and two chain guide rollers assure consistent load control.
• Powder-coated finish adds corrosion protection; designed and manufactured by Columbus McKinnon.
• Meets ASME B30.21 and the European CE standard; metric rated; minimal maintenance with no special tools required; spans 3/4 ton to 6 ton capacities.

Applications

• Close-quarter pulling, stretching, and hoisting jobs in tight work spaces.
• Crews that want a rugged, easily transported all-steel hoist for everyday use.
• Facilities standardizing on Columbus McKinnon-manufactured lever hoists.
