Galvanized Jaw & Eye Swivel - Carbon Steel - 5/16"
Galvanized Jaw & Eye Swivel - Carbon Steel - 5/16"!
Galvanized Jaw & Eye Swivel - Carbon Steel - 5/16"
Specifications

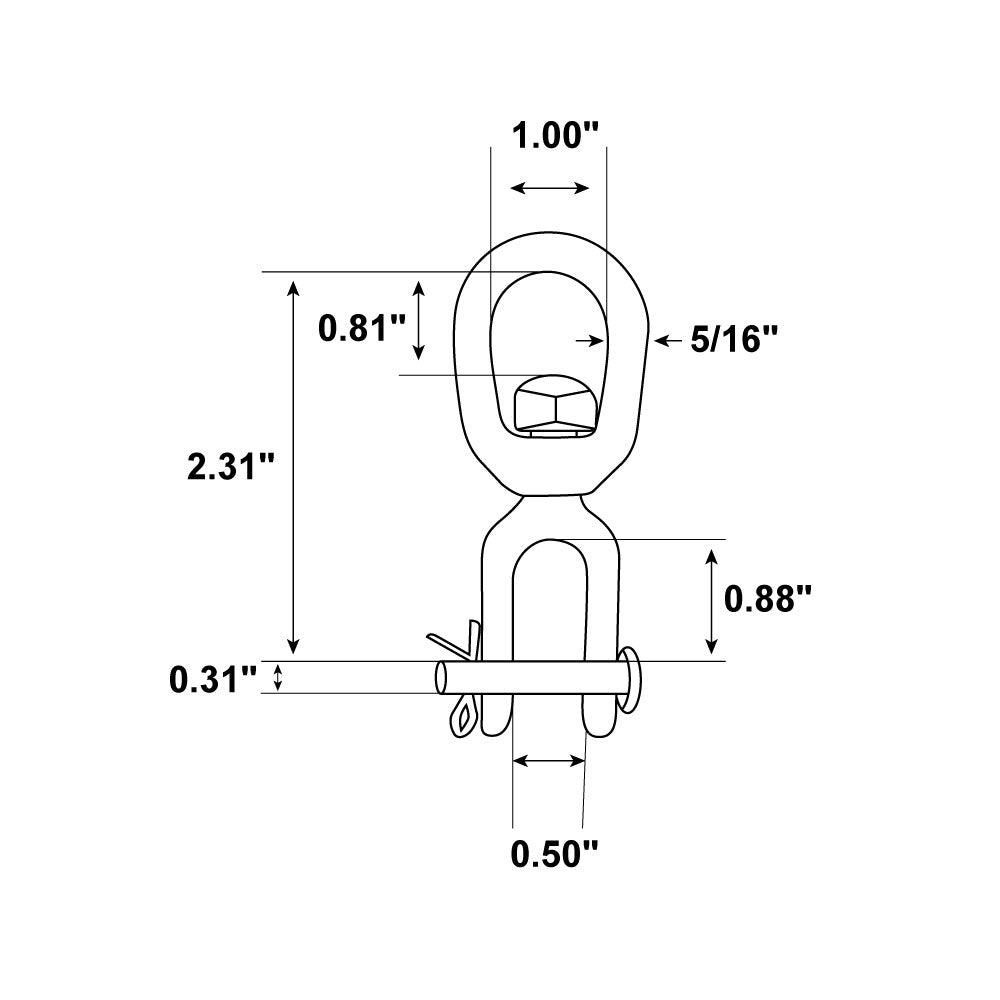

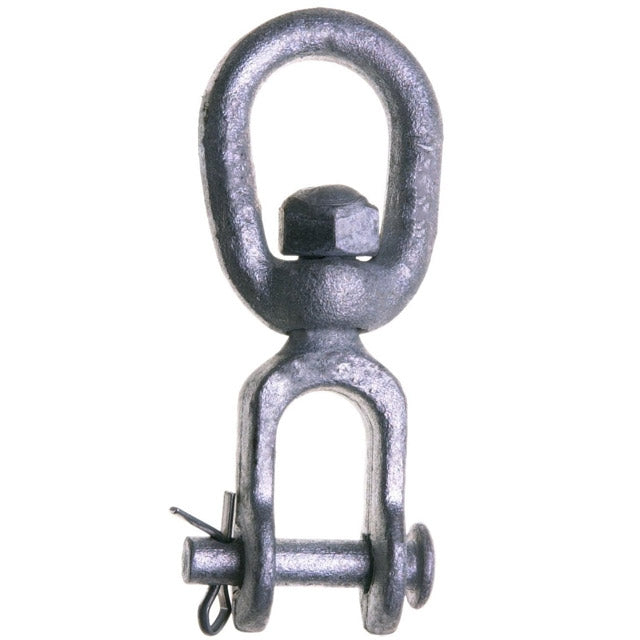

5/16" Galvanized Jaw & Eye Swivel - Carbon Steel
Designed for light to mid-duty rigging setups, the 5/16" Galvanized Jaw & Eye Swivel offers secure, corrosion-resistant performance in alignment-critical applications. Constructed from carbon steel and hot-dip galvanized, this swivel connects chains or wire rope while helping reduce line twist. Important: This is a positioning device only and is not intended to rotate under load.
Rigging Swivel for Load Alignment - Not for Rotational Lifting
With a working load limit of 1,250 lbs and a break strength of 6,250 lbs, this swivel meets ASTM A957 and ASME B30.26 standards. Its jaw & eye design allows fast installation while offering controlled load alignment during setup. Commonly used in construction, marine, and utility work where static positioning-not rotation-is required.
Key Features
- Diameter: 5/16"
- Working Load Limit: 1,250 lbs
- Break Strength: 6,250 lbs
- Safety Factor: 5:1
- Material: Carbon steel with hot-dip galvanized finish
- Design: Jaw & eye configuration for pre-lift alignment
- Compliance: Meets or exceeds ASTM A957 and ASME B30.26 standards
- Usage Note: Positioning device only-do not use to rotate under load
- Product Weight: 0.34 lbs
