R-8 HVAC Duct Wrap Insulation rFOIL Big 8 - 4' x 50' (200 Sq Ft)
Specifications
EcoFoil “Big 8” HVAC Duct Insulation Wrap (R-8) is engineered to limit radiant heat gain and loss while providing an airtight thermal break around residential and commercial ductwork. When all seams are taped, the wrap forms a continuous vapor barrier that helps prevent condensation and moisture-related issues. For best results, we recommend sealing seams with EcoFoil Premium High Tack HVAC Tape to ensure the insulation performs as one cohesive layer.

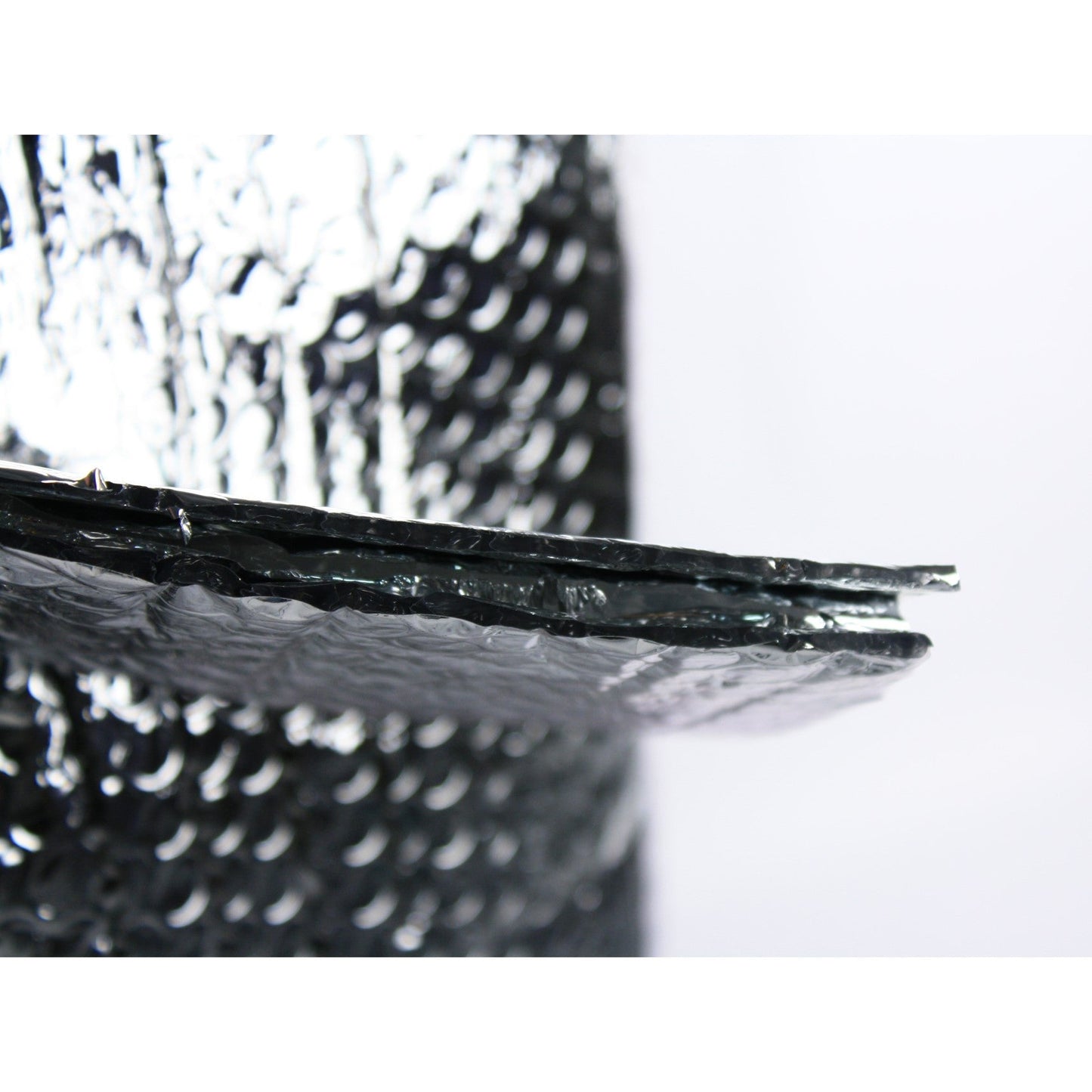

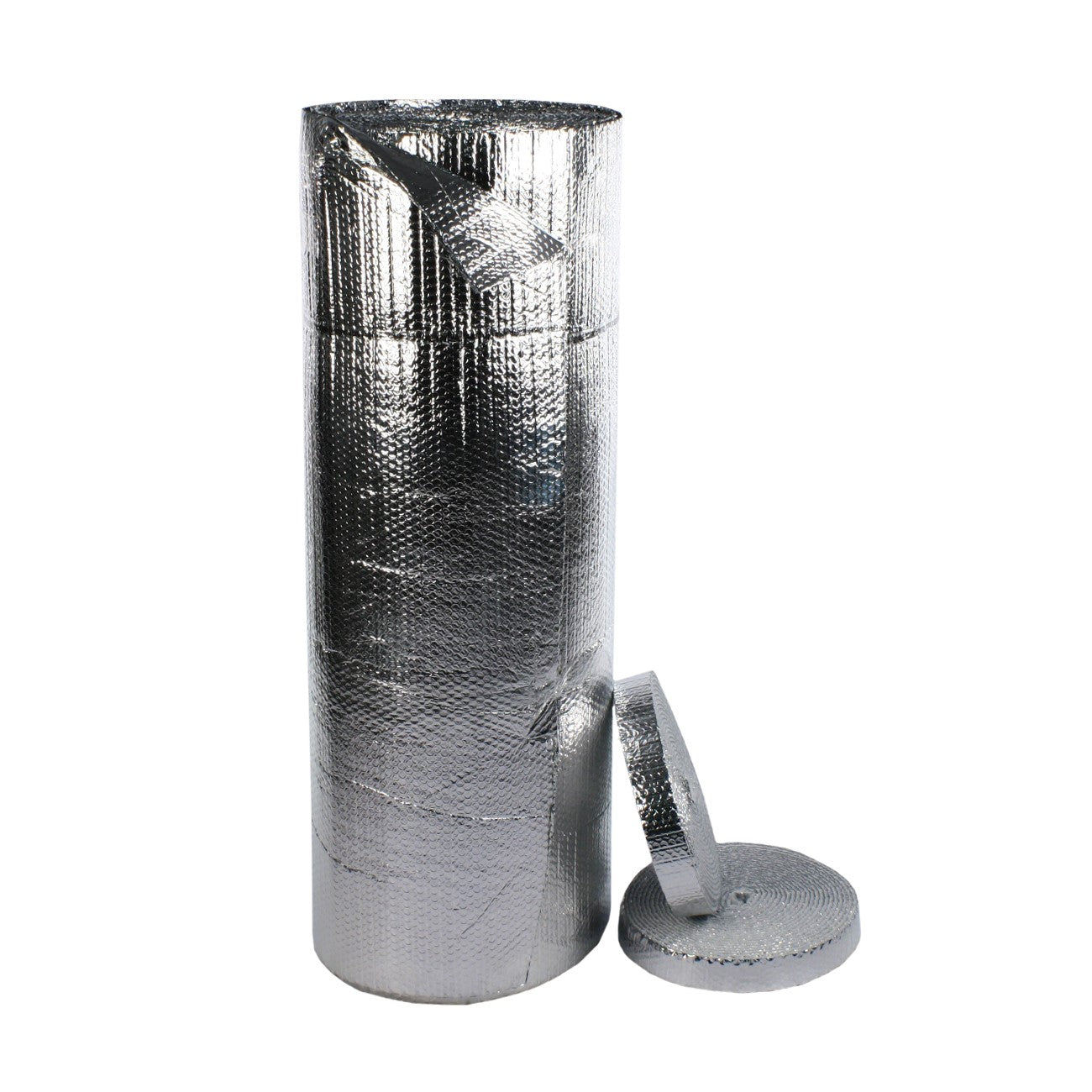

This duct wrap features a triple-layer polyethylene bubble design, with each layer bonded to reflective metalized surfaces for high radiant performance. The center contains a large single bubble layer supported by two thinner bubble layers, creating a combined thickness of approximately 9/16" to 5/8". Each roll includes two spacer strip rolls, which must be installed every 2 feet around the duct to achieve the full R-8 rating. Once the spacer strips are in place, the finished system builds to roughly 11/16" to 3/4" thick, forming an additional air chamber that enhances insulation efficiency.
R-8 Duct Insulation for Residential & Commercial HVAC Systems
“Big 8” duct wrap is suitable for round, square, and rectangular ducts in interior applications. It delivers consistent thermal performance by combining reflective surfaces with bubble-core insulation, making it an ideal choice for homeowners, contractors, and HVAC professionals looking to improve system efficiency and comfort.
Durable Multi-Layer Construction for Reliable Performance
The combination of large-cell and small-cell bubble layers provides structural stability and flexibility, enabling the material to conform to different duct shapes without tearing. When properly installed with spacer strips and sealed at every seam, the system helps maintain dependable R-8 performance and reduces strain on heating and cooling equipment.
Key Features

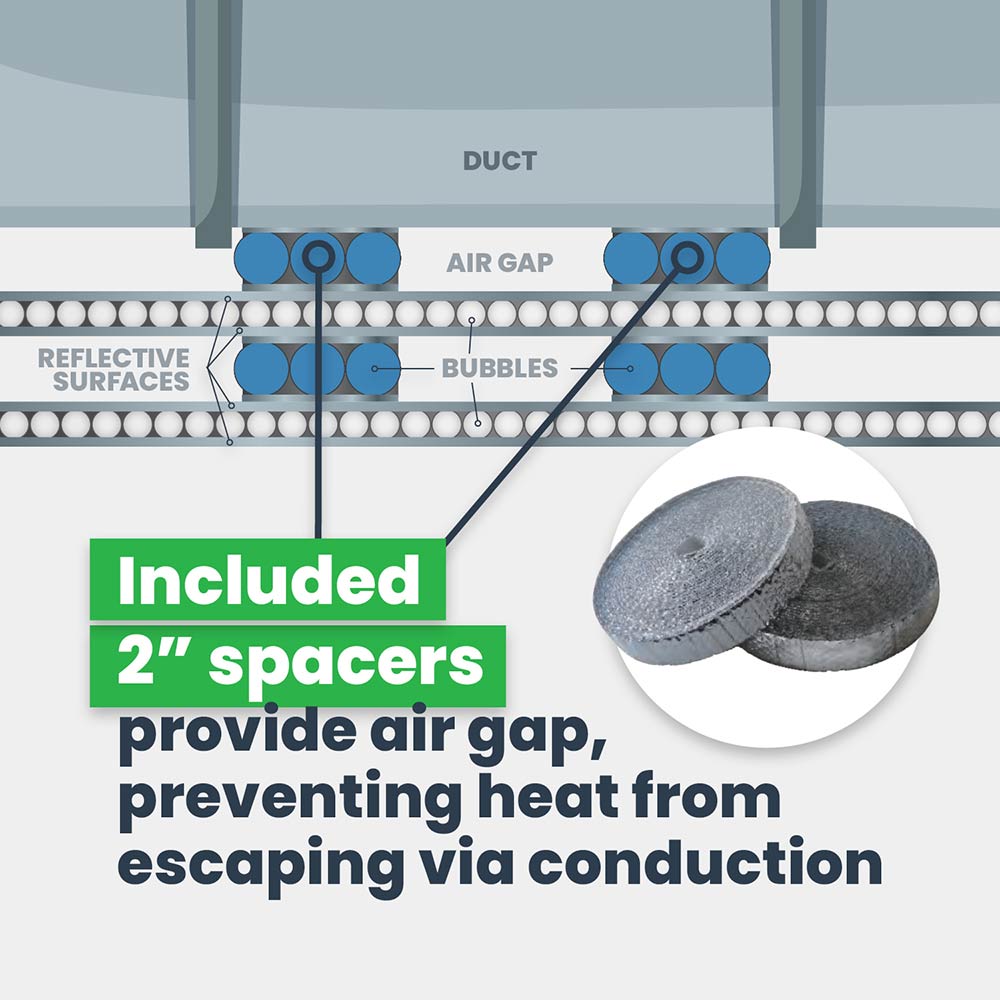

- R-8 performance: Achieved when spacer strips are installed every 2 feet to form an added air chamber.

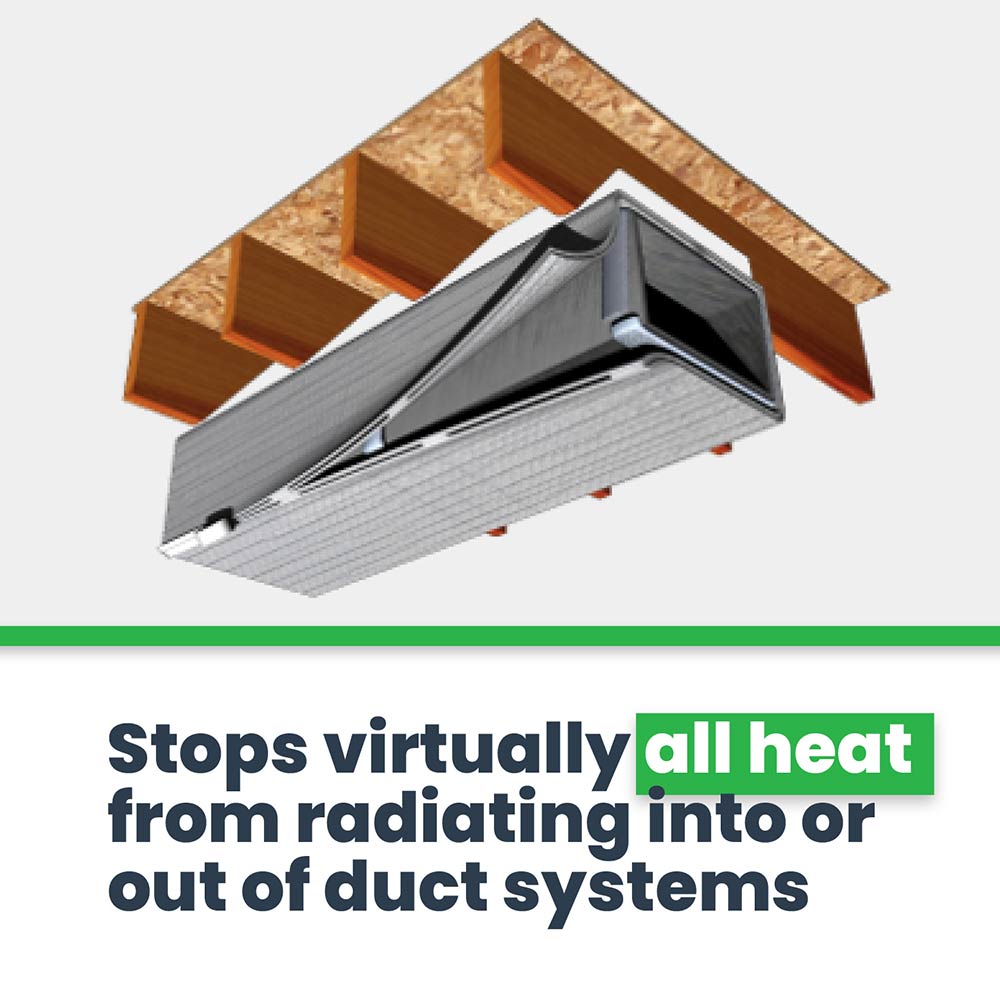

- Controls heat gain & loss: Reflective surfaces and bubble layers limit radiant transfer.
- Helps prevent condensation: Creates an airtight thermal break when seams are fully taped.
- Triple-layer bubble design: Features a large center bubble layer flanked by two thinner layers for added strength.
- Flexible installation: Fits round, rectangular, and square ducts in residential or commercial interiors.
- Not for exterior use: Designed exclusively for indoor duct applications.
- Easy to handle: Lightweight wrap installs cleanly with basic tools and HVAC tape.
