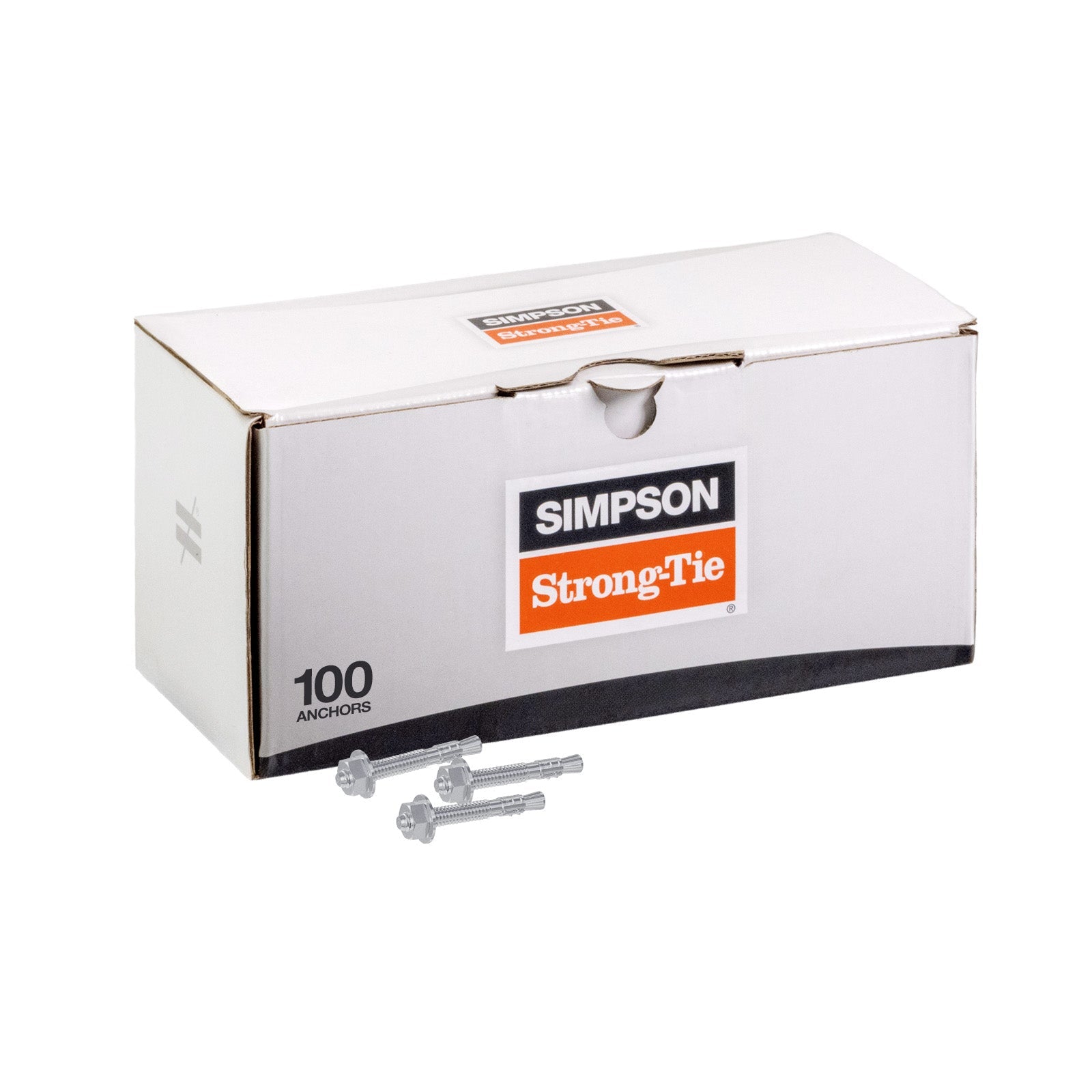

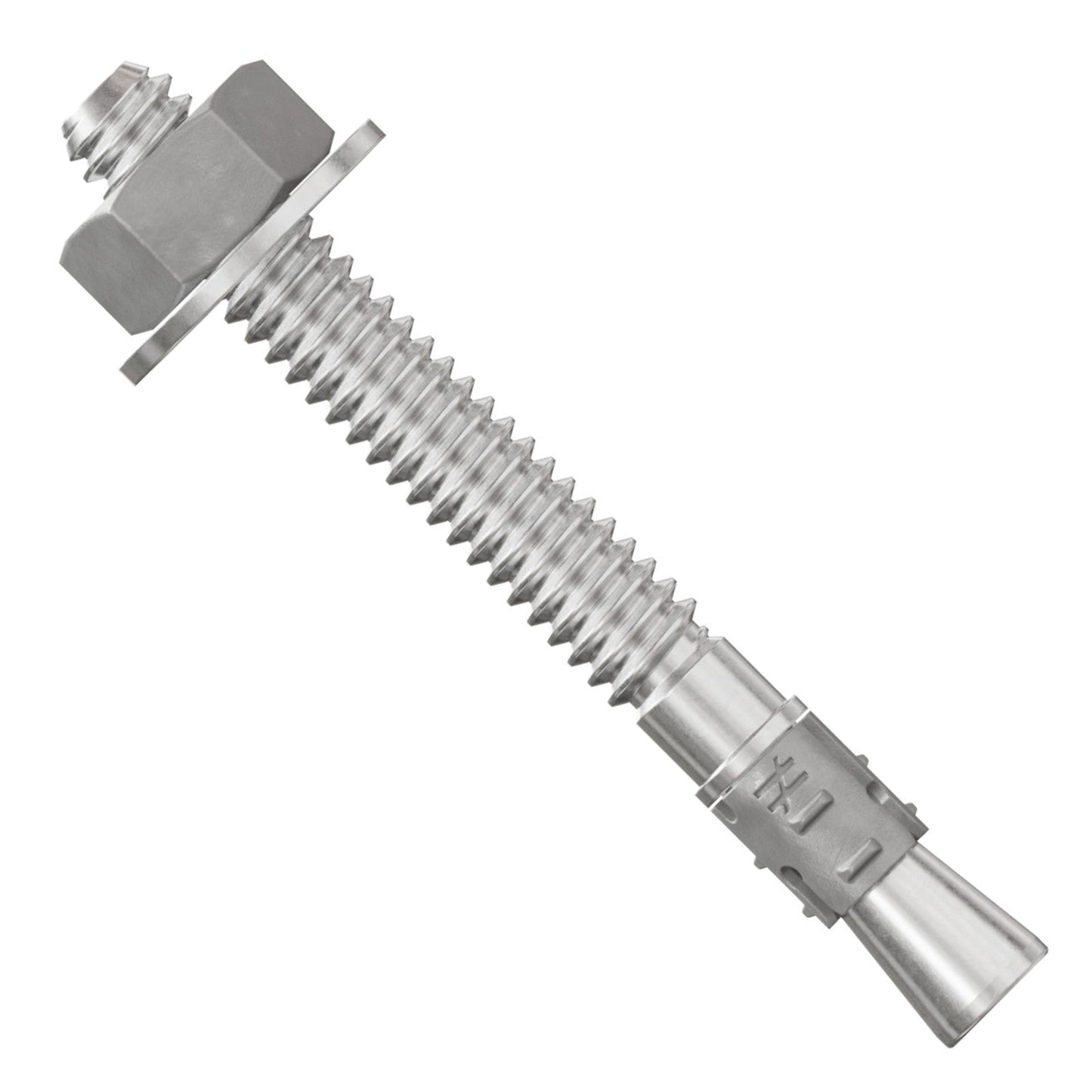

Simpson 1/4" x 2-1/4" Strong Bolt 2 Fully Assembled Wedge Anchor - 316 Stainless Steel, Pkg 100

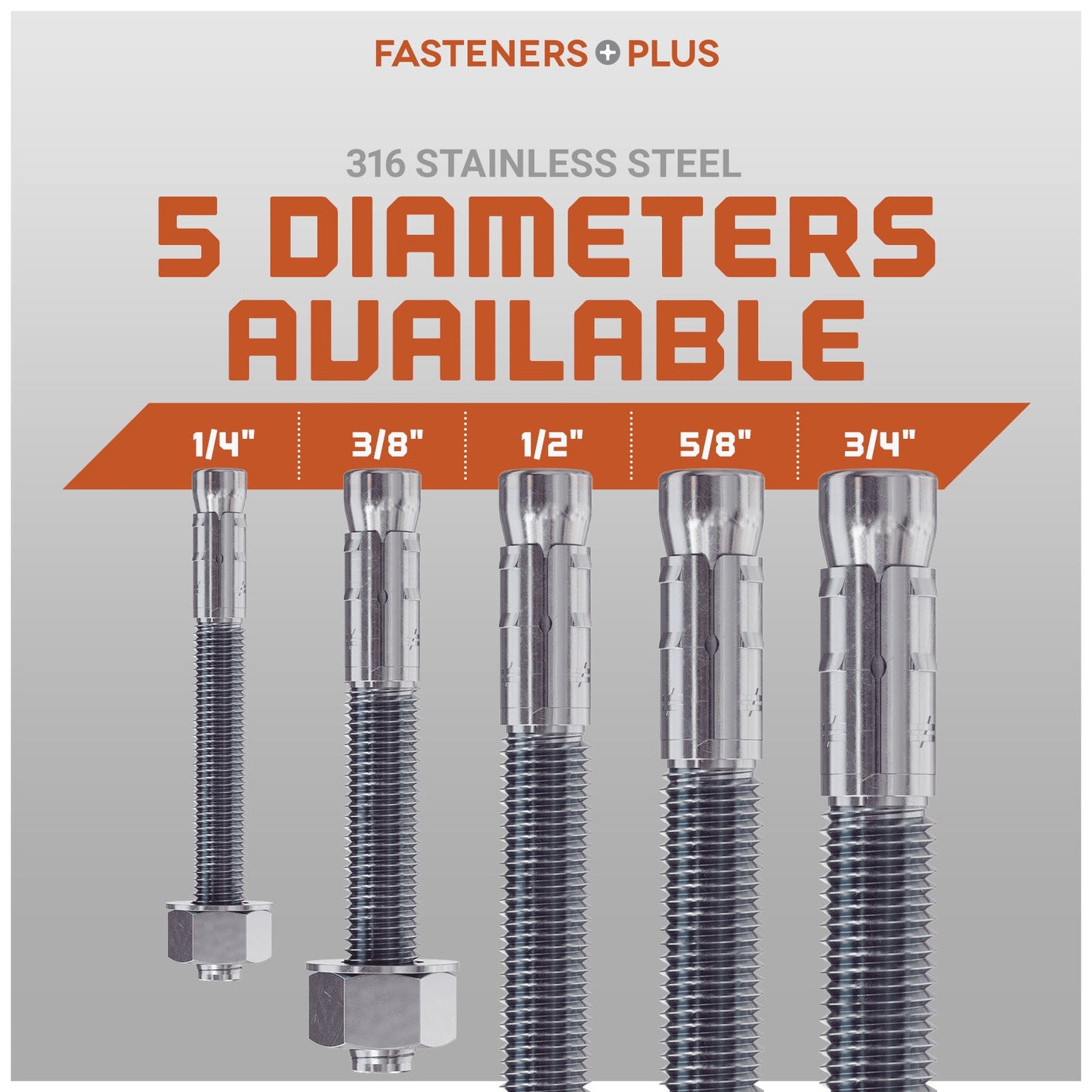

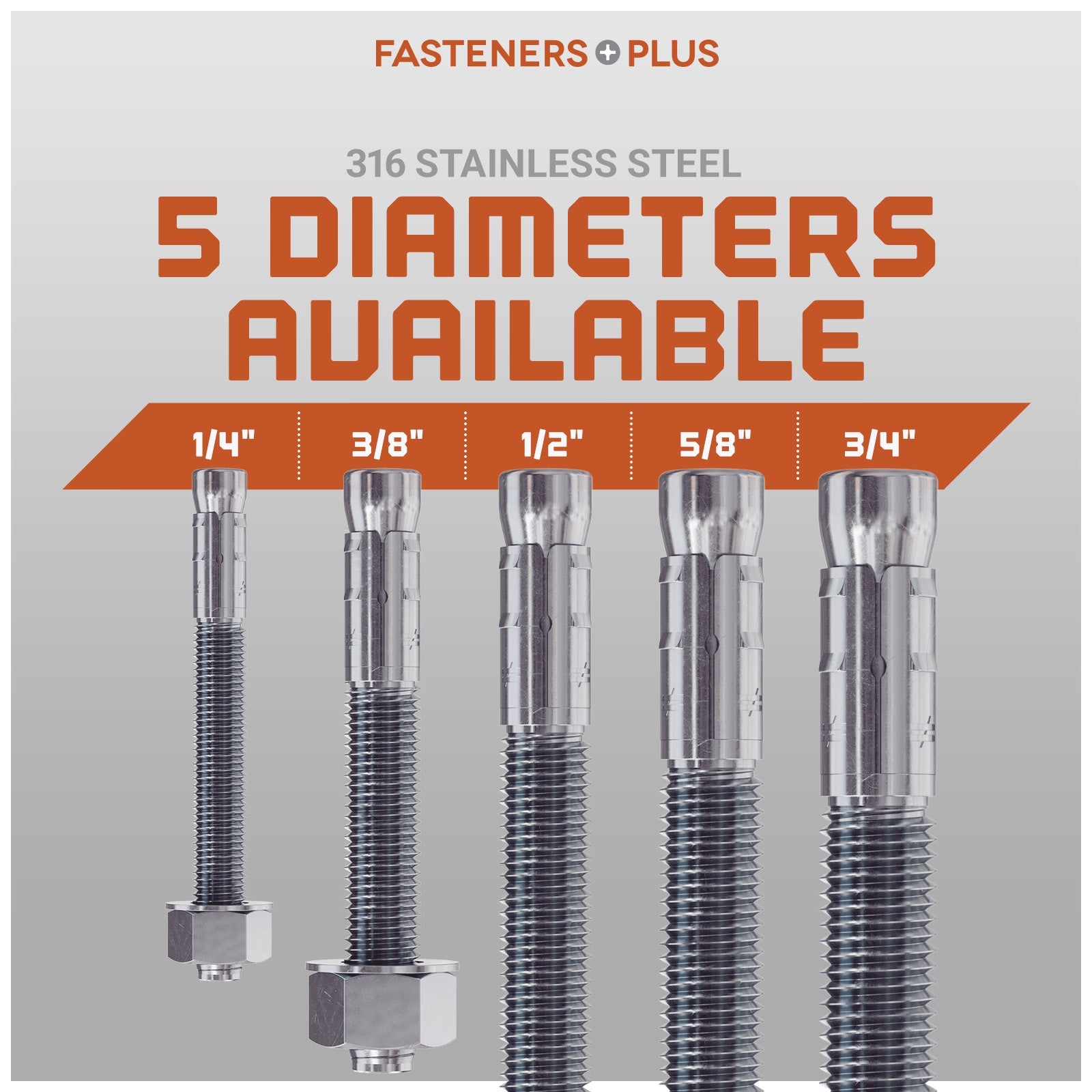

Diameters

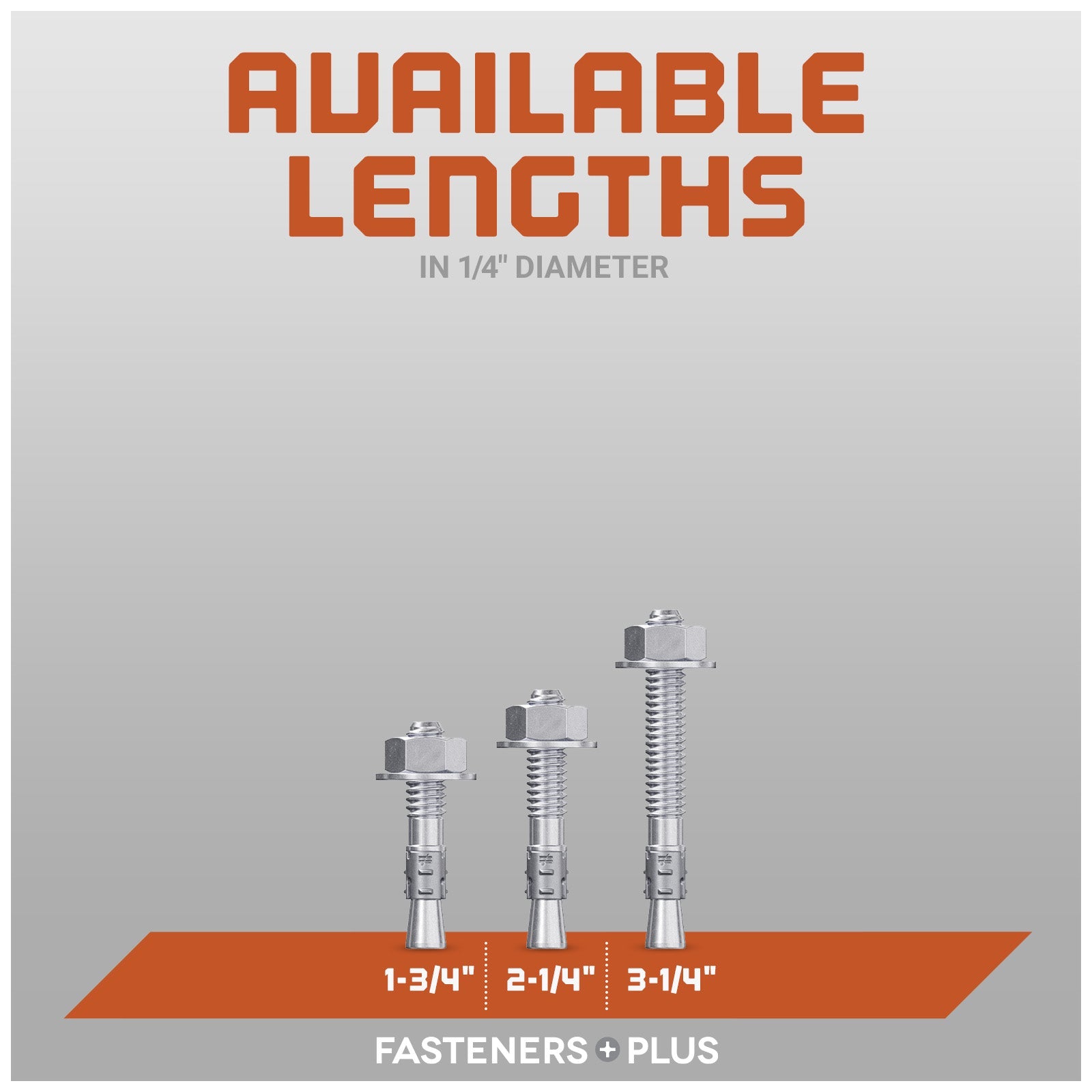

Lengths
Description
Description
Simpson Strong-Tie’s Strong-Bolt 2 Wedge Anchors in 316 stainless steel are engineered for maximum corrosion resistance in the most demanding environments. From coastal construction to chemical plants, these anchors are code-listed and field-tested to deliver reliable, long-term anchoring in cracked and uncracked concrete.
Designed with a compression-controlled expansion mechanism, Strong-Bolt 2 anchors provide stable performance under static, wind, and seismic loads. Each unit comes fully assembled with the anchor, nut, and washer—ready for fast, secure installation.
Available in a variety of diameters and lengths to suit your application.
Key Features
- 316 Stainless Steel: Premium corrosion resistance for marine, coastal, and aggressive chemical environments.
- Code Listed: ICC-ES ESR-3037 and tested to ACI 355.2 for cracked/uncracked concrete and seismic performance (Categories A–F).
- Reliable Expansion Mechanism: Tapered compression clip delivers consistent performance in both static and dynamic conditions.
- Fully Assembled: Includes anchor, nut, and washer for fast, ready-to-use installation.
- Easy ID: Head markings ensure easy post-installation inspection and compliance.
Common Applications

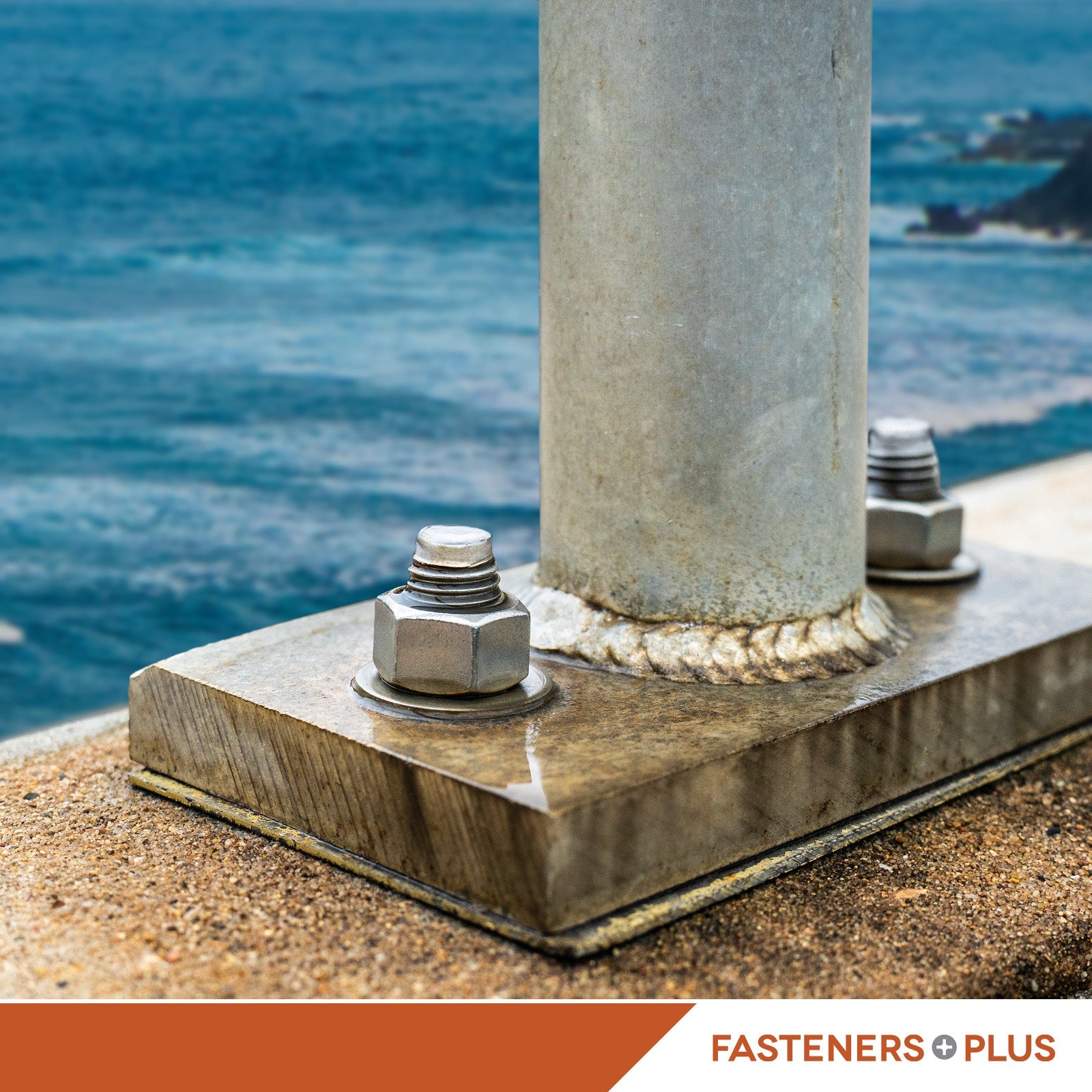

- Coastal construction and marine facilities
- Wastewater treatment plants
- Parking garages and bridges
- Food and pharmaceutical facilities
- Heavy-duty mechanical and electrical supports
- Structural steel connections in corrosive environments

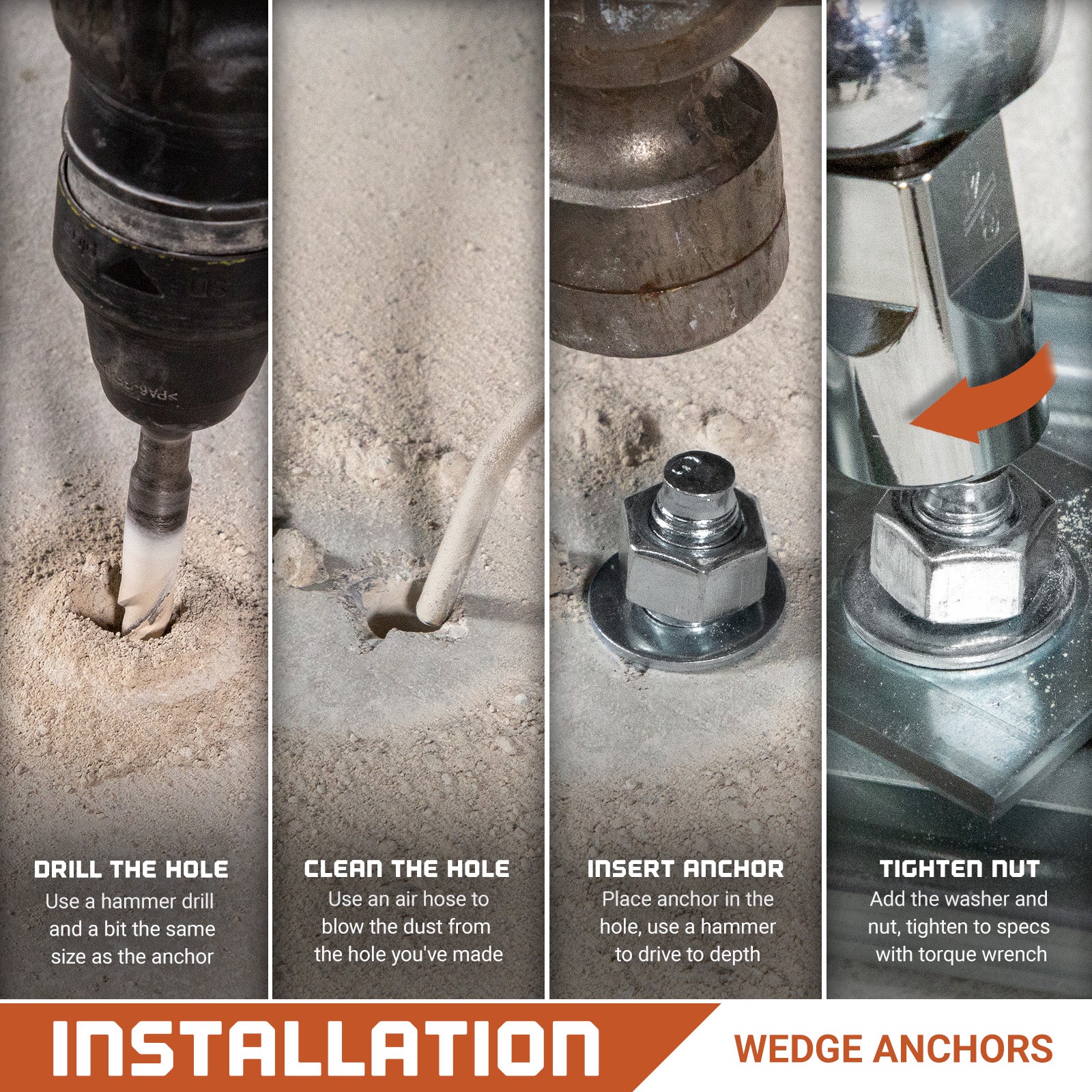

Installation Instructions
- Drill a hole the same diameter as the anchor using a carbide-tipped bit that complies with ANSI standards.
- Clean the hole thoroughly using compressed air or a nylon brush to remove dust and debris.
- Insert the anchor through your fixture and into the hole until the washer is flush with the surface.
- Tighten the nut to set the anchor—refer to torque specifications for the diameter you’re installing.
California Residents: WARNING
Mechanical Anchors from Simpson Strong-Tie — Innovative and Trusted
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.

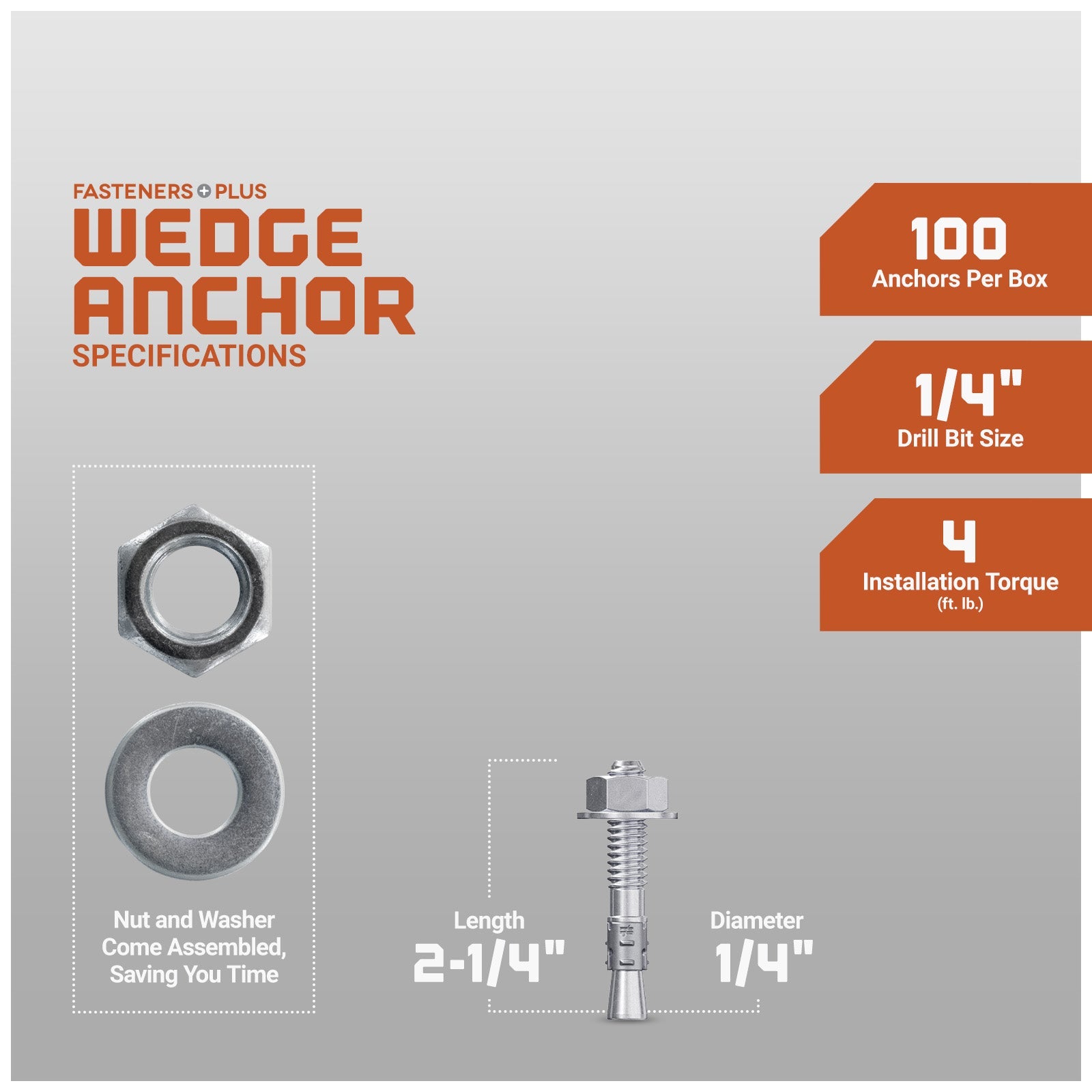

Specifications
Specifications
Reviews (0)
Reviews (0)
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
-
Wedge Anchors - For Your Concrete Anchor Needs
Because they provide strong, permanent holds once installed, wedge anchors are a go-to choice in both commercial construction and industrial settings. Once seated properly in the concrete wedge anchors provide a strong and permanent hold.
-
Versatile Applications, Endless Possibilities
Offering a reliable design - featuring a threaded stud, expansion clip, and nut - making them suitable for a wide range of applications, from structural steel connections and machinery anchoring to shelving, racking and safety barriers.
-
Made of High Quality and Durable Materials
Concrete wedge anchors come in various materials, such as zinc-plated steel, stainless steel, hot-dip galvanized and mechanically galvanized versions, allowing for use in different environments, including those with moisture or corrosive exposure.
