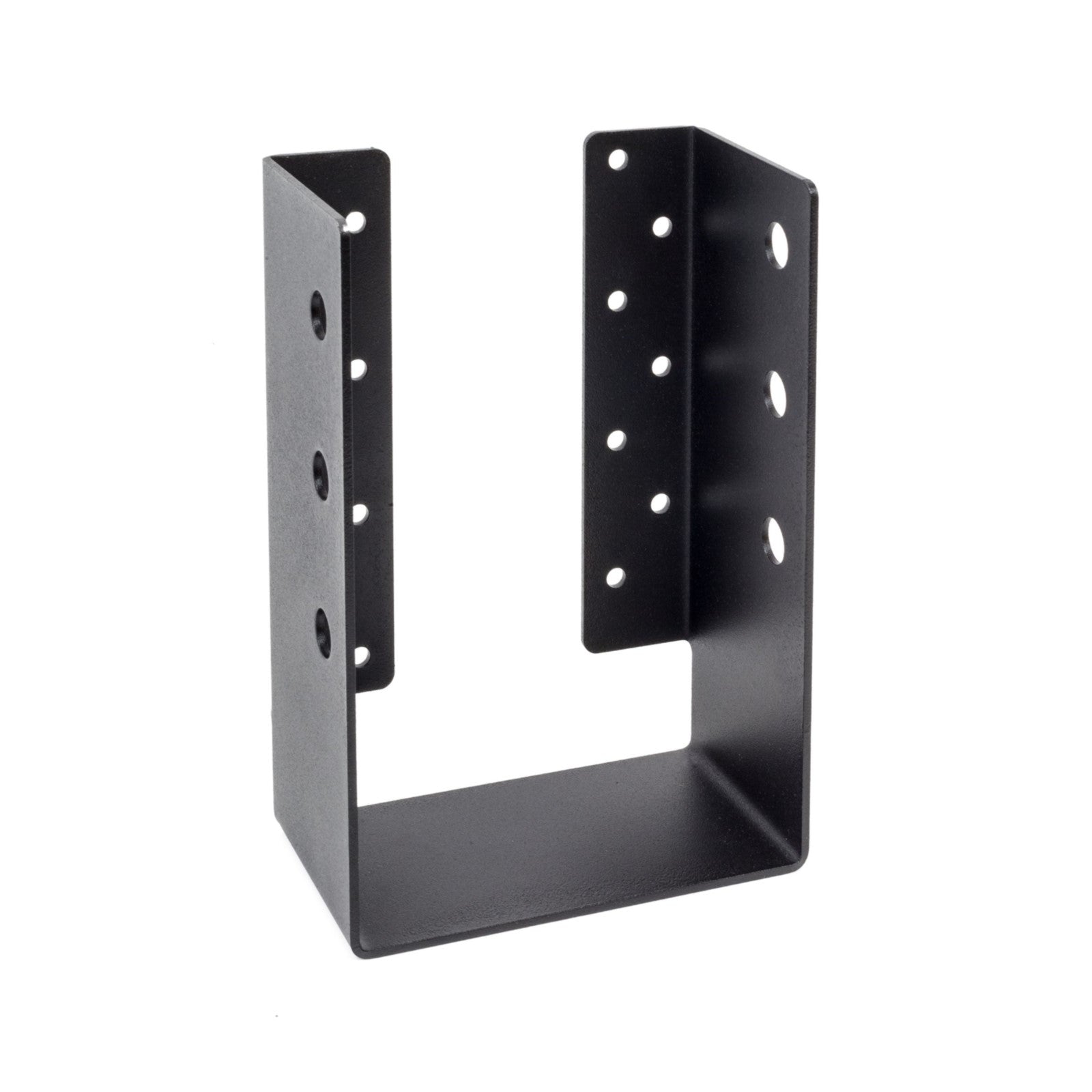

Simpson Strong-Tie APHH610R Concealed Flange Heavy Joist Hanger for 6x10 Rough Cut Joists - Black Powder Coat, ZMAX

Made in USA

Regular price $5499
Ships today when you order in the next 13 hours and 28 minutes

Description

Notice - This connector is designed for Rough Cut lumber NOT nominal lumber (most common). This will only fit a joist that measures an actual 6x10". If you have a nominal joist measuring 5-1/2 x 9-1/2" you will need an APHH610 Ornamental Joist Hanger.

The Simpson Strong-Tie APHH610R Concealed Flange Heavy Joist Hanger offers superior strength and a clean, concealed appearance for connecting 6x10 rough cut beams to headers and ledgers. Part of the Outdoor Accents Decorative Hardware line and applicable with both the Mission Collection and Avant Collection, this hanger is made from 12-gauge steel with a ZMAX galvanized coating and finished with a black powder coat.

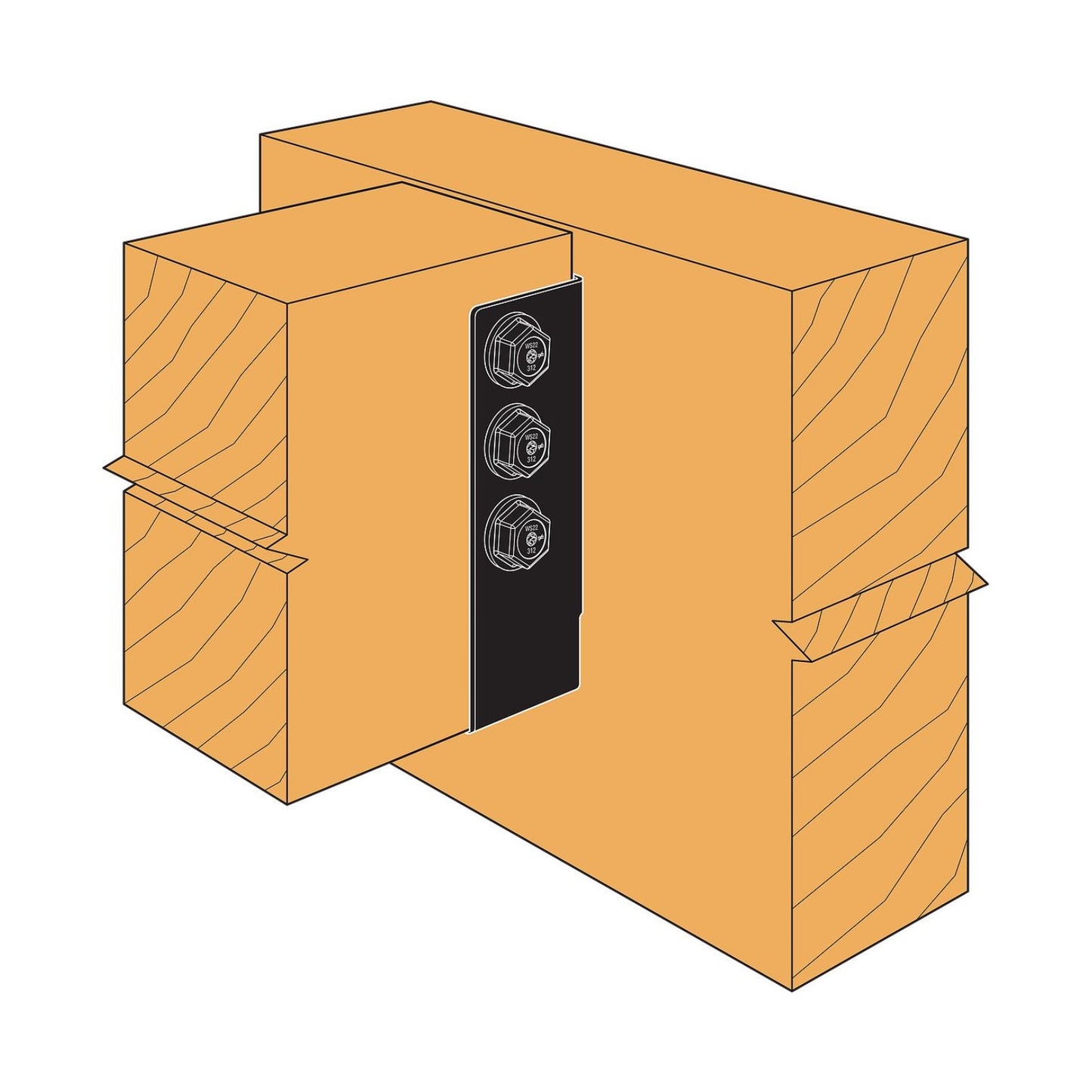

Installation is straightforward, just use Simpson's Outdoor Accents Structural Wood Screws and hex-head washers for an attractive, strong, and code-compliant connection.

For added convenience, this item is also available as a complete kit with all required fasteners included: Simpson Strong-Tie APHH610R Outdoor Accents - With Required Fasteners.


Key Features:

  • Heavy-Duty Construction: Made from 12-gauge steel with ZMAX and a black powder-coat finish for enhanced durability.
  • Concealed Flanges: Flanges are hidden inside the beam for a cleaner, more attractive look.

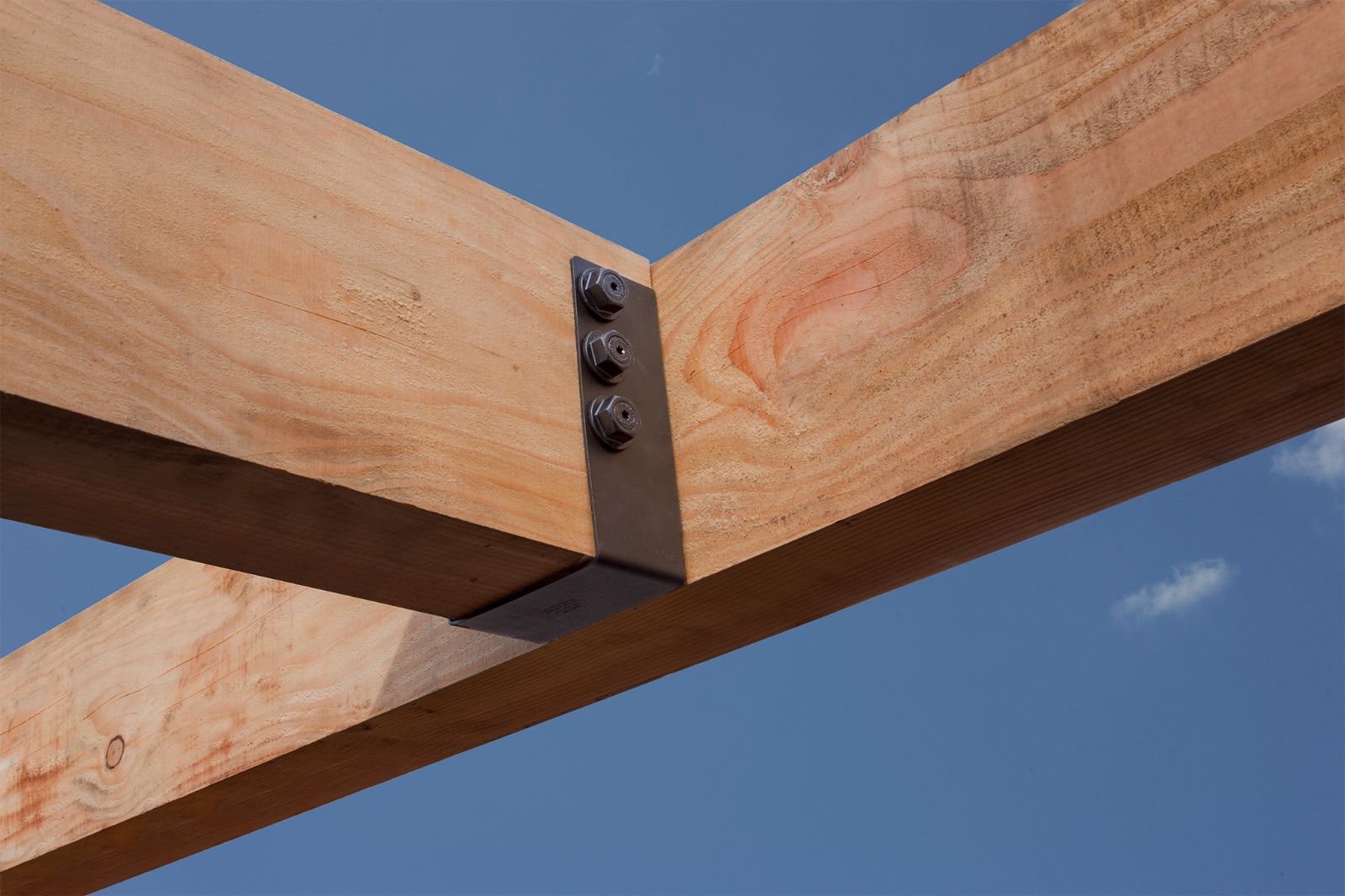

  • Outdoor Rated: Ideal for decks, pergolas, patio covers, and other outdoor structures.
  • Easy Installation: Designed for use with Outdoor Accents SDWS structural wood screws and STN22 hex-head washers (Sold Separately).
  • Corrosion Resistant: Suitable for exterior environments exposed to the elements.

California Residents: WARNING

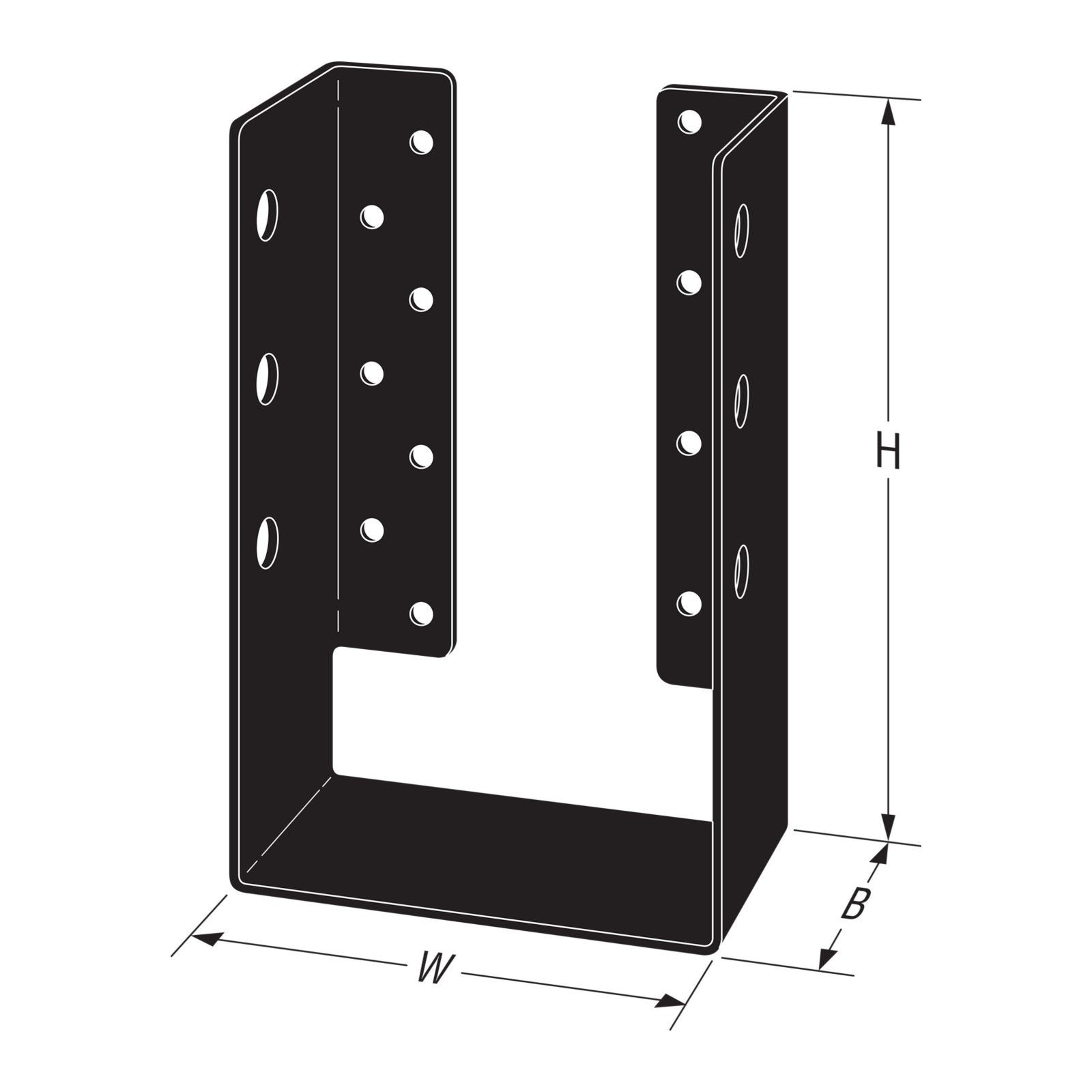

Specifications

Options: Without Fasteners
Width: 6"
Height: 8-3/8"
Thickness: 12 Gauge
Joist Size: 6X10 or 6X12
For Treated Lumber: Yes
Material: Carbon Steel
Finish: ZMAX and Black Powder Coat
Color: Black
Style: Reverse Orientation
Type: Applicable with Mission Collection and Avant Collection
Manufacturer Name: Simpson Strong-Tie
Fasteners Required:
Header: (14) SDS25300 Connector screws
Joist: (6) SDWS22312DBB Structural wood screws, (6) STN22 Hex-head washers
