SKU: CC4.62-3.62

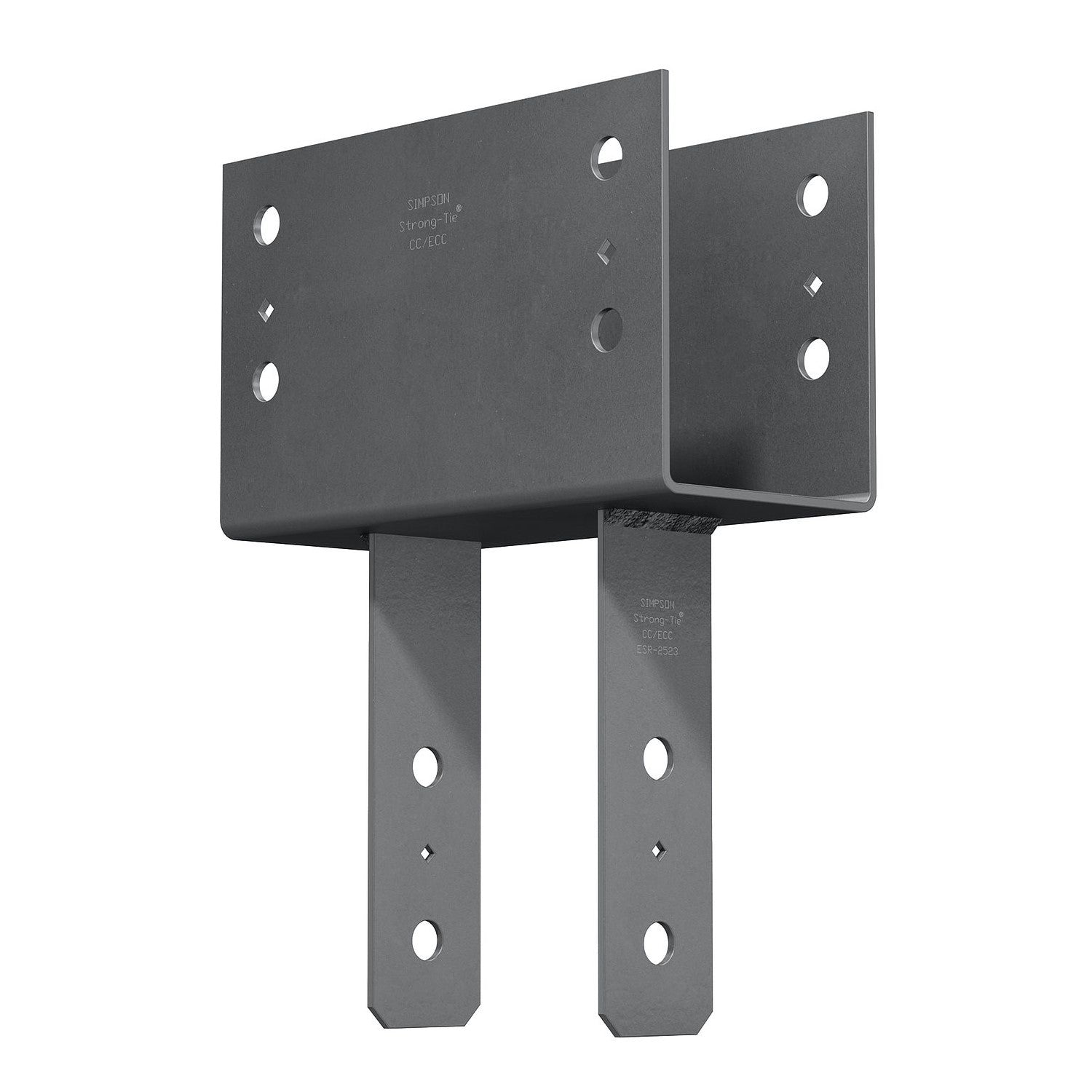

Simpson CC4.62-3.62 Column Cap - Gray Paint

Simpson CC4.62-3.62 Column Cap - Gray Paint

Regular price $200.87
Sale price $200.87 Regular price
0% off
made-to-order
Ships in 1-3 business days.

Description:

Simpson Strong-Tie CC column caps provide a high-capacity connection for column-beam combinations. This design requires the correct corresponding machine bolts to be installed for proper installation. The Strong-Tie CC post base features a Gray Painted finish for added corrosion resistance.

Installation:

  • Use all specified fasteners.
  • Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2005 NDS, section 11.1.2).
  • Contact engineered wood manufacturers for connections that are not through the wide face.

Options:

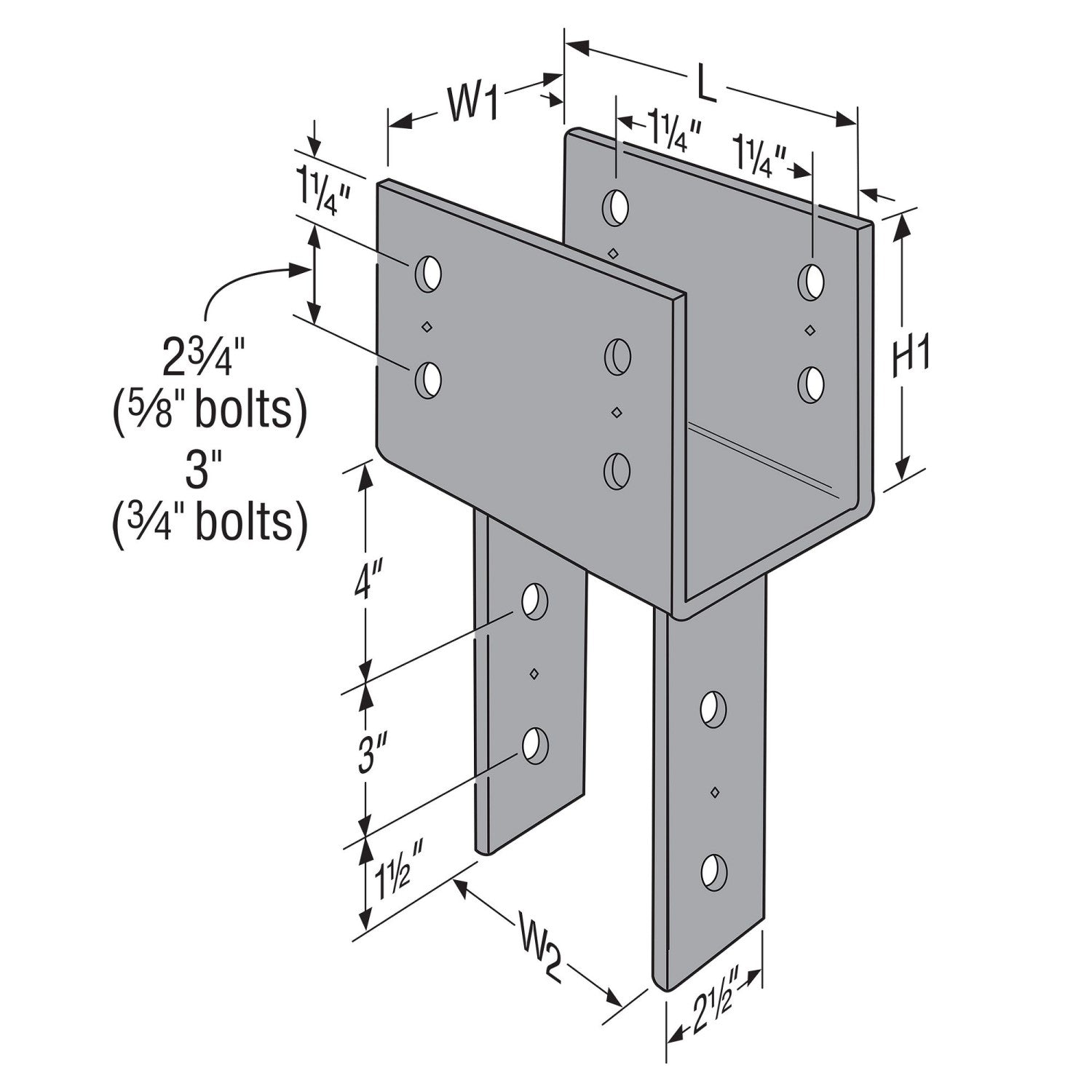

  • Straps may be rotated 90° where W1?W2 (see illustration)

For special, custom, or rough cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90° is limited by the W1 dimension.) Contact engineered wood manufacturers for connections that are not through the wide face.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

California Residents: WARNING

Specifications:


Fasteners required: Top: (5) 0.148 x 3" Face: (2) 0.148 x 3" Joist: (8) 0.148 x 1-1/2"
Thickness: 7 Gauge
Finish: Gray Paint
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
