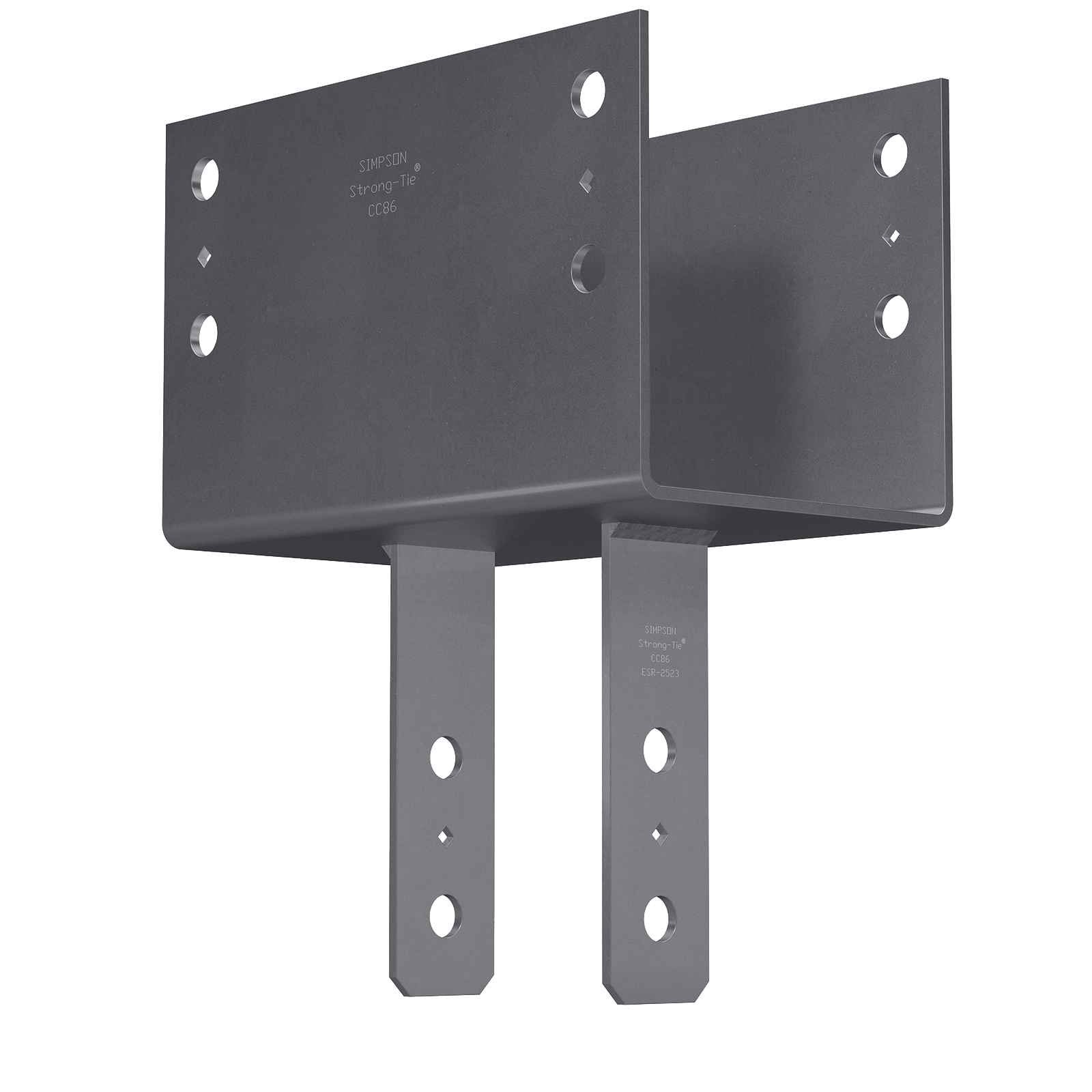

Simpson CC86ROT Column Cap - Gray Paint
Simpson CC86ROT Column Cap - Gray Paint
Ships in 1-3 business days.
Description:
Description:
Please Note: This item is made to order and is non-returnable. Please call us for more information on lead times and availability.
The Simpson CC86ROT Column Cap - Gray Paint enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this column cap is designed to provide column-to-beam connections in wood construction.
The seat of the column cap features additional surface area beyond each side of the column to allow added area of bearing to distribute the load from the beam and provide enhanced support for the connection.
This product is intended for use with 6x8 posts or columns but is also available in a wide range of other sizes and both nominal and rough-cut lumber.
Features:
- Connection Type: Provides strong column to beam connection and the extended area of the column seat offers additional surface area of bearing to distribute the load.
- Lumber Size: Intended for use with 8x beams and 6x8 posts/columns.
- Material and Finish: Made from Heavy Gauge Steel for durability and finished with Gray Paint coating.
- Performance: Certified welds for strength and loading with increased uplift loads for earthquake or wind loading.
- Installation Design:Features diamond holes to provide temporary fastening during installation, bolt spacing to meet NDS code requirements.
California Residents: WARNING
Specifications:
Specifications:
Post Size: 6x8
Height: 8"
Fasteners required: Size 3/4" Bolts - Beam - (4); Post (2)
Thickness: 3 Gauge
Quantity: 1
Finish: Gray Paint
Length: 13"
Manufacturer name: Simpson Strong-Tie
Beam size: 8x
Additional information:
Width (1): 7-1/2"
Width (2): 5-1/2"
Product Guide: View Spec Sheet
Features
Features
•Certified welds for confidence in strength and loading
•Uplift loads increased for earthquake or wind loading
•Bolt spacing that meets NDS code requirements to ensure optimal performance
•Diamond holes to provide temporary fastening
Installation
Installation
•Use all specified fasteners; see General Notes
•Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2015 NDS, section 12.1.3.2); bolt holes should be drilled from one side all the way through the beam to maintain hole tolerances
•Contact engineered wood manufacturers for connections that are not through the wide face
