Simpson DPT5Z 2x4 Deck Post Tie - ZMAX Finish

SKU: DPT5Z

$3.93

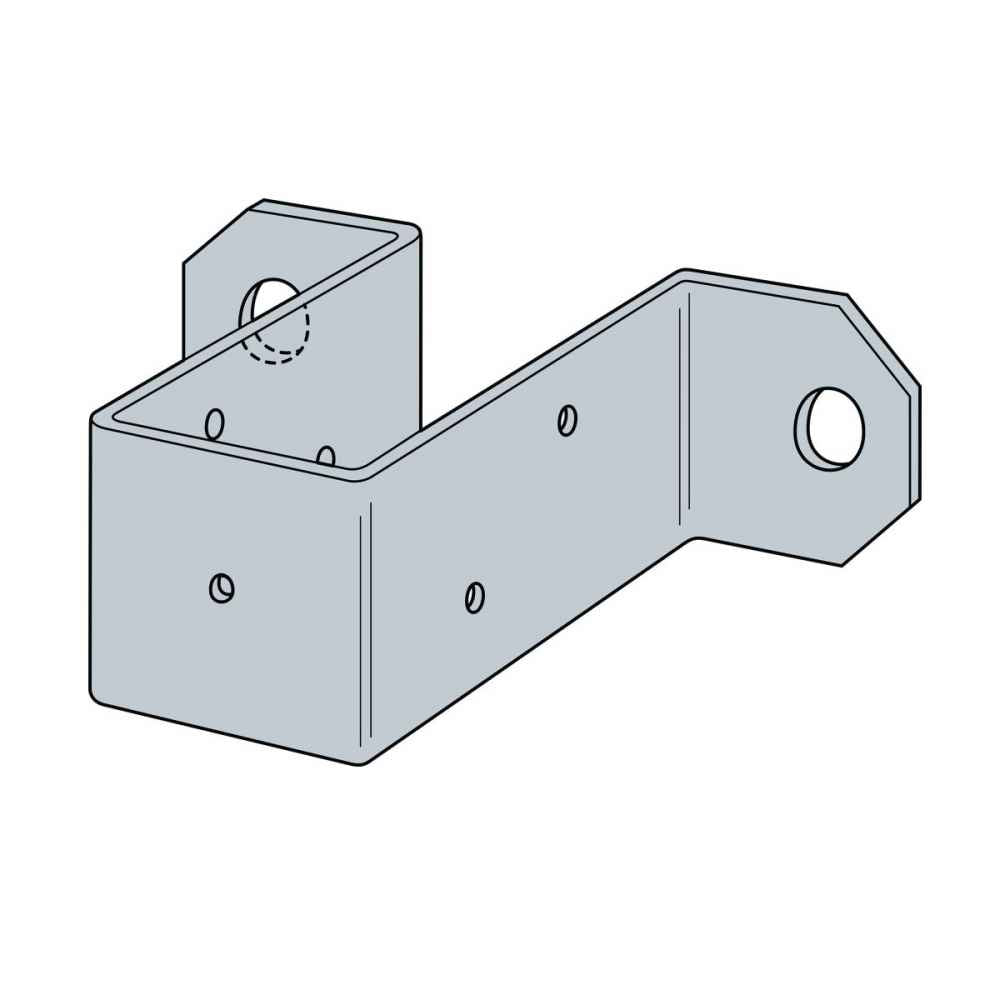

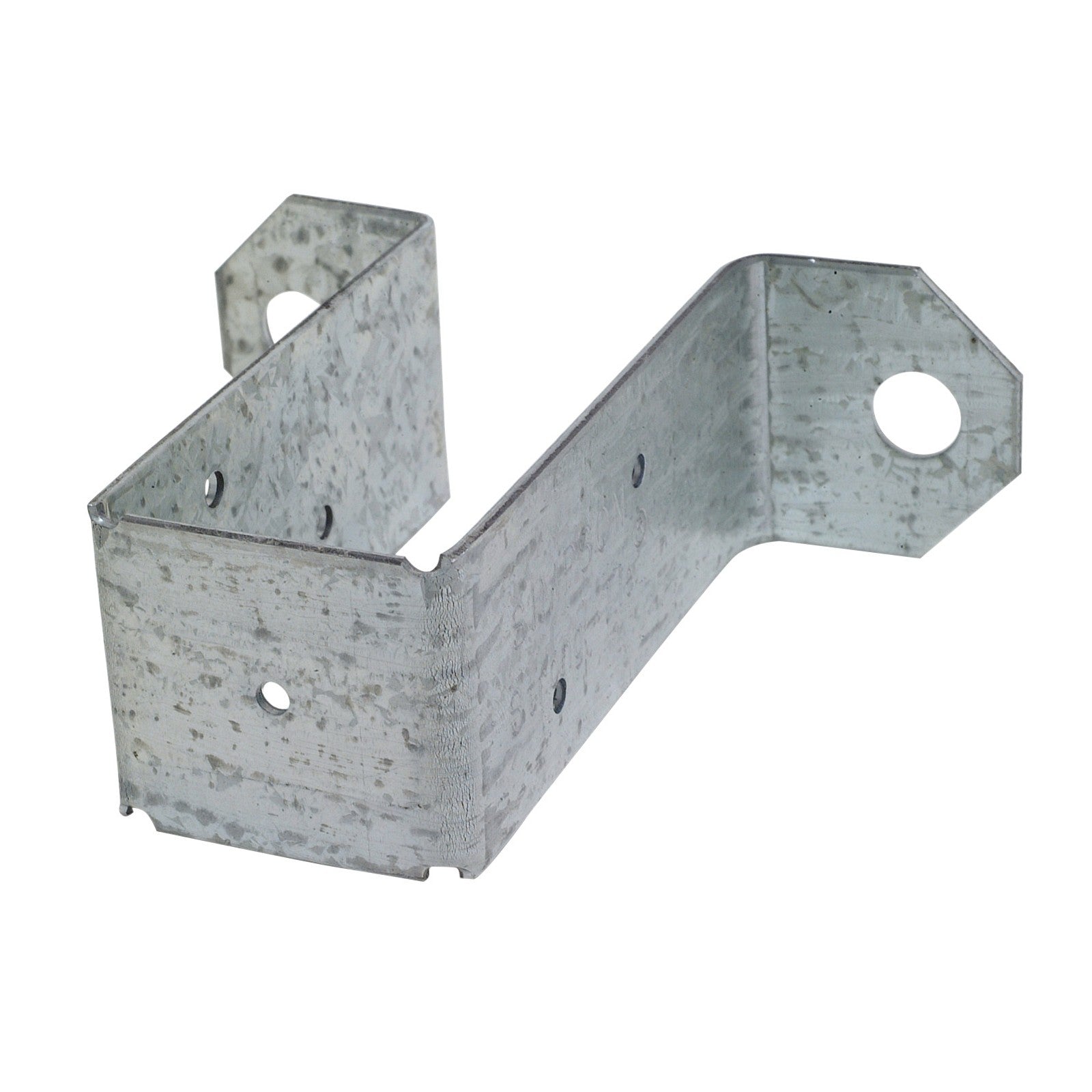

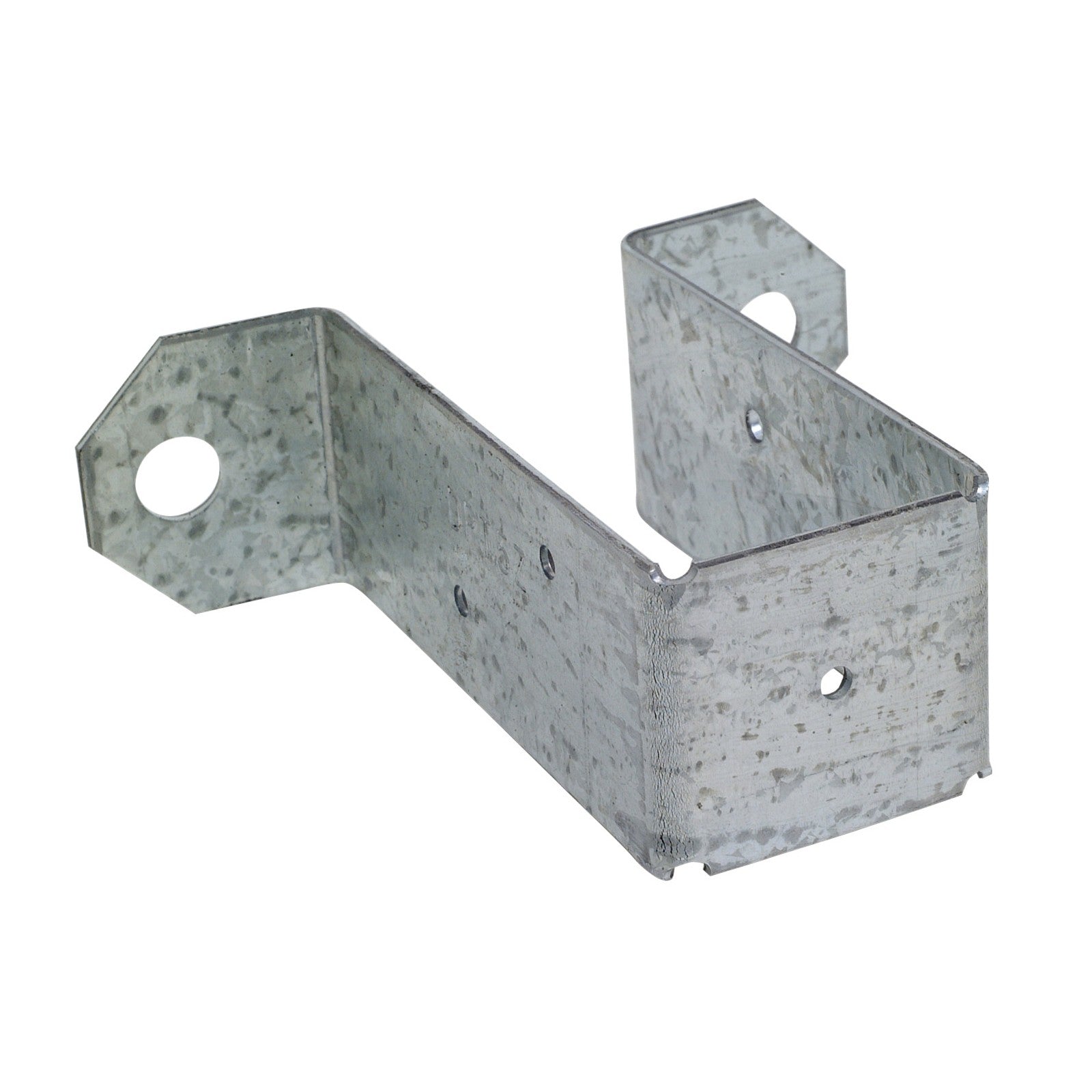

The Simpson Strong-Tie DPT5Z Deck Post Tie products are used to attach 2x4 vertical posts to the side of stringers, rims or other wood members. The Strong-Tie DPT5Z deck tension tie features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.

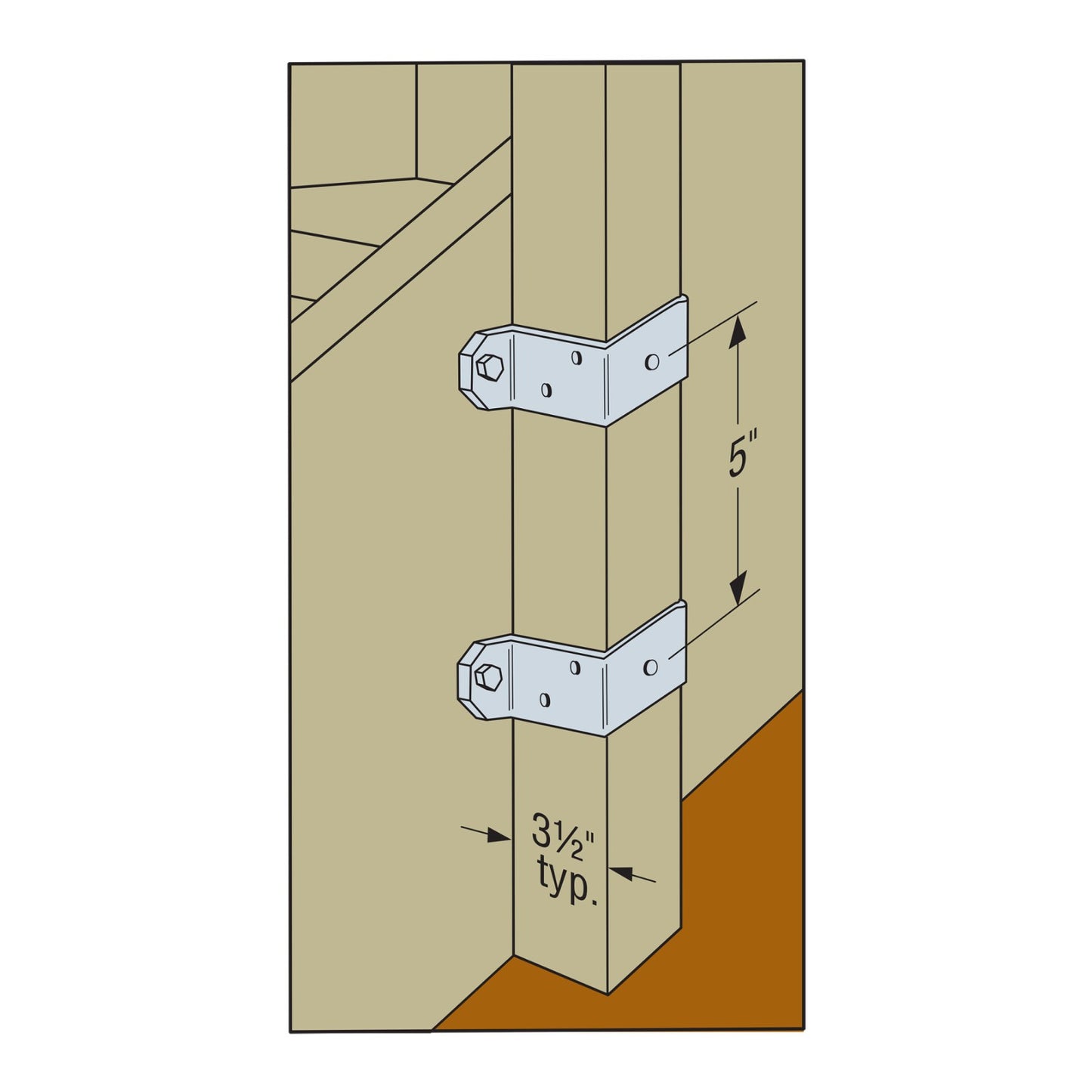

Installation:
  • Use all specified HDG fasteners.
  • Install in pairs.
  • Install with two 3/8" through bolts into side member and 5-10dx1 1/2 nails to post.
  • DPT5Z and DPT7Z may be installed with the Strong-Drive SD Structural Connector screw (not load rated).

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

The Simpson Strong-Tie DPT5Z Deck Post Tie products are used to attach 2x4 vertical posts to the side of stringers, rims or other wood members. The...

Read More

The Simpson Strong-Tie DPT5Z Deck Post Tie products are used to attach 2x4 vertical posts to the side of stringers, rims or other wood members. The Strong-Tie DPT5Z deck tension tie features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified HDG fasteners.
  • Install in pairs.
  • Install with two 3/8" through bolts into side member and 5-10dx1 1/2 nails to post.
  • DPT5Z and DPT7Z may be installed with the Strong-Drive SD Structural Connector screw (not load rated).

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Show Less

Fasteners Required:
Side Member - (2) 3/8" Machine Bolts Post - (5) 0.148" x 1-1/2" Nails

Finish Spec:
ZMAX

Length Spec:
3-1/2"

Manufacturer Name:
Simpson Strong-Tie

Thickness:
14 Gauge
