Shop more ECC End Column Caps
SKU: ECC44

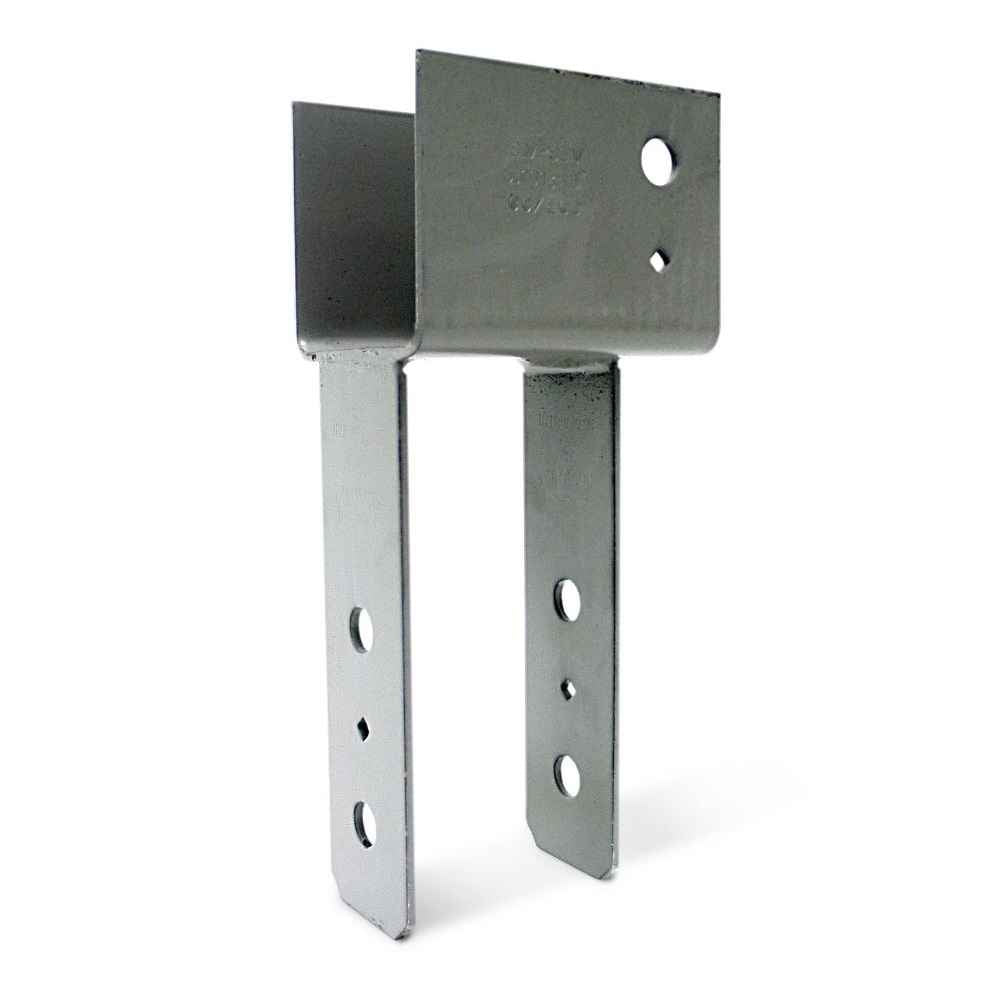

Simpson ECC44 End Column Cap- Gray Paint

Simpson ECC44 End Column Cap- Gray Paint

Regular price $56.44
Sale price $56.44 Regular price
0% off
Payment methods
Accepted payments:
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
shipping truck, lead time icon
Ships today when you order in the next 3 hours 56 minutes
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

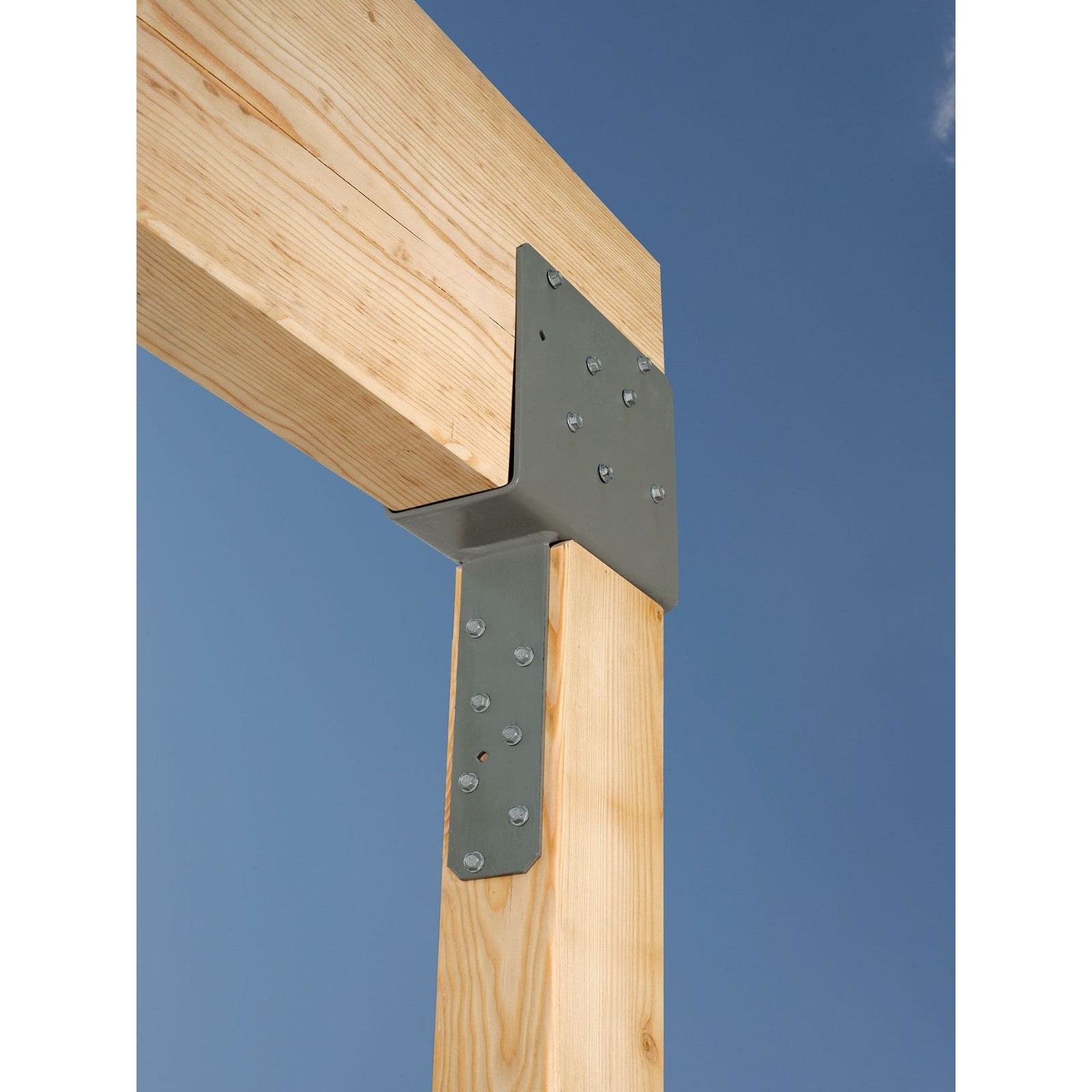

The Simpson ECC44 End Column Cap- Gray Paint enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this column cap is designed to provide column-to-beam connections in end-of-beam applications for wood construction.

The seat of the column cap features additional surface area beyond the side of the column to allow added area of bearing to distribute the load from the beam and provide enhanced support for the connection.

This product is intended for use with 4x posts or columns but is also available in a wide range of other sizes and both nominal and rough-cut lumber.

Features:

  • Connection Type: Provides strong end-of-beam connection for column-to-beams and the extended area of the column seat offers additional surface area of bearing to distribute the load.
  • Lumber Size: Intended for use with 4x beams and 4x posts/columns.
  • Material and Finish: Made from Steel for durability and finished with Gray Paint coating.
  • Performance: Certified welds for strength and loading with increased uplift loads for earthquake or wind loading.
  • Installation Design:Features diamond holes to provide temporary fastening during installation, bolt spacing to meet NDS code requirements.

California Residents: WARNING

Specifications:

Material: Steel
Post Size: 4x
Fasteners required: Beam - (1) 5/8" Machine Bolts Post - (2) 5/8" Machine Bolts
Thickness: 7 Gauge
Finish: Gray Paint
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Beam size: 4x
Product Guide: View Spec Sheet

Installation

-Use all specified fasteners.
-Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2005 NDS, section 11.1.2).
-Contact engineered wood manufacturers for connections that are not through the wide face.
