SKU: HD3B

Simpson HD3B Bolted Holdown - G90 Galvanized

Simpson HD3B Bolted Holdown - G90 Galvanized!

  • Simpson HD3B Bolted Holdown G90 Galvanized

Continue Browsing

HD/HDB Holdowns
SKU: HD3B

Simpson HD3B Bolted Holdown - G90 Galvanized

$14.33

Request Bulk Pricing
Request Bulk Pricing
Ships today, order in the next 7 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

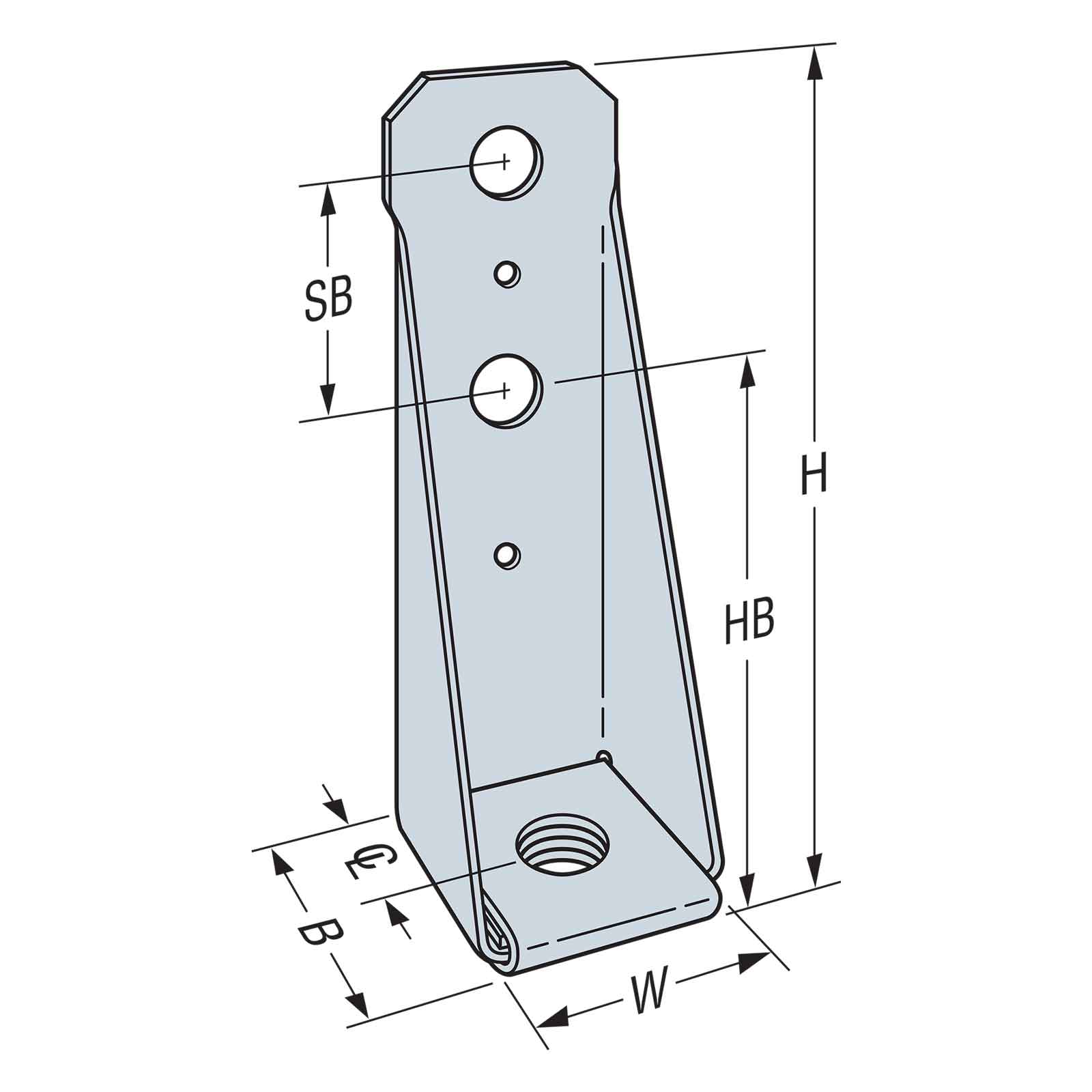

Specifications

Fasteners required: - (2) 5/8" Machine Bolts - (1) 5/8" Concrete Anchor
For Treated Lumber: No
Height: 8-5/8"
Manufacturer name: Simpson Strong-Tie
Description

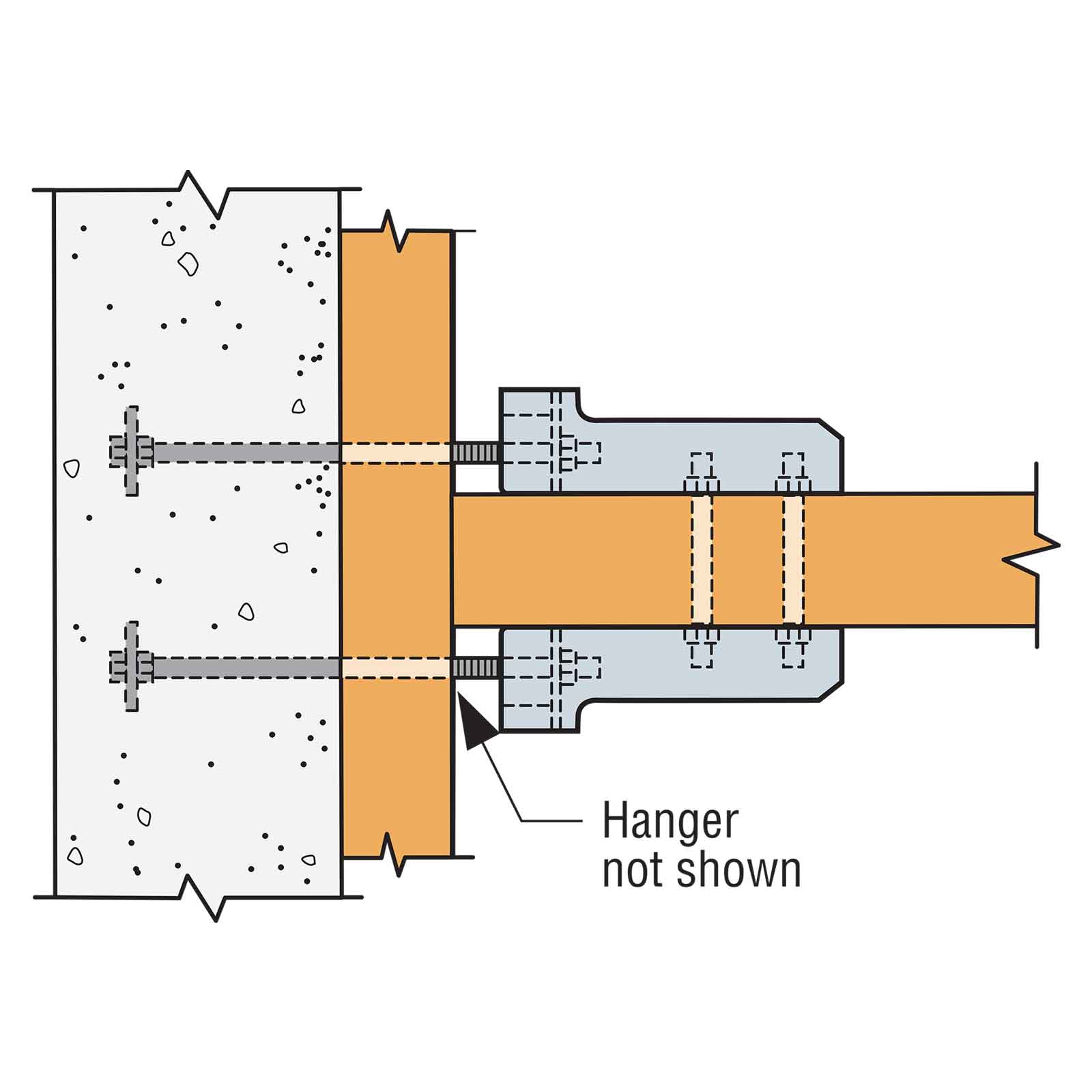

Simpson Strong-Tie offers a wide variety of bolted holdowns offering lowdeflection performance for a range of load requirements. The HD3B holdown has been tested in accordance with ICC-ES's AC 155 acceptance criteria and are approved for use in vertical and horizontal applications. The HD3B is a light-duty holdown designed for use in shearwalls and braced-wall panels, as well as other lateral applications.


Installation:
  • Use all specified fasteners.
  • Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2012 NDS, section 11.1.3.2).
  • Stud bolts should be snugly tightened with standard cut washers between the wood and nut (BP's are required in the City and County of Los Angeles).
  • HD and HDB holdowns are self-jigging and will ensure minimum bolt end distance when installed flush with the sill plate.
  • Standard cut washer is required under the anchor nut for HD12 with 1" anchor and HD19 with 1 1/8" anchors.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
