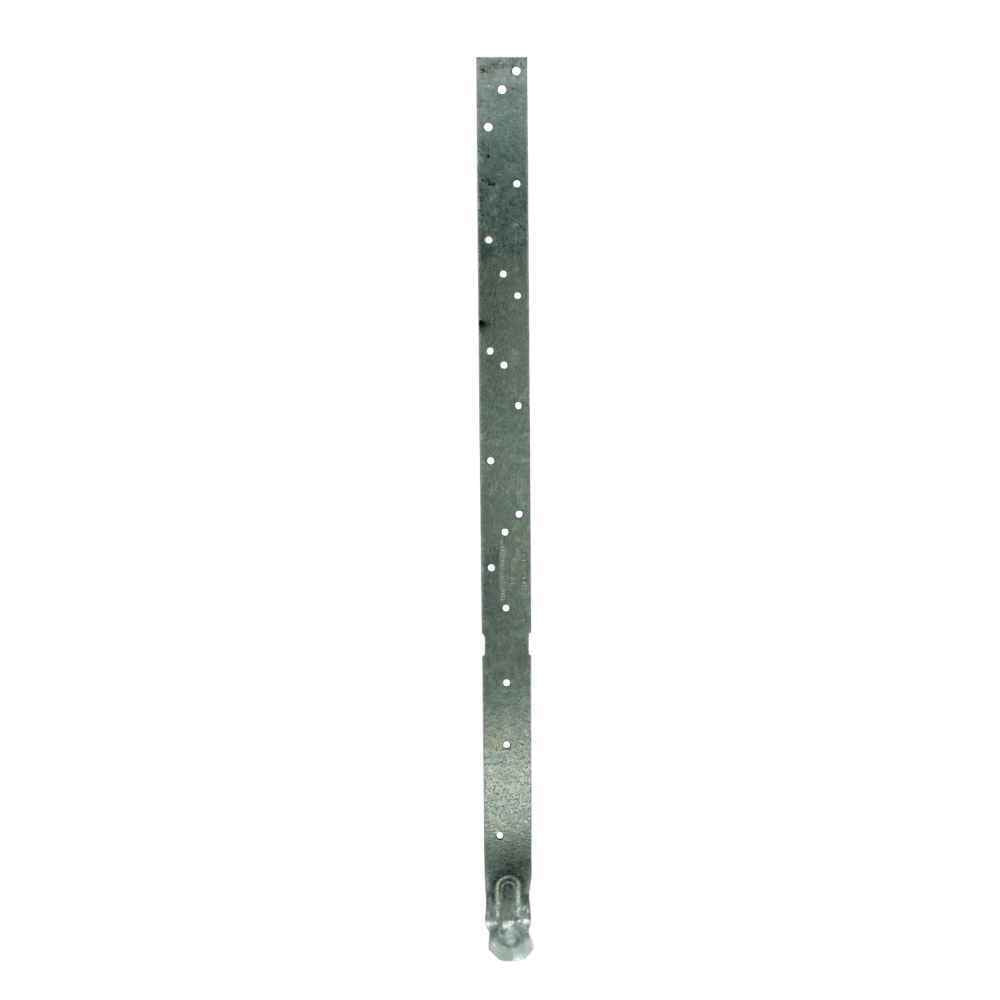

Simpson HETA20SS 16" Embedded Truss Anchor - Stainless Steel

Simpson HETA20SS 16" Embedded Truss Anchor - Stainless Steel

Regular price $20.75
Sale price $20.75 Regular price
0% off
Payment methods
Accepted payments:
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
shipping truck, lead time icon
Ships Jun 13 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.

Description:

The HETA embedded truss anchor series provides an engineered method to properly attach roof trusses to concrete and masonry walls. The products are designed with staggered nail patterns for greater uplift resistance. Information regarding the use of two anchors on single- and multi-ply trusses is included. The Strong-Tie HETA20SS Embedded Truss Anchor features a stainless steel finish for added corrosion resistance and requires the use of stainless steel fasteners.


  • Use all specified fasteners (included).
  • The META, HETA and HHETA are embedded 4" into a 6" min. concrete beam or 8" nominal grouted block wall; HETAL is embedded 5 1/16"; DETAL is embedded 4 1/2".
  • For mislocated truss anchors which are greater than 1/8" but less than 1 1/2" from the face of the truss, a shim must be provided. Shim design by Truss Engineer. When gap is greater than 1 1/2", install new anchors.
  • In double embedded anchor installations, do not install fasteners where the straps overlap when wrapped over the truss heel.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

Specifications:


Height: 16"
Fasteners required: SEE PRODUCT GUIDE DOCUMENT
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Product Guide: View Spec Sheet
