The MCBS Mass Timber Column Base with Standoff provides a standardized concealed connection between glulam columns and concrete foundations, ensuring both structural integrity and aesthetic appeal in mass timber constructions.

Key Features:

• Concealed Connection: Designed for architectural aesthetics and fire protection, offering a seamless appearance.
• Standoff Design: Includes a standoff to elevate the column above the concrete, providing moisture protection and accommodating architectural preferences.
• Versatile Sizing: Available in a range of base sizes and load capacities to suit various project requirements.
• Adjustability: Features oversized holes in the base plate for horizontal adjustment; threaded rods and leveling nuts can be used with a grout pad for vertical adjustability.
• Seismic Compatibility: Recommended for column-to-foundation connections in any Seismic Design Category.

Installation Notes:

• Precision Fabrication: CNC equipment is recommended for cutting and drilling glulam columns to ensure accurate alignment.

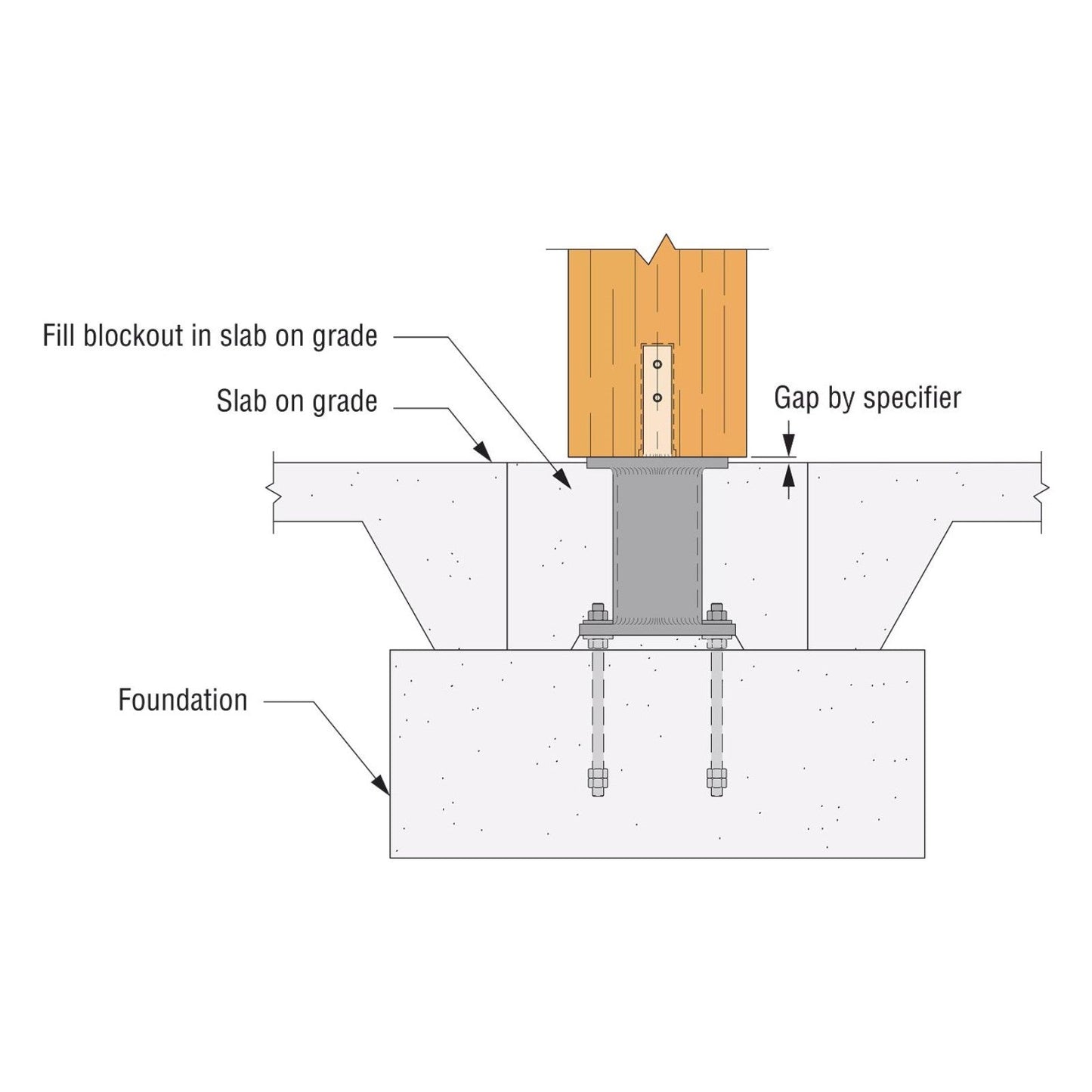

• Anchor Placement: Ensure correct positioning of anchors in the foundation; use leveling nuts and grout as needed for proper alignment.
• Fastener Requirements: Designed for use with dowels or bolts meeting specified strength criteria; fasteners are not included with the connector.
