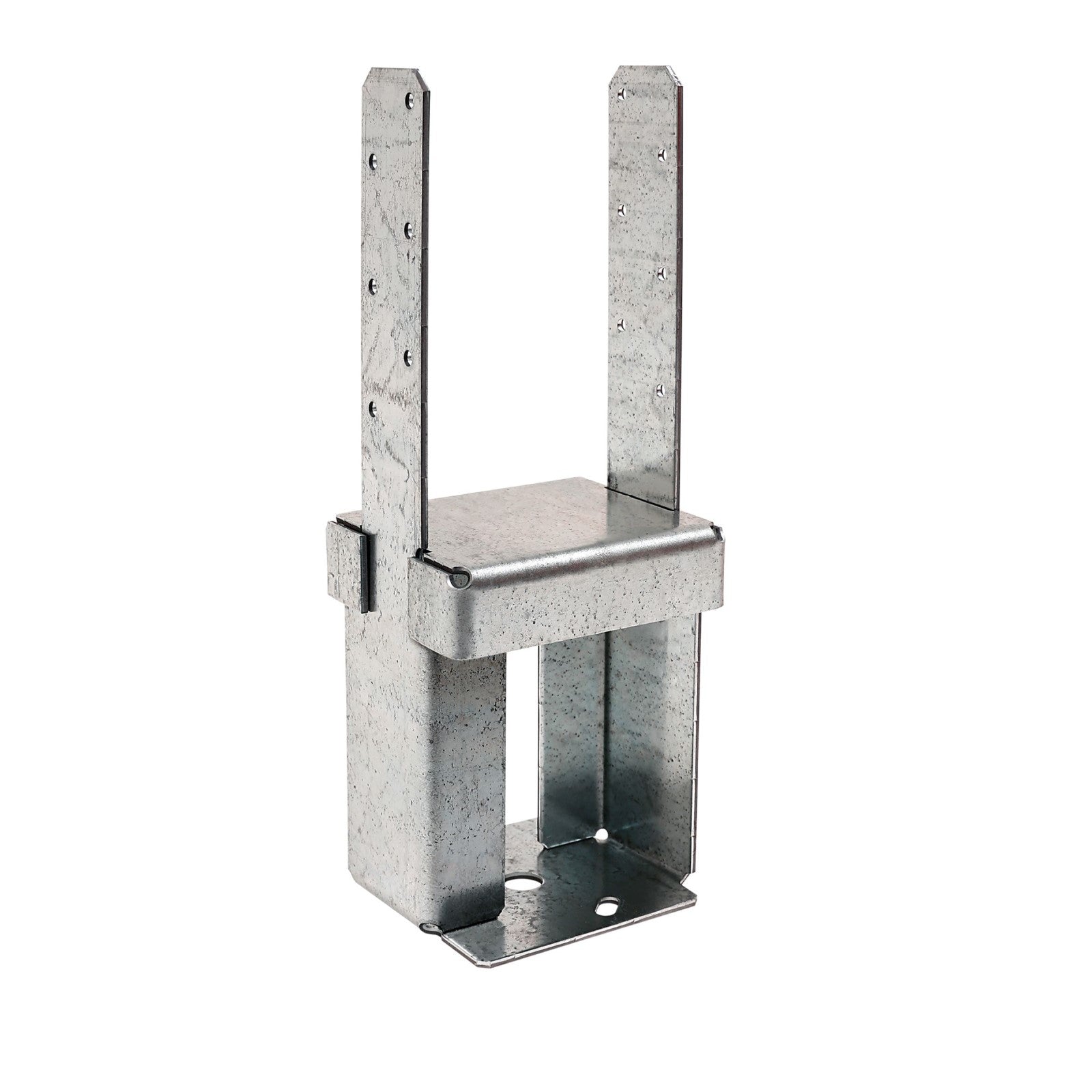

Simpson PPB44-4Z 4X4 Porch Post Base - Zmax Finish
Simpson PPB44-4Z 4X4 Porch Post Base - Zmax Finish
Description:
Description:
The porch post base is fastened to the footing with two Titen® 2 masonry screws when framing the porch roof. Then, when the time is right, the concrete contractor is able to complete the last phase of the porch slab without the interference of temporary vertical support and without the framer having to return to the jobsite after the slab has hardened. Designed to withstand vertical construction loads prior to embedment in concrete, the PPBZ will support the weight of most framed porches and overhangs.
Key Features:
- Stiffened embedded side stirrups provide temporary vertical download support without being embedded into concrete
- 1" standoff reduces the potential for decay at post or column ends
- Two available sizes provide both 4"- and 6"-slab thicknesses
- Pre-pour installation eliminates temporary support
- No disruption in scheduling
- Eliminates additional move-ins by trades and certain inspection call backs
- Use all specified fasteners; some models have extra fastener holes. See General Notes.
- Locate and place PPBZ on footing according to framing plans.
- Secure PPBZ to footing with (2) (1/4" dia. x 1 1/4" long hex-head) Titen® concrete screws located a minimum of 1 1/2" from the edge of concrete.
- Attach 4x4 post to PPBZ using (12) 0.148" dia. x 3" long nails. After bracing the top and bottom of the post from lateral movement, the post may then be loaded in download or uplift.
- When ready, pour concrete porch slab (4" or 6") up to the bottom of the standoff base while maintaining minimum 1" concrete side coverage.
Installation:
California Residents: WARNING

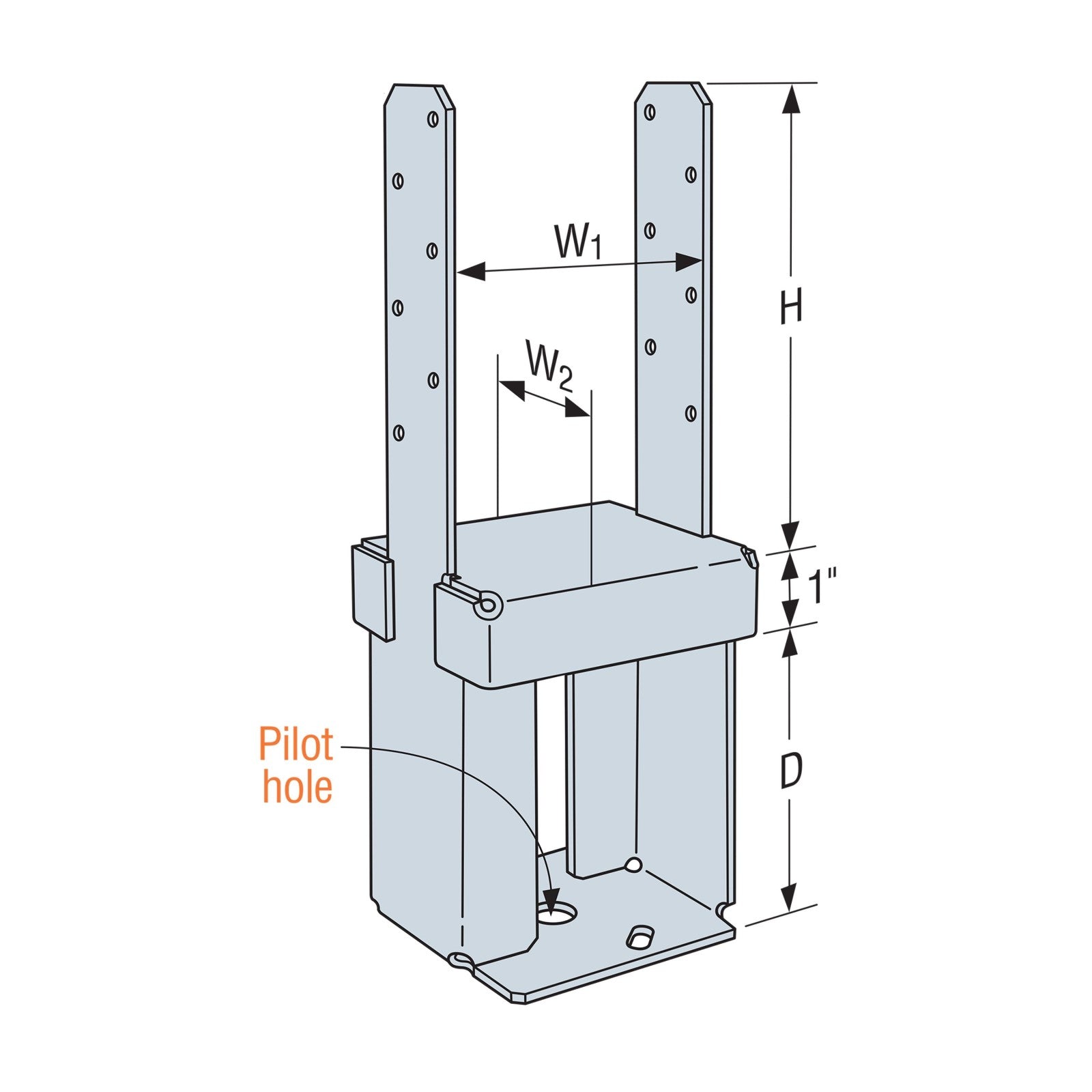

Specifications:
Specifications:
Height: 5-3/4"
Fasteners required: Foundation - (2) 1/4" x 1-1/4" Concrete Screws Post - (12) 0.148" x 3" Nails
Depth: 4"
Width: W1- 3-5/8" W2 - 3-3/8"
Finish: ZMAX
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Column size: 4X4
Product Guide: View Spec Sheet

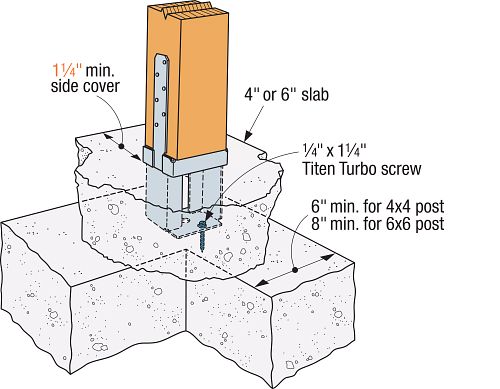

Installation
Installation
-Use all specified fasteners; some models have extra fastener holes. See General Notes.
-Locate and place PPBZ on footing according to framing plans.
-Secure PPBZ to footing with (2) (1/4" dia. x 1 1/4" long hex-head) Titen® concrete screws located a minimum of 1 1/2" from the edge of concrete.
-Attach 4x4 post to PPBZ using (12) 0.148" dia. x 3" long nails. After bracing the top and bottom of the post from lateral movement, the post may then be loaded in download or uplift.
-When ready, pour concrete porch slab (4" or 6") up to the bottom of the standoff base while maintaining minimum 1" concrete side coverage.
