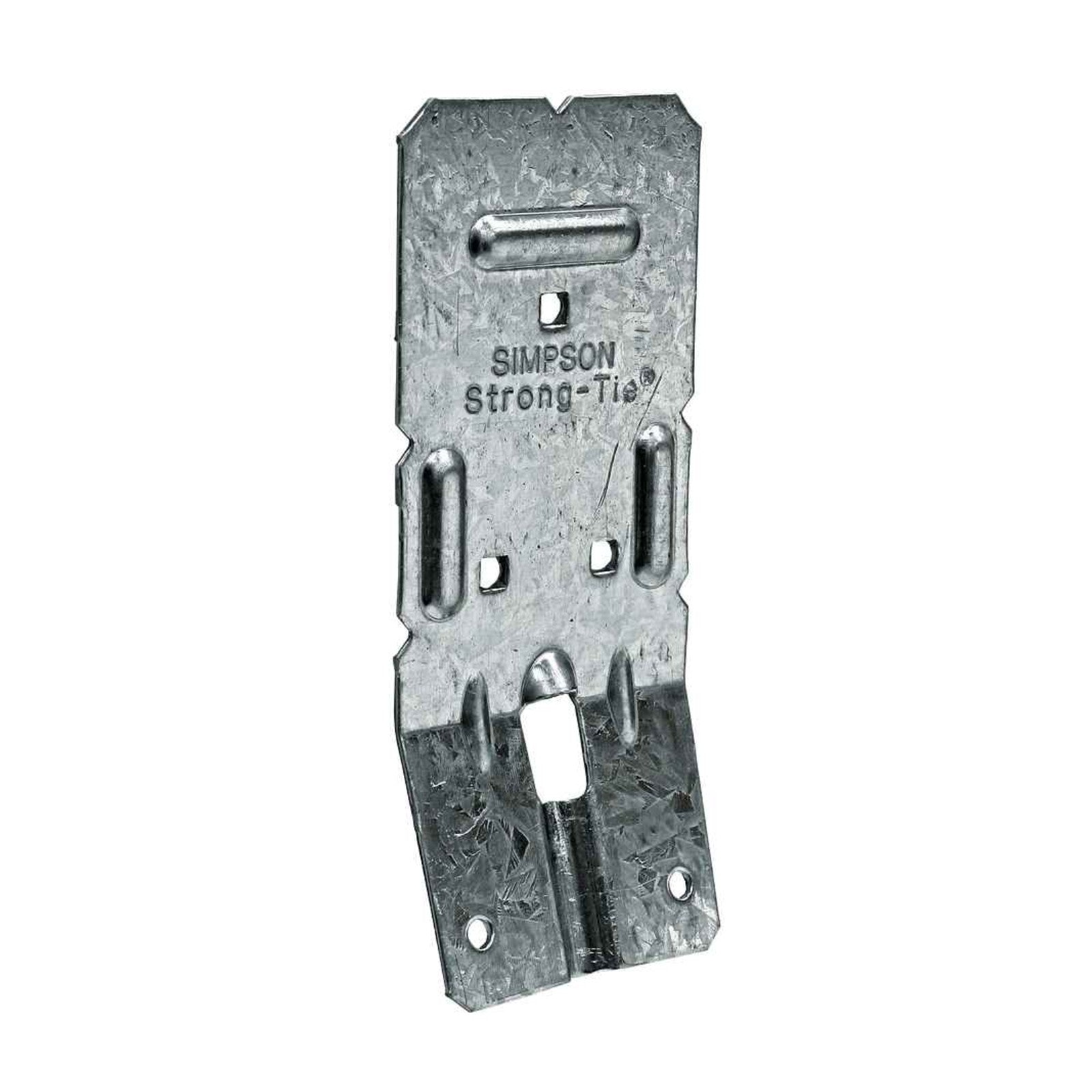

The Simpson SDWC-GUIDE is a precision metal guide designed to simplify and speed up the installation of SDWC Truss Screws. Built for use with Simpson’s SDWC structural screws, this guide helps ensure accurate screw alignment and consistent installation angles - especially in tight spaces or repetitive framing applications.

Ideal for truss-to-top-plate connections, this reusable tool reduces installation time while improving consistency and code compliance on the jobsite. Compatible with standard cordless drills, it’s a reliable addition to any framing crew’s toolbox.

Key Features:

• Precision Alignment – Ensures screws are installed at the correct angle and location for optimal performance.
• Durable Metal Construction – Designed for repeat use across multiple framing installations.
• Compatible with SDWC Screws – Optimized for use with Simpson Strong-Tie SDWC series structural screws.
• Jobsite Efficiency – Helps reduce installation errors and increases speed on repetitive tasks.
• Compact & Portable – Lightweight design fits easily into tool bags and on belts.

Applications:

• Truss-to-top-plate connections
• Roof and wall framing assemblies
• Residential and multi-family construction
• Repetitive SDWC screw installations
• Projects requiring consistent fastener alignment

Installation:

• Place guide at intended screw location on top plate.
• Insert SDWC screw through the guide and drive using a compatible cordless drill.

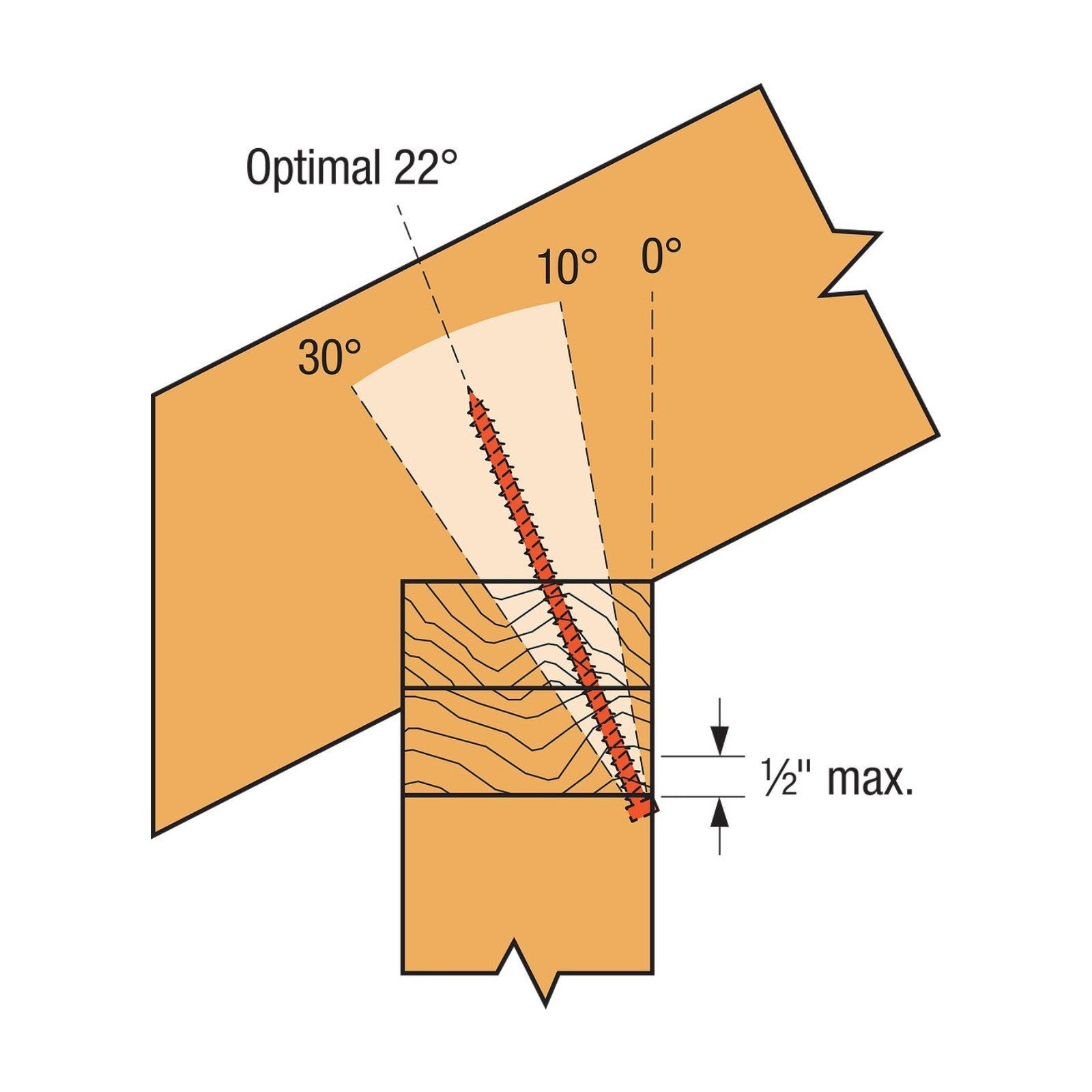

• The guide’s built-in angle and opening ensure precise screw trajectory.
• Remove and reuse for the next connection point—no adjustment necessary.
• Always follow Simpson Strong-Tie’s installation instructions for screw type and connector requirements.
