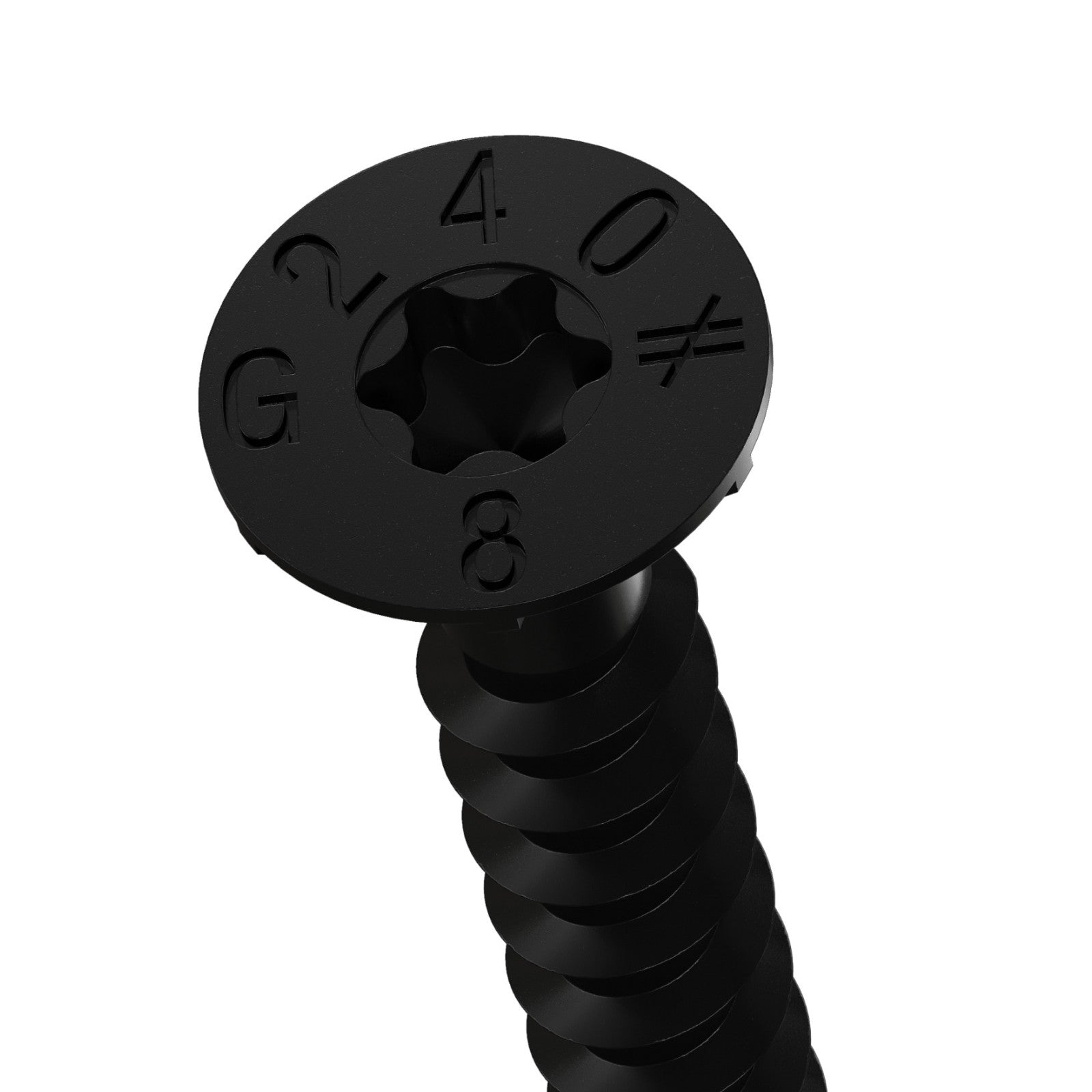

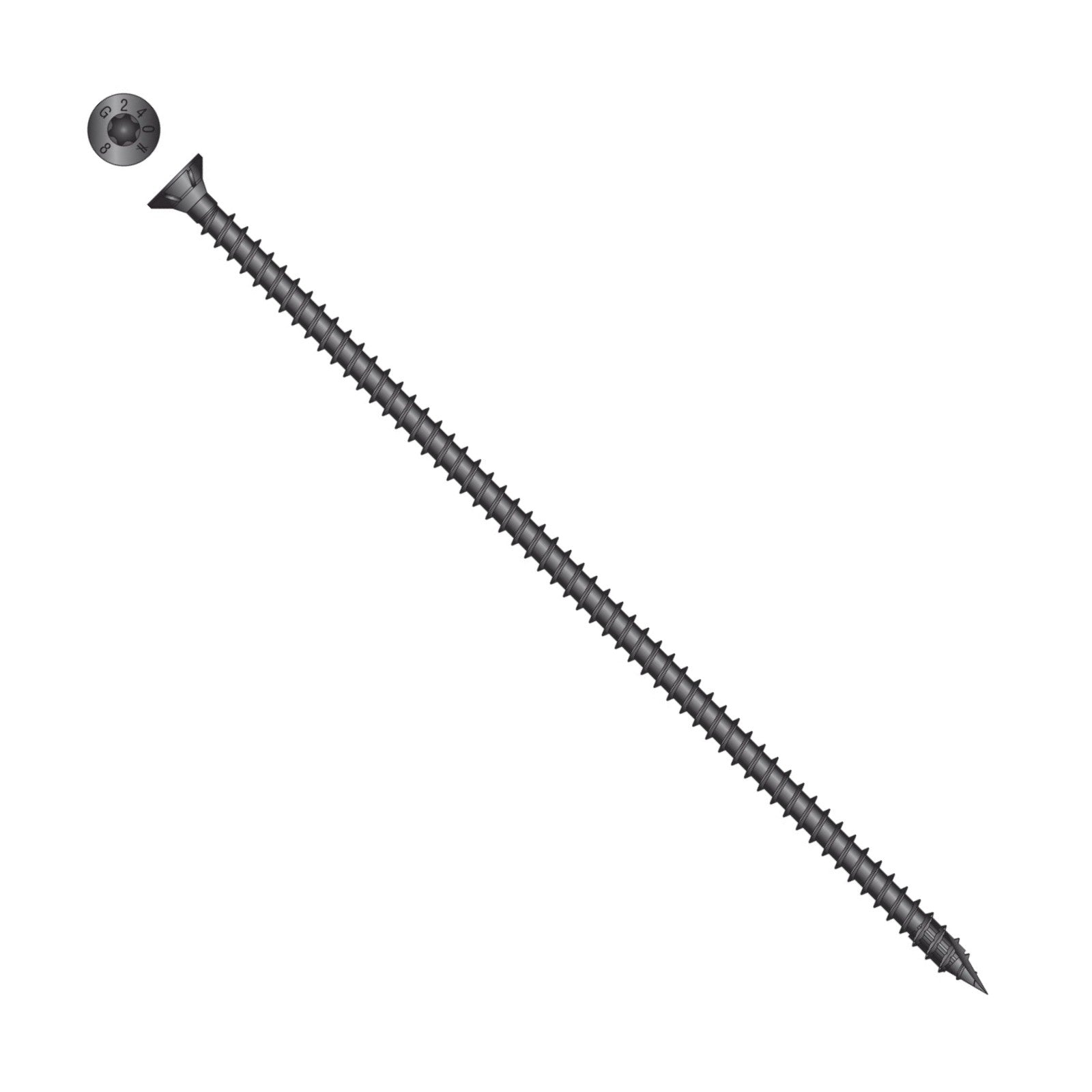

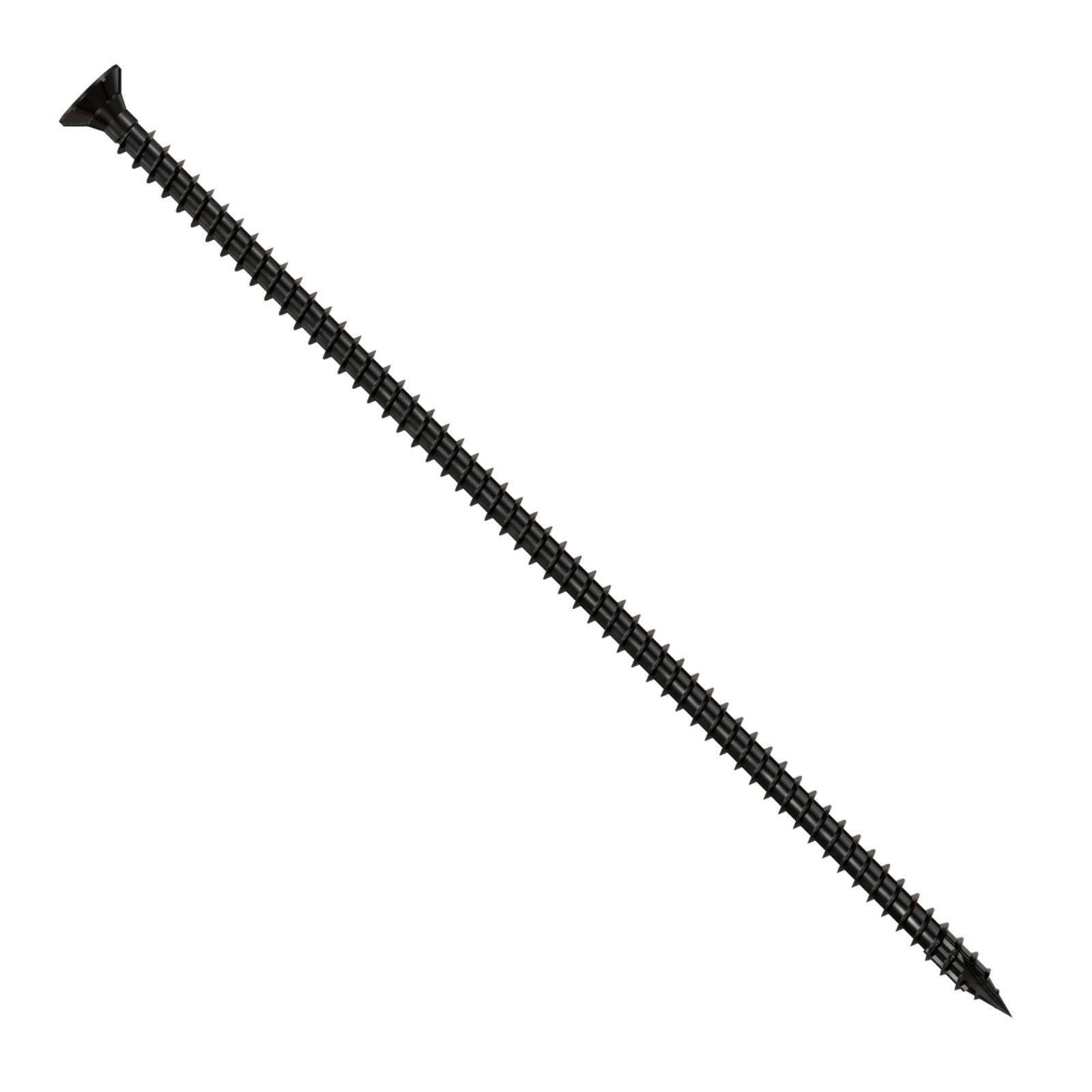

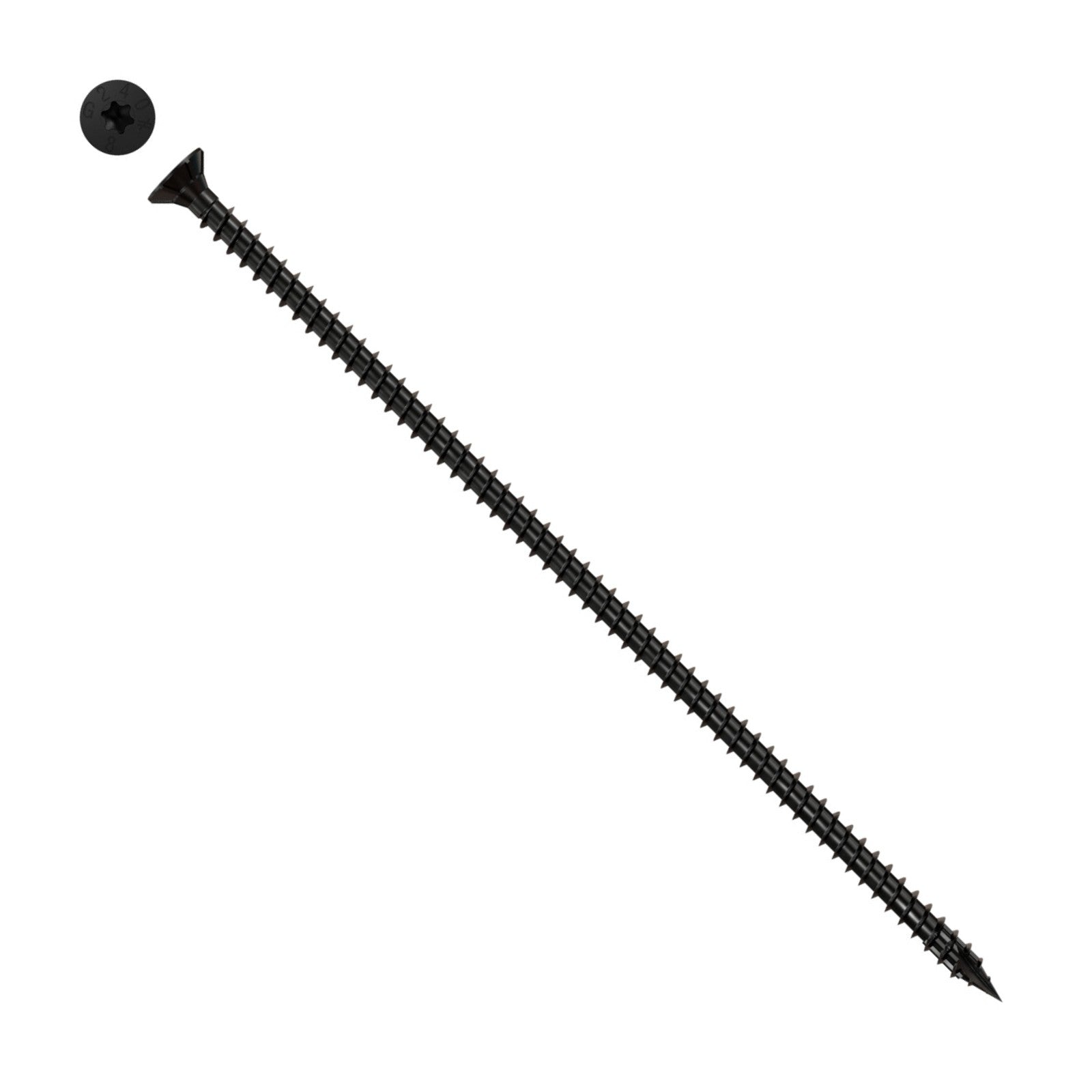

Name: Simpson Strong-Tie 0.315" x 9-1/2" SDCF Timber-CF Flat Head Screw - E-Coat, Black, Qty. 50
SKU: SDCF8X240-R50
Price: 174.99 USD
Availability: InStock

The Simpson Strong-Tie SDCF8X240-R50 SDCF TIMBER-CF screw by Simpson Strong-Tie is built to meet the structural demands of mass timber construction, including cross-laminated timber (CLT), glulam, and laminated veneer lumber (LVL). This fully threaded structural screw provides high-strength connections for demanding wood-to-wood applications, no pre-drilling required in most conditions.

Key Features:

Fully Threaded Design: Ensures even load distribution across the full length of the screw, enhancing structural integrity in CLT and mass timber applications.
Patented Four-Cut Tip: Allows quick starts and reduced splitting, no pre-drilling required in most applications.
T-Drive Recess: Maximizes bit engagement, reducing cam-out and extending tool life.
Heat-Treated Carbon Steel: Optimized strength for load-bearing connections in heavy timber.
Double-Barrier Coating: Provides corrosion protection for use in interior and protected exterior environments.

Applications:

CLT wall, floor, and roof panel connections
Glulam beam and column assemblies
LVL to LVL framing joints
Wood-to-wood structural reinforcements in timber-frame construction
Anywhere high-load wood fastening is required without the use of metal connectors

Installation:

Use the provided T-40 driver bit for all screw sizes.
Installation is smooth and fast with most standard impact drivers.
Pre-drilling is generally not required due to the four-cut tip design, but may be recommended for extremely dense wood species.
Ensure full embedment for optimal structural performance.
