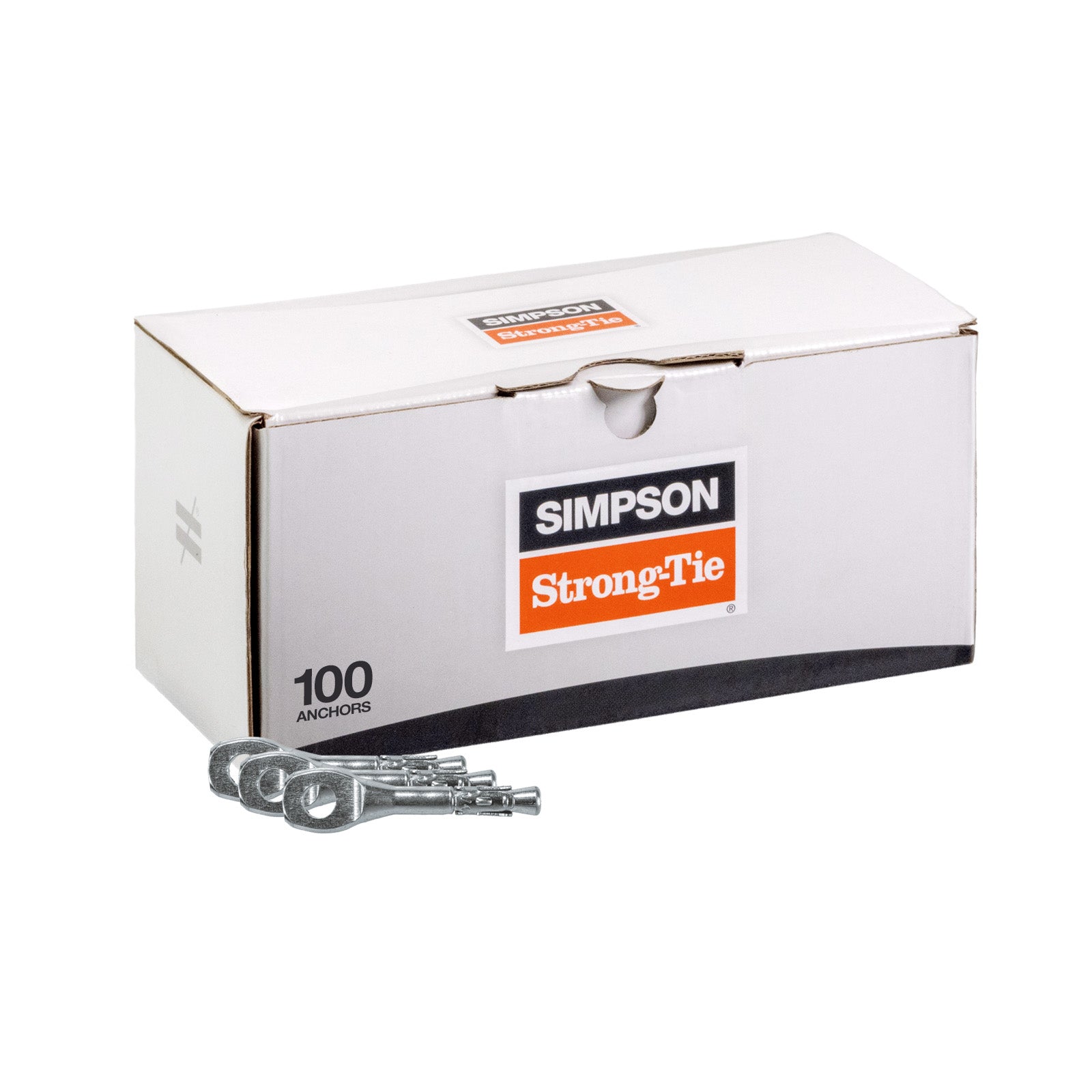

Simpson TW25114 1/4" x 1-1/4" Tie-Wire Wedge Anchor, Zinc, Pkg 100
Specifications

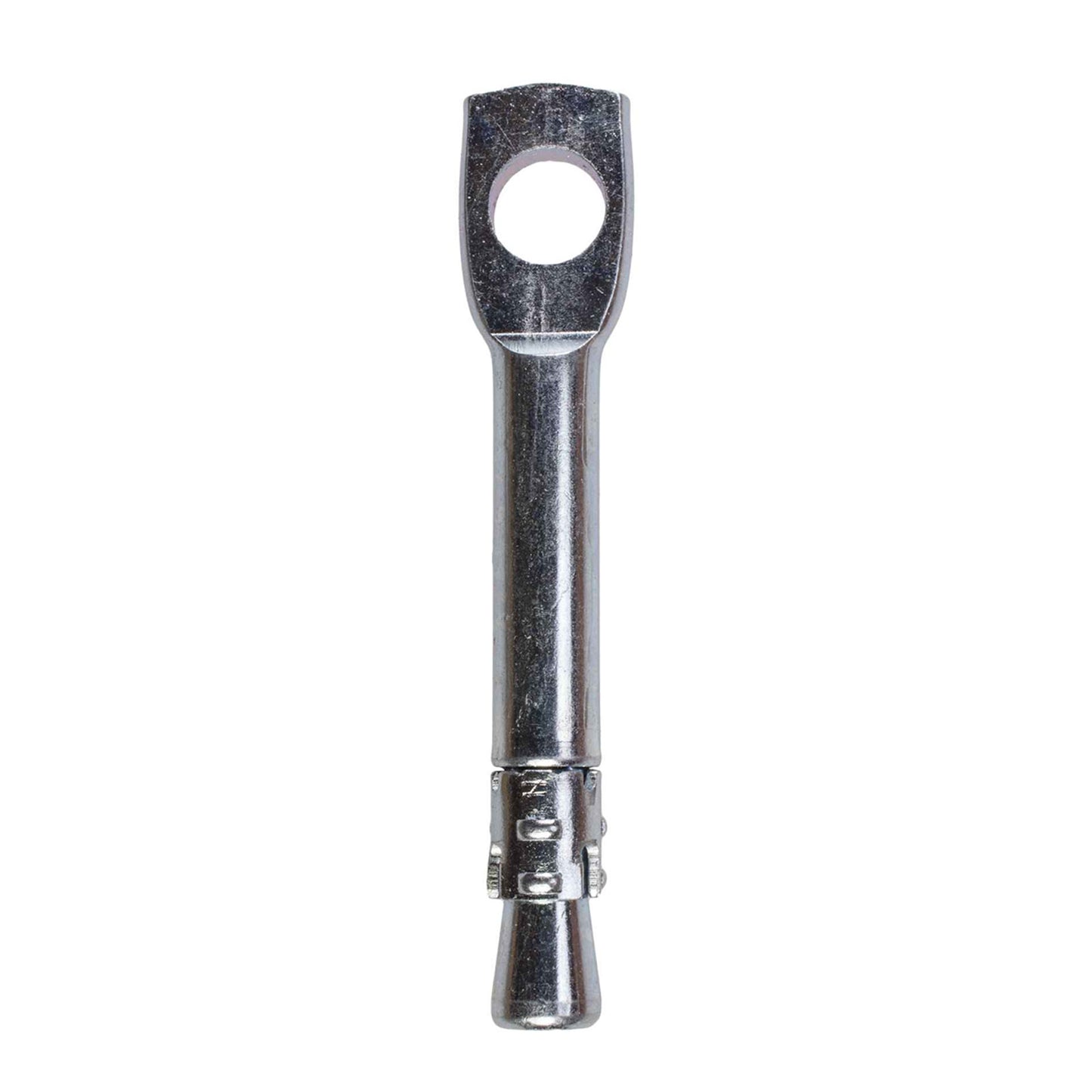

The Simpson Strong-Tie TW25114 Tie-Wire Wedge Anchor is a pre-assembled, code-listed anchor designed for overhead concrete fastening applications such as hanging ceilings, piping, or conduit. Manufactured from durable carbon steel and finished with corrosion-resistant zinc plating, this 1/4" x 1-1/4" anchor is ideal for light-duty installations in solid concrete.

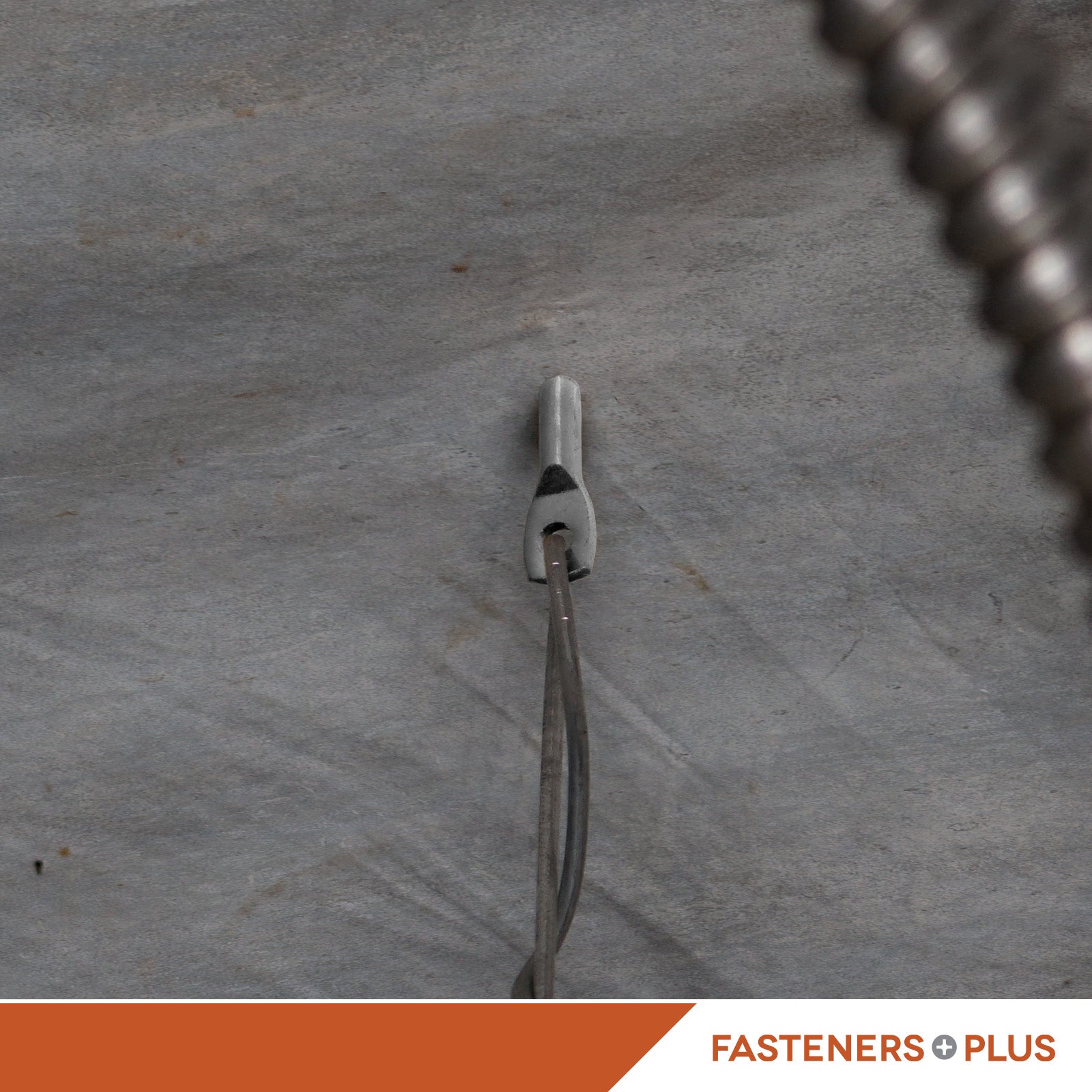

The built-in tie-wire loop makes it easy to securely suspend wire-hung assemblies, saving time and improving installation efficiency on-site.
Key Features
- Corrosion-Resistant Zinc Finish: Protects the anchor in dry, interior environments.
- Strong Holding Power: Designed for use in normal-weight concrete for reliable performance.

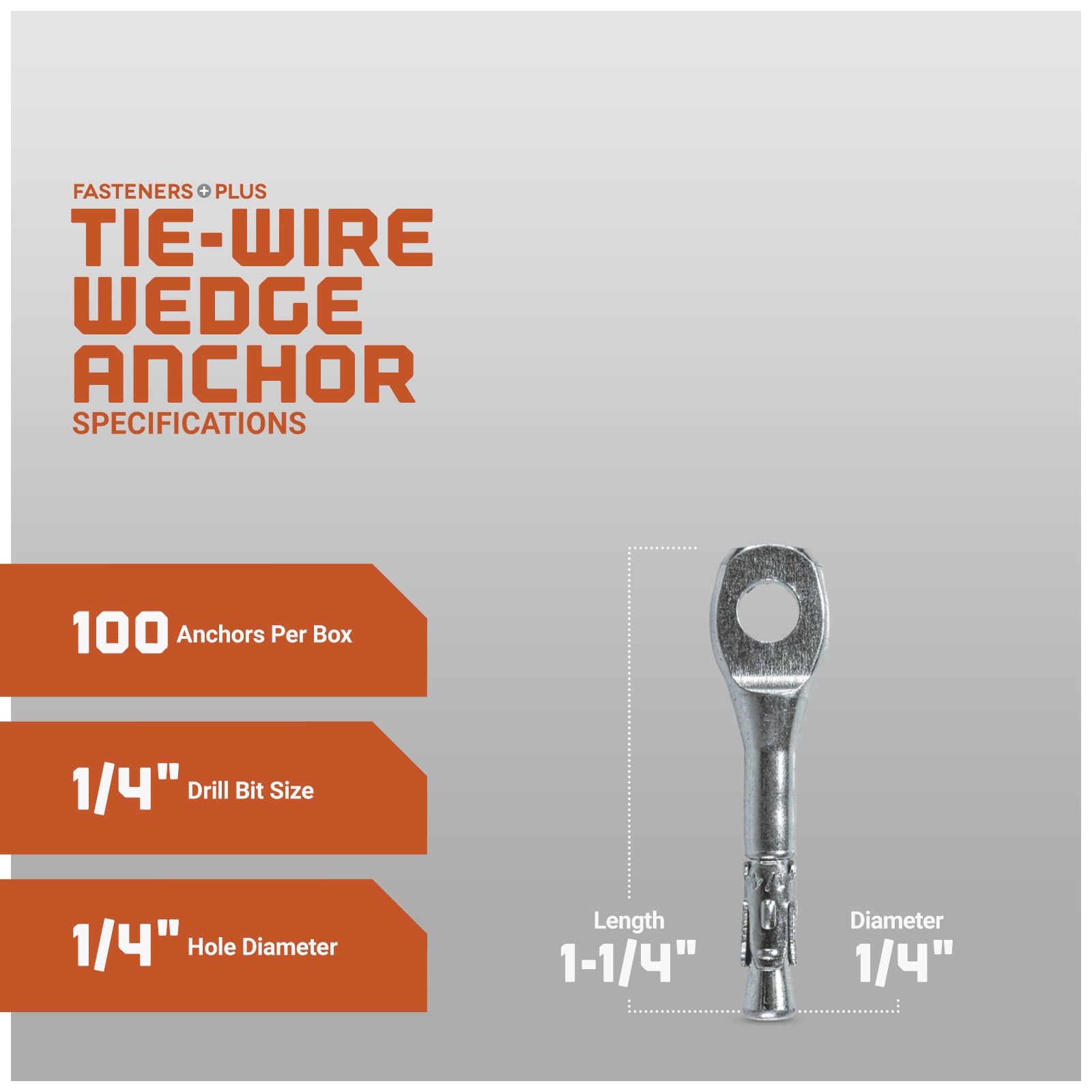

- Compact Size: 1/4" diameter x 1-1/4" length—ideal for tight or overhead installations.
Applications

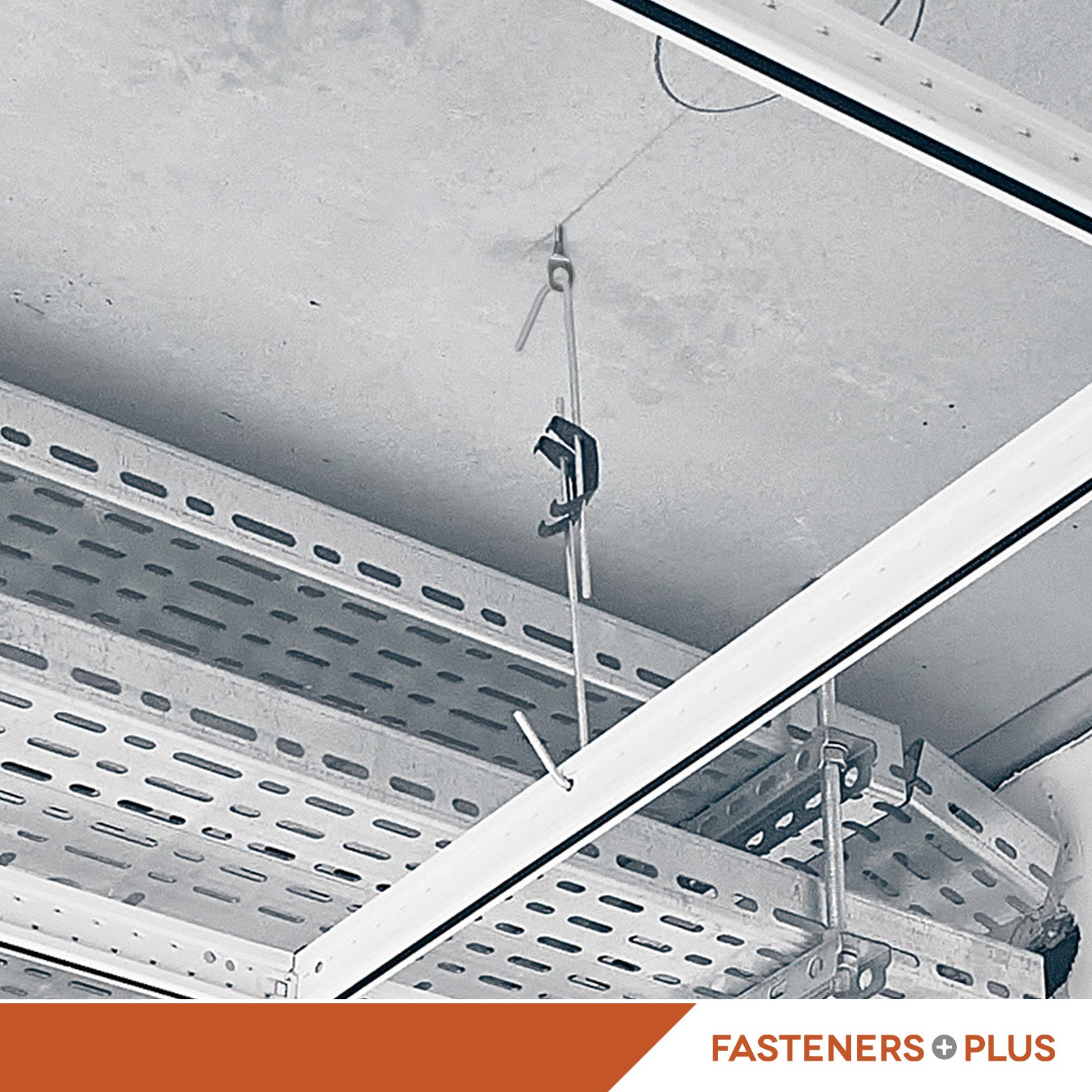

- Suspended ceiling grids
- Electrical and mechanical supports
- Conduit and piping systems
- HVAC hangers
- Fire sprinkler components
Installation Instructions
- Drill a 1/4" diameter hole in solid concrete to a depth of at least 1-1/2".
- Clean the hole thoroughly of dust and debris.
- Insert the anchor into the hole until the tie-wire loop rests flush against the concrete.
- Tap lightly with a hammer if needed to fully seat the anchor.
California Residents: WARNING
Add the Essentials
Complete your order with these essentials, compatible with:
Simpson TW25114 1/4" x 1-1/4" Tie-Wire Wedge Anchor, Zinc, Pkg 100
My Cart:
Continue Browsing
Zinc Wedge Anchors
Add the Essentials
Complete your order with these essentials, compatible with:
Simpson TW25114 1/4" x 1-1/4" Tie-Wire Wedge Anchor, Zinc, Pkg 100
My Cart:
-
Wedge Anchors - For Your Concrete Anchor Needs
Because they provide strong, permanent holds once installed, wedge anchors are a go-to choice in both commercial construction and industrial settings. Once seated properly in the concrete wedge anchors provide a strong and permanent hold.
-
Versatile Applications, Endless Possibilities
Offering a reliable design - featuring a threaded stud, expansion clip, and nut - making them suitable for a wide range of applications, from structural steel connections and machinery anchoring to shelving, racking and safety barriers.
-
Made of High Quality and Durable Materials
Concrete wedge anchors come in various materials, such as zinc-plated steel, stainless steel, hot-dip galvanized and mechanically galvanized versions, allowing for use in different environments, including those with moisture or corrosive exposure.
-
