SKU: XMQ114B1224-2K

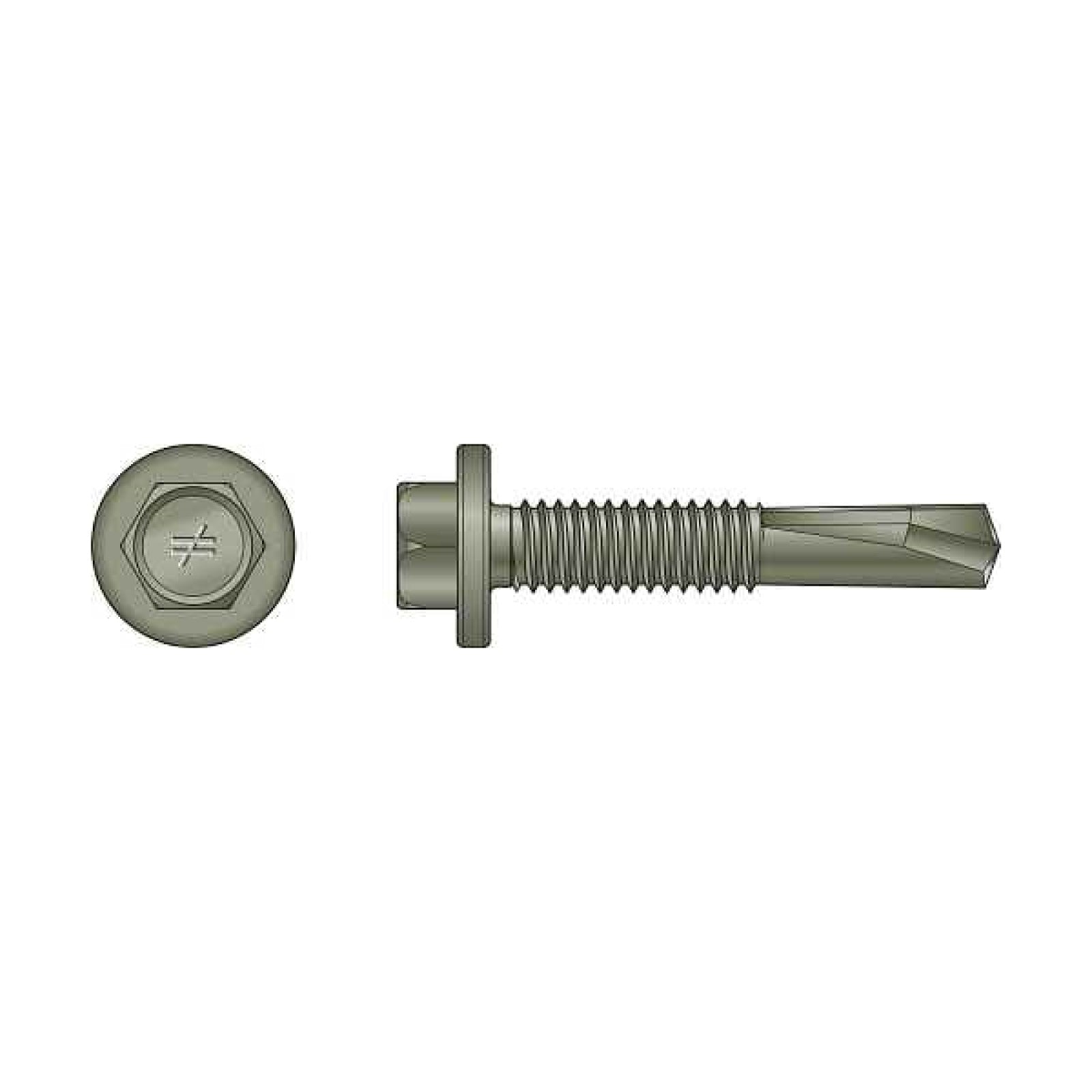

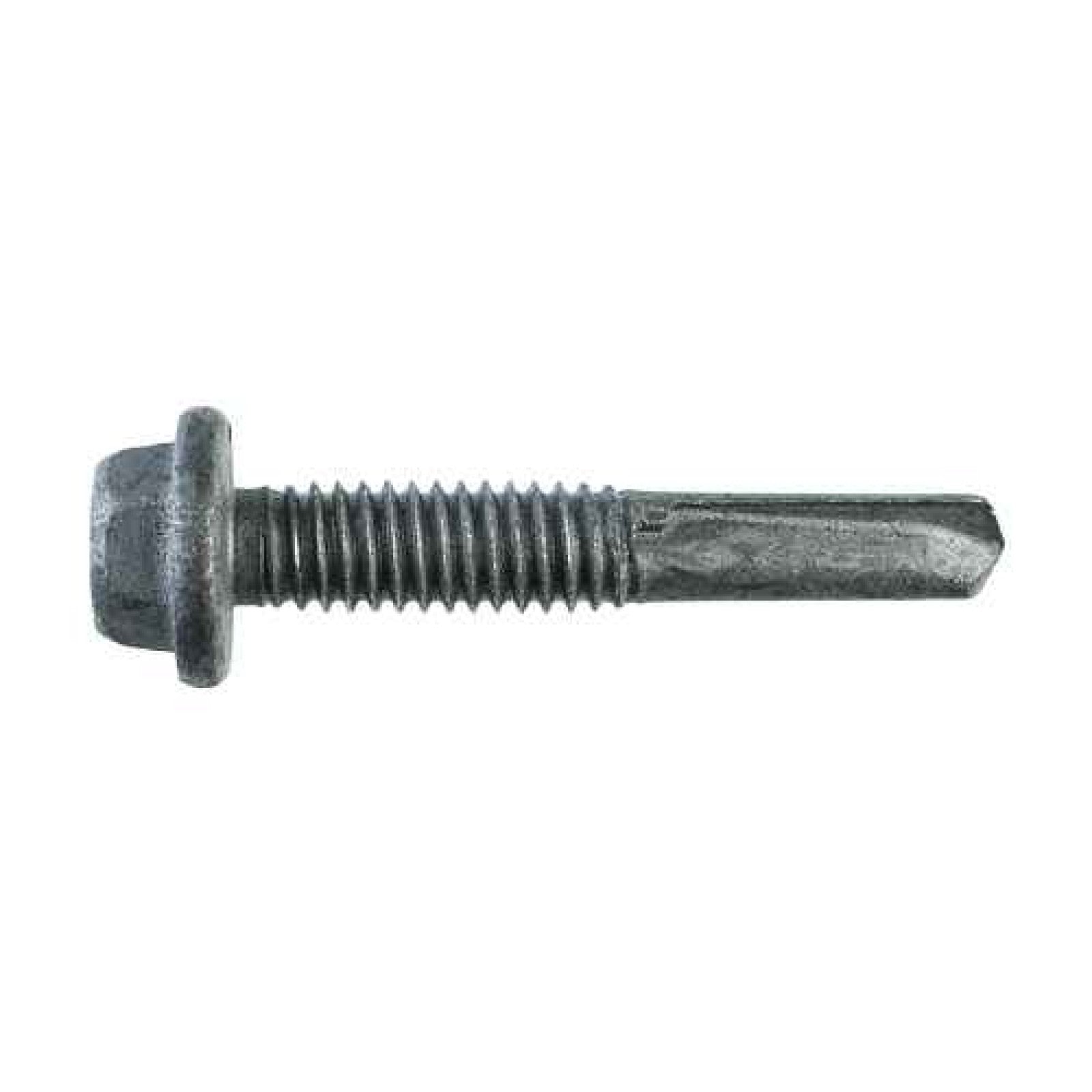

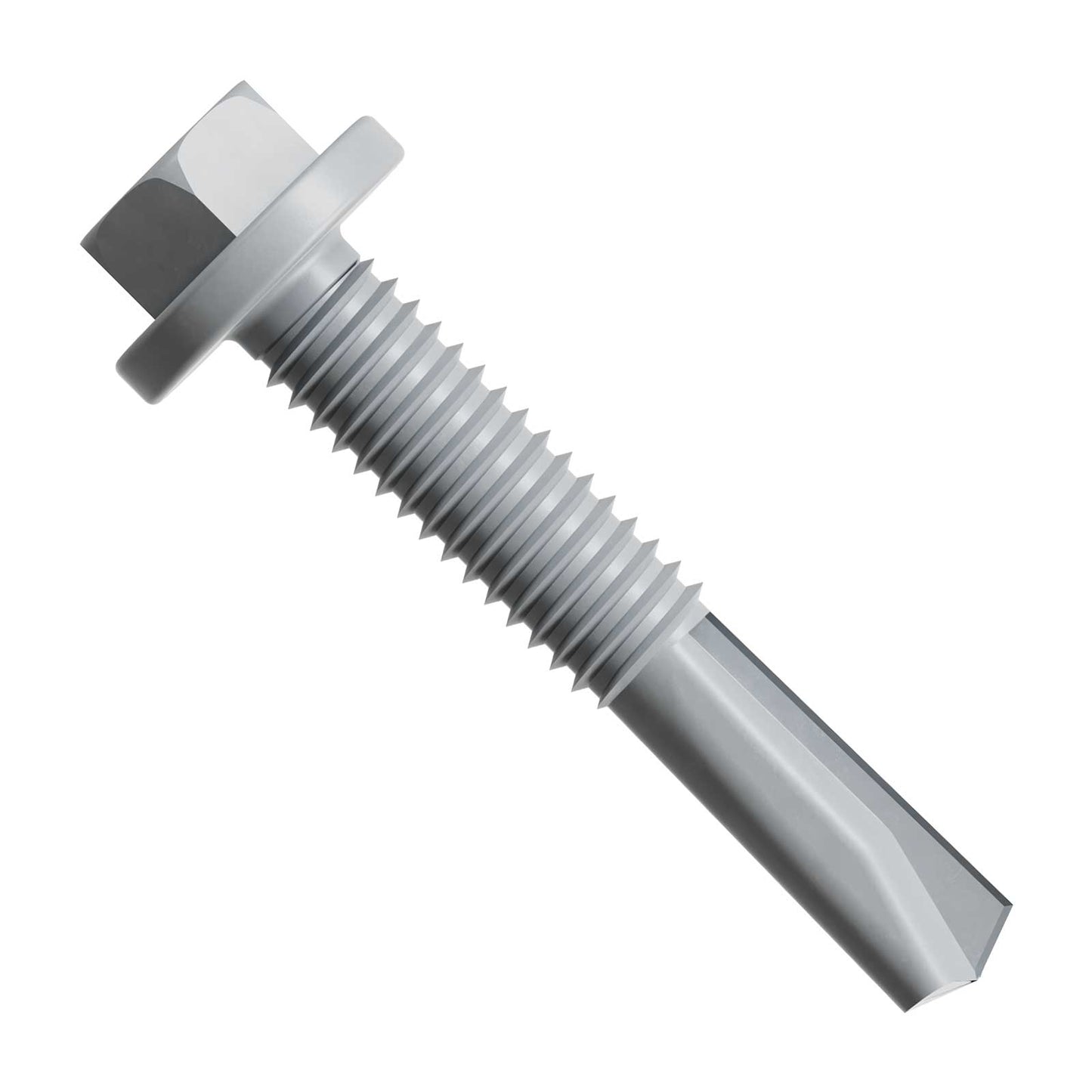

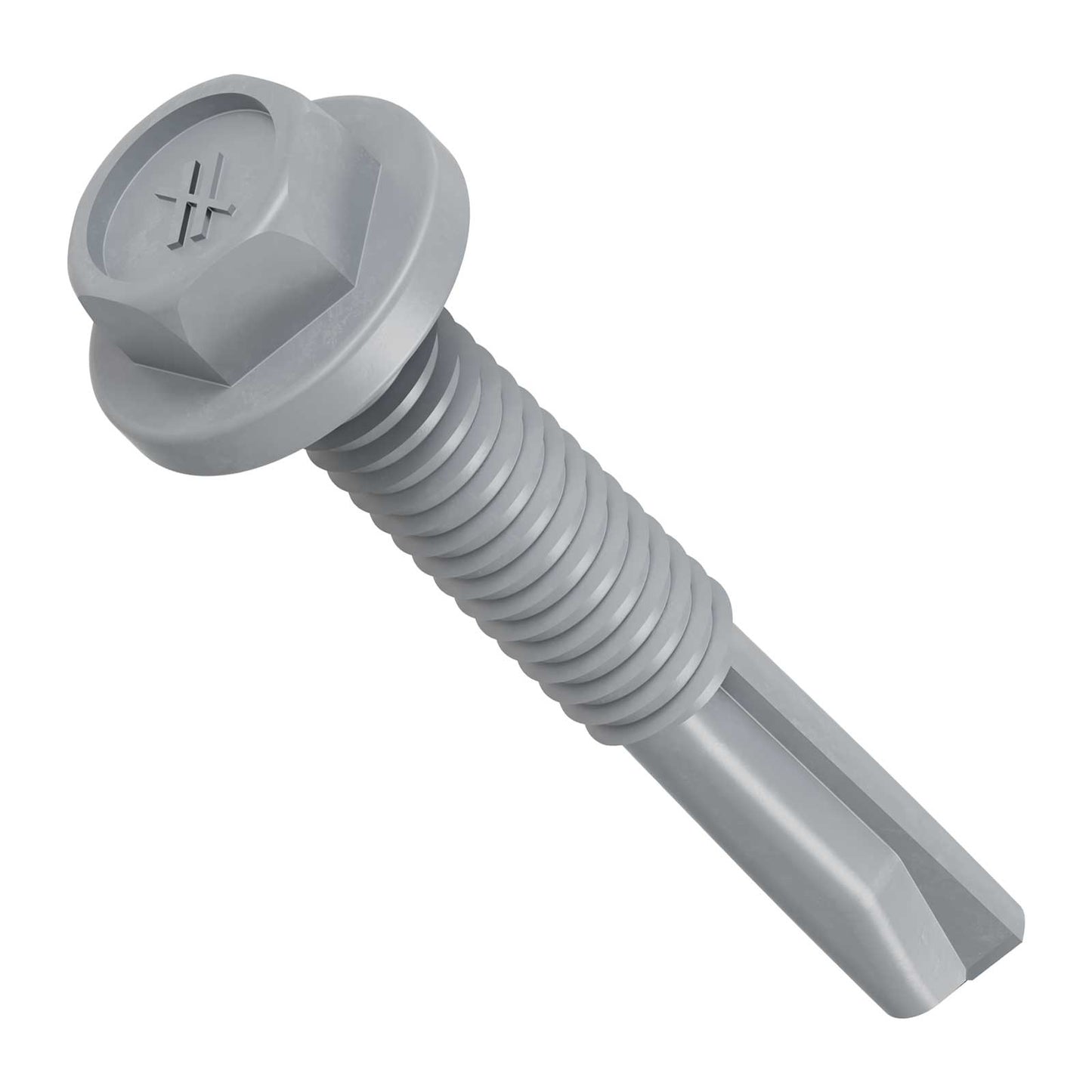

Simpson Strong-Tie #12 x 1-1/4" Self-Drilling Strong-Drive XM Metal Screw, Medium Hex-Washer Head - Quik Guard Coating, Qty. 2,000

Name: Simpson Strong-Tie #12 x 1-1/4" Self-Drilling Strong-Drive XM Metal Screw, Medium Hex-Washer Head - Quik Guard Coating, Qty. 2,000
SKU: XMQ114B1224-2K
Price: 404.99 USD
Availability: InStock

$404⁹⁹

Ships FREE today when you order in the next 4 hours and 55 minutes

Description

Load testing and code listing of Strong-Drive metal screws ensures reliable performance and maximum load values. Comparative testing proves that XM Medium-Head Metal screws from Strong-Drive are superior to various fastener types in 33 ksi and 50 ksi steel decking.

Key Features

5/16" hex drive (replacement driver bit: BITHEXR516-R1)

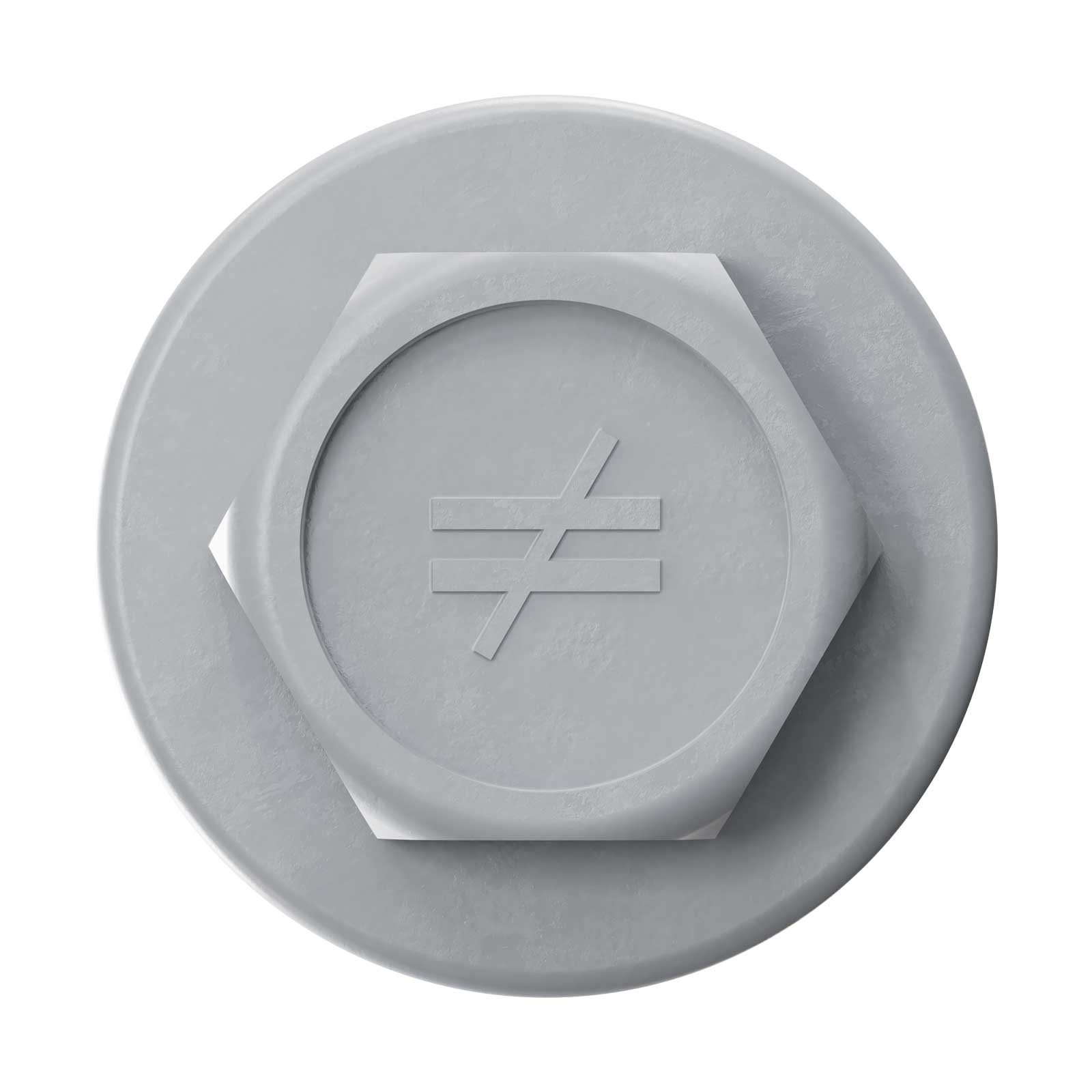

1/2"-diameter hex washer head is ideal for narrow-channel steel decking
Available only in 1-1/4" length with #5 drill point
Available in Quik Guard^® coating

Applications

Steel decking to structural members involving wide or narrow valley; nestable or interlocking steel decking

Specifications

Diameter: #12

Length: 1-1/4"

Head Diameter: 0.480"

For Metal Thickness: 10 Ga. - 4 Ga.

Thread Type: Machine Threads

Threads Per Inch: 24

Drive Type: 5/16" Hex

Head Type: Hex Washer

Point Type: #5 Drill Point

Material: Carbon Steel

Finish: Quik Guard Coating

Manufacturer Name: Simpson Strong-Tie

Quantity: 2,000

View Spec Sheet

Simpson Strong-Tie Limited Warranty

Reviews (0)

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Continue browsing

Bulk Loose Self-Drilling Screws

Self-Drilling Screws for Fastening Metal to Metal

Built for speed and precision, these self-drilling screws are designed to fasten metal to metal without the need for pre-drilling. With fine threads, hardened tips, and corrosion-resistant finishes, they deliver strong, lasting holds in structural steel, light-gauge framing, and more, all while increasing your efficiency on the job.
Self-Drilling Screws with Seemingly Unlimited Options

Our self-drilling screws come in a wide range of options to tackle everything from metal-to-metal and wood-to-metal fastening to interior framing and exterior cladding. Choose from multiple head styles, drive types, and corrosion-resistant finishes like zinc, galvanized, ceramic-coated, and stainless steel, each built for strength, speed, and long-term performance.
The Right Point for Every Project

Different point types pierce various materials. Standard points handle light- to medium-gauge metal, long points tackle thicker steel, self-piercing points work well in wood or thin metal and winged points clear softer layers before drilling harder substrates, ensuring faster, cleaner and secure installations.
