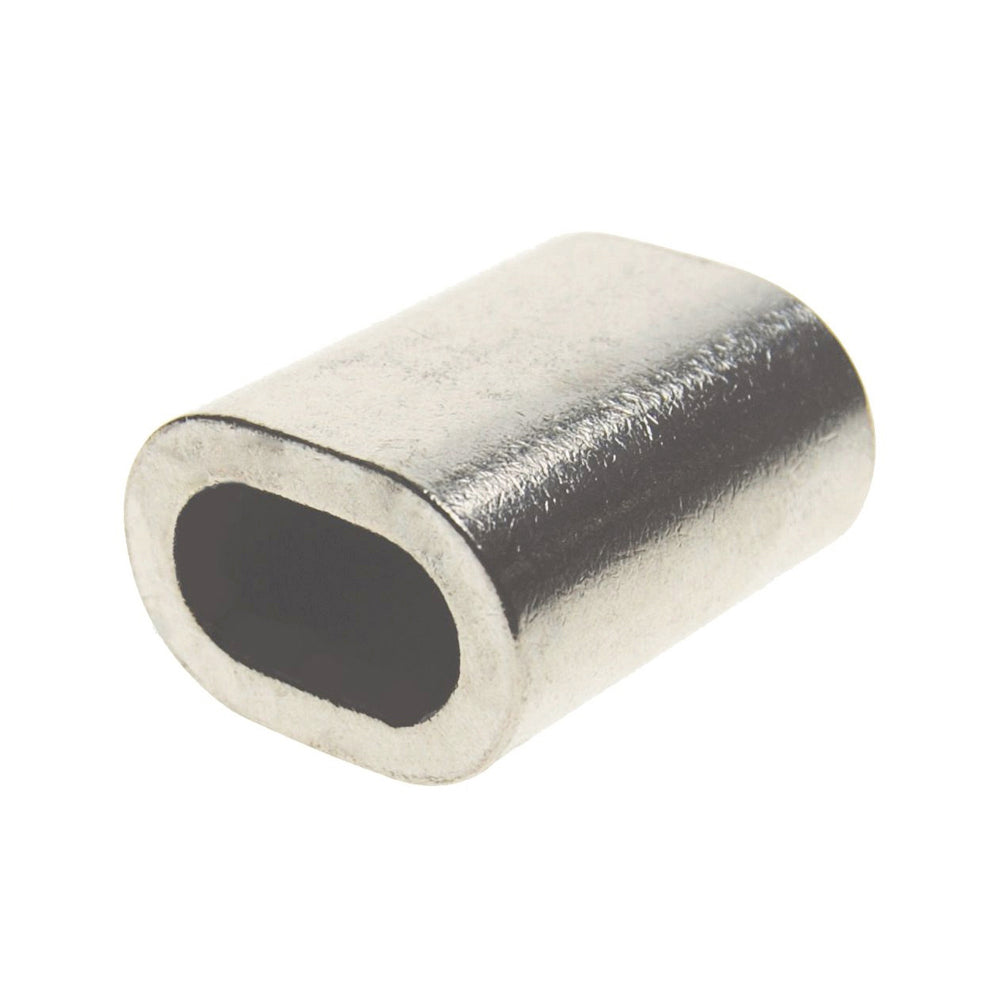

Stainless Steel Sleeve Type 316 - Wire Rope Ferrule

Type 316 stainless steel wire rope sleeves provide a durable, corrosion-resistant solution for creating permanent wire rope terminations and splices. Commonly referred to as wire rope ferrules or compression sleeves, these fittings are designed for use with both galvanized and stainless steel wire rope, making them a versatile choice for demanding environments where long-term reliability is critical.

Marine-Grade Wire Rope Ferrules for Permanent Cable Connections

Type 316 stainless steel is widely recognized as the preferred material for marine, coastal, and highly corrosive environments. The addition of molybdenum enhances resistance to saltwater, chemicals, and atmospheric corrosion, helping protect cable assemblies exposed to harsh outdoor conditions.

These stainless steel ferrules can be used to create eye splices, lap splices, and in-line splices. Installation is performed by passing the wire rope through both ends of the sleeve and compressing the ferrule onto the cable using the appropriate swaging equipment. Once properly swaged, the sleeve creates a strong, permanent mechanical connection.

Designed for Professional Swaging Applications

Due to the strength and hardness of Type 316 stainless steel, these sleeves require significantly greater compression force than aluminum or copper ferrules. A specialized hydraulic or power swaging tool is required for proper installation. These sleeves are not intended for hand-swaging tools.

The rugged stainless steel construction makes them ideal for marine rigging, cable railing systems, architectural projects, utility installations, and other applications where maximum corrosion resistance is required.

Key Features

• Manufactured from marine-grade Type 316 stainless steel
• Exceptional corrosion resistance for marine and coastal environments
• Compatible with both galvanized and stainless steel wire rope
• Also known as wire rope ferrules or compression sleeves
• Creates permanent eye splices, lap splices, and in-line splices
• Suitable for marine, architectural, utility, industrial, and cable railing applications
• Provides strong, permanent cable terminations when properly swaged
• Resists rust, saltwater exposure, and harsh environmental conditions
• Ideal for outdoor and high-moisture environments
• Requires specialized hydraulic or power swaging equipment
• Not intended for hand-swaging tools
• Designed for professional-grade wire rope assemblies and installations
