Terrier FSVS 5 Ton Screw Beam Lifting Clamp - 965000
Terrier FSVS 5 Ton Screw Beam Lifting Clamp - 965000!
Specifications
Terrier FSVS 5 Ton Screw Beam Lifting Clamp - Extra-Wide Jaw for Oversized Beam Handling

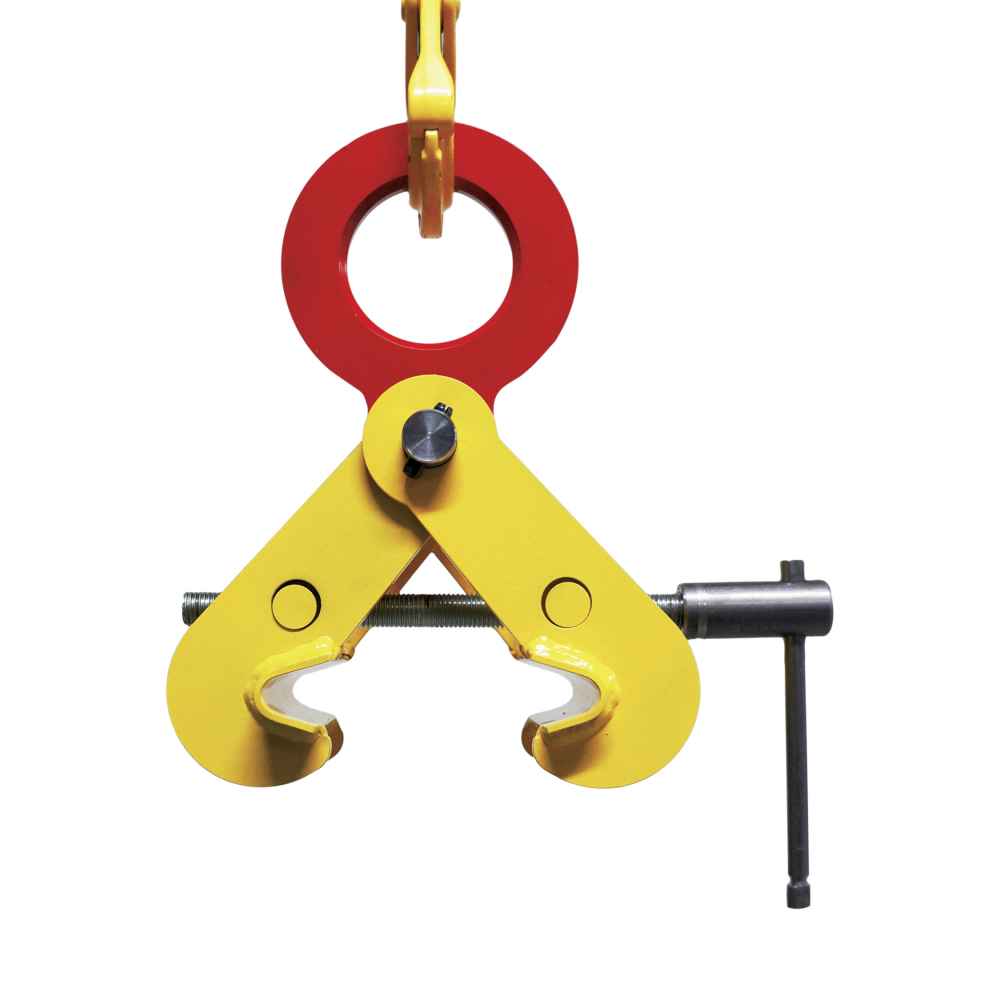

The Terrier FSVS 5 Ton Screw Beam Clamp (Model 965000) is purpose-built for lifting, pulling, or anchoring large structural steel beams. With an expansive jaw opening of 5.9" to 22.04" and a robust 3.11" hoist eye, this clamp is ideal for heavy-duty projects requiring oversized flange compatibility. Equal jaw adjustment ensures fast, stable clamping. Every clamp is individually proof-tested to 2x WLL and includes a test certificate. Designed with a 5x safety factor, the FSVS delivers maximum reliability for demanding industrial environments.

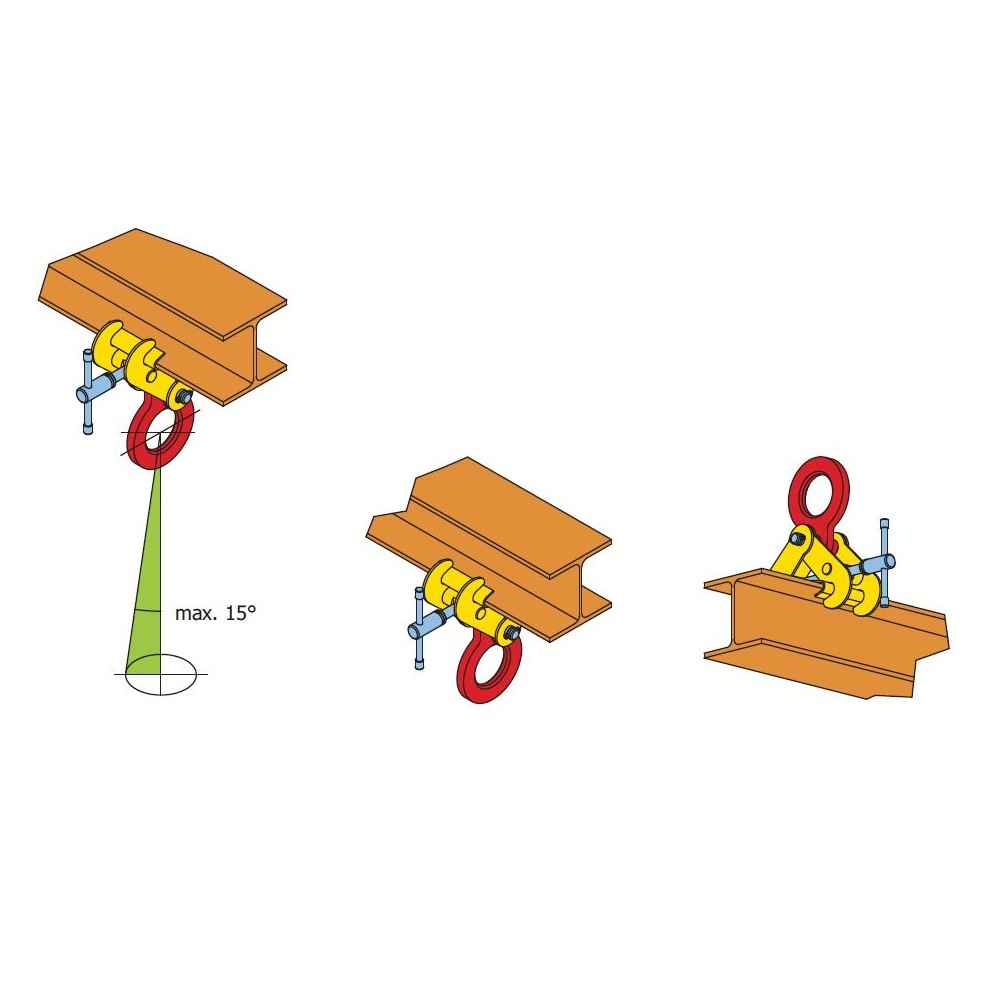

Versatility for Rigging, Tie-Off, and Inverted Applications
The FSVS is approved for tie-off use and supports inverted installation for temporary anchoring or lifting points. Its wide jaw range offers flexibility across varied beam profiles and sizes, while the oversized hoist eye allows for integration with high-capacity rigging hardware. Whether you're securing lift points, transporting beams, or setting up fall arrest systems, this clamp is ready for the job.
Key Features
- 5 Ton Working Load Limit: Heavy-duty capacity for lifting or anchoring large steel beams.
- Extra-Wide Jaw Opening: Grips beam flanges from 5.9" to 22.04" for maximum size compatibility.
- 3.11" Hoist Eye: Accommodates large hooks, shackles, and rigging gear for secure connections.
- Equal Jaw Adjustment: Dual screw system allows fast and even clamping for stability.
- Inverted Use Capable: Can be mounted upside down as a secure temporary lift or tie-off point.
- Certified Tie-Off Use: Approved as a fall protection anchorage in overhead applications.
- Tested to 2x WLL: Each clamp includes proof testing and a certificate for safety compliance.
- 5x Safety Factor: Engineered to exceed global standards for industrial lifting operations.
