Terrier Horizontal Clamps

Terrier Horizontal Lifting Clamp Comparison

Terrier's horizontal clamp lineup covers a wide range of jaw sizes and specialized use cases. Here's how the models compare.

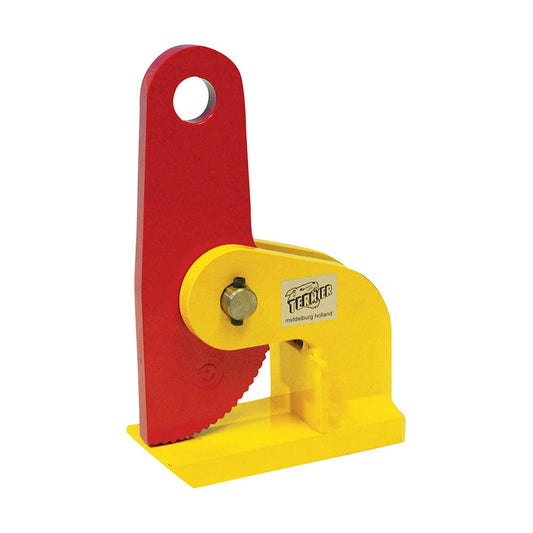

FHX/FHSX: Standard and Large Jaw

These two models give you a choice between a standard jaw opening (0 to 1.38") and a large jaw opening (0 to 3.94"), both covering working load limits from 1 ton to 15 tons.

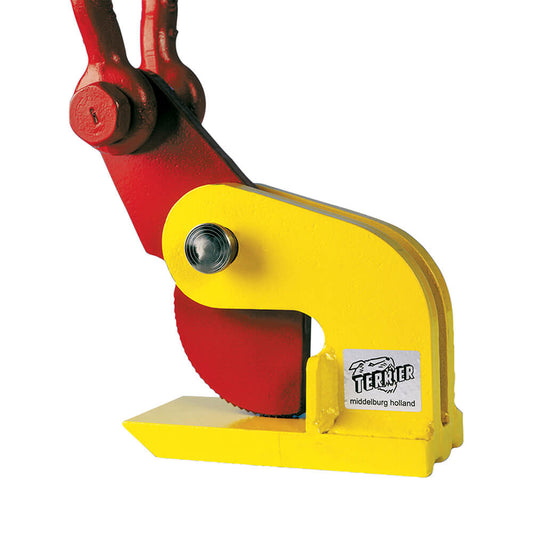

TDH: Built for Deflecting Sheets

The TDH is designed specifically for horizontal lifting and transporting of sheets that may bend or deflect once lifted, a scenario a standard clamp isn't built to handle well. Jaw opening tops out at 0.59", with working load limit options from 1 ton up to 6 tons.

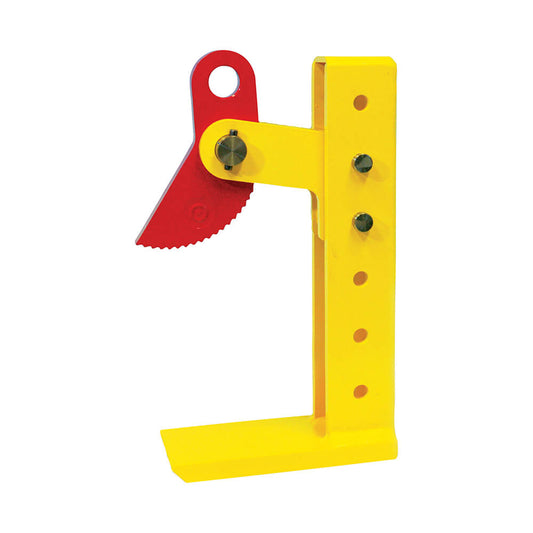

THSK: Extra-Large Jaw for Stacks and Thick Plate

The THSK is built to handle stacks, packages, or thick steel plate that a standard jaw opening can't accommodate, with a jaw opening reaching up to 16.54". Working load limits run 1-1/2 ton to 9 tons.

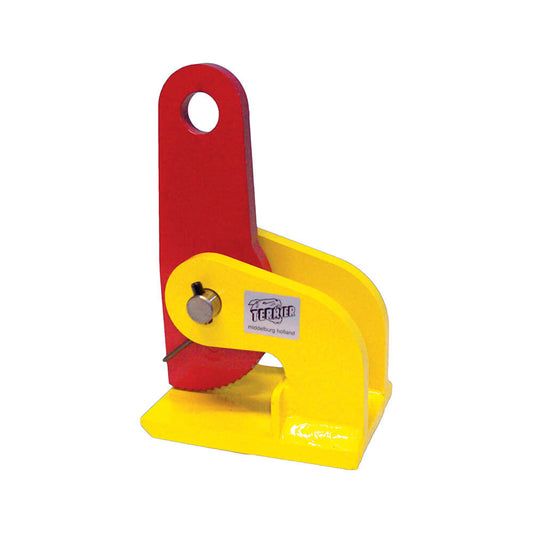

FHX-V: Single-Operator Convenience

The FHX-V is built for steel plates and other non-deflecting materials, with a pre-tensioned spring cam that makes single-operator use straightforward. Maximum jaw opening is 1.38", with working load limits from 1 ton to 6 tons.

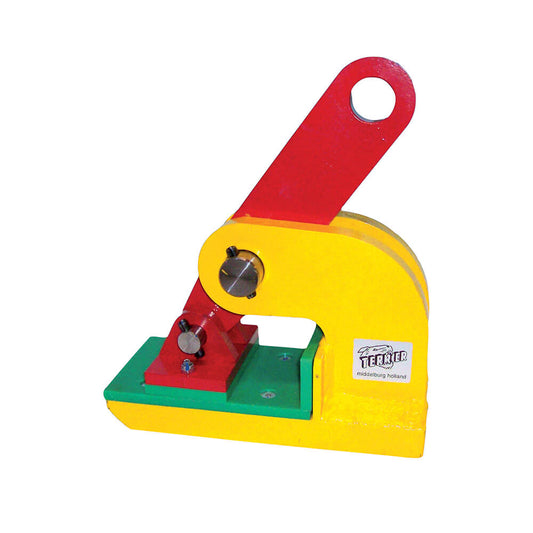

TMNH: Non-Marking

The TMNH protects cargo from scratches and other damage the clamp's teeth might otherwise cause, with a jaw opening up to 0.98" and working load limits from 1 ton up to 6 tons.

Not sure which model fits your application? Reach out to our sales team for guidance.
