Lifting Beams & Spreader Bars

Lifting Beams & Spreader Bars for Safer, More Efficient Overhead Lifts

When you're moving heavy or oversized loads, the right below-the-hook equipment is what keeps the lift under control. Lifting beams and spreader beams / bars improve load stability, reduce stress on your slings, and help you keep overhead lifts safe from pick to set-down. Whether you're hoisting steel, setting precast, or handling awkward machinery, the right hoist beam turns a tricky lift into a routine one.

Our lifting beams and spreader bars come from M&W and Caldwell Dura-Lite, two manufacturers built around ASME B30.20 compliance and proof-load testing. Certification paperwork ships with the beam, so you have documentation on hand for jobsite and safety reviews. Always confirm the working load limit and certification details for your specific model before use.

What's the Difference Between a Spreader Bar and a Lifting Beam?

"Spreader beam" gets used as a catch-all for this whole category, but spreader bars and lifting beams work differently, and picking the right one matters for your lift.

Key Differences

• Load Distribution – A lifting beam supports a load from a single lifting point, while a spreader bar distributes the weight evenly across two or more points.
• Headroom Considerations – Lifting beams need less vertical clearance than spreader beams / bars, since they connect directly to the crane hook.
• Structural Forces – A spreader beam / bar works under compression, while a lifting beam is engineered for bending and shear at its single pick point.

Because a lifting beam carries the full load at one connection point, it's built larger and heavier than a comparable-capacity spreader bar. That single-point design is exactly what makes it a better fit for low-headroom jobs. A spreader bar, suspended from two or more points, is the better call for wide, delicate, or heavy loads, or any lift where the rigging points are spread far apart.

Types of Lifting Beams & Spreader Bars

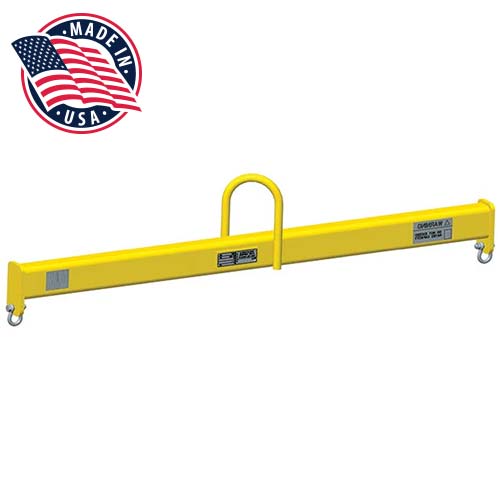

• Lifting Beams – Single-point beams, available in fixed and multi-point configurations for different load setups.

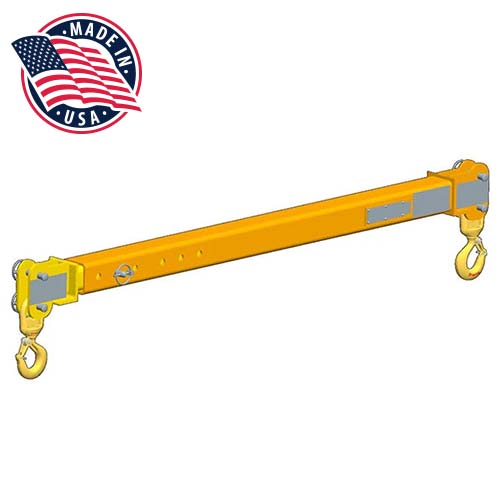

• Spreader Beams / Bars – Fixed-length and adjustable spreader bars, including 2-point and 4-point spreader bar configurations for heavy-duty and industrial lifts.

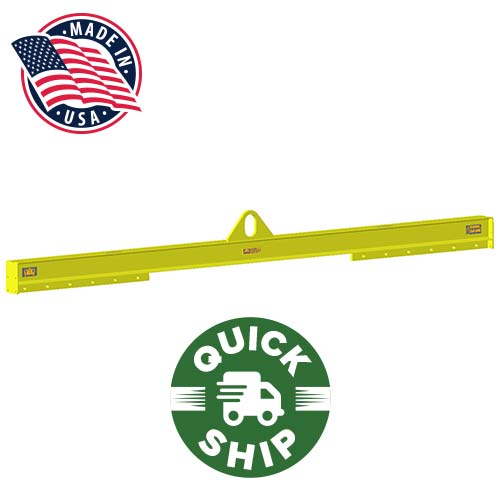

• Quick Ship Hoisting Beams – In-stock lifting beams and spreader bars ready to ship now, for jobs that can't wait on a lead time.

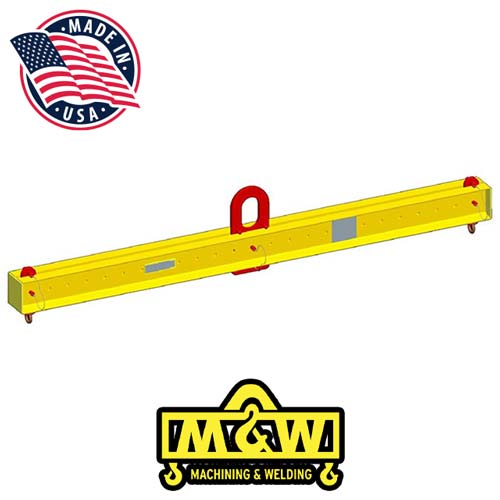

• M&W Lifting Beams & Spreader Bars – Steel spreader bars and lifting beams engineered for industrial and construction rigging.

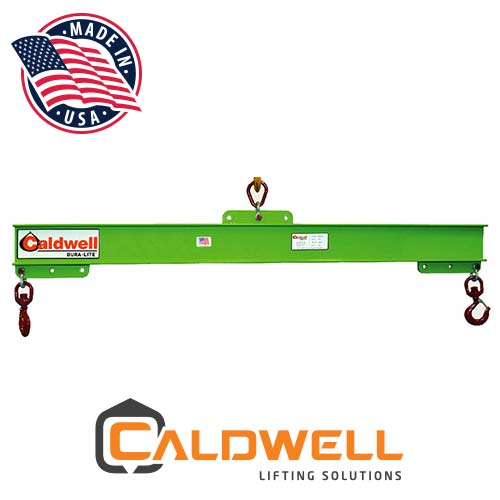

• Caldwell Dura-Lite Lifting Beams & Spreader Bars – Lightweight composite and modular spreader beam options built for easier handling on site.

Common Applications for Lifting Beams & Spreader Bars

Hoist beams show up across construction, manufacturing, warehousing, and rigging and crane work. Common uses include:

• Hoisting shipping containers, structural steel, and precast concrete
• Setting HVAC units, tanks, and heavy machinery
• Lifting modular building sections or awkward, oversized components
• Any lift where multiple pick points are needed to keep the load from twisting or distorting

How to Choose the Right Spreader Bar or Lifting Beam

A few variables drive the decision:

• Load Weight and Dimensions – Choose a beam or bar rated above your load's actual weight, and confirm the rated capacity on the product's spec sheet.
• Available Headroom – Tight clearance points toward a lifting beam, since it connects directly to the hook.
• Load Variability – Lifting the same load configuration every time favors a fixed spreader bar. If loads change job to job, an adjustable spreader bar gives you more flexibility without swapping equipment.
• Center of Gravity – Spreader bars generally run with a lower center of gravity than lifting beams.
• Lift Point Configuration – For unbalanced or irregular loads, a multi-point lifting beam or a four point spreader bar gives you more control over how the weight settles.

Lifting Beam & Spreader Bar FAQs

Q: What's the difference between a spreader beam and a lifting beam?

A: A spreader beam spreads the load across two or more points using angled slings. A lifting beam supports the load from a single upper pick point, often with multiple lower attachment points.

Q: Can spreader bars be used with any crane?

A: Most spreader bars work with overhead, mobile, and gantry cranes, but always match the bar's rated capacity and configuration to your crane and lift plan before use.

Q: What safety standards apply to lifting beams?

A: Our M&W and Caldwell Dura-Lite beams are built to meet ASME B30.20 and are proof tested, with certification paperwork included. Confirm code and inspection requirements for your job with your local authority or a qualified professional.

Q: How often should a lifting beam or spreader bar be inspected?

A: A visual inspection before every lift is standard practice, along with a more thorough periodic inspection on a monthly or annual schedule. Check for cracks, bending, or other structural damage, and inspect rigging hardware and attachment points for wear. Follow your beam's documentation and your company's inspection program for specifics.

Complete Your Rigging Setup

Pair your lifting beam or spreader bar with lifting slings and rigging supplies and hardware to round out your setup.

Need Help Choosing?

Not sure which spreader bar or lifting beam fits your job, or looking for something comparable to a specific Caldwell or M&W model? Our product experts can help. Call (888) 794-1590, email customerservice@fastenersplus.com, or contact us and we'll help you find the right fit.
