SKU: SDPW14500MB

0.140" x 5" Strong-Tie SDPW14500MB Deflector Screw- E-Coat, Pkg 500

Quantities

Regular price $67900
Ships FREE today when you order in the next 4 hours and 22 minutes

Description

The Simpson Strong-Tie® Strong-Drive® SDPW Deflector Screw (0.140" x 3-1/2") is the ideal fastening solution for attaching non-load-bearing walls to trusses and joists. Engineered with tested lateral-load ratings that meet building code requirements, this screw provides strength, reliability, and peace of mind in interior framing applications.

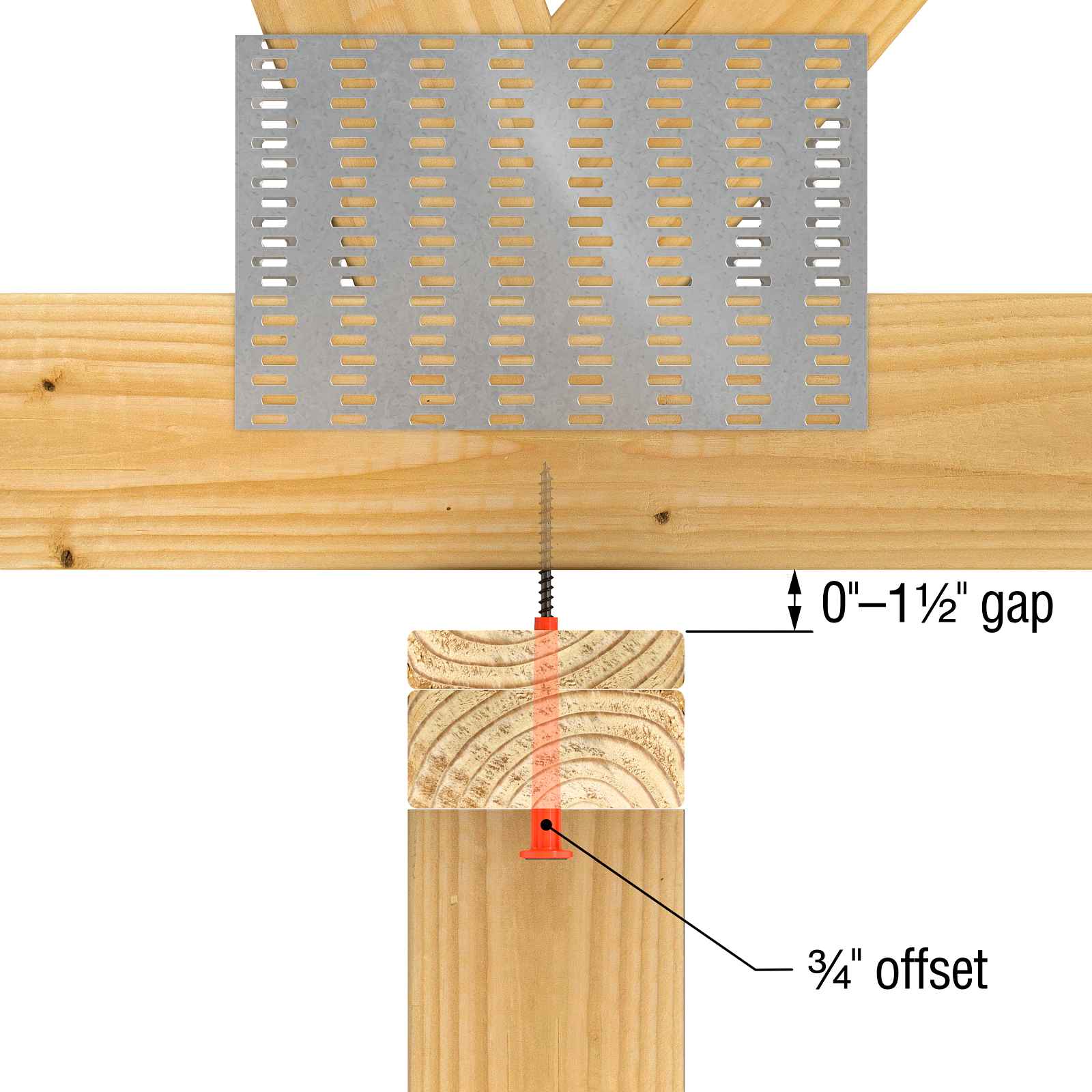

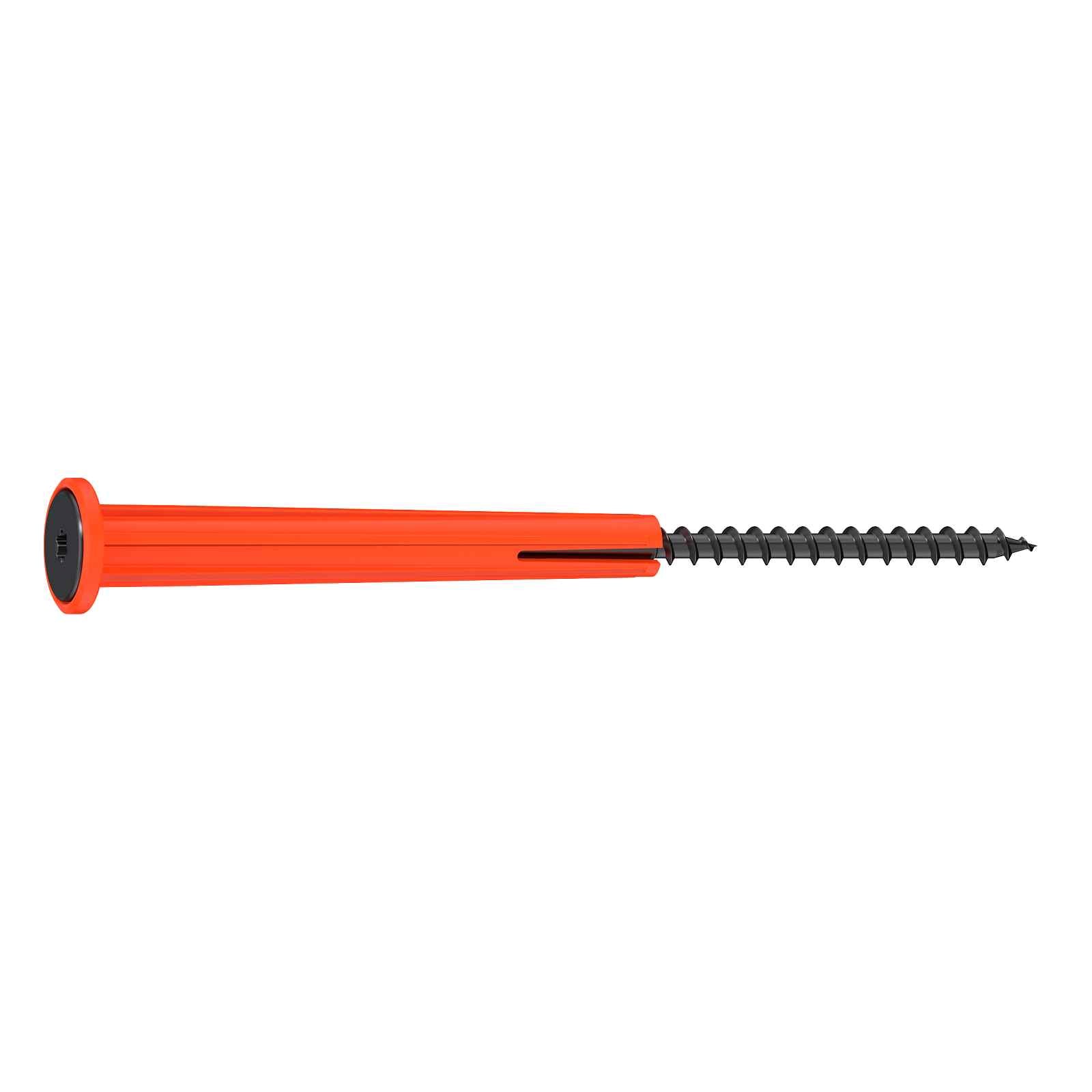

The SDPW screw features a polymer sleeve that permits natural deflection between walls and framing members, without the squeaks that often happen when wood shifts. Its deep 6-lobe recess ensures a solid drive, while the included offset driver bit sets each screw to the correct depth for consistent installation.

With a corrosion-resistant E-coat finish for interior use, the SDPW Deflector Screw is a smart, code-compliant choice for quiet, secure wall-to-truss connections.

Key Features

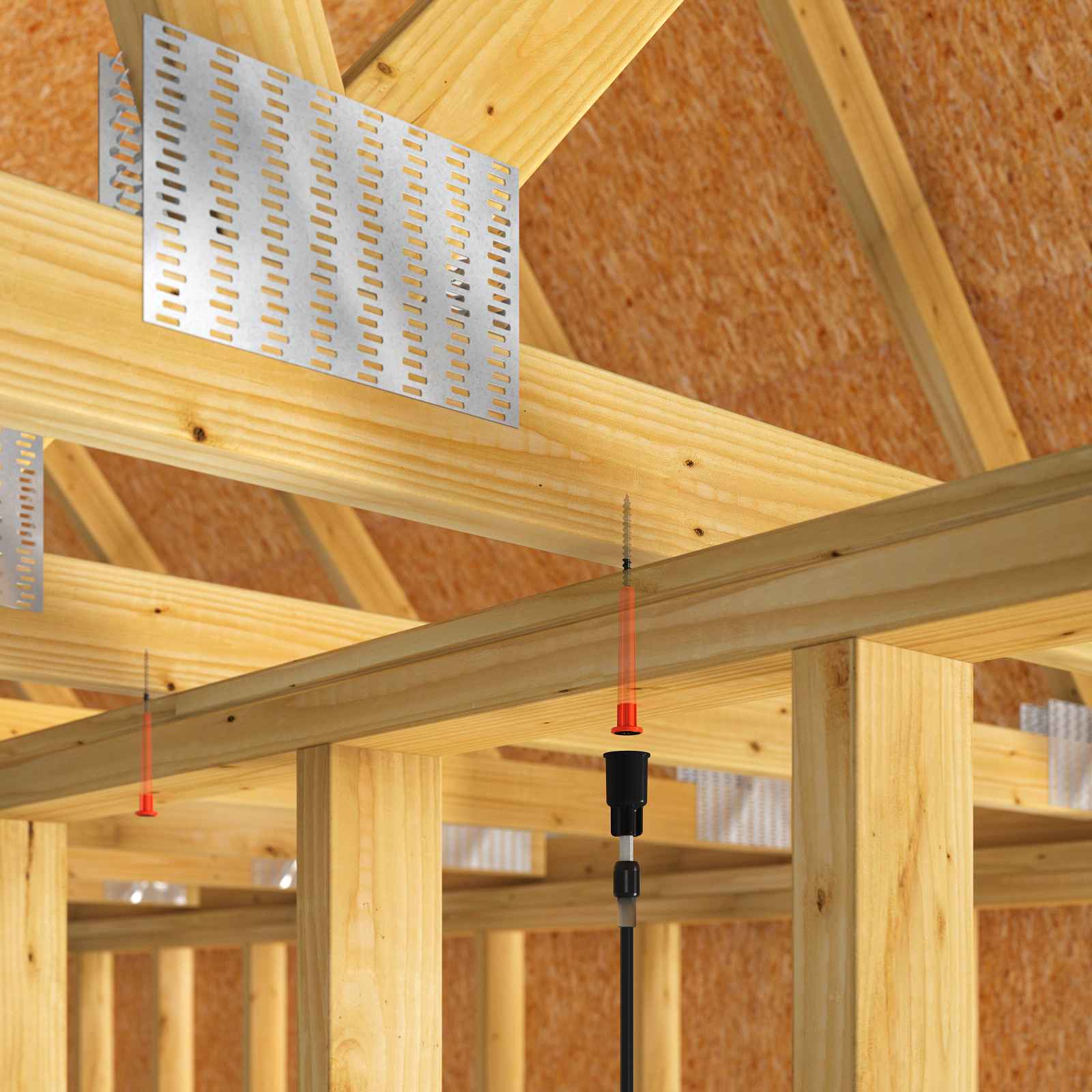

  • Designed for Interior Wall Connections – Attaches non-load-bearing walls to trusses and joists.
  • Noise-Free Deflection – Polymer sleeve allows natural wood movement without squeaks.
  • Consistent Install Every Time – Offset driver bit sets the screw to the proper depth.

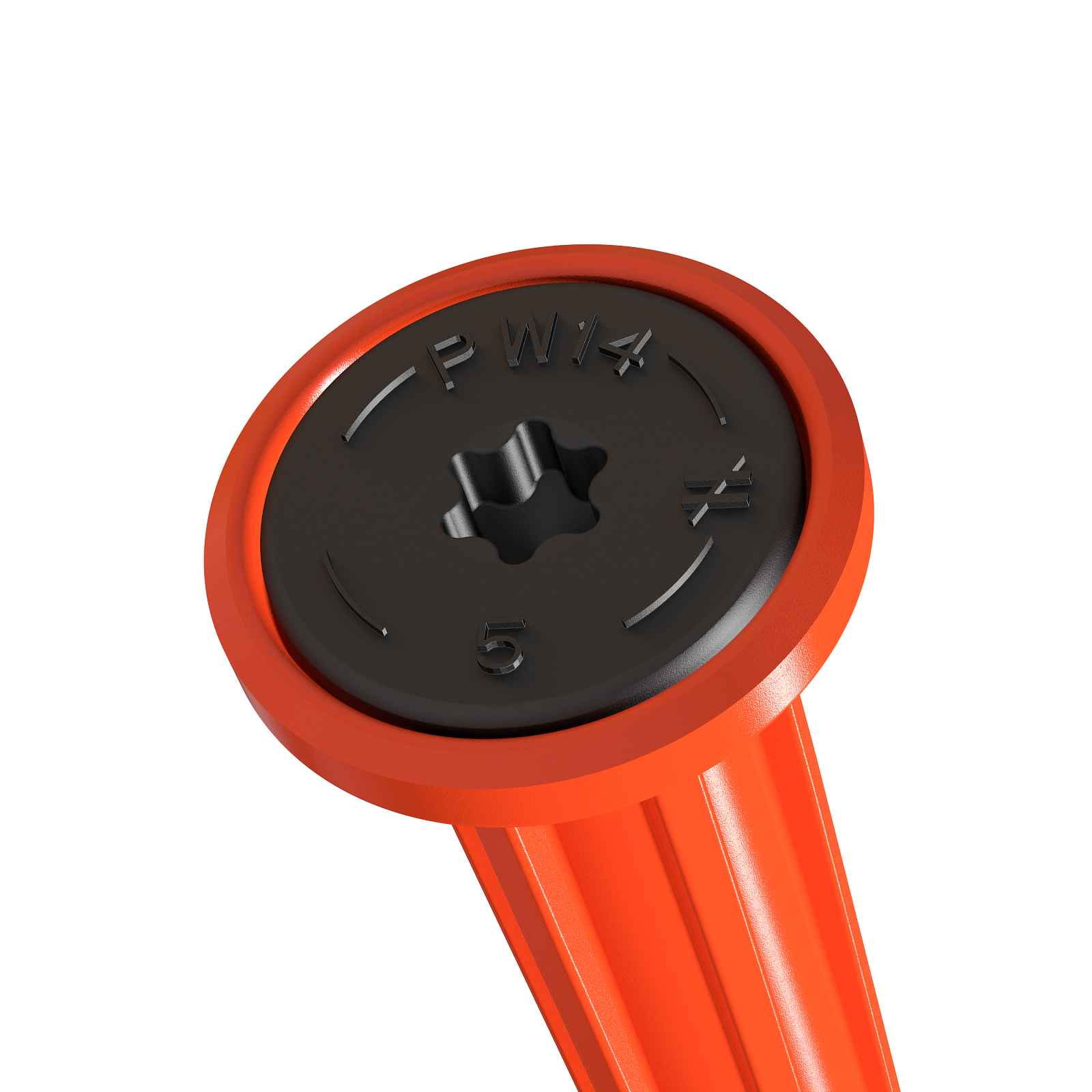

  • Secure Drive System – Deep 6-lobe recess for strong bit engagement.
  • Durable Finish – E-coat (electrocoating) provides corrosion resistance in dry, interior applications.

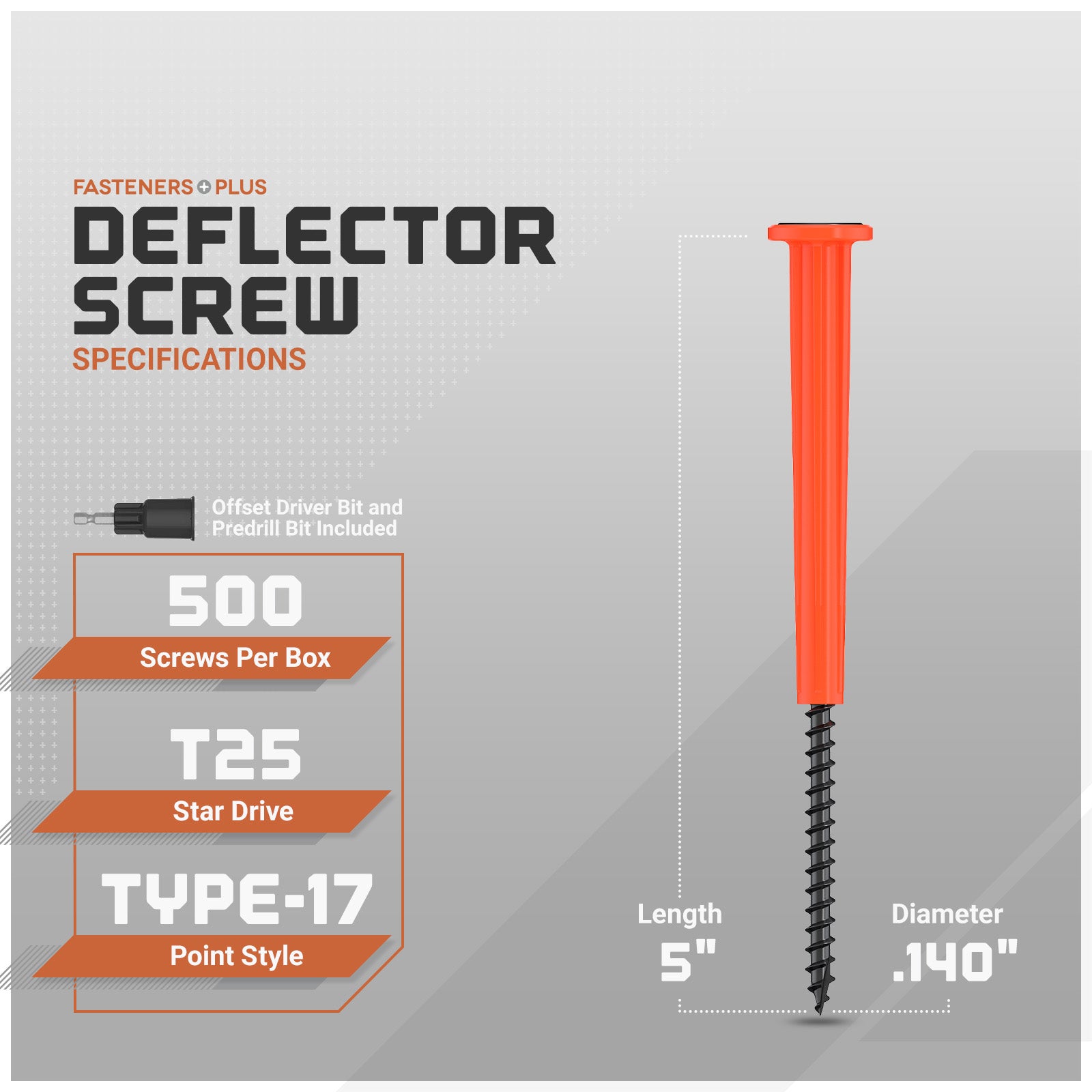

Specifications

Diameter: 0.140"
Length: 5"
Thread Length: 2"
Head Diameter: 0.55"
Thread Type: Coarse Threads
Drive Type: T25 Star Drive
Head Type: Washer Head
Point Type: Type 17 Point
Material: Carbon Steel
Finish: E-coating
Color: Orange
Manufacturer Name: Simpson Strong-Tie

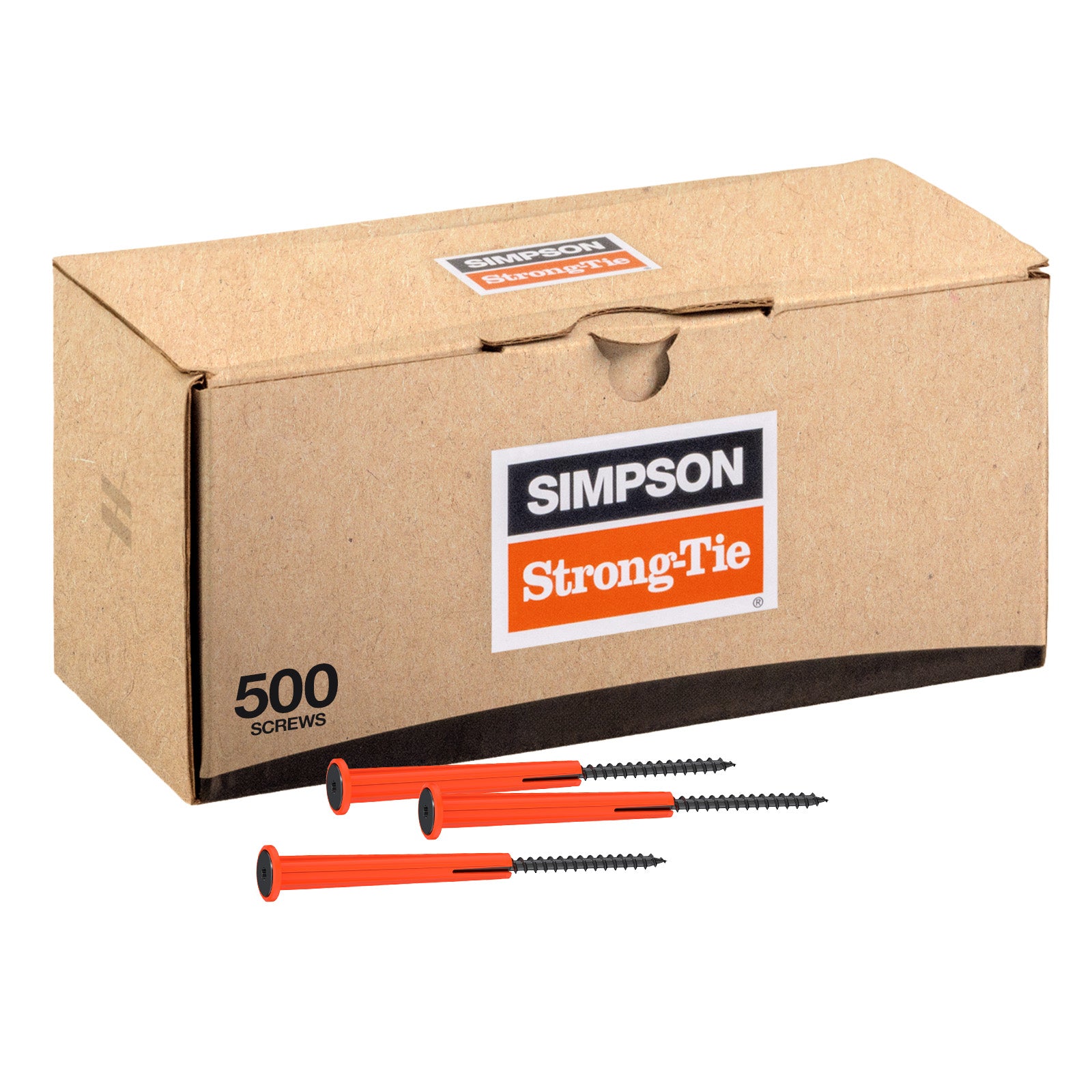

Quantity: 500
Fasteners Required: All Fasteners Included
