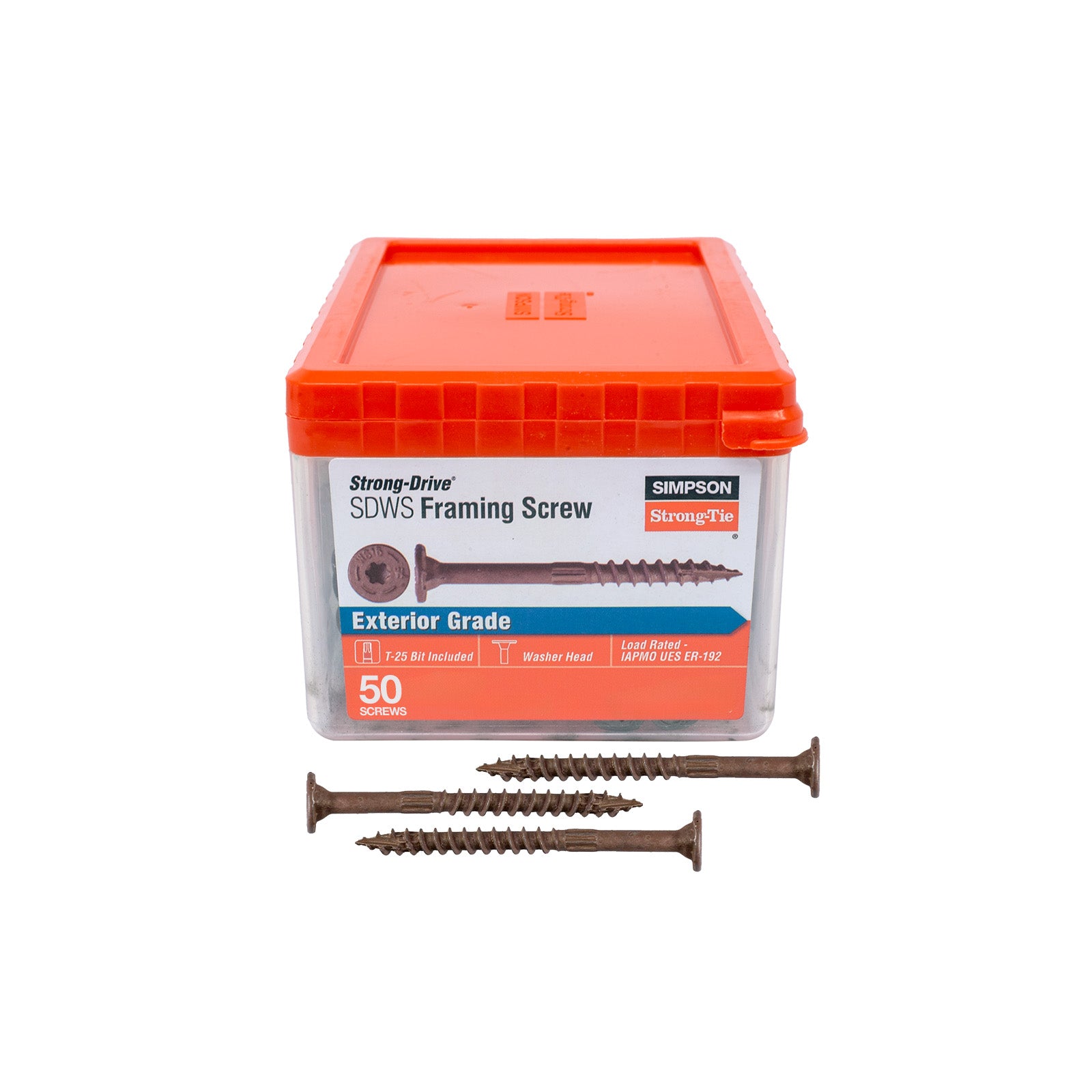

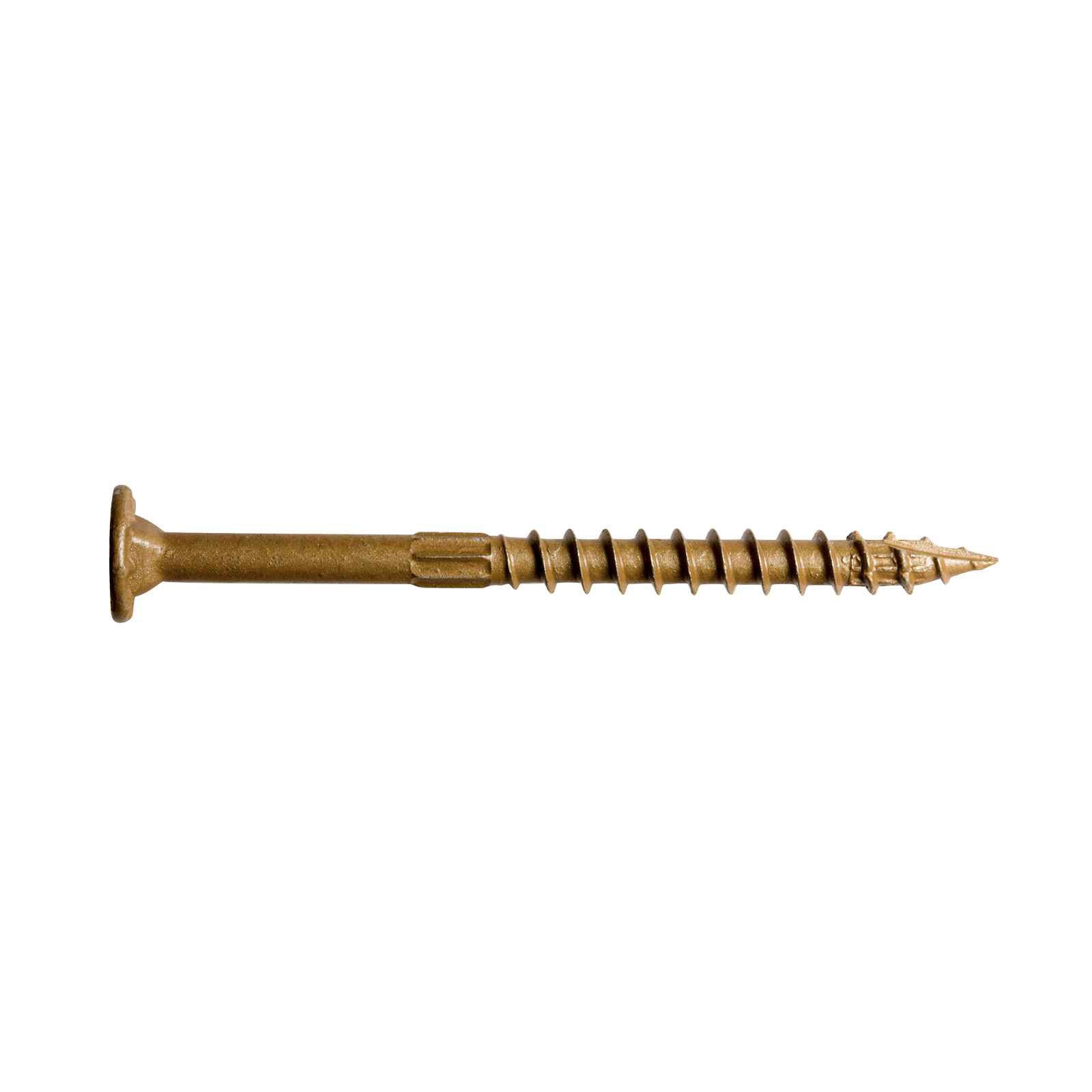

0.160" x 2-1/2" Strong-Tie SDWS16212QR50 Framing Screw, Quik Guard Coating, Pkg 50

0.160" x 2-1/2" Strong-Tie SDWS16212QR50 Framing Screw, Quik Guard Coating, Pkg 50

Regular price $12.31
Sale price $12.31 Regular price
0% off
Payment methods
Accepted payments:
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
shipping truck, lead time icon
Ships May 27 when you order now
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 888-794-1590.


The Simpson Strong-Tie Strong-Drive line of structural fasteners now includes the SDWS Framing screw, designed and load-rated for replacing 16d, 10d and 8d nails in framing applications. The SDWS Framing screw is 0.160" in diameter and superior to nails in holding power and pull-out resistance. It is code listed under IAPMO UES ER-192 and meets 2009 and 2012 IRC and IBC code requirements for several common wood framing applications. The screw has a SawTooth Type-17 tip with serrated threads that makes for fast installations with reduced torque without predrilling, and its specially designed head countersinks easily to provide a clean, flush finish. The T25 bit holds the 6-lobe recess tightly, reducing cam-out and head stripping.

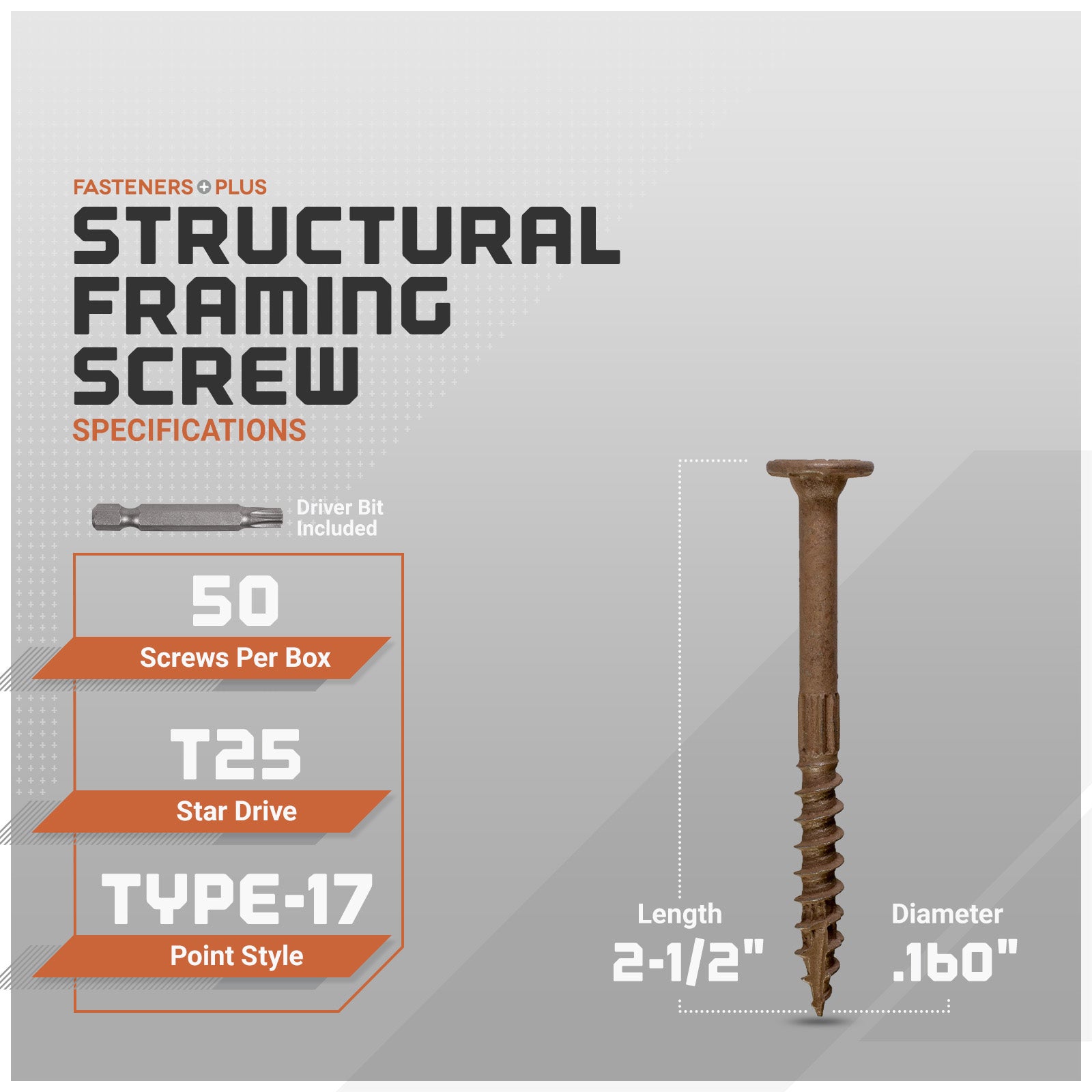

Material: Carbon Steel
Thread type: Serrated Threads
Point type: Sawtooth Type 17 Point
Drive type: T25 Star Drive
Quantity: 50
Head type: Low Profile Head
Finish: Quik Guard Coating
Diameter: 0.160"
Length: 2-1/2"
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Product Guide: View Spec Sheet
