SKU: UBH1375

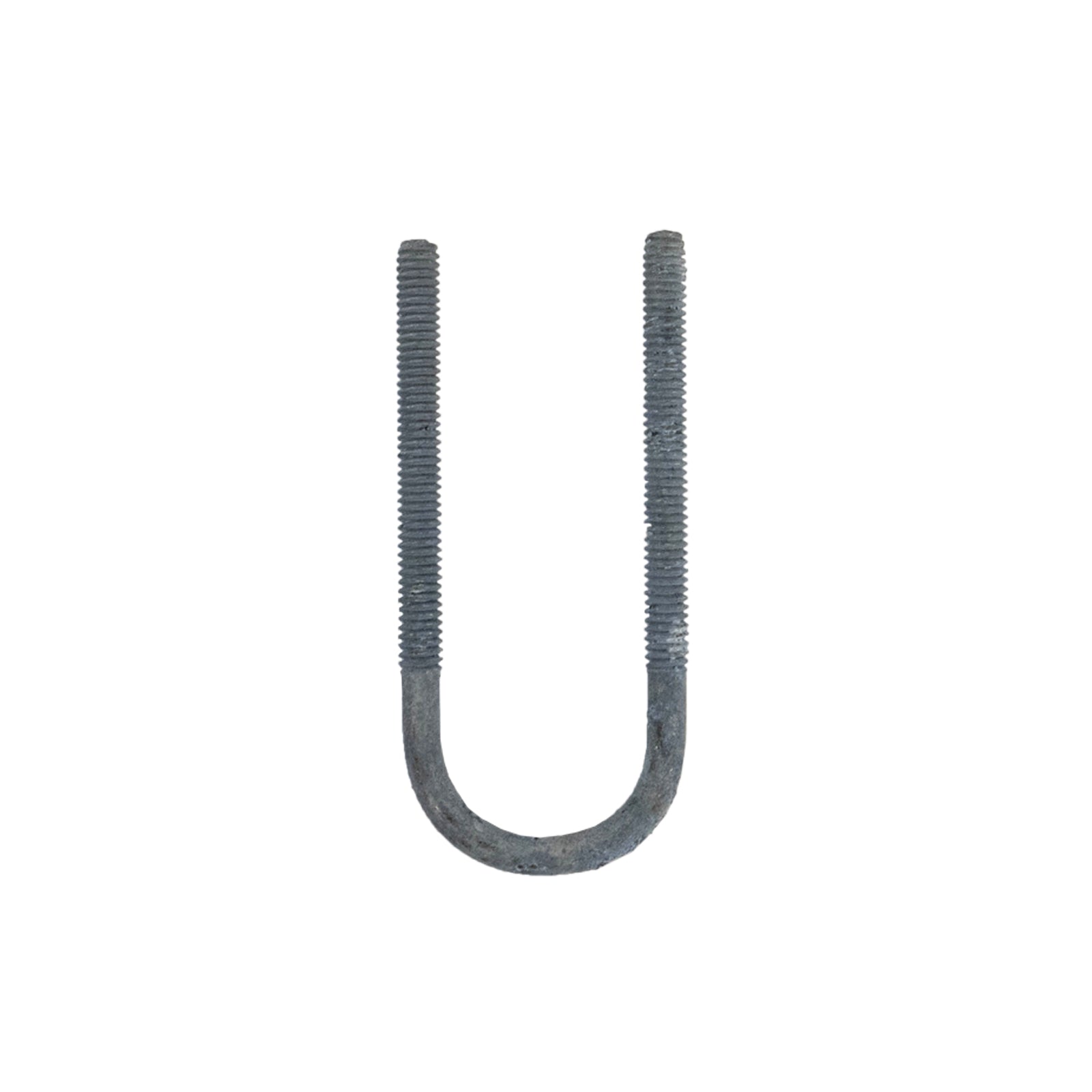

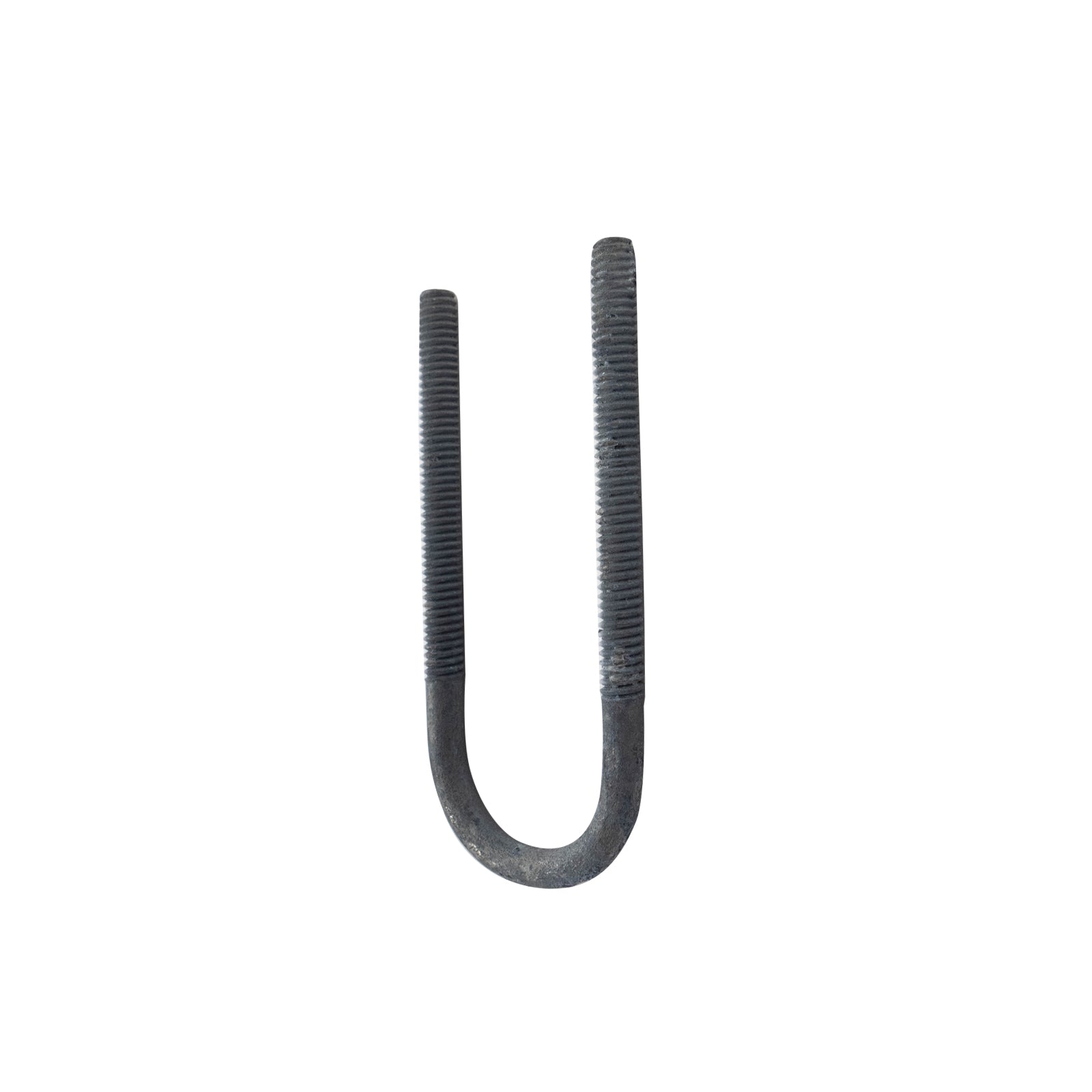

Conquest 15/16" (W) x 3-1/4" (L) x 1/4" (D) Round Pipe U Bolt - Hot Dip Galvanized

Conquest 15/16" (W) x 3-1/4" (L) x 1/4" (D) Round Pipe U Bolt - Hot Dip Galvanized!

  • 1/2" Pipe Galvanized U Bolt
  • 1/2" Pipe U Bolt Galvanized
  • 1/2" Galvanized U-Bolt - Round Pipe Bolt

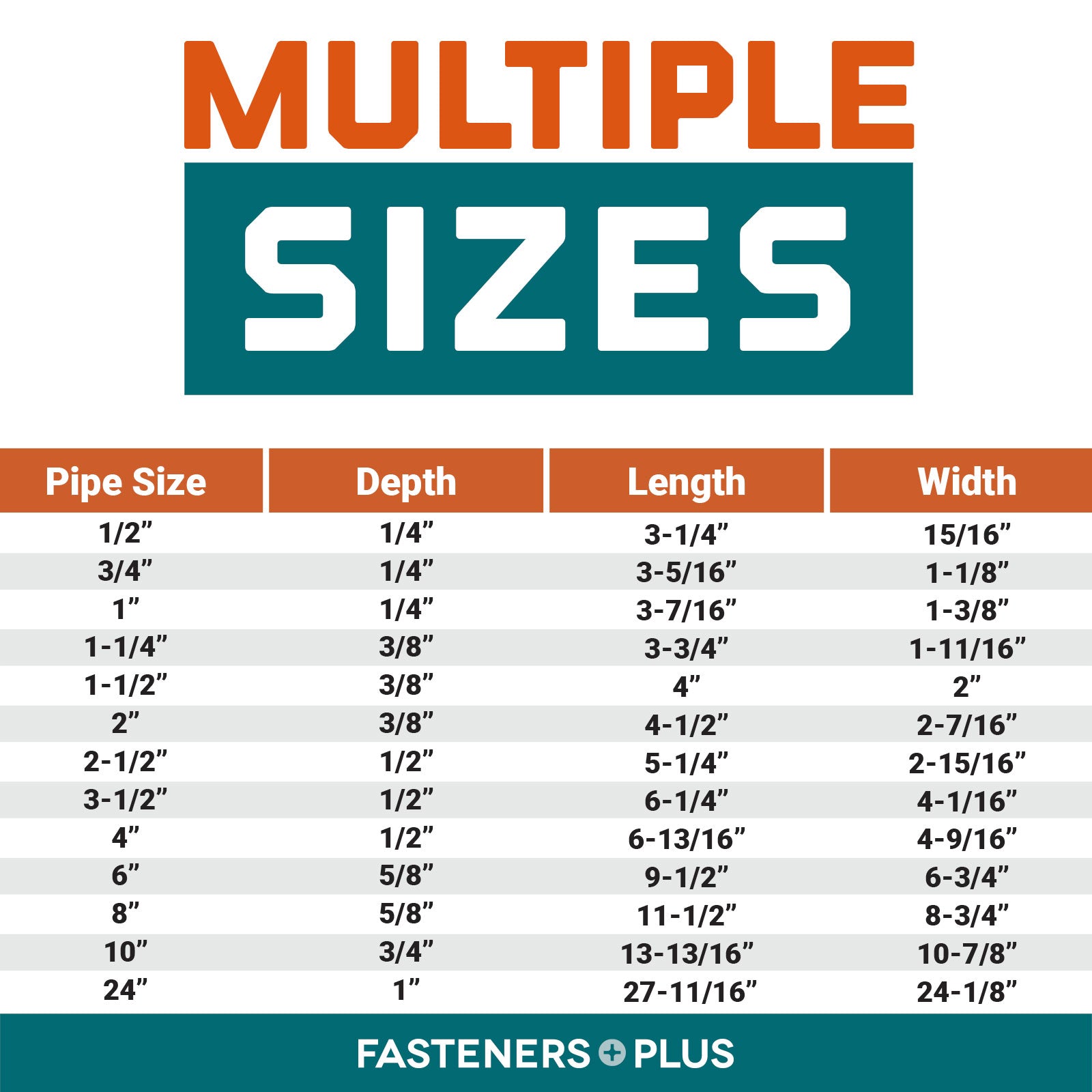

  • U-Bolts Hot Dip Galvanized Multiple Sizes Available
  • U-Bolts Multiple Materials Available
  • Corresponding Nuts & U-Bolts
  • U-Bolts Proudly Made in the USA
  • Conquest Conquer the Job - Premium Products
1 8

Continue Browsing

U-Bolts
SKU: UBH1375

Conquest 15/16" (W) x 3-1/4" (L) x 1/4" (D) Round Pipe U Bolt - Hot Dip Galvanized

$0.99

Request Bulk Pricing
Request Bulk Pricing
Ships today, order in the next 2 hours 35 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Widths:

15/16" 1-11/16" 1-1/8" 1-3/8" 2" 2-15/16" 2-7/16" 4-1/16" 4-9/16" 6-3/4" 8-3/4" 10-7/8" 24-1/8"

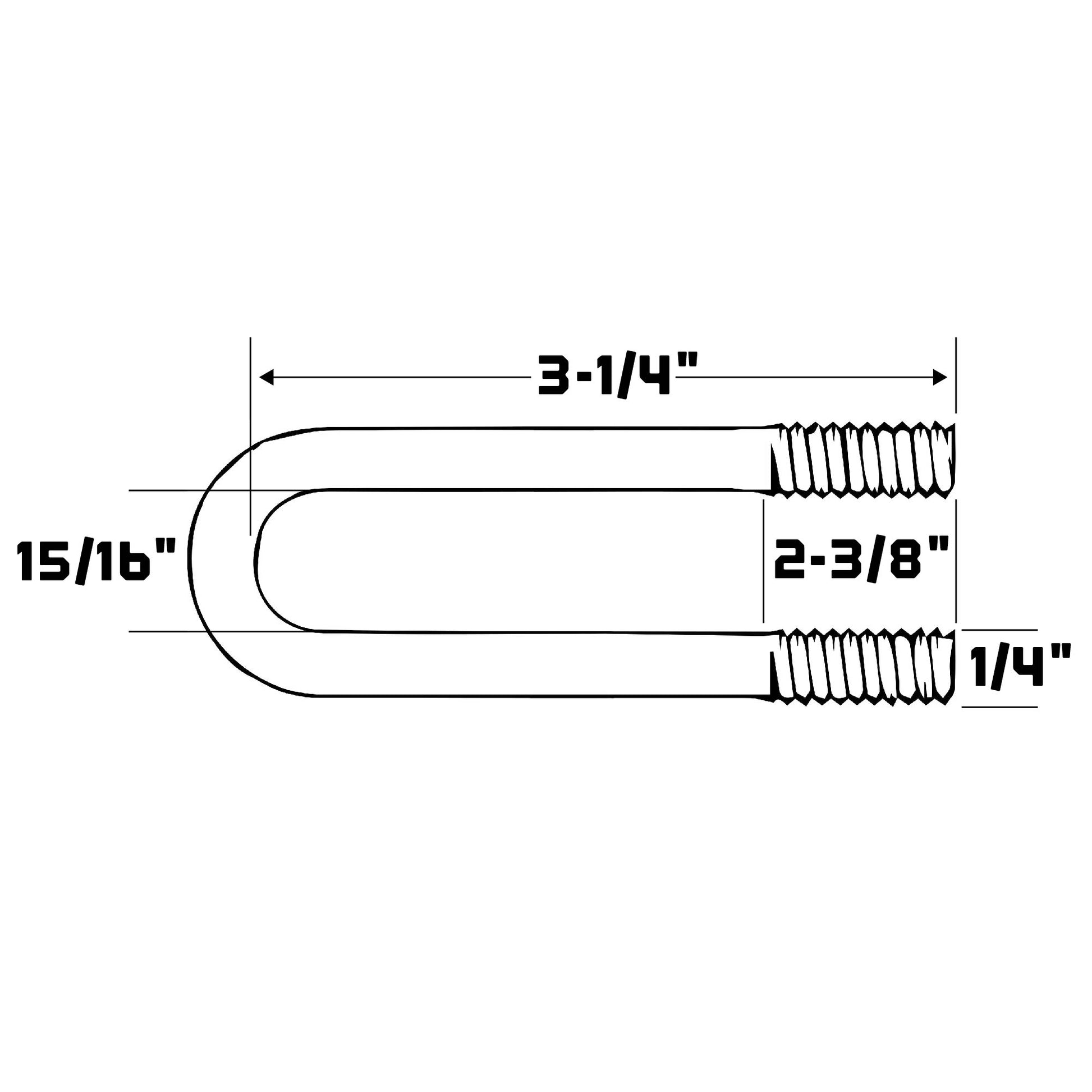

Specifications

Diameter: 1/4"
Finish: Hot Dip Galvanized
Length: 3-1/4"
Material: Cold Drawn 1006-1018 Coil Steel
Hole Spacing Center to Center: 1-3/16"
Manufacturer name: Conquest Fasteners
Thread length: 2-3/8"
Width: 15/16"
Description

The Conquest Round Pipe U Bolt is a dependable solution for securely fastening round pipes and tubing to structural supports. Engineered for strength and long-term durability, each U-bolt is hot dip galvanized to stand up against corrosion in demanding outdoor and industrial environments.

Whether you’re mounting conduit, clamping posts to flat surfaces, or securing piping in plumbing and mechanical applications, these U-bolts deliver reliable holding power. The round bend design wraps cleanly around pipe surfaces, creating a snug and consistent fit that resists vibration and shifting.

Multiple sizes are available to accommodate a range of pipe diameters, with included nuts and optional mounting plates to simplify the installation process. Built for professionals but simple enough for DIY use, these U-bolts are a staple in construction, agriculture, utility, and fabrication work.

Features:

  • Hot Dip Galvanized Finish: Enhanced corrosion resistance for outdoor and high-moisture applications.
  • Round Bend Design: Perfectly shaped to cradle round piping or tubing for a secure grip.
  • Rugged Steel Construction: High load-bearing capability for structural and mechanical applications.
  • Multiple Sizing Options: Choose from a variety of diameters and lengths to fit your specific need.
  • Complete Fastening Solution: Includes hex nuts; optional mounting plates may be available for added support.

Applications:

  • Securing pipe to channel or beam supports
  • Mounting conduit in electrical installations
  • Clamping fencing or railing posts
  • Plumbing, HVAC, and agricultural equipment

Installation:

  1. Choose the correct U-bolt size for your pipe diameter.
  2. Insert the bolt legs through mounting holes or surface brackets.
  3. Tighten nuts evenly on both legs to ensure balanced pressure.
  4. Use mounting plates (if needed) for added strength and load distribution.
More
View full details

Continue Browsing

U-Bolts

× WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.

Customer Reviews

Based on 7 reviews
71%
(5)
14%
(1)
14%
(1)
0%
(0)
0%
(0)
B
Browne's Yard Creations inc.
Awesome Product

Browne's Yard Creations will definitely be using this hard ware for every job we can!!!

J
Jeff Frock

I was very happy with the price and delivery time. But I've had to run a die over all the threads so my 3/8- 16 nuts would thread on to the u-bolts. The galvanizing filled the threads.

Jeff,
Thank you for taking the time to write a review! We are sorry to hear about the issue with the threads on this product. Our customer service team will be reaching out to you directly this discuss this further. Thank you for your feedback and giving us the opportunity to work with you on a resolution!

B
Berry Lindemeyer
8”Galvanized U bolts

The 8 inch galvanized U-bolts did not come with nuts and washers and when I tried to put nuts on the U-bolts that galvanizing had to be wire wheeled off they should come with nuts and washers and that should be taken care of prior to purchase

Berry,
Thank you for taking the time to write a review. This U-Bolt does not come with any nuts or washers. We appreciate your feedback on this product and have passed this information along to our marketing team for consideration on selling this with nuts and washers. Please reach out if we can be of any further assistance!

T
Todd Narum

Perfect to mount leaf springs on odd sized small trailer axle

J
Jim Gerken
Ubolts arrived fast, but were a bit large.

I ordered and was invoiced for 4 inch round u bolts, but what arrived was 4.5" clamps. Some projects could tolerate this size issue but this project could not. I was able to reform the clamps down to the correct size in my hydraulic press, so it wasn't a big deal. Your results/impression may vary.
