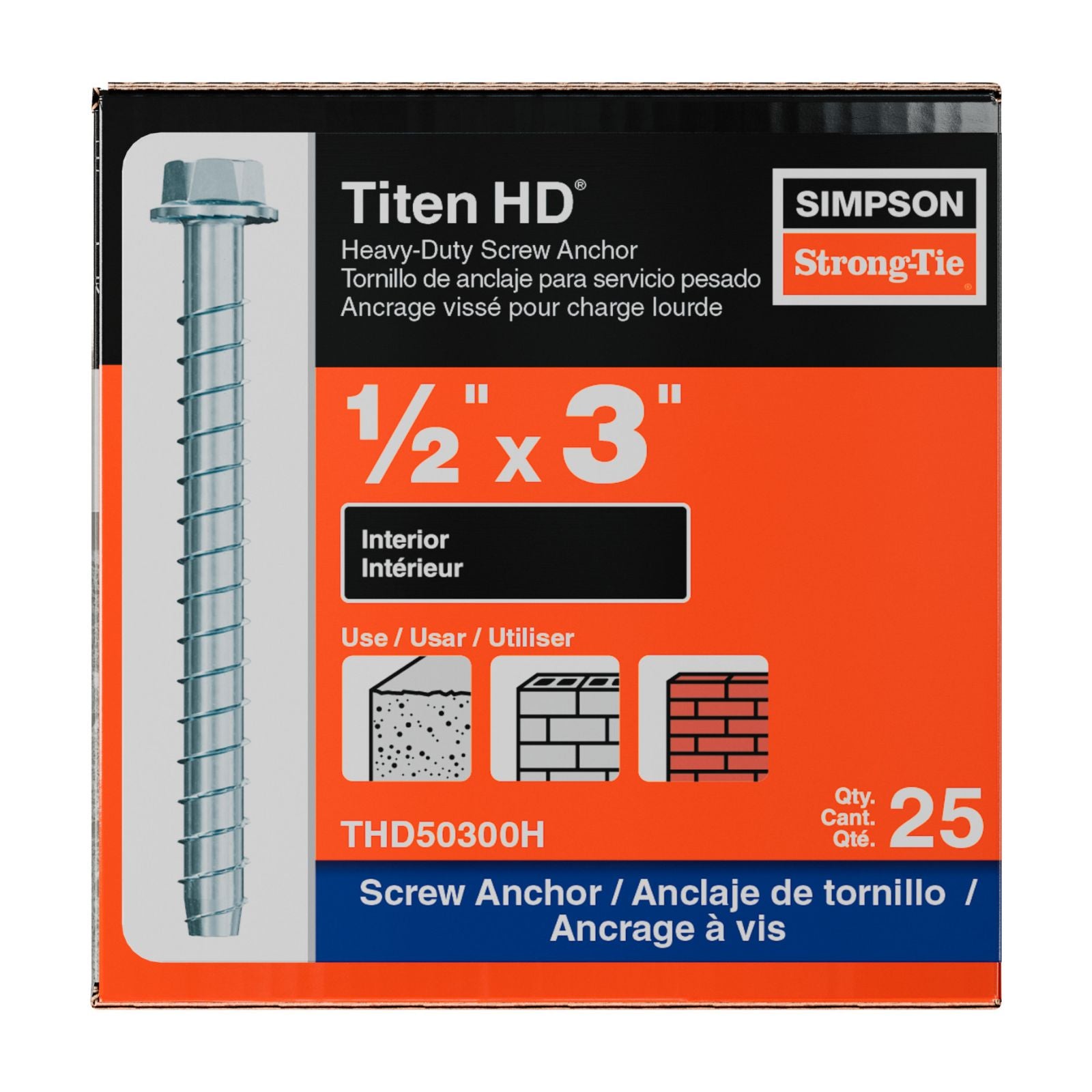

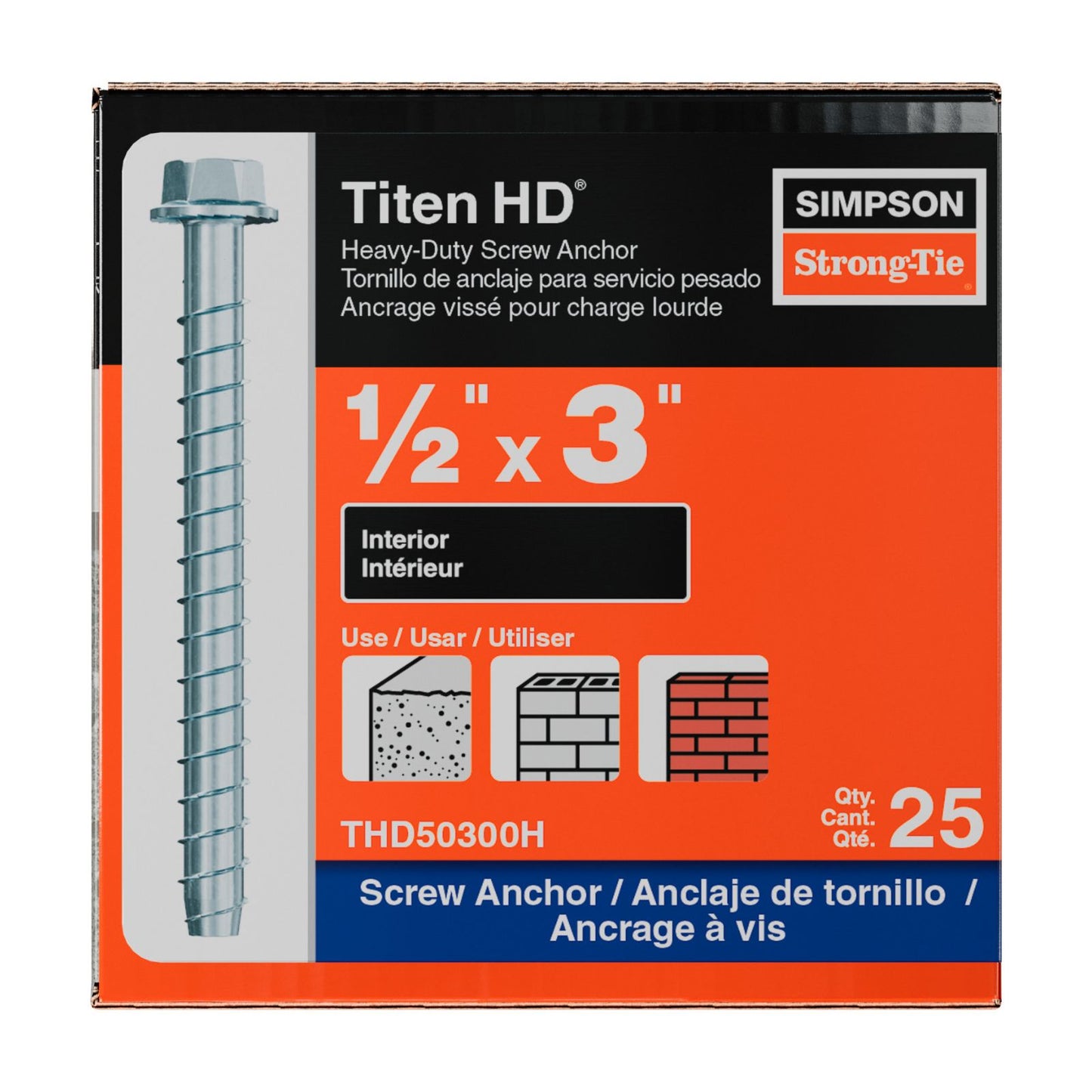

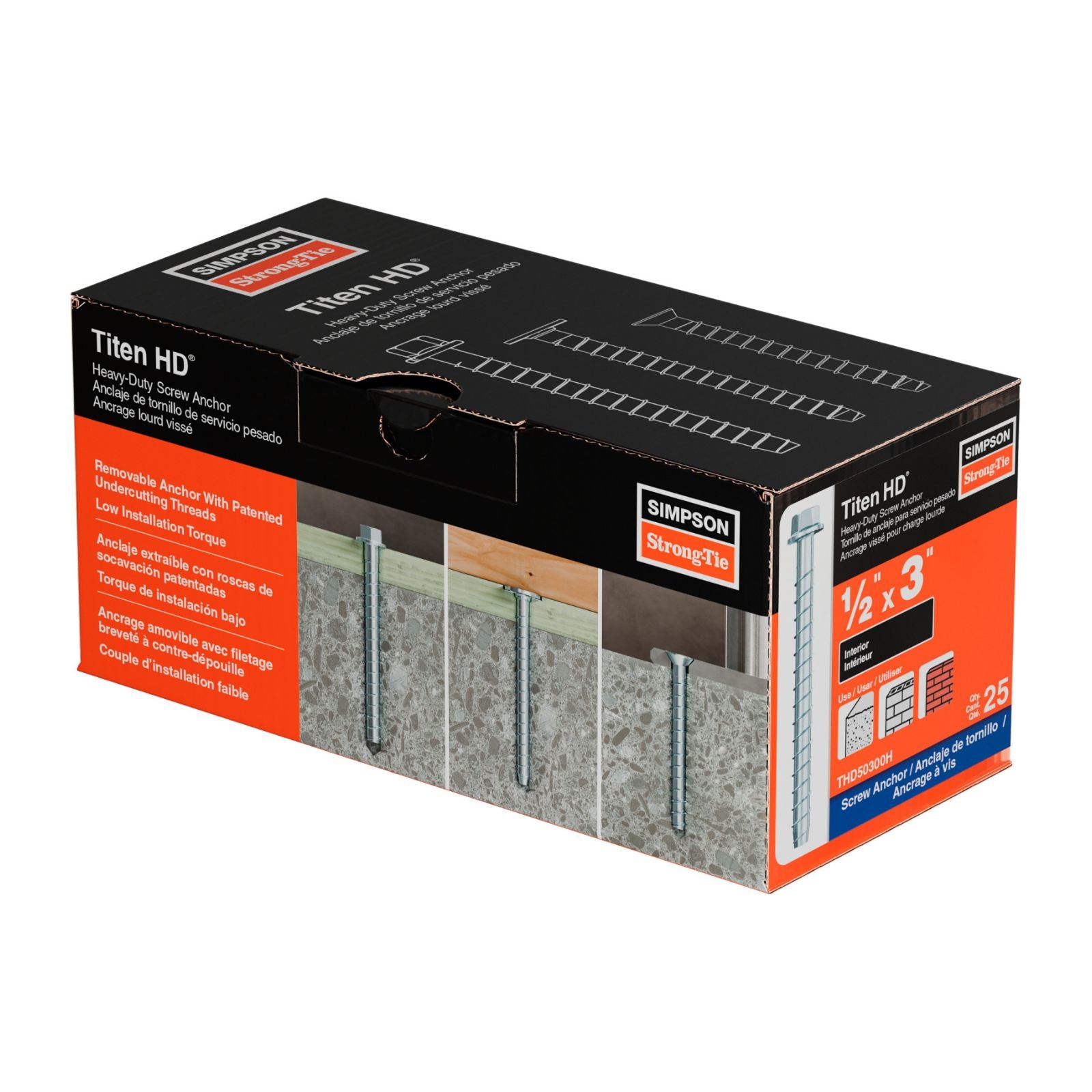

1/2" x 3" Strong-Tie THD50300H Titen HD Screw Anchor, Zinc, Pkg 25
1/2" x 3" Strong-Tie THD50300H Titen HD Screw Anchor, Zinc, Pkg 25!
Continue Browsing
Zinc Large Diameter Concrete Screws
Specifications

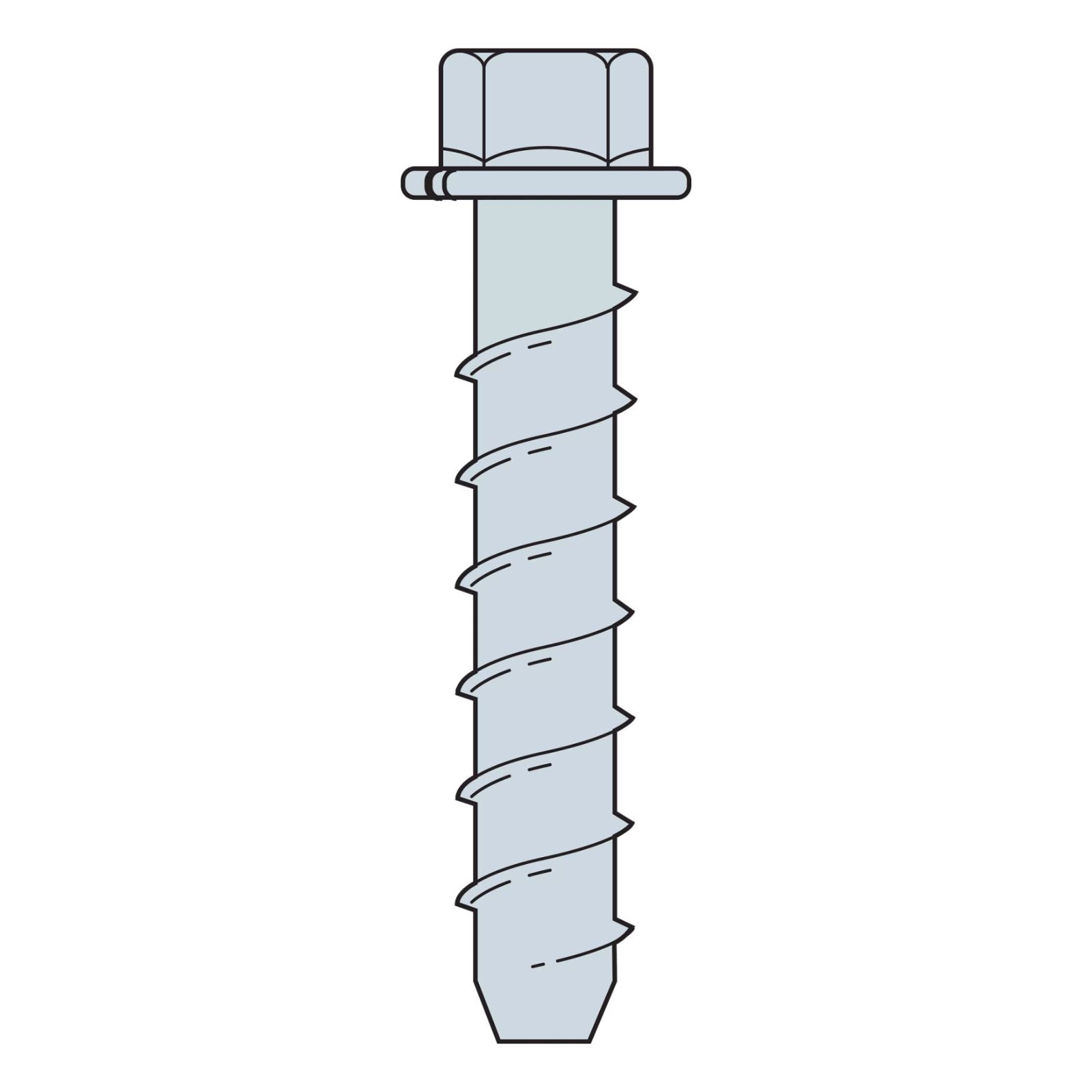

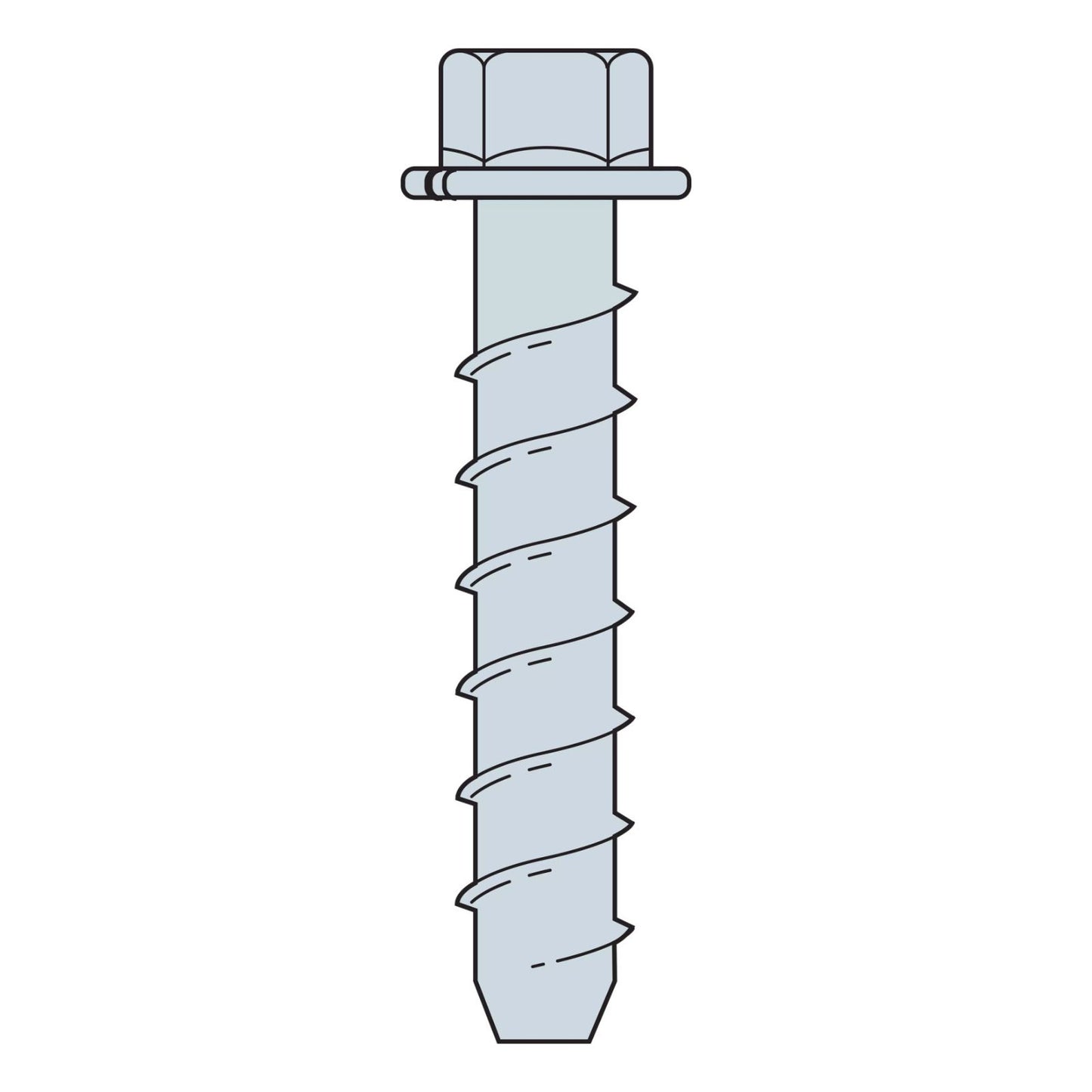

Titen HD screw anchors are high strength anchors designed to be quickly and easily installed in cracked and uncracked concrete applications. These anchors are code listed by ICC-ES for cracked and uncracked concrete applications under the 2009 IBC. All Titen HD screw anchors feature a patented thread design with serrated cutting teeth for easy installation. These zinc concrete screws are designed for use in dry, interior, and non-corrosive environments or temporary outdoor applications.
Installation
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed. Drill the hole to the specified embedment depth plus minimum hole depth overdrill (see table below) to allow the thread tapping dust to settle, and blow it clean using compressed air. (Overhead installations need not be blown clean.) Alternatively, drill the hole deep enough to accommodate embedment depth and the dust from drilling and tapping.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor into the base material until the hex-washer head contacts the fixture.
