SKU: THD50800WH

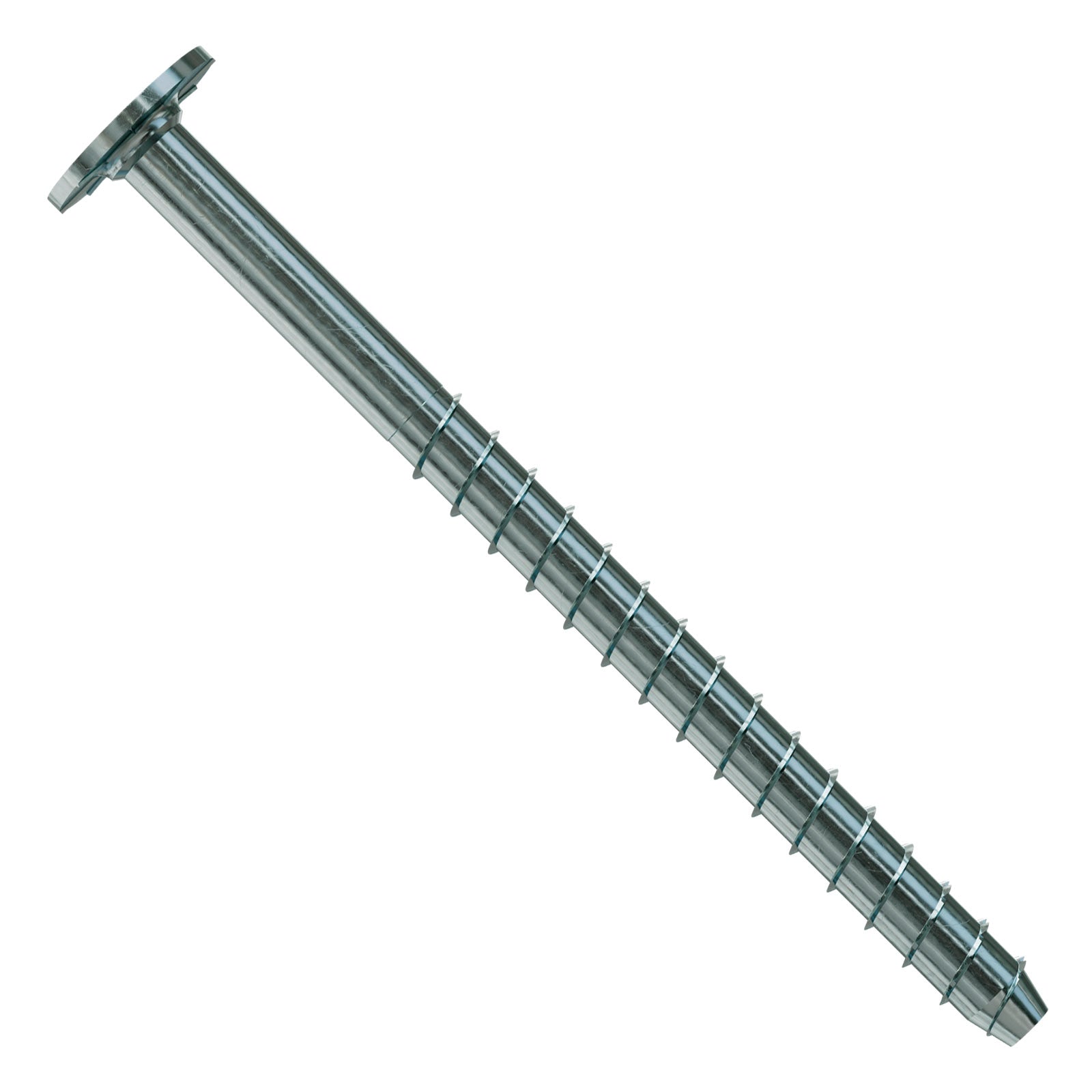

1/2" x 8" Strong-Tie THD50800WH Washer Head Titen HD Anchor, Zinc, Pkg 15

1/2" x 8" Strong-Tie THD50800WH Washer Head Titen HD Anchor, Zinc, Pkg 15!

  • 1/2" x 8" Strong-Tie Washer Head Titen HD Anchor
  • Washer Head Titen
  • Titen Washer Head HD
1 3

Continue Browsing

Zinc Large Diameter Concrete Screws
SKU: THD50800WH

1/2" x 8" Strong-Tie THD50800WH Washer Head Titen HD Anchor, Zinc, Pkg 15

$74.88

Request Bulk Pricing
Request Bulk Pricing
Ships FREE Dec 16 when you add 3 to your cart
Fill out the form below or give our sales consultants a call at 866-421-4854.

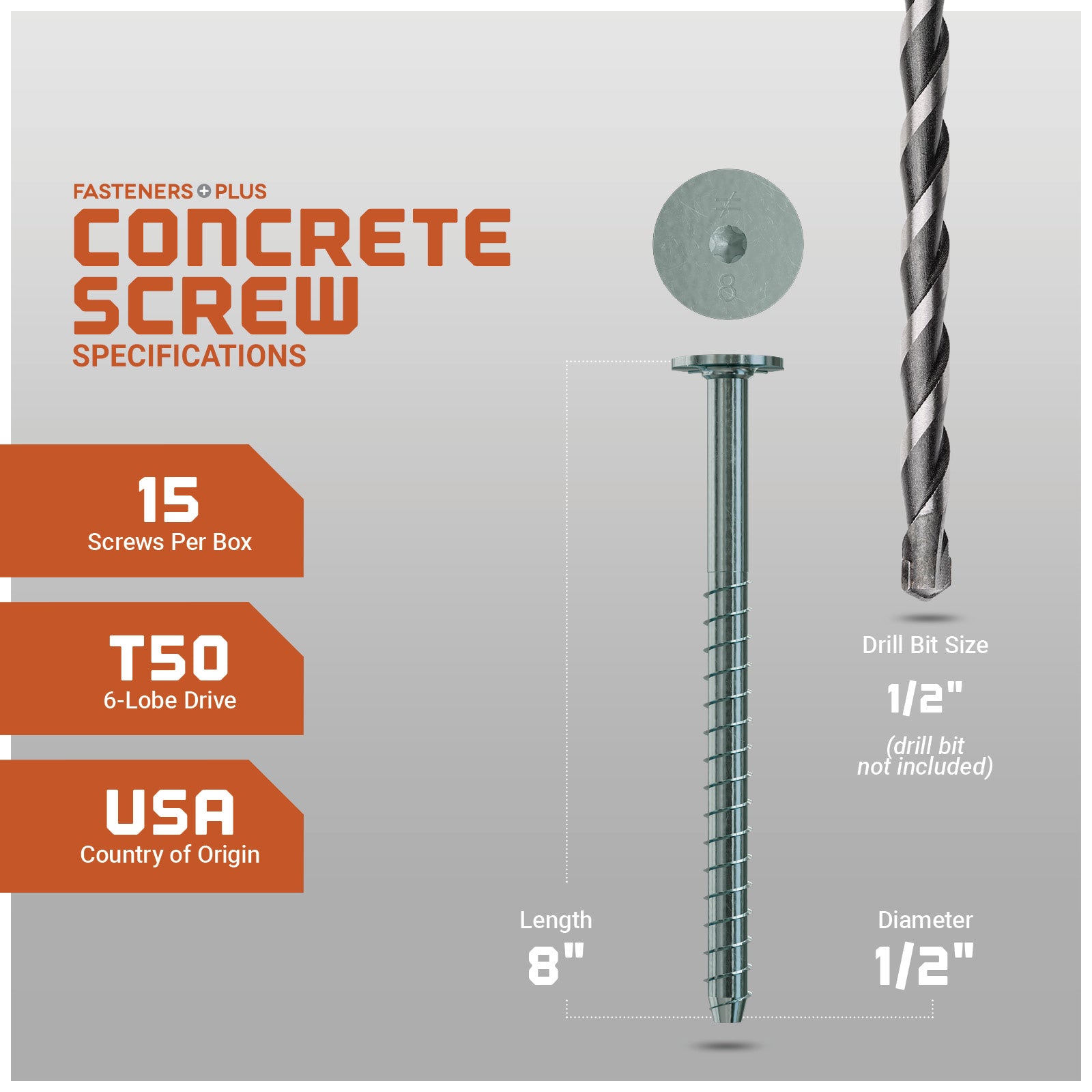

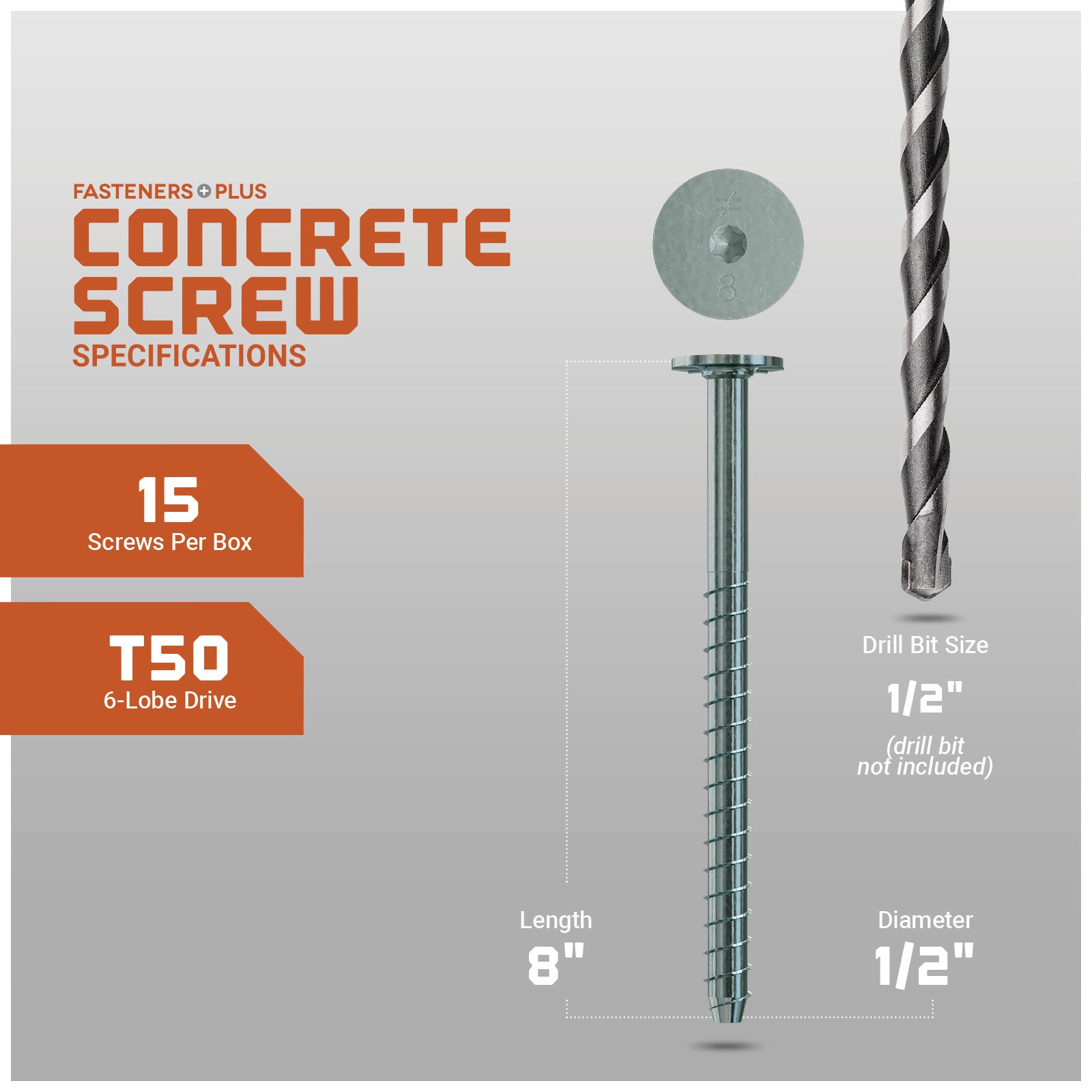

Specifications

Diameter: 1/2"
Finish: Zinc
Length: 8"
Material: Carbon Steel
Drill bit size: 1/2"
Drive type: T50 6-Lobe
Fixture hole size: 5/8"-11/16"

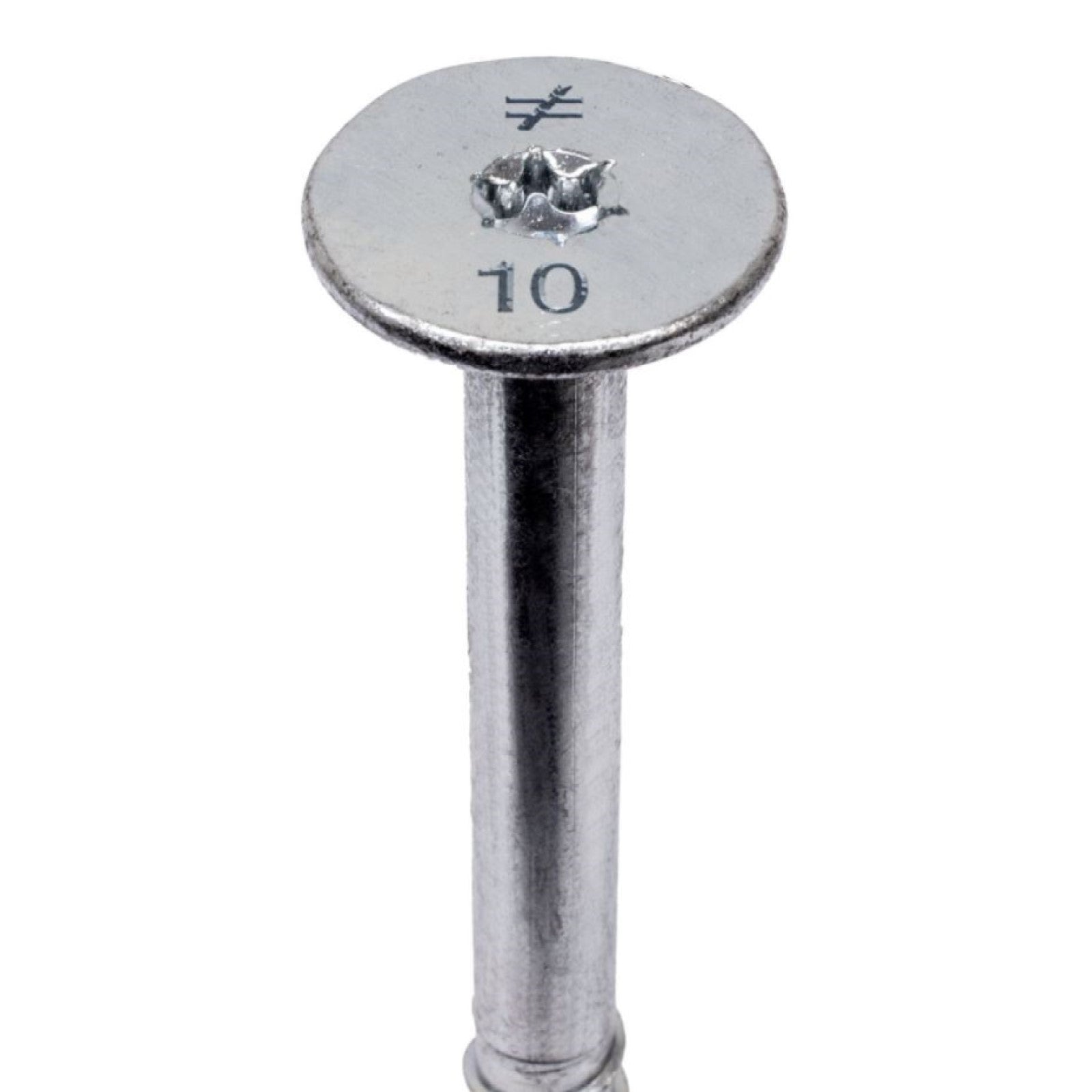

Head type: Washer Head
Manufacturer name: Simpson Strong-Tie
Quantity: 15
Description

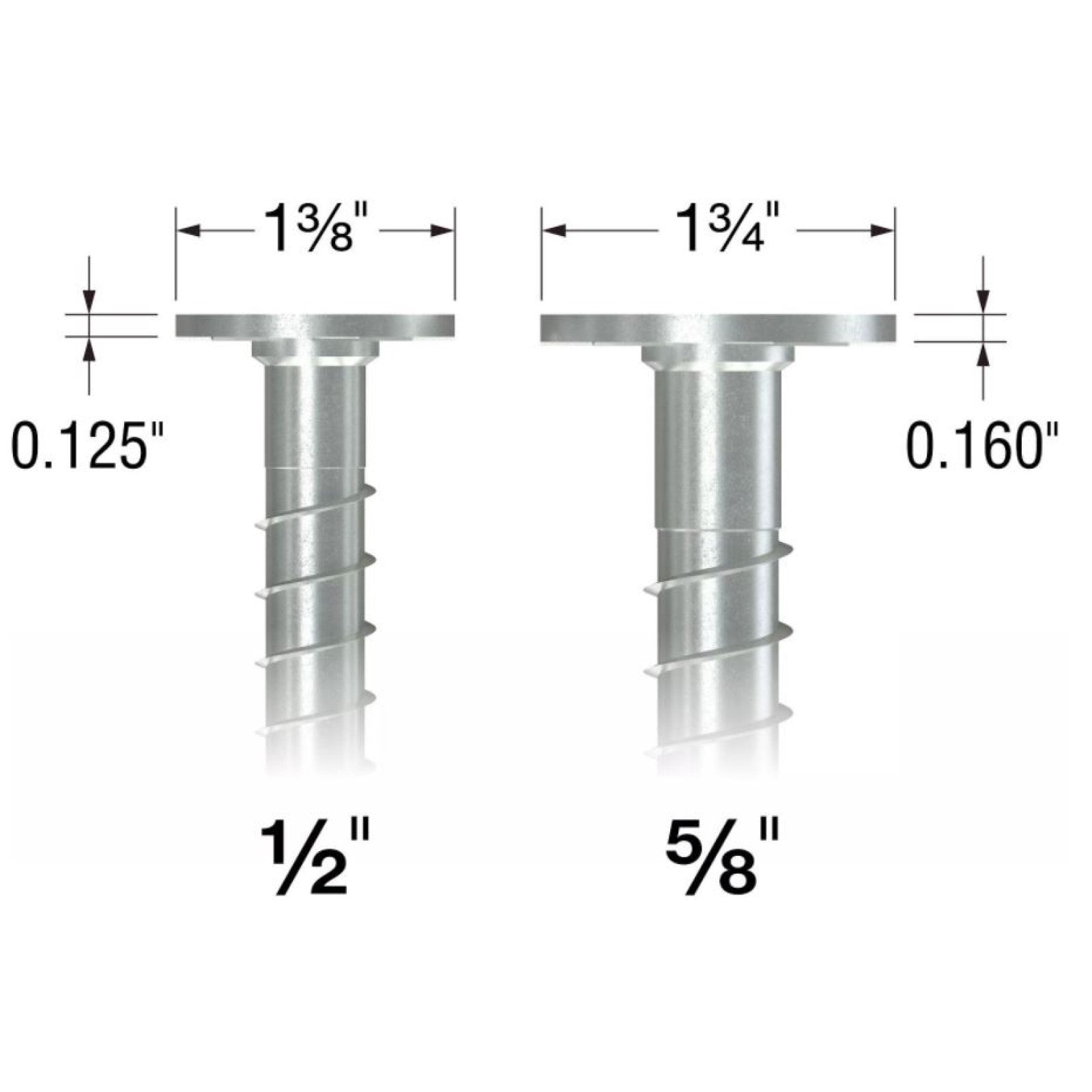

1/2" x 8" Washer Head Titen HD screw anchors are high-strength anchors designed to be installed in cracked and uncracked concrete, as well as masonry. The washer-head design is commonly used where a low profile head is necessary. The washer head screw anchor is suitable to use in sill plate applications. Modular wall and floor systems can be installed right over the top of the anchor with no notching required due to the minimal head profile. These anchors are in accordance with the ICC-ES AC193 and ACI 355.2 for cracked and uncracked concrete for static, wind, and seismic loading conditions. Pre-drilling with a carbide drill bit the same diameter as the anchor is necessary for proper installation. Washer Head profile is 0.125" thick with a diameter of 1-3/8".
