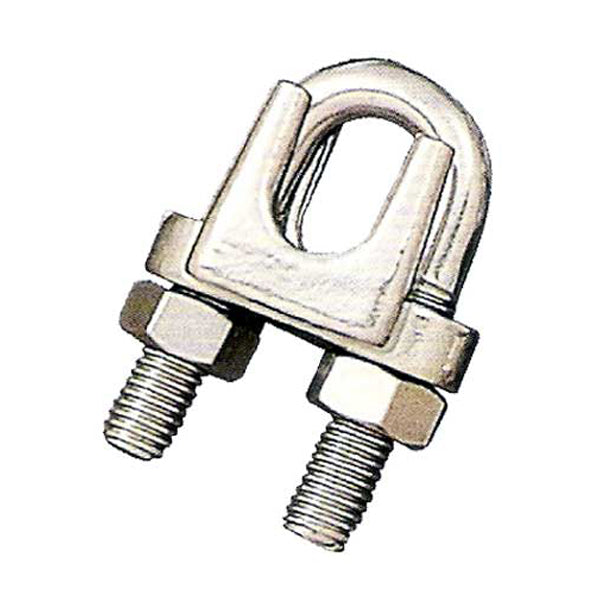

1/8" Wire Rope Clip Stainless Steel Type 304
1/8" Wire Rope Clip Stainless Steel Type 304!
1/8" Wire Rope Clip Stainless Steel Type 304
Specifications
Wire Rope Clip Stainless Steel Type 304
This Type 304 stainless steel wire rope clip provides a dependable and cost-effective solution for creating wire rope terminations, eye assemblies, and splices. Manufactured from corrosion-resistant stainless steel and precision cast to Federal Specification FF-C-450D, Type 1 requirements, these clips are designed for reliable performance in marine, architectural, industrial, and general-purpose wire rope applications.
Reliable Wire Rope Terminations & Eye Assemblies
Wire rope clips are an essential component in many wire rope systems. They are commonly used to connect two sections of wire rope together or to create a looped eye by securing the dead end of the rope back onto the live line. Their simple installation and adjustability make them a practical choice for a wide variety of rigging, securement, and utility applications.
When properly installed using the recommended number of clips, correct spacing, adequate overlap, and specified torque values, wire rope clips provide a secure and effective wire rope termination without requiring specialized swaging equipment.
Proper Installation Matters
A well-known rule throughout the rigging industry is:
"Never saddle a dead horse."
This means the saddle portion of the wire rope clip should always be installed on the live end (load-bearing side) of the wire rope, while the U-bolt is positioned on the dead end (terminated side). Following proper installation procedures helps maximize holding strength and assembly reliability.
Standards & Construction
Precision cast to Federal Specification FF-C-450D, Type 1 requirements, these Type 304 stainless steel wire rope clips offer excellent corrosion resistance and dependable performance at an economical price point.
Key Features
- Manufactured from Type 304 stainless steel for corrosion resistance
- Precision cast to Federal Specification FF-C-450D, Type 1
- Used to create wire rope eyes and secure wire rope terminations
- Suitable for connecting two sections of wire rope together
- Excellent choice for marine, architectural, industrial, and outdoor applications
- Provides dependable corrosion resistance and long service life
- Field-installable without specialized swaging equipment
- Cost-effective solution for wire rope assembly and repair
- Compatible with a wide range of wire rope diameters and configurations
- Designed for reliable performance when installed according to recommended clip quantity and torque specifications
