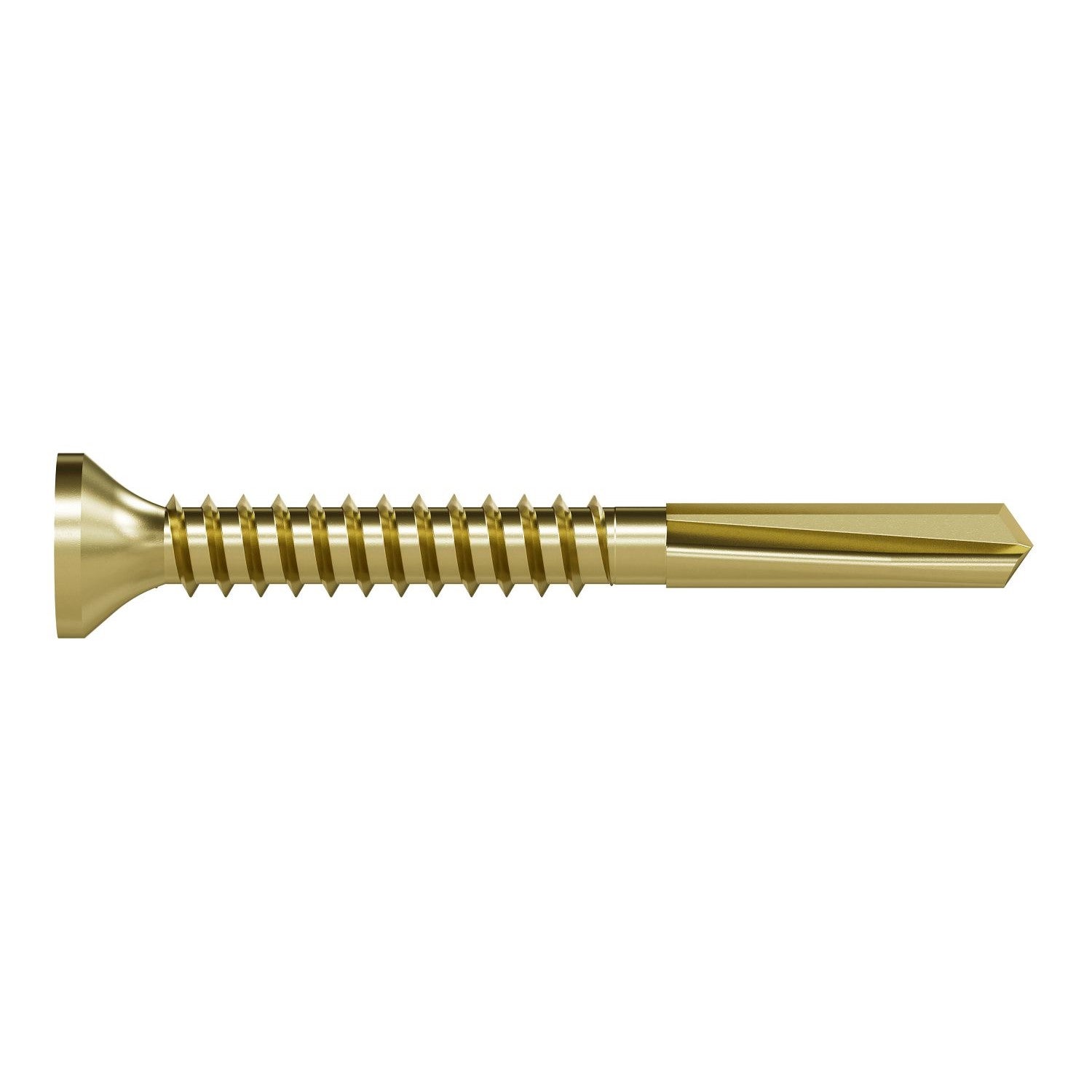

Simpson Strong-Tie #10 x 1-3/4" Strong-Drive PPHD Sheathing-To-Steel Screw - Yellow-Zinc Coated, Collated, Qty. 2,000
Simpson Strong-Tie #10 x 1-3/4" Strong-Drive PPHD Sheathing-To-Steel Screw - Yellow-Zinc Coated, Collated, Qty. 2,000!
Continue Browsing
Strong-Drive PPHD Sheathing-To-CFS Screw
Simpson Strong-Tie #10 x 1-3/4" Strong-Drive PPHD Sheathing-To-Steel Screw - Yellow-Zinc Coated, Collated, Qty. 2,000

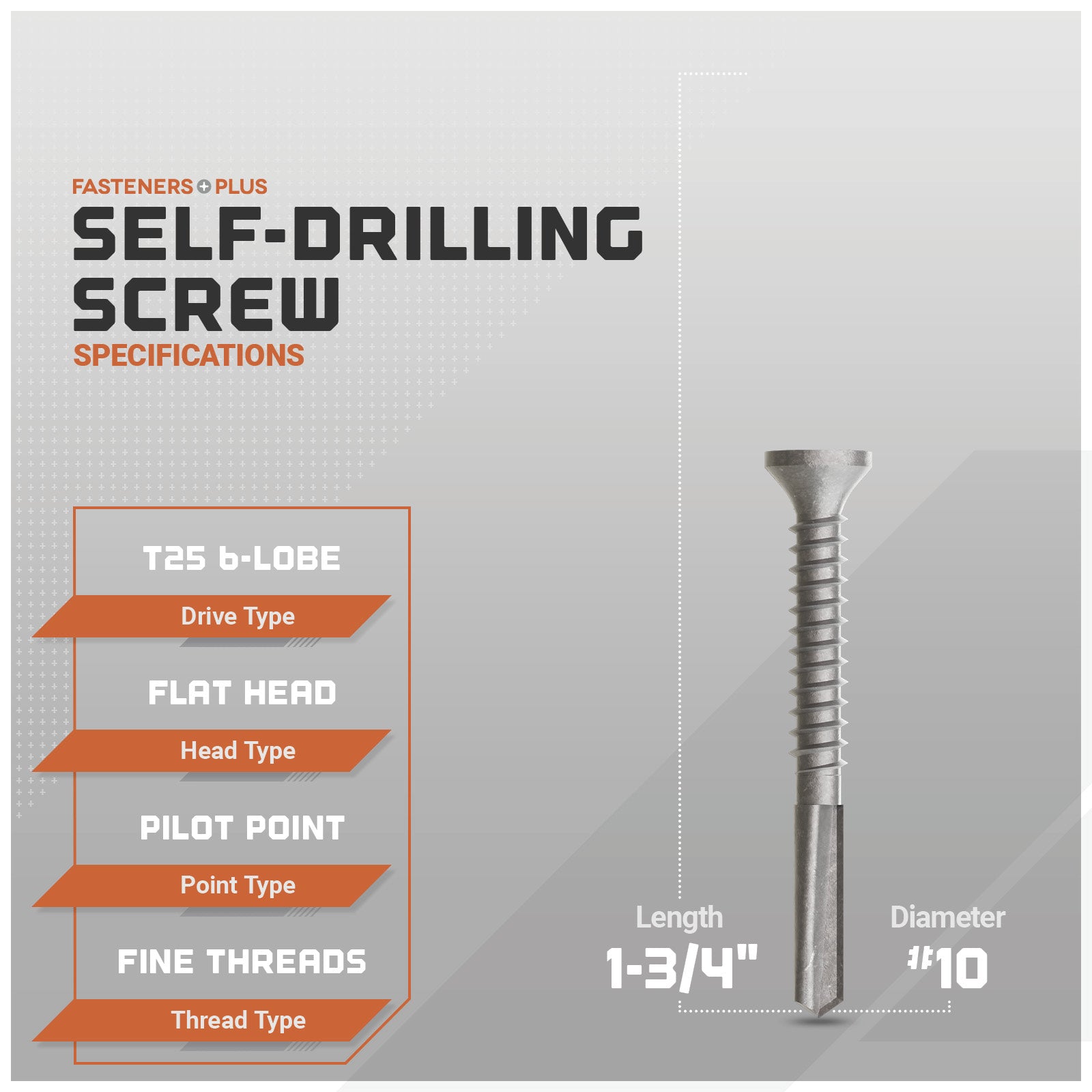

Specifications
The Simpson Strong-Tie PPHD134S1016 PPHD collated sheathing-to-CFS screw is built for high-volume fastening and consistent performance in sheathing-to-steel applications. Designed specifically for use with auto-feed systems, this screw delivers speed, strength, and precision for contractors working on walls, roofs, and subfloor systems with cold-formed steel framing.
Its low-profile pancake head provides smooth finishes and minimized pull-through, while the #2 drill point ensures fast starts without the need for predrilling. The collated design helps streamline installation, reducing downtime and increasing productivity on the jobsite.
Available in multiple lengths and finishes, these screws are ideal for fastening wood sheathing, gypsum panels, and fiber cement board to cold-formed steel studs or track.
Key Features:

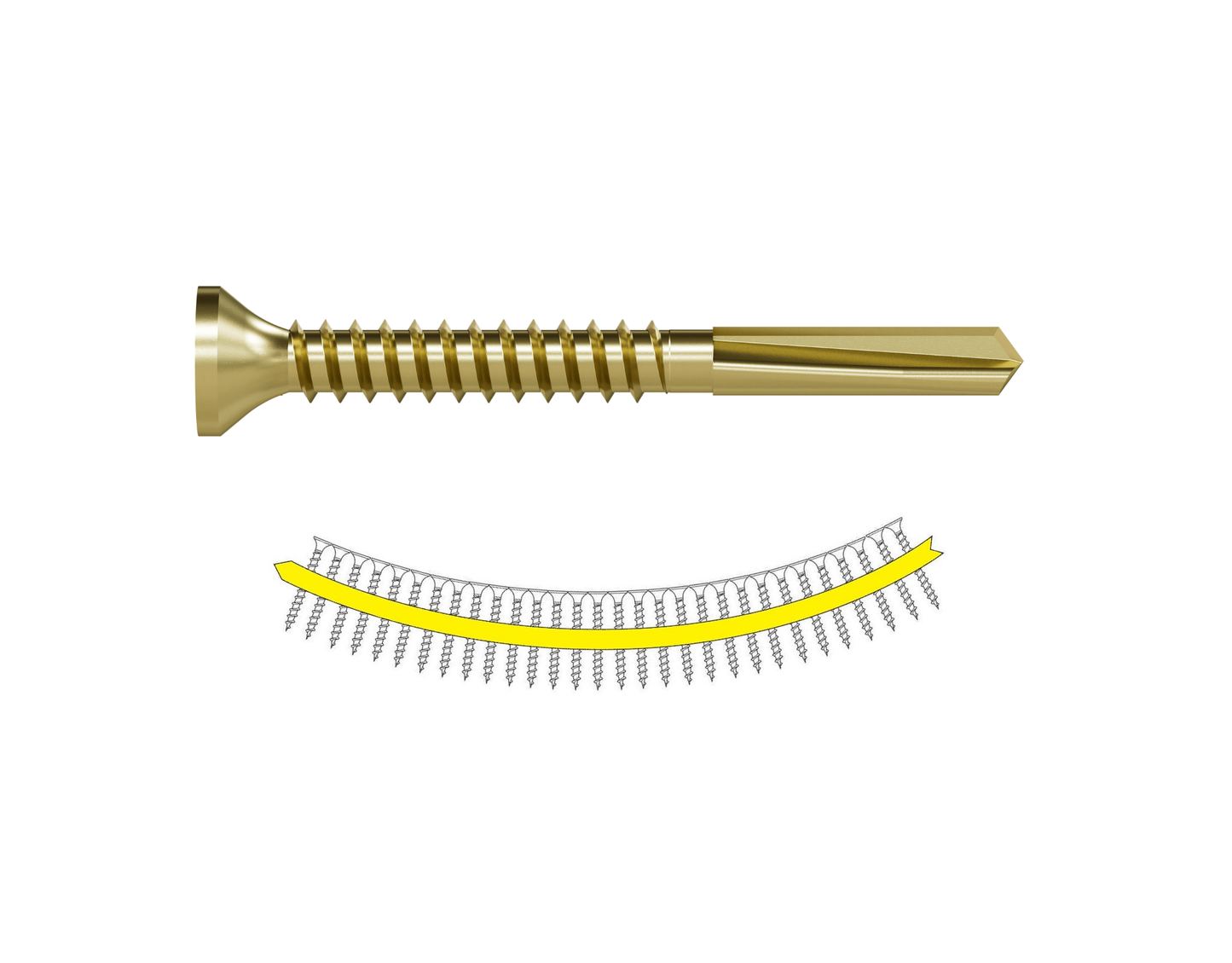

- Collated for use with auto-feed screw driving systems
- Pancake-style head offers low-profile appearance and excellent pull-through resistance
- Self-drilling #2 point eliminates need for predrilling in most steel applications
- Optimized thread design reduces driving torque while ensuring strong holding power
- Tested and code-listed under ICC-ES ESR-3116 for sheathing-to-CFS applications
Applications:
- Wood structural panels to cold-formed steel framing
- Gypsum board to CFS wall systems
- Fiber cement panels to steel substructures
- Roof and floor sheathing installations
- Commercial and multifamily cold-formed steel construction
Installation Notes:
- Use with approved auto-feed screw guns for best performance
- Ensure alignment with CFS framing for optimal embedment
- No predrilling required for steel up to 12 gauge
- Drive screw flush with surface without overdriving
Add the Essentials
Complete your order with these essentials, compatible with:
Simpson Strong-Tie #10 x 1-3/4" Strong-Drive PPHD Sheathing-To-Steel Screw - Yellow-Zinc Coated, Collated, Qty. 2,000
My Cart:
Continue Browsing
Strong-Drive PPHD Sheathing-To-CFS Screw
Add the Essentials
Complete your order with these essentials, compatible with:
Simpson Strong-Tie #10 x 1-3/4" Strong-Drive PPHD Sheathing-To-Steel Screw - Yellow-Zinc Coated, Collated, Qty. 2,000
My Cart:
-
Self-Drilling Screws for Efficient Fastening
By combining drilling, tapping and fastening into a single step, self-drilling screws eliminate the need for pre-drilling and increase efficiency on the job. Ideal for a wide range of applications, from attaching metal roofing and siding to fastening materials to metal substrates.
-
Self-Drilling Screws with Seemingly Unlimited Options
Our self-drilling screws come in a wide range of options to tackle everything from metal-to-metal and wood-to-metal fastening to interior framing and exterior cladding. Choose from multiple head styles, drive types, and corrosion-resistant finishes like zinc, galvanized, ceramic-coated, and stainless steel, each built for strength, speed, and long-term performance.
-
The Right Point for Every Project
Different point types pierce various materials. Standard points handle light- to medium-gauge metal, long points tackle thicker steel, self-piercing points work well in wood or thin metal and winged points clear softer layers before drilling harder substrates, ensuring faster, cleaner and secure installations.
-
